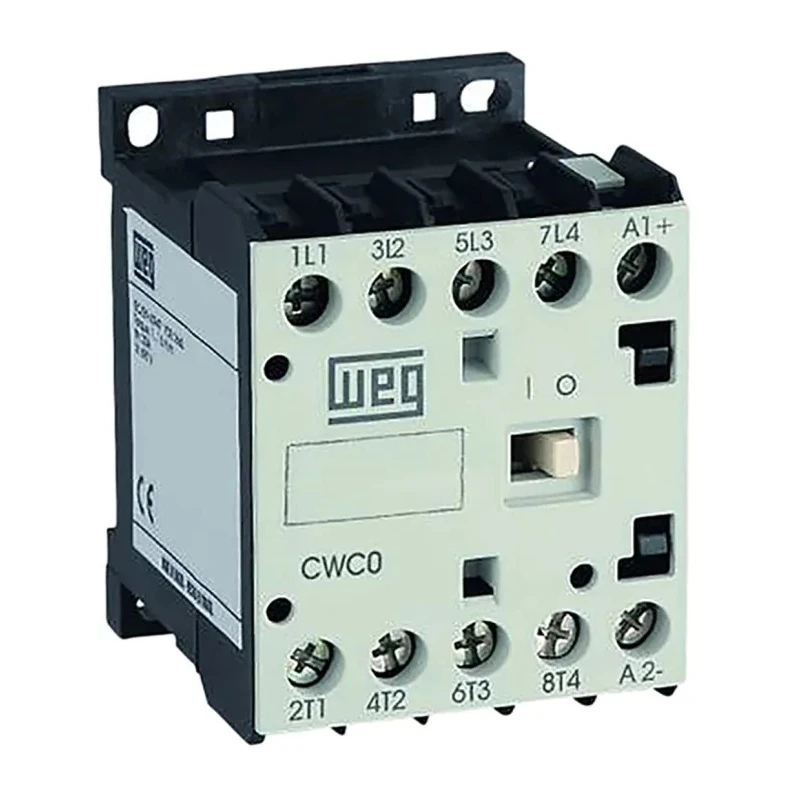

WEG Contactor 24V AC Coil, 4-Pole, 7A, 3.7 kW Power Rating, 690V AC Contact Voltage CWC07-00-22D02



Category Contactors Brand WEG Condition New

Specifications

Country of Origin	Brazil
Brand	WEG
Function	Motor Control
Length	58mm
Model	CWC07-00-22D02
Depth	52mm
Width	45mm
Mount Type	DIN Rail
Series	CWC
Power Rating	3.7kW
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC, RoHS, UL
Contact Voltage	690V ac
Coil Voltage	24V ac
Normal State Configuration	2 NO/2 NC
Contact Current	7A
Auxiliary Contact Configuration	2 NO/2 NC
Operational Current Ie	7A
Control Circuit Voltage Uc	24V ac
Contactor Application	Motor Control
Pole and Throw Configuration	4PST

Key Features

Operates with a coil voltage of 24V AC and contact voltage of 690V AC.
Compact and modular design with DIN rail mounting capability.
Includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
Screw terminal type ensures reliable electrical connections.
Designed to operate between -25°C and 55°C ambient temperatures.
Complies with IEC, RoHS, and UL standards for quality and safety.
Highly reliable and robust, suitable for industrial motor control and automation.

Product Description

WEG CWC07-00-22D02 Contactor with a 24V AC coil voltage, 4-pole configuration, and 7A operational current, designed for professional motor control applications.

This product from the WEG CWC series is a compact and modular contactor engineered to provide robust and reliable switching of electric motors. It supports a power rating of 3.7 kW on a 690V AC contact voltage and includes both normally open and normally closed contacts (2 NO/2 NC), making it a versatile device for various electrical automation tasks.

The contactor features screw terminals for secure electrical connections and is suitable for DIN rail mounting or direct panel installation. It operates efficiently across a temperature range of -25°C to 55°C, ensuring performance stability in diverse industrial environments.

Built and tested according to IEC/EN60947 and DIN VDE 0660 standards, the contactor meets international quality and safety requirements, including RoHS and UL certifications. Its compact dimensions (58 mm length x 45 mm width x 52 mm depth) make it ideal for applications where space-saving is crucial without compromising functionality.

This product finds extensive use in industrial, manufacturing, HVAC, and automation control systems, providing reliable motor control solutions. The CWC series by WEG is known for its robustness and professional-grade quality in control gear applications.

Operates with a coil voltage of 24V AC and contact voltage of 690V AC. Compact modular design with DIN rail and panel mounting options. Includes 2 NO and 2 NC auxiliary contacts for flexible switching functions. Screw terminal connections ensure reliable and easy wiring.

Operates reliably within -25°C to 55°C temperature range. Conforms to IEC, RoHS, and UL standards for safety and environmental compliance. Space-saving dimensions of 58 x 45 x 52 mm (LxWxD). Explore more high-quality Contactors and control gear from WEG to enhance your electrical automation and motor control setups at EnvMart.
