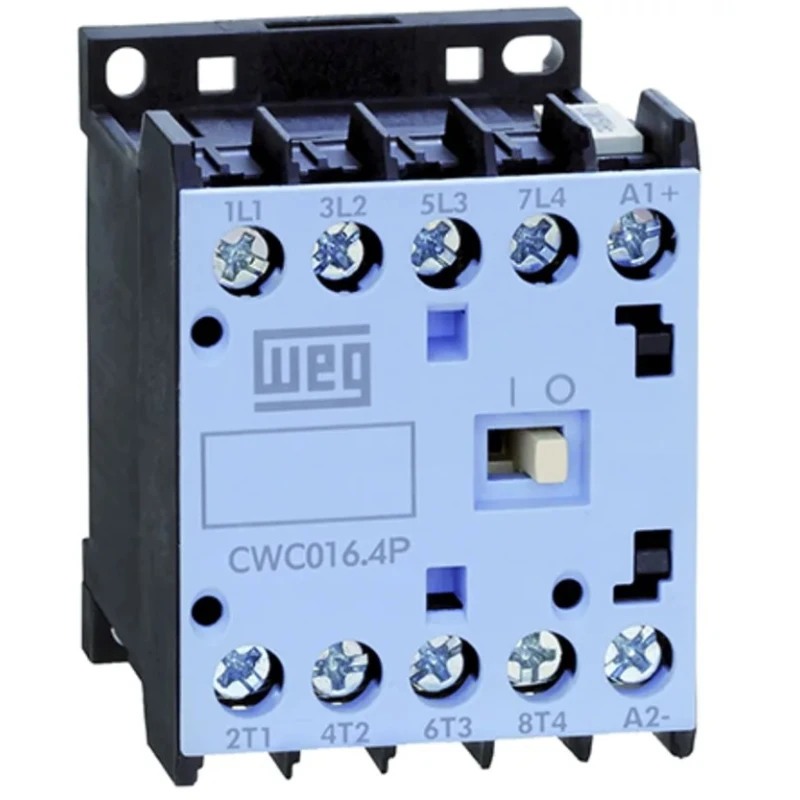

WEG 230V AC Coil, 4-Pole, 16 A, 7.5 kW Motor Control Contactor CWC016-00-22D24
Specifications
| Country of Origin | Brazil |
|---|---|
| Brand | WEG |
| Function | Motor Control |
| Length | 58mm |
| Model | CWC016-00-22D24 |
| Depth | 52mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | CWC |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Contact Current | 16A |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 4PST |
Key Features
- Designed for reliable switching of electric motors in industrial applications.
- Features a 230V AC coil voltage for control circuits.
- Equipped with 2 normally open and 2 normally closed auxiliary contacts.
- Supports a maximum contact voltage of 690V AC with a contact current of 16 A.
- Complies with IEC, RoHS, and UL standards ensuring safety and quality.
- Screw terminal type facilitates secure and easy wiring.
- Suitable for DIN Rail mounting, allowing direct and stable installation.
- Operates reliably within the temperature range of -25°C to 55°C.
Product Description
WEG CWC016-00-22D24 is a professional-grade motor control contactor featuring a 230V AC coil voltage and 4-pole configuration for efficient electrical switching in industrial environments. Rated for a contact current of 16 A and power of 7.5 kW, this contactor ensures reliable motor switching performance.
This compact yet robust contactor supports both 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, enhancing control flexibility. It is engineered for DIN Rail mounting with screw terminals for secure connections.
Designed and tested according to IEC/EN60947 and DIN VDE 0660 standards, it meets major compliance and safety certifications such as RoHS and UL, making it suitable for diverse industrial, automation, HVAC, and manufacturing applications.
The device operates effectively within a temperature range from -25°C up to 55°C, ensuring stability under varied environmental conditions. Its compact form factor with dimensions 58mm (L) x 45mm (W) x 52mm (D) saves panel space while delivering high functionality.
Reliable motor control for AC electrical motors. 230V AC coil voltage with 16A operational current for efficient performance. Robust screw terminals with DIN Rail mounting capability. Auxiliary contacts configurable as 2 NO and 2 NC for versatile control.
Complies with IEC, RoHS, and UL standards for safety and quality assurance. Compact design suitable for panel installations. Wide temperature operating range from -25°C to 55°C. Professional CWC Series from WEG, made in Brazil.
Used widely in industrial automation, electrical motor control, and manufacturing process control systems, this contactor ensures high reliability and durability. Explore more WEG Contactors and related automation control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 230V AC, designed for control circuits in motor applications.
It supports a maximum contact voltage of 690V AC, suitable for various industrial applications.
The contact current rating for this contactor is 16 A, allowing it to handle significant electrical loads.
This contactor has a power rating of 7.5 kW, making it appropriate for motor control applications.
It is equipped with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for flexible control options.
The dimensions are 58mm in length, 45mm in width, and 52mm in depth, making it compact for panel installations.
It operates reliably within a temperature range of -25°C to 55°C, suitable for various environmental conditions.
This unit is designed for DIN Rail mounting, allowing for direct and stable installation in control panels.
It complies with IEC, RoHS, and UL standards, ensuring safety and quality in its design and application.
It features screw terminals, which facilitate secure and easy wiring for installation.
This model has a 4-pole configuration, suitable for efficient electrical switching in industrial settings.
It is suitable for various applications including industrial automation, electrical motor control, and manufacturing process control systems.
