Parker Origa Double Acting Rodless Pneumatic Cylinder 16mm Bore 300mm Stroke 8 bar Operating OSPP160000000300000000000
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Parker Origa |
| Maximum Operating Pressure | 8 bar |
| Height | 30mm |
| Length | 430mm |
| Model | OSPP160000000300000000000 |
| Gross Weight | 520g |
| Width | 30mm |
| Series | OSP-P |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 300mm |
| Bore Diameter | 16mm |
| Action Type | Double Acting |
| Standards/Approvals | DIN EN ISO 14644-1 |
| Connection Thread Standard | Metric |
| Cushioning Type | Adjustable |
| Guide Type | Slide Bearing |
| Port Gender | Female |
| Port Thread Size | M5 |
| SMC Double Acting Acting Rodless Actuator 16mm Bore 300 mmBrand | SMC |
| Parker Origa Double Acting Rodless Actuator 300mm Stroke, 16mm BoreBrand | Parker Origa |
Key Features
- The cylinder features adjustable cushioning for smooth operation.
- It has a maximum operating pressure of 8 bar and operates between -10°C to 80°C.
- Horizontal mounting orientation with slide bearing guide provides stability during use.
- Compact dimensions of 430mm length, 30mm width, and 30mm height ensure space efficiency.
- Ports have female M5 thread size for secure connections.
- End caps are rotatable at 90° intervals enabling optimal port positioning.
- The cylinder incorporates a standard magnetic piston for reliable operation.
- Constructed with lightweight yet rigid materials for durability and high load carrying capacity.
Product Description

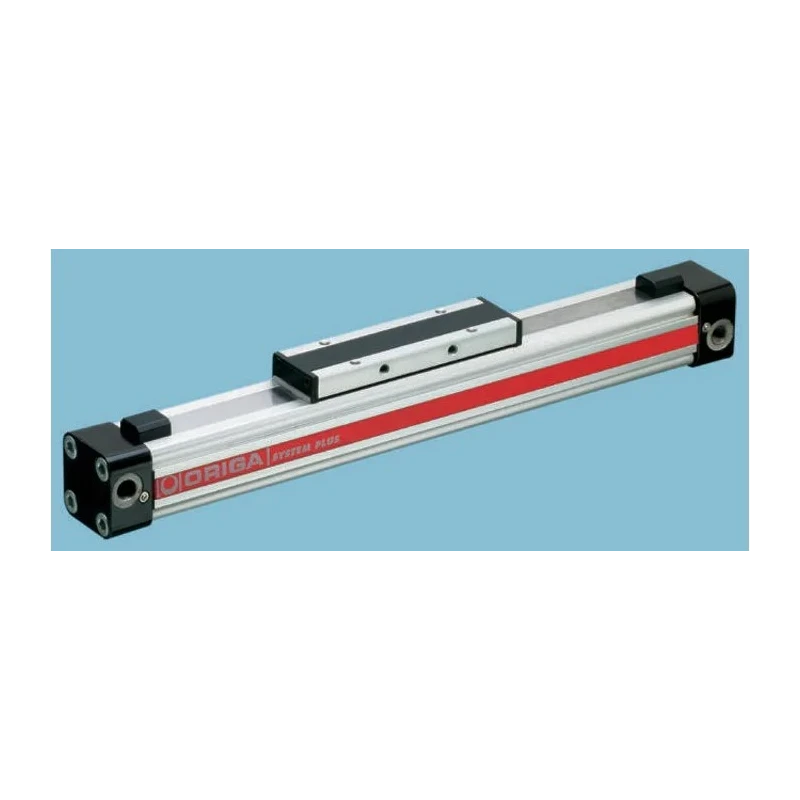

Parker Origa OSPP160000000300000000000 is a double acting rodless pneumatic cylinder designed for industrial pneumatic systems requiring precise linear actuation with compact form factor. It features a 16mm bore diameter and a 300mm stroke length, supporting a maximum operating pressure of 8 bar. Its adjustable cushioning provides smooth deceleration at end strokes, enhancing cylinder life and performance.
The cylinder is suitable for horizontal mounting, equipped with slide bearing guide type that ensures stable and accurate movement under load. Operating temperature range spans from -10°C to 80°C, making it ideal for a variety of industrial environments.

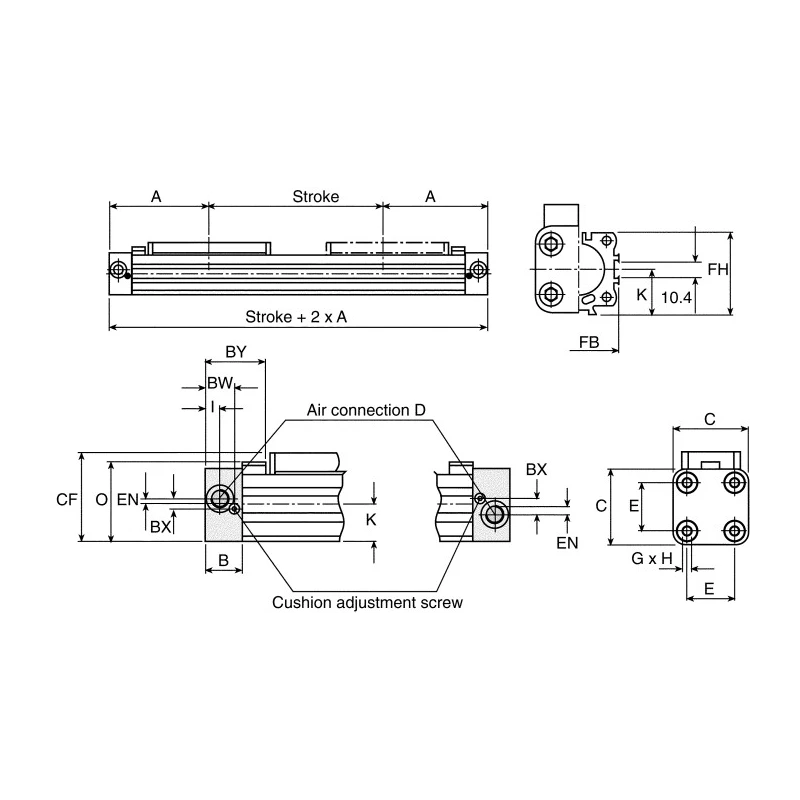

The cylinder body dimensions measure 430mm in length, 30mm in width, and 30mm in height. The ports use female M5 threaded connections, facilitating easy integration with standard pneumatic fittings. The end caps can be rotated to any one of four 90° positions to provide optimum port positioning flexibility according to installation needs.
Its lightweight yet rigid construction supports a high load carrying capacity, increasing suitability for automation, manufacturing, and fluid power applications. Incorporated standard magnetic piston enables sensing options for enhanced automation control.
This pneumatic rodless cylinder is compliant with DIN EN ISO 14644-1 standards and made in Germany, ensuring quality and reliability. It is widely used in pneumatic automation, packaging machinery, material handling, and manufacturing equipment where precise linear movement without external rod extension is required.
The cylinder features adjustable cushioning for smooth operation. Maximum operating pressure is 8 bar with operating temperatures between -10°C and 80°C. Horizontal mounting with slide bearing guide enhances stability and precision.
Compact dimensions of 430mm length, 30mm width, and 30mm height. Rotatable end caps at 90° intervals allow optimal port positioning. Standard magnetic piston included for sensing applications. Lightweight and rigid construction ensures high load carrying capacity.
Complies with DIN EN ISO 14644-1 standards. Explore a wide range of Pneumatic Cylinders and actuators at EnvMart for industrial automation and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
The cylinder has dimensions of 430mm in length, 30mm in width, and 30mm in height.
This unit features a stroke length of 300mm.
The bore diameter of this cylinder is 16mm.
It operates within a temperature range of -10°C to 80°C.
The cylinder is equipped with adjustable cushioning for smooth operation.
This model is designed for horizontal mounting and features a slide bearing guide for stability.
The ports have a female M5 thread size for secure connections.
It complies with DIN EN ISO 14644-1 standards.
The gross weight of this unit is 520g.
It is widely used in pneumatic automation, packaging machinery, material handling, and manufacturing equipment.
Yes, it incorporates a standard magnetic piston for enhanced automation control.
