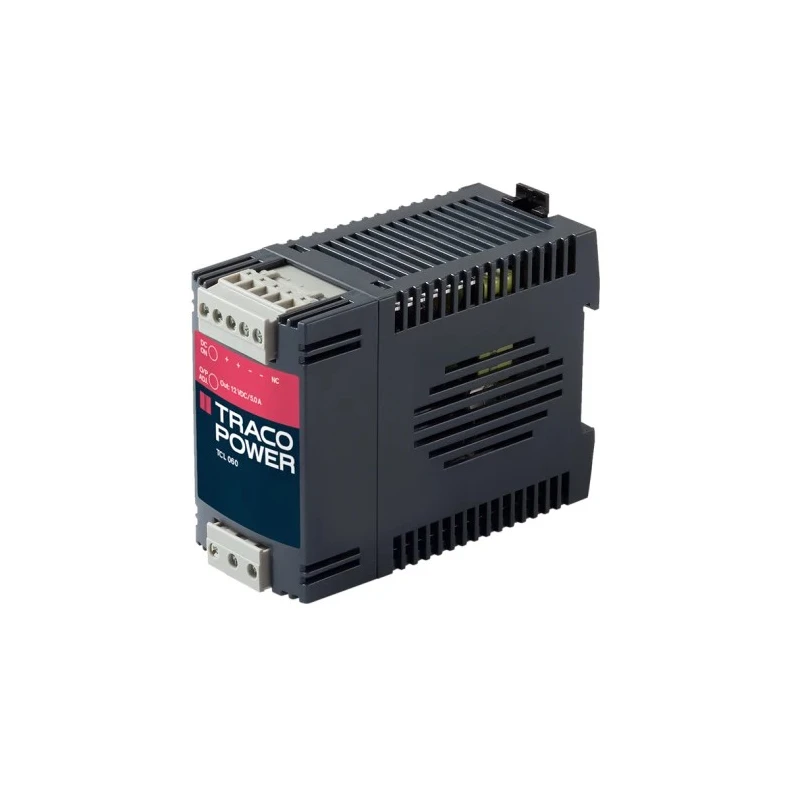

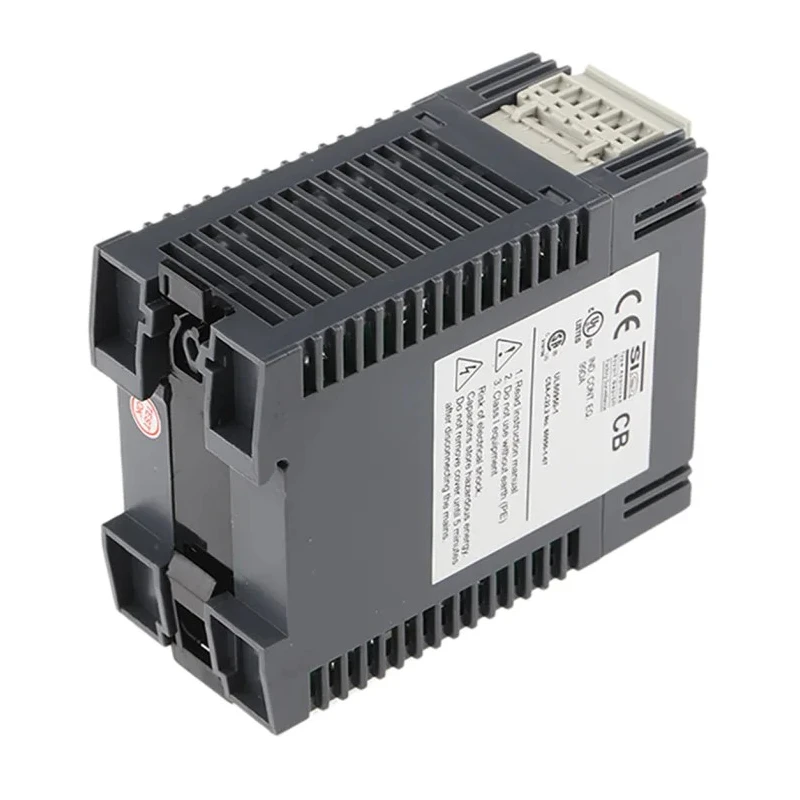

TRACOPOWER Switched Mode DIN Rail Power Supply 56 V dc, 1.25 A Output, 60 W Power TCL 060-148
Specifications
| Country of Origin | China |
|---|---|
| Brand | TRACOPOWER |
| Power | 60W |
| Efficiency | 88% |
| Height | 75mm |
| Model | TCL 060-148 |
| Depth | 100mm |
| IP Rating | IP20 |
| Width | 45mm |
| Series | TCL |
| Output Current | 1.25A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 375, 264V dc |
| Electrical Phase | 1 |
| Standards/Approvals | CE |
| Maximum Output Voltage | 56V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Compatible with AC/DC input voltage from 85 V AC up to 264 V AC or 375 V DC.
- Provides a regulated DC output voltage adjustable between 48 V and 56 V.
- 1.25 A output current suitable for reliable powering of industrial control systems.
- Compact dimensions of 100 mm length, 45 mm width, and 75 mm height for tight DIN rail installations.
- High efficiency rating of 88% supports energy-saving operation.
- Operating temperature range from -10°C to 70°C adapts to harsh environments.
- IP20 rated enclosure offers protection against solid objects and limited ingress of dust.
- Conforms to CE standards ensuring quality and safety compliance.
Product Description
TRACOPOWER TCL 060-148 is a switched mode DIN rail power supply engineered for stable and efficient DC power delivery in industrial environments. It accepts a broad AC/DC input voltage range from 85 V AC up to 264 V AC or 375 V DC and outputs a regulated DC voltage adjustable between 48 V and 56 V at a current of 1.25 A, delivering 60 W power output.
The compact plastic housing with dimensions 100 mm (L) x 45 mm (W) x 75 mm (H) is designed for snap-on mounting on standard DIN rails, making it ideal for installation in control cabinets with limited space.
With an operating temperature range from -10°C to +70°C and a humidity tolerance up to 95% non-condensing, this power supply is suitable for challenging and demanding industrial conditions such as machine tooling, industrial process control, and automotive applications.
The unit features an IP20 rating protecting internal components from solid objects and limited dust ingress. It complies with CE safety standards, ensuring reliability and regulatory conformity.
Its high efficiency of 88% supports energy conservation and reduced heat generation, increasing the power supply’s operational lifespan. A mean time between failures (MTBF) exceeding 2.7 million hours at 25°C reflects superior durability for long-term deployment.
Compatible with AC/DC input voltage from 85 V AC up to 264 V AC or 375 V DC. Provides a regulated DC output voltage adjustable between 48 V and 56 V. 1.25 A output current suitable for reliable powering of industrial control systems.
Compact dimensions of 100 mm length, 45 mm width, and 75 mm height for tight DIN rail installations. High efficiency rating of 88% supports energy-saving operation. Operating temperature range from -10°C to 70°C adapts to harsh environments.
IP20 rated enclosure offers protection against solid objects and limited ingress of dust. Conforms to CE standards ensuring quality and safety compliance. Designed for machine tooling, industrial process control, and automotive sector power needs.
Mean time between failures exceeds 2.7 million hours at 25°C for high reliability.
This TRACOPOWER DIN rail power supply offers a robust and dependable solution for a variety of industrial power supply requirements. Explore EnvMart for comprehensive access to industrial Power Supplies, components, and accessories from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is adjustable between 48 V and 56 V DC.
It accepts an input voltage range from 85 V AC up to 264 V AC or 375 V DC.
The dimensions are 100 mm in length, 45 mm in width, and 75 mm in height.
It has an efficiency rating of 88%.
The operating temperature range is from -10°C to 70°C.
It features an IP20 rated enclosure, providing protection against solid objects and limited dust ingress.
This model has one output.
The output current is 1.25 A.
It conforms to CE standards, ensuring quality and safety compliance.
It is suitable for machine tooling, industrial process control, and automotive applications.
