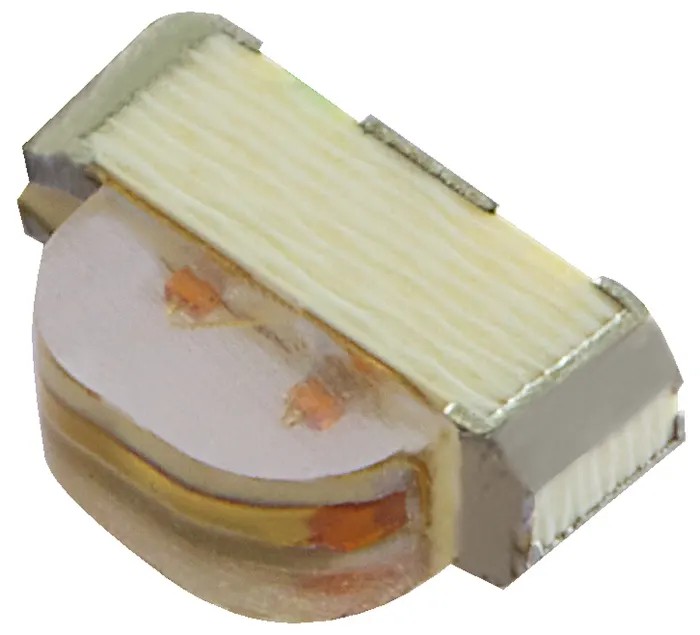

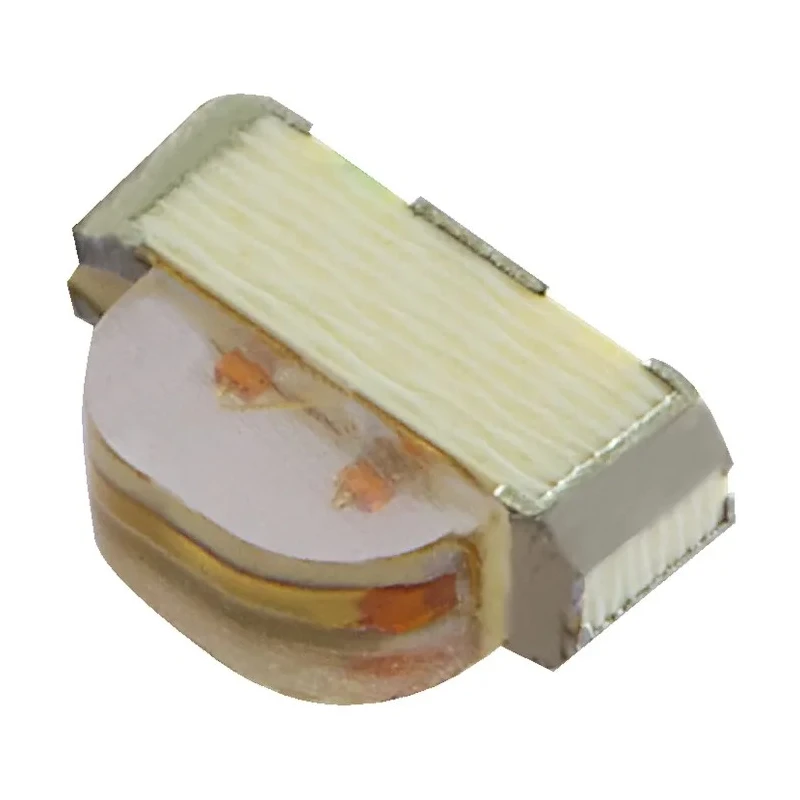

Kingbright 2.5 V Red, Green LED 3010 Surface Mount Dual LED KPBA-3010ESGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPBA-3010ESGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Number Of Leds | 2 |
| Maximum forward current | 30mA |
| Viewing angle | 140 ° |
| Package Type | 3010 |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 625nm |
| Forward Voltage | 2.5V |
| Number of Pins | 3 |
| LED Luminosity | 12 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 3 x 1 mm |
| Lens Shape | Rectangular |
Key Features
- Red and green LEDs provide visual indication in electronic circuits.
- Surface mount 3010 package design measures 3.0 x 1.0 x 2.0 mm.
- Maximum forward current rating is 30 mA per LED.
- Maximum power dissipation of 75 mW ensures efficient operation.
- Wide viewing angle of 140 degrees allows for broad visibility.
- Complies with RoHS environmental standards.
- Packaging is convenient tape and reel, suitable for high-volume manufacturing.
- Lens is clear rectangular shape with dimensions 3 x 1 mm.
Product Description
Kingbright KPBA-3010ESGC is a high-quality surface mount dual LED device combining red and green light-emitting diodes in a compact 3010 (1104) package. Operating at a forward voltage of 2.5 V and optimized for a maximum forward current of 30 mA, this LED assembly provides low power consumption and durable performance for a variety of electronic display and indicator applications.
The rectangular clear lens measures 3 x 1 mm, delivering a viewing angle of 140 degrees to ensure maximum visibility from multiple perspectives. With a luminous intensity of 12 millicandela, it effectively serves as a status indicator or backlighting source for consumer electronics, instrumentation, and industrial control panels.
Designed for surface mount technology (SMT) production, the KPBA-3010ESGC comes packaged in tape and reel format, supporting streamlined automated assembly processes. The device meets RoHS compliance standards, affirming its environmentally friendly manufacturing and materials.
The three-pin configuration enables seamless integration into printed circuit boards, supporting dual LED functionality with red and green colors. Typical applications include electronic indicators, display backlighting, signal and status displays in industrial, laboratory, and commercial electronics.
Red and green LEDs in a single 3010 surface mount package. Maximum forward current of 30 mA for each LED to maintain safe operation. Low power dissipation at 75 mW ensures energy efficiency. Wide 140° viewing angle enhances visibility in lighting and signaling uses.
Clear rectangular lens design with dimensions of 3 x 1 mm. 12 millicandela luminous intensity for bright and clear indication. Compliant with RoHS directives for hazardous substance reduction. Ideal for industrial, laboratory equipment, and commercial electronics.
This product is manufactured in China and represents a reliable choice for designers seeking high performance, dual-color LED indicators in a compact surface mount form factor. Browse our Electronics Components category at EnvMart for more LED devices and optoelectronic components designed to meet varied industry needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for each LED in this model is 30 mA.
The forward voltage for this model is 2.5 V.
It has a wide viewing angle of 140 degrees, allowing for broad visibility.
The lens dimensions are 3 x 1 mm, and it has a clear rectangular shape.
This model is packaged in tape and reel format, suitable for high-volume manufacturing.
The luminous intensity is 12 millicandela, providing bright visual indication.
The KPBA-3010ESGC complies with RoHS environmental standards.
It supports surface mount technology (SMT) for easy integration into printed circuit boards.
This model contains two LEDs, one red and one green.
The maximum power dissipation is 75 mW, ensuring efficient operation.
It is suitable for electronic indicators, display backlighting, and signal displays in various electronics.
The KPBA-3010ESGC is manufactured in China.
