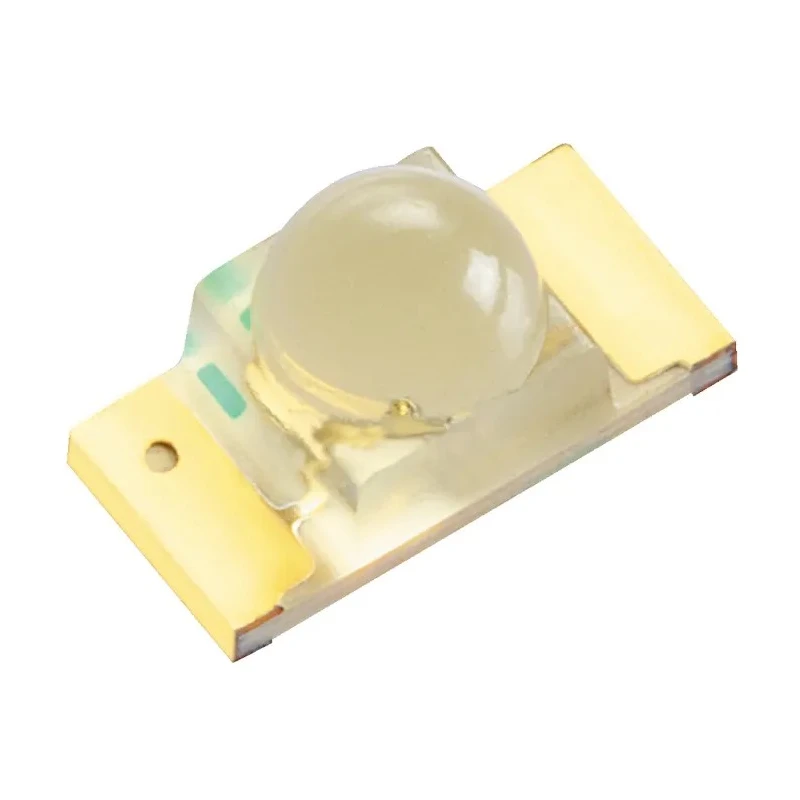

Kingbright 2.5 V Green Surface Mount LED 3216 Package Dome Lens KPTD-3216SGC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KPTD-3216SGC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KPTD-3216 |
| Maximum forward current | 140mA |
| Viewing angle | 40 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 568nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 20 mcd |
| Maximum Power Dissipation | 62.5mW |
| Lens Dimensions | 3.2 x 1.6 mm |
| Lens Shape | Dome |
Key Features
- Operates at a forward voltage of 2.5 V ensuring low power consumption.
- Maximum forward current rating is 140 mA for reliable performance.
- Features a clear dome lens with dimensions 3.2 x 1.6 mm and height of 1.8 mm.
- Provides a wide viewing angle of 40 degrees for broad visibility.
- Has LED luminosity of 20 millicandela, ideal for indicator applications.
- Packaged on tape and reel for efficient automated assembly.
- Complies with RoHS standards ensuring environmental safety.
- Two-pin surface mount design suitable for SMT circuit boards.
Product Description
Kingbright KPTD-3216SGC is a 2.5 V green LED designed in a compact 3216 surface mount package featuring a dome-shaped lens with a height of 1.8 mm. This surface mount device offers efficient low power operation with a maximum forward current of 140 mA and power dissipation up to 62.5 mW. The clear lens and wide 40° viewing angle ensure high visibility and effective illumination, making it ideal for backlight and indicator applications in electronic equipment.
The LED delivers a luminosity of 20 millicandela and emits light at a dominant wavelength of 568 nm, providing a bright green color output. Packaged on tape and reel, it supports automated insertion in production lines and improves manufacturing efficiency. The two-pin design enables easy surface mounting on printed circuit boards allowing for compact and reliable assembly in various industrial, electronic, and commercial devices.
Compliant with RoHS directives, this indicator LED meets environmental and safety requirements, making it suitable for diverse applications including electronic components, power and connectors, displays, and optoelectronics. The product originates from China and is presented in the KPTD-3216 series, recognized for consistent quality and reliability.
Operates at 2.5 V forward voltage with low power consumption. Maximum forward current is 140 mA for sustained brightness. Surface mount 3216 package with dome lens of 3.2 x 1.6 mm dimensions. Clear, wide viewing angle of 40 degrees enhances visibility.
Luminous intensity of 20 mcd suitable for indicator lighting. Packaged on tape and reel to support high volume manufacturing. RoHS compliant ensuring eco-friendly production standards. Two-pin SMT mount type for easy PCB integration.
Explore more LED components and optoelectronic products from Kingbright in the Electronics Components category on EnvMart for all your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KPTD-3216SGC LED operates at a forward voltage of 2.5 V, ensuring low power consumption.
This model has a maximum forward current rating of 140 mA, which supports reliable performance.
The dome lens of this LED measures 3.2 x 1.6 mm with a height of 1.8 mm.
It features a wide viewing angle of 40 degrees, enhancing visibility for various applications.
The KPTD-3216SGC provides a luminosity of 20 millicandela, making it suitable for indicator applications.
This LED emits light at a dominant wavelength of 568 nm, producing a bright green color output.
It is packaged on tape and reel, which facilitates efficient automated assembly in production lines.
This model features a two-pin surface mount design, allowing for easy integration onto printed circuit boards.
Yes, it complies with RoHS standards, ensuring environmental safety during production.
The maximum power dissipation for the KPTD-3216SGC is 62.5 mW, which supports its efficient operation.
This LED is suitable for various applications, including indicator lighting, backlighting, and optoelectronic devices.
It is part of the KPTD-3216 series, recognized for its consistent quality and reliability in LED components.
