Rittal GA Series Die Cast Aluminium Wall Box IP66, 160 mm x 260 mm x 91 mm, IK08 Impact Protection

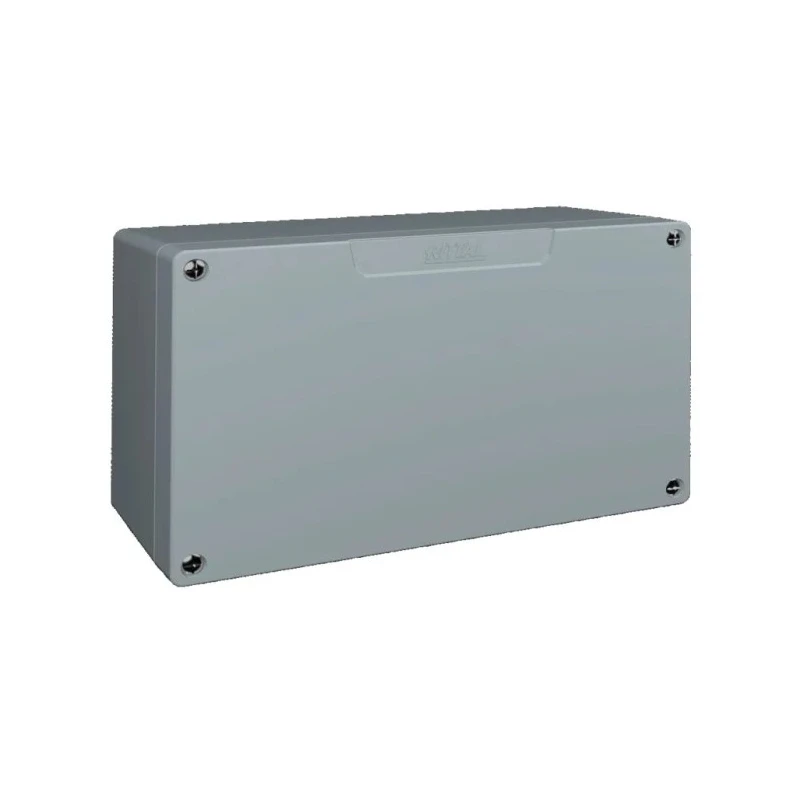

Rittal 9113210 Die Cast Aluminium Wall Box IP66 is a heavy-duty enclosure designed to safeguard sensitive electronic components against dust, moisture, and mechanical impacts. Featuring a robust die cast aluminium construction with corrosion resistance, this enclosure ensures longevity in demanding industrial environments.

With dimensions of 160 mm height, 260 mm width, and 91 mm depth, the compact form factor supports installation in confined spaces while providing sufficient volume for control and instrumentation devices.

The enclosure boasts an IP66 rating, guaranteeing protection from dust ingress and high-pressure water jets, making it ideal for harsh outdoor and indoor industrial conditions. The IK08 impact protection rating adds mechanical durability against external shocks.

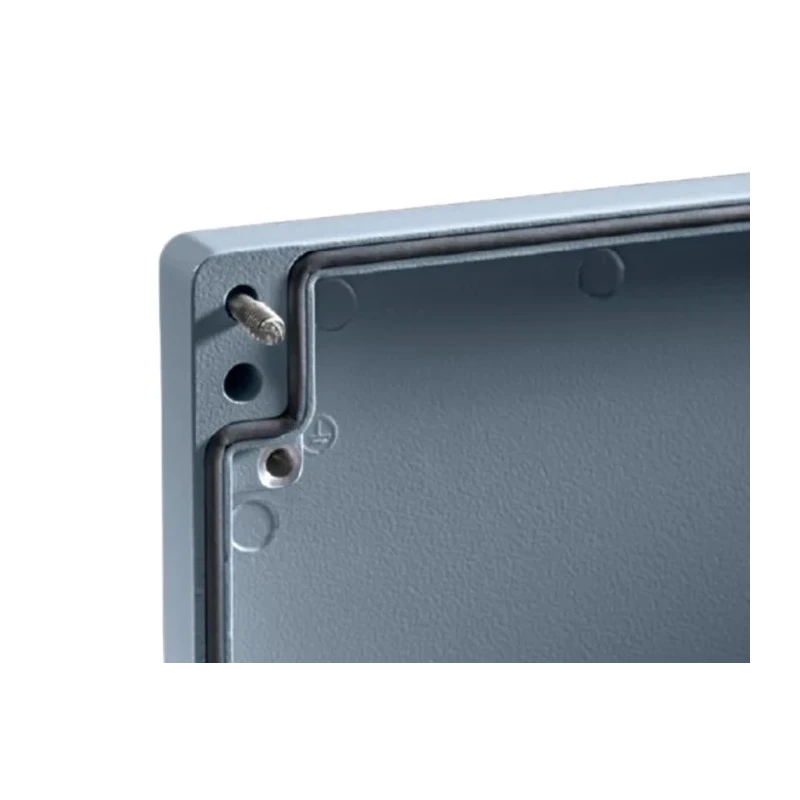

The unit includes a grey powder-coated finish (RAL 7001) that enhances corrosion resistance and aesthetic appeal. Its screw-down lid is secured by captive screws and sealed with an oil, petrol, and chemical resistant neoprene rubber gasket, ensuring secure closure and environmental sealing.

Applications of the Rittal GA Series wall box span automotive manufacturing, laboratories, testing facilities, and textile industries where protection against ingress and impact is critical for low-voltage switchgear, instrumentation, and control systems.

Durable die cast aluminium body with grey powder coating. High protection level with IP66 and IK08 ratings. Dimensions: 160 mm (H) x 260 mm (W) x 91 mm (D). Includes screw-down lid with neoprene seal resistant to oil, petrol, and chemicals.

Lightweight design weighing approximately 2.08 kg for easy mounting. Designed for secure and tamper-resistant installation of electronic components. Suitable for industrial, laboratory, automotive, and textile applications.

Set contents include the cast aluminium enclosure, cover with locking screws, an accessories bag, and safety instructions. This enclosure complies with GOST standards and is suitable for maximum rated voltage of 1000 V AC or 1500 V DC low-voltage switchgear applications.

Explore the range of premium electrical enclosures and Wall Boxes from Rittal, trusted for their robustness, protection, and reliability in industrial and commercial installations.
