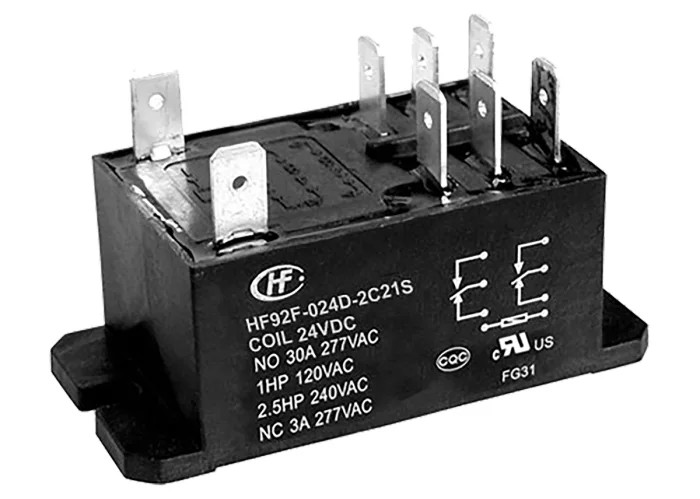

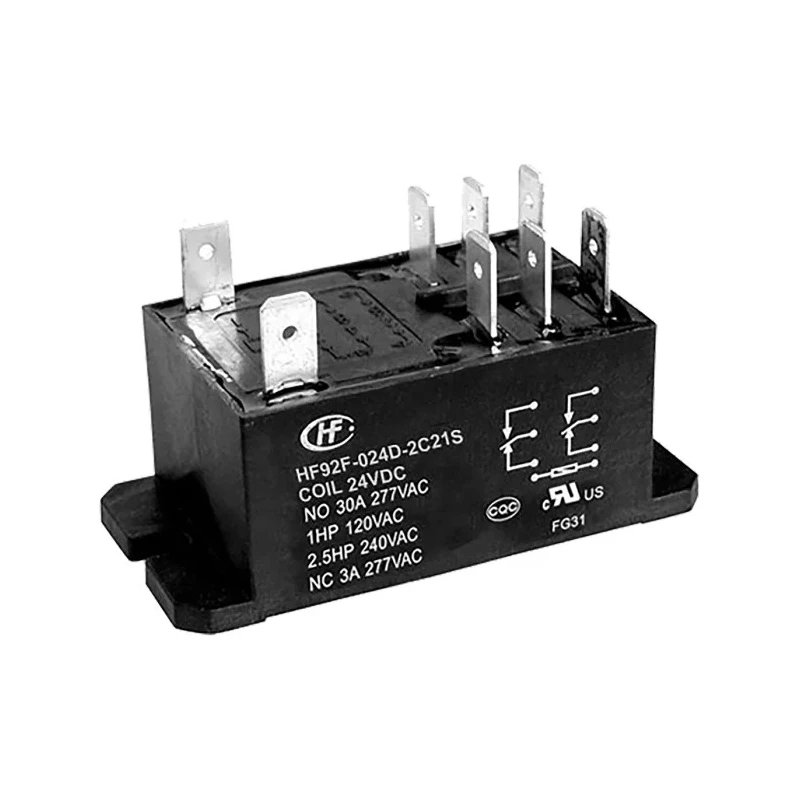

Hongfa Europe GMBH Flange Power Relay 24V DC Coil 30A Switching Current DPDT HF92F-024D-2C21S

Free Delivery in India | Lowest Global Shipping Charges

Hongfa Europe GMBH Flange Power Relay 24V DC Coil 30A Switching Current DPDT HF92F-024D-2C21S

Name: Hongfa Europe GMBH Flange Power Relay 24V DC Coil 30A Switching Current DPDT HF92F-024D-2C21S
Brand: Hongfa Europe GMBH
SKU: 187471
Price: 24.04 USD
Availability: InStock



Category Power Relay Brand Hongfa Europe GMBH Condition New

Specifications

Country of Origin	China
Brand	Hongfa Europe GMBH
Height	26.4mm
Length	68.6mm
Model	HF92F-024D-2C21S
Width	33.7mm
Mount Type	Flange
Contact Material	Silver Alloy
Series	HF92F
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Switching Current	30A
Terminal type	Quick Connect
Contact Resistance	50mΩ
Standards/Approvals	CQC, cULus
Coil Resistance	350Ω
Coil Voltage	24V dc
Switching AC Voltage	277V ac
Coil Power	1.7W

Key Features

Features DPDT contact configuration for versatile switching.
Flange mount type ensures sturdy installation.
Quick connect terminals support ease of wiring.
Operates reliably between -40°C and 85°C temperatures.
Silver alloy contacts offer low contact resistance of 50mΩ.
Minimum 4 kV dielectric strength enhances electrical safety.
Compact dimensions with length 68.6mm, width 33.7mm, height 26.4mm.
Coil resistance of 350Ω with power consumption of 1.7W.

Product Description

Hongfa Europe GMBH HF92F-024D-2C21S is a flange-mount power relay featuring a 24V DC coil voltage and a high switching current rating of 30A. This miniature intermediate power relay offers a DPDT contact configuration, making it suitable for multiple industrial and automation control applications.

The relay includes silver alloy contacts that ensure minimal contact resistance of 50mΩ, providing high electrical conductivity and long service life. Its quick connect terminal type supports efficient wiring and installation. The relay is constructed in a sealed flange mount housing designed for reliability and robust operation.

Operating within a wide temperature range from -40°C to 85°C, this relay is engineered for durability in harsh industrial environments. The coil resistance is rated at 350Ω with a coil power consumption of 1.7W. The product size dimensions are 68.6 mm in length, 33.7 mm in width, and 26.4 mm in height, making it compact for varied panel installations.

The HF92F series complies with internationally recognized standards including CQC and cULus, ensuring safety and performance. Its 4 kV dielectric strength assures high insulation levels for reliable switching under high voltages up to 277V AC. The contact material uses silver alloy with a contact gap of 3 mm and silver tin oxide terminals to handle switching power rated at 8.3 kVA.

This product is ideal for use in industrial automation, electrical control panels, manufacturing equipment, and other demanding environments requiring dependable power relay switching. The flange mount design provides enhanced mechanical stability and convenient installation.

Features DPDT contact configuration for versatile switching. Flange mount type ensures sturdy installation. Quick connect terminals for ease of wiring. Operates reliably between -40°C and 85°C temperatures. Silver alloy contacts offer low contact resistance of 50mΩ.

Minimum 4 kV dielectric strength enhances electrical safety. Compact dimensions with length 68.6mm, width 33.7mm, height 26.4mm. Coil resistance of 350Ω with power consumption of 1.7W. Complies with CQC and cULus standards.
