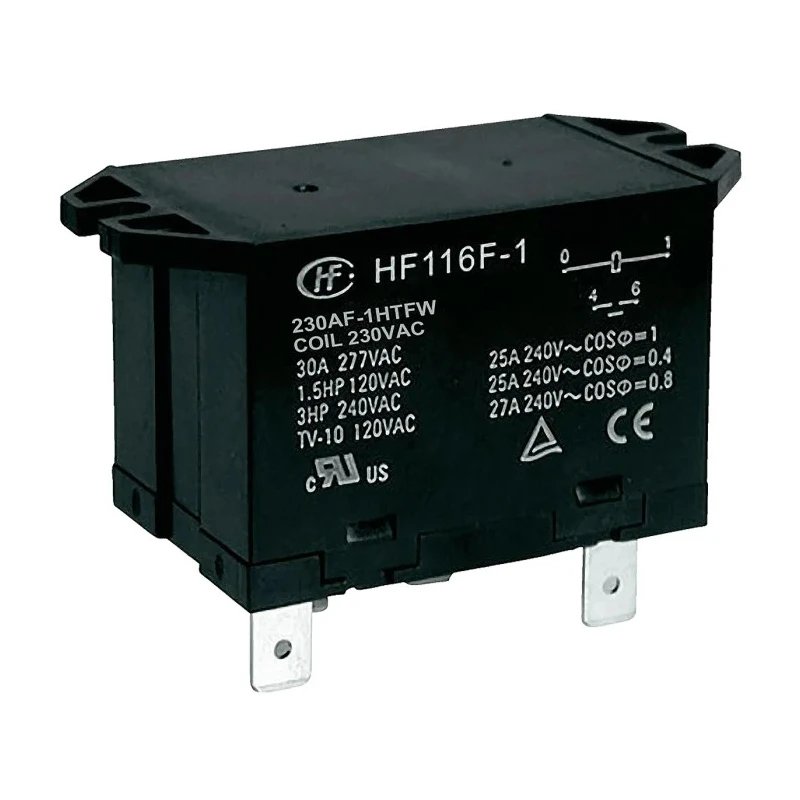

Hongfa Europe GMBH Flange Power Relay 230V ac Coil 30A Switching Current SPST HF116F-1/230AF-1HTFW

Hongfa Europe GMBH HF116F-1/230AF-1HTFW flange power relay is designed for industrial and electrical applications requiring reliable switching capabilities. It operates with a 230V AC coil and supports a high switching current of 30A in a SPST contact configuration, making it suitable for various automation, control, and power switching tasks.

The relay's flange mount allows secure and stable installation, complemented by screw terminal connections for robust wiring. It features silver alloy contacts ensuring good conductivity and durability under load. The coil resistance of 20.8 kΩ and coil power consumption of 2.7W promote efficient operation with minimal energy loss.

Operating in a temperature range between -55°C and 70°C, this relay is suitable for harsh industrial environments. Its compact dimensions of 68mm length, 36.2mm height, and 32.9mm width facilitate installation in limited spaces while retaining high performance.

With switching power rated at 8.3 kVA and AC voltage capability up to 277V, the relay is ideal for power management in manufacturing, HVAC systems, automation control panels, and other commercial electrical infrastructure.

The product meets recognized standards, including CQC and cULus approvals, ensuring compliance with quality and safety regulations. Contact resistance is maintained at a low 100mΩ, ensuring minimal signal loss during operation.

Features a flange mount with screw terminal type. Designed for high temperature operations up to 70°C. Switching power rated at 8.3 kVA with silver alloy contacts. Coil resistance of 20.8 kΩ and coil power of 2.7W. Compact dimensions: 68mm length, 36.2mm height, and 32.9mm width.

Operating temperature range from -55°C to 70°C. Complies with industry standards including CQC and cULus approvals. Offers a contact resistance of 100mΩ and switching AC voltage up to 277V AC.

This power relay is applicable in electrical automation, industrial control systems, power management setups, and manufacturing equipment. It combines durability, efficiency, and compliance to deliver dependable switching performance.

Explore the range of Power Relays and other related components available at EnvMart to enhance your electrical installations with quality and reliability.
