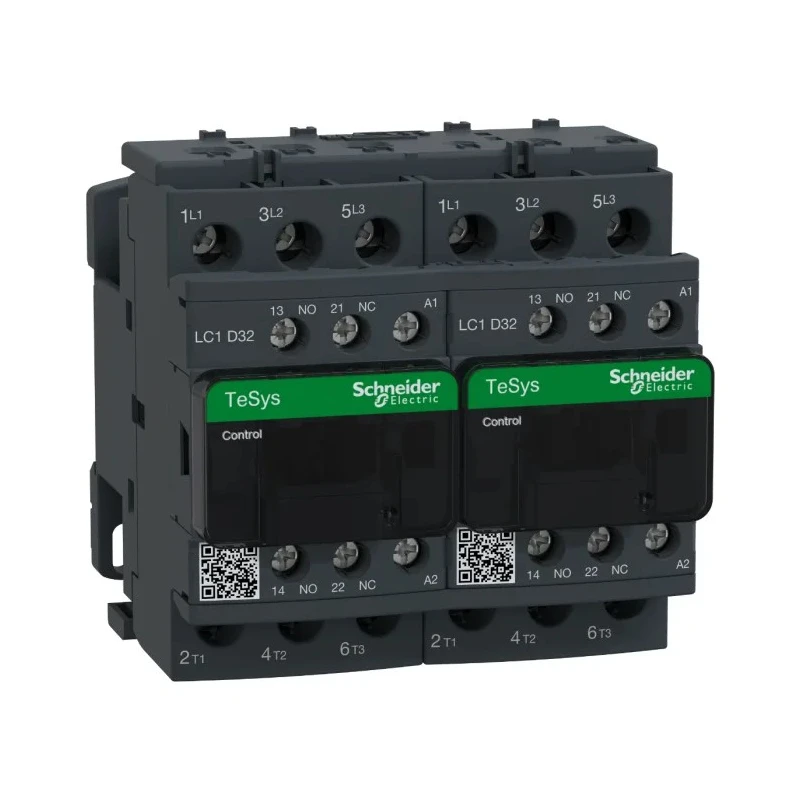

Schneider Electric TeSys D 3-Pole Contactor, 110V AC Coil, 32 A, 15 kW 110V AC, 3 NO, 690V AC LC2D32FE7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 85mm |
| Model | LC2D32FE7 |
| Depth | 92mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for use in motor control, resistive load, and reversing functions.
- Features a coil voltage of 110V AC and a contact voltage rating of 690V AC.
- Includes 3-pole configuration with 3 NO main contacts and 2 auxiliary contacts (2 NO/2 NC).
- Mountable on DIN rail with screw clamp terminals for secure connections.
- Operates reliably between -25°C and 50°C ambient temperatures.
- Meets multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Designed with IP20 finger-safe terminals and pre-installed mechanical interlock for safety.
- Capable of high operational rates up to 3600 cycles per hour ensuring durability.
Product Description
Schneider Electric LC2D32FE7 TeSys D 3-Pole Contactor features a 110V AC coil suitable for motor control applications requiring up to 32A and 15 kW power rating. This contactor is engineered to operate over control voltages of 110V AC and contact voltages reaching 690V AC with 3 normally open (NO) contacts. It is designed for robust industrial use including motor control, resistive loads, and reversing functions.
The device incorporates 2 auxiliary contacts configured as 2 NO and 2 NC, enhancing switching capability. Its screw clamp terminals support secure and finger-safe IP20 connections with clear North American and international markings. The contactor is compact with a width of 90mm, length of 85mm, and depth of 92mm, and can be mounted easily on DIN rails or panels with screws.
Operating effectively across a temperature range from -25°C to 50°C, it supports operational rates up to 3600 cycles per hour ensuring extended mechanical and electrical life. The built-in mechanical interlock provides safe reversing power connections without requiring electrical interlocking.
Certified to meet international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, this contactor is a Green Premium product designed for easy disassembly and sustainability. It is manufactured in France to meet high-quality production standards.
Coil Voltage: 110V AC. Contact Rating: 32 A, 690V AC. Power Rating: 15 kW at 110V AC. Configuration: 3 Poles, 3 NO contacts, 2 NO/2 NC auxiliary contacts. Mounting: DIN Rail or panel mount. Terminal Type: Screw clamp, IP20 finger-safe.
Operating Temperature: -25°C to 50°C. Operational Speed: Up to 3600 cycles/hour. Standards: CCC, CSA, EAC, IEC, RoHS, UL. Motor control, resistive loads, reversing functions in industrial environments.
This contactor is widely used in industrial automation, manufacturing plants, HVAC systems, and other commercial applications requiring reliable and efficient motor control solutions. Explore more Schneider Electric automation and control gear products on EnvMart.
