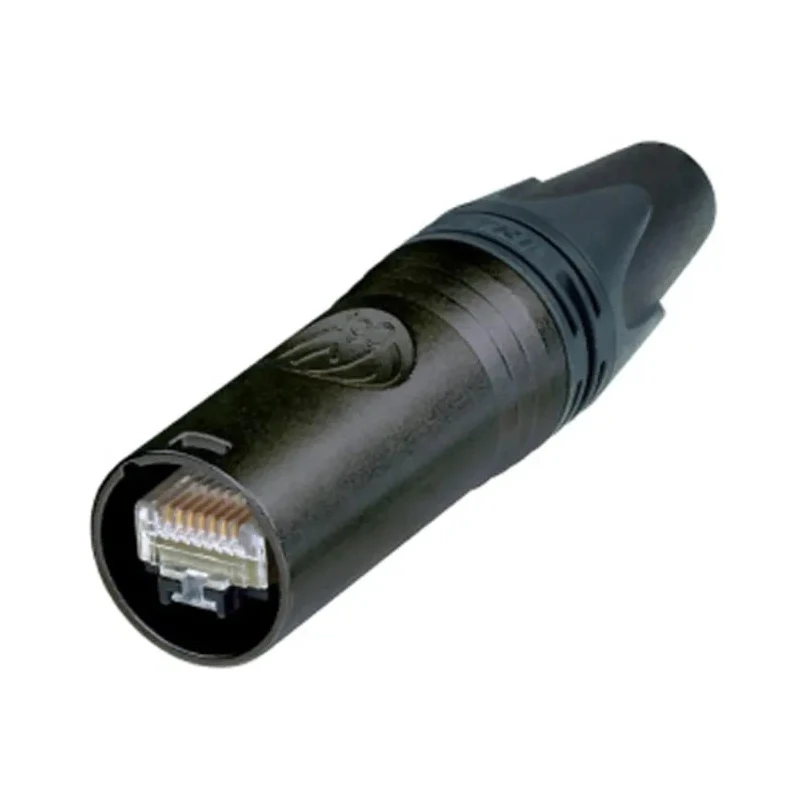

Neutrik EtherCon Series RJ45 Connector Male Cable Cat6a Unshielded Straight 1 Port 8 Way
Specifications
| Country of Origin | India |
|---|---|
| Brand | Neutrik |
| Orientation | Straight |
| Length | 76.5mm |
| Model | RJ45 |
| IP Rating | IP65 |
| Connector Type | Plug |
| Number Of Ways | 8 |
| Width | 19.05mm |
| Mount Type | Cable |
| Contact Material | Spring Steel |
| Series | EtherCon |
| Number Of Ports | 1 |
| Termination Type | Self-Termination |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold |
| Connector Gender | Male |
| LAN Category | Cat6a |
| Ethernet Connector Type | RJ45 |
| RS PRO RJ45 Connector Female, Feed Through, Cat5e Straight 1 Port 8 WayBrand | RS PRO |
Key Features
- Constructed with a durable metal shell for enhanced protection.
- Features a chuck type strain relief and rugged latch lock for secure connections.
- Compatible with cable sizes AWG 24 to AWG 22/1.
- Delivers IP65 ingress protection when mated.
- Intermateable with etherCON CAT5 range components.
- Supports Cat6a LAN category, suitable for high-speed data transmission.
- Gold-plated spring steel contacts ensure reliable electrical performance.
- Self-termination type for easy installation.
Product Description
Neutrik NE8MX6-B EtherCon Series RJ45 Connector Male Cable Cat6a Unshielded Straight 1 Port 8 Way is designed for demanding network environments requiring high reliability and robust construction.
This cable connector features a CAT6A RJ45 plug enclosed in a rugged metal shell ensuring durable and secure cable termination. The chuck type strain relief and latch lock connection system provide excellent mechanical stability and IP65 ingress protection when connected, making it suitable for industrial, commercial, and professional audio/video applications.
Its self-terminating design supports easy assembly with cable sizes ranging from AWG 24 to AWG 22/1. The gold-plated spring steel contacts provide high conductivity and corrosion resistance, which enhances signal integrity and lifespan. This connector is intermateable with etherCON CAT5 range, offering flexible compatibility for various Ethernet applications.
The product’s operating temperature ranges from -40°C to 70°C with standards compliance including UL94 HB, UL94V-0, IEEE 802.3at, EN50173-1, IEC 68-2-20, ISO/IEC 11801, TIA/EIA 568B, and TIA/EIA 568C.2, highlighting its safety and performance in network installations.
This connector is ideal for use in industrial Ethernet networks, professional audio/video installations, broadcast infrastructure, and custom network cabling projects requiring a reliable Cat6a rated RJ45 connector.
Constructed with a durable metal shell for enhanced protection. Features a chuck type strain relief and rugged latch lock for secure connections. Compatible with cable sizes AWG 24 to AWG 22/1. Delivers IP65 ingress protection when mated.
Intermateable with etherCON CAT5 range components. Supports Cat6a LAN category, suitable for high-speed data transmission. Gold-plated spring steel contacts ensure reliable electrical performance. Self-termination type for easy installation.
Explore more Ethernet Connectors and networking components to customize your industrial, laboratory, or commercial networking solutions on EnvMart.
