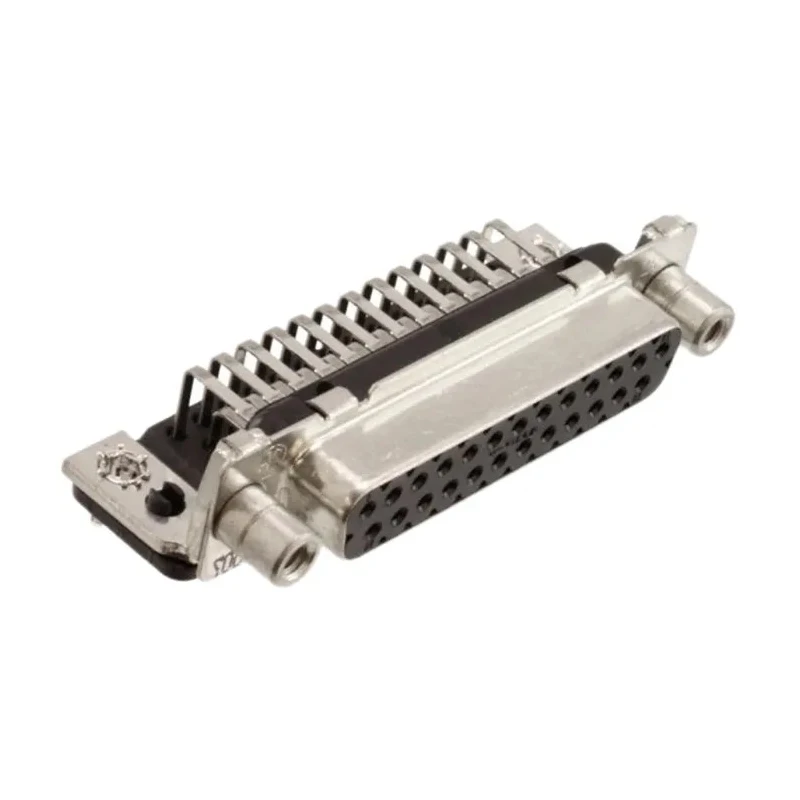

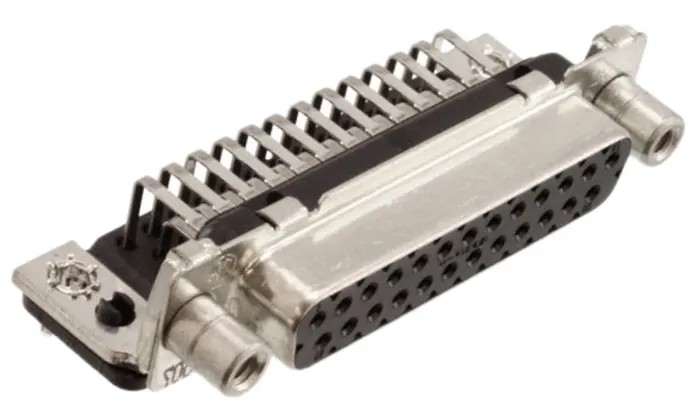

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector Female 3-106507-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
Key Features
- Features a right angle orientation suitable for PCB mounting.
- Constructed with polyethylene terephthalate housing for durability.
- Phosphor bronze contacts plated with gold over nickel for superior conductivity.
- Supports current rating of 6A ensuring robust performance.
- Operating temperature ranges from -55°C to 105°C for harsh environment use.
- Solder termination offers secure and stable connection to circuit boards.
- European standard footprint facilitates easy integration into existing designs.
- Suitable for industrial, electronic components, and power connector applications.
Product Description
TE Connectivity 3-106507-2 AMPLIMITE HD-20 25 Way Right Angle D-Sub Connector Female is designed for secure and efficient electronic connections in various industrial and commercial electronic assemblies. This connector features 25 gold over nickel-plated phosphor bronze contacts arranged with a 2.74 mm pitch, ensuring excellent conductivity and resistance to corrosion.
The right angle orientation and through hole mount type facilitate PCB mounting, making it suitable for compact and density-sensitive designs. The housing is constructed from durable polyethylene terephthalate, providing mechanical strength and environmental resistance. Its operating temperature range of -55°C to 105°C allows usage in challenging environmental conditions.
This connector is equipped with solder terminations for reliable attachment and maintains European standard footprint compliance, which guarantees compatibility with a wide variety of PCB designs. The current carrying capacity of 6A supports robust signal and power transmission needs.
Ideal for application areas including industrial electronics, power connectors, laboratory equipment, and control systems, the AMPLIMITE HD-20 series offers versatility and high performance. Its gold-plated contacts ensure minimal signal loss and high durability, making it suited for demanding environments.
Features a right angle orientation suitable for PCB mounting. Constructed with polyethylene terephthalate housing for durability. Phosphor bronze contacts plated with gold over nickel for superior conductivity. Supports current rating of 6A ensuring robust performance.
Operating temperature ranges from -55°C to 105°C for harsh environment use. Solder termination offers secure and stable connection to circuit boards. European standard footprint facilitates easy integration into existing designs.
Suitable for industrial, electronic components, and power connector applications. Explore further similar D-Sub Connectors and related products within the Electronics & Electricals category on EnvMart for your projects and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 6A, ensuring robust performance for signal and power transmission.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environmental conditions.
The housing is made from polyethylene terephthalate, and the contacts are phosphor bronze plated with gold over nickel for superior conductivity.
This D-Sub connector features 25 contacts, all of which are female.
It utilizes a solder termination type, providing a secure and stable connection to circuit boards.
The contacts are arranged with a pitch size of 2.74 mm, facilitating compact designs.
This model features a right angle orientation, making it suitable for PCB mounting in space-constrained applications.
The D-Sub shell size for this connector is classified as size B.
Yes, it maintains a European standard footprint, ensuring compatibility with a wide variety of PCB designs.
The country of origin for this connector is India.
It is suitable for various applications including industrial electronics, power connectors, laboratory equipment, and control systems.
This connector is designed for through hole mounting, which is ideal for secure PCB integration.
