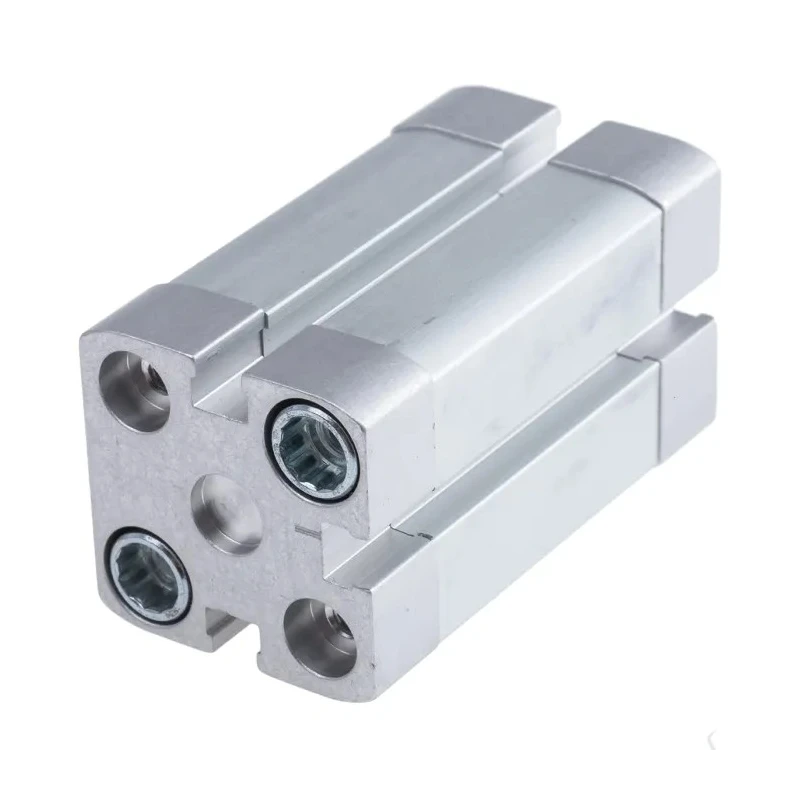

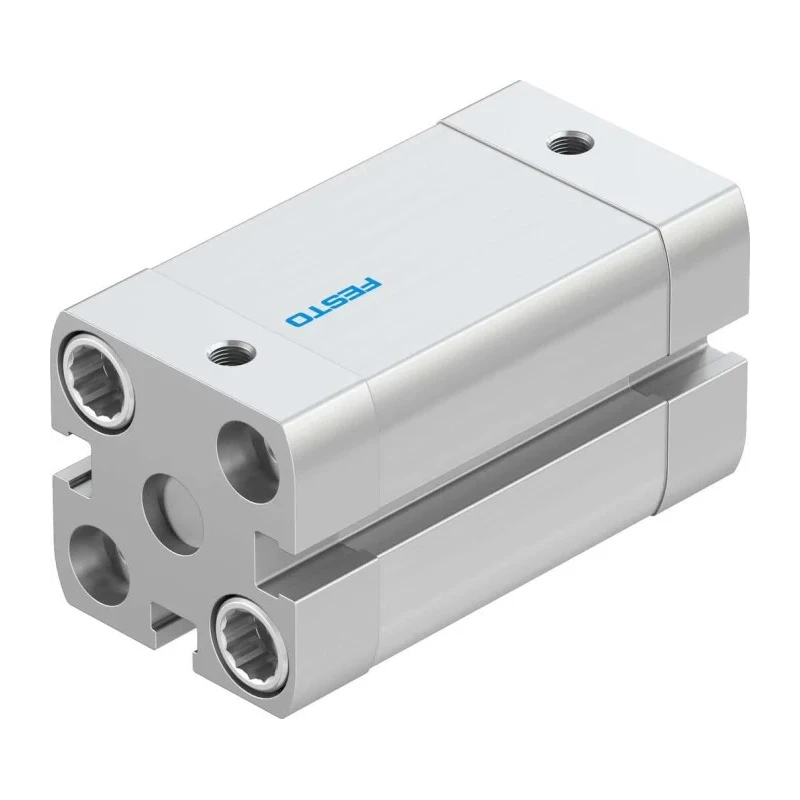

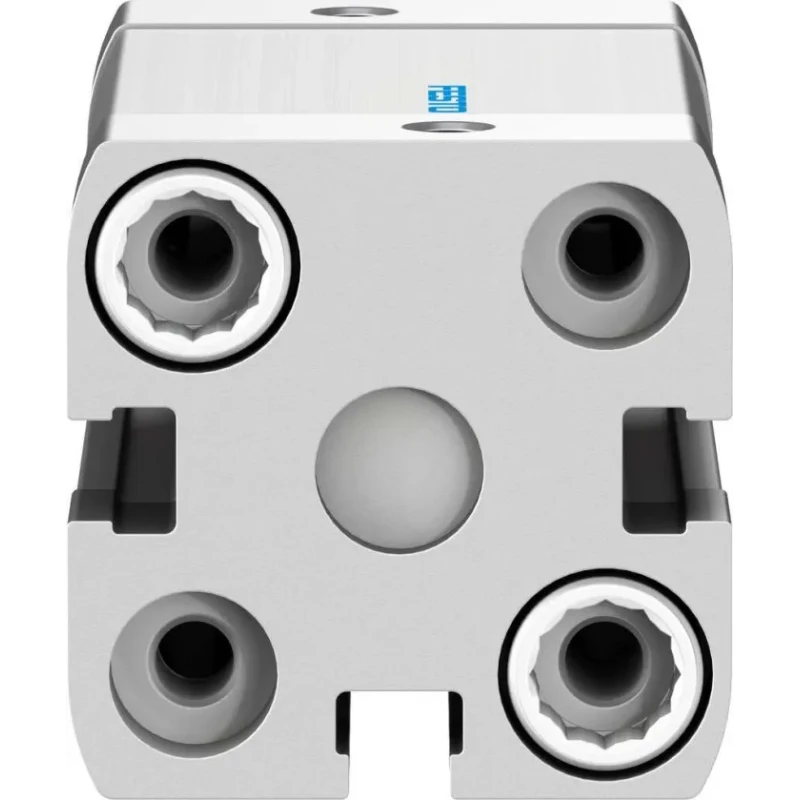

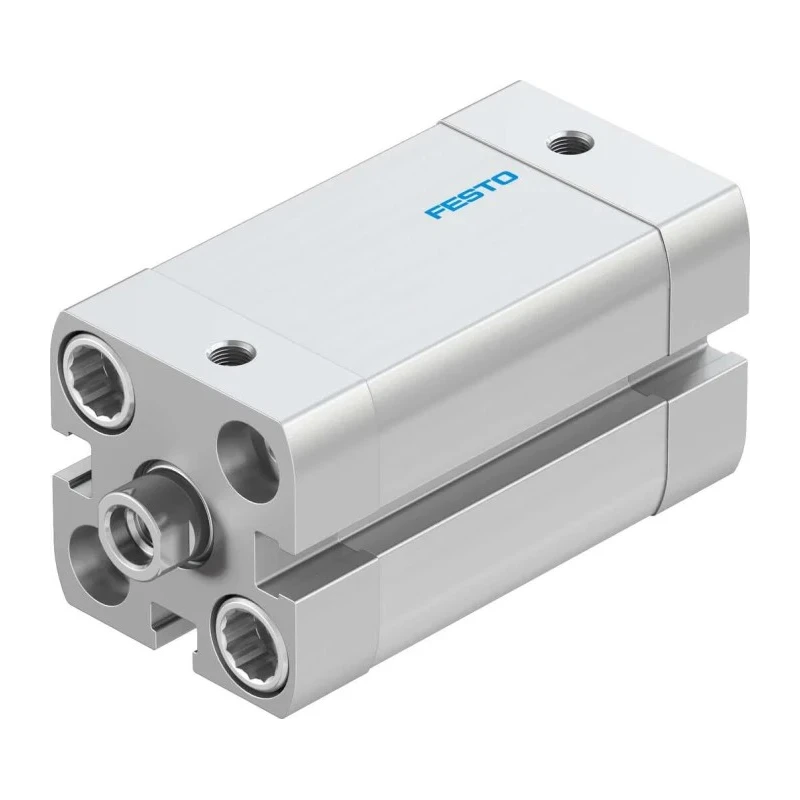

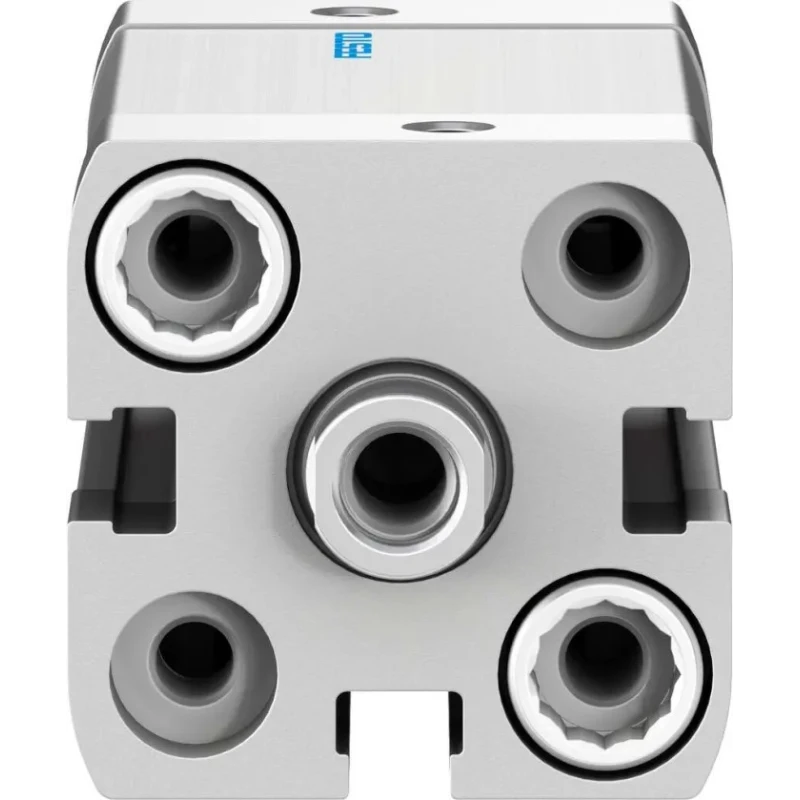

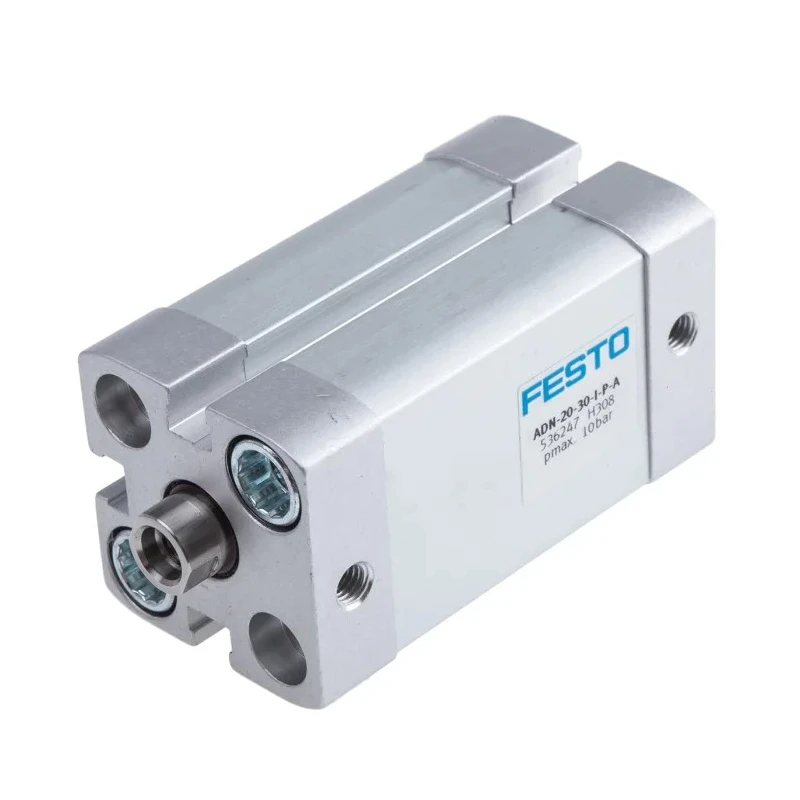

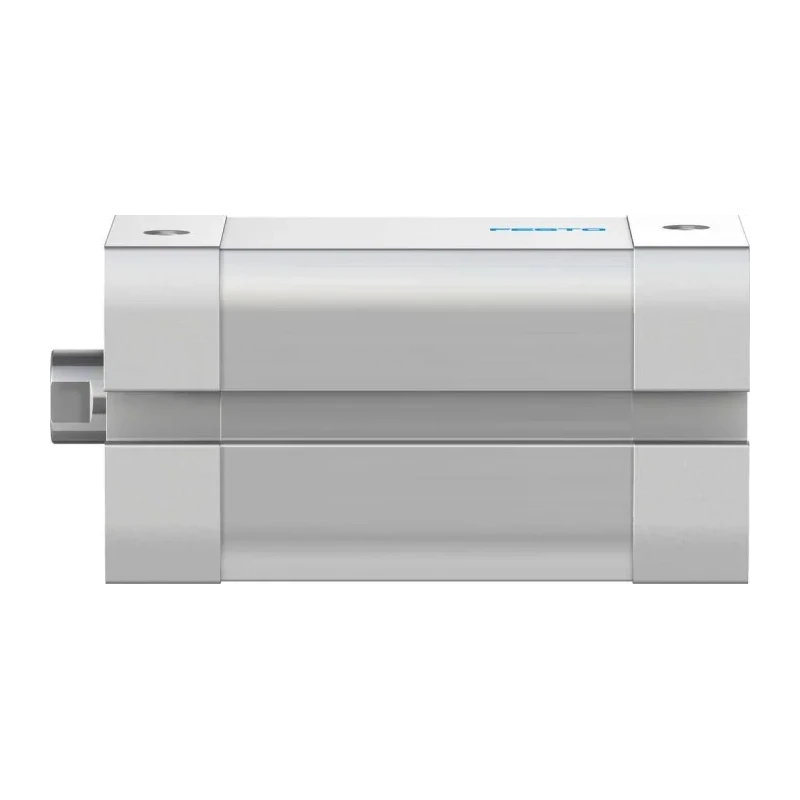

Festo Pneumatic Cylinder 20mm Bore, 30mm Stroke, Aluminium Body, Double Acting, Flexible Cushioning ADN-20-30-I-P-A

Festo ADN-20-30-I-P-A pneumatic cylinder is designed for precise linear motion control in industrial environments. With a 20mm bore diameter and 30mm stroke length, it is engineered to operate reliably within pressures from 0.6 to 10 bar, making it versatile across a wide range of pneumatic systems.

The aluminium alloy body provides sturdy protection while remaining lightweight, enabling easy integration into compact assemblies with a total length of just 72.5mm. This cylinder features a double-acting mechanism using compressed air for both thrust and retraction, ensuring efficient and repeatable motion.

Flexible cushioning technology dampens impacts at both ends, significantly reducing noise and mechanical stress, thereby extending service life. The seals made from TPE-U (PUR) ensure an airtight system suitable for use across challenging environments, handling temperatures between -20°C and +80°C.

The piston rod is single type with a female M5 thread and a standard M6 piston rod thread compatibility, providing easy and secure connections to other system components. Compliance with ISO 21287 and RoHS standards assures high quality and environmentally responsible manufacturing.

This pneumatic cylinder is widely used in applications such as dental equipment, medical imaging systems, automotive manufacturing, and assembly lines where accurate, compact pneumatic actuators are essential. Its lightweight and compact design facilitate easy installation and maintenance.

The compact 72.5mm length allows installation in limited spaces. Operates within pressure ranges suitable for various pneumatic systems. Durable aluminium body construction resists environmental and mechanical stress. Flexible TPE-U (PUR) seals guarantee airtight and reliable operation.

Double-acting design generates linear thrust and retraction motion. Standard M6 piston rod thread ensures compatibility with fittings and attachments. Double-ended flexible cushioning technology reduces noise and impact damages.

Operating temperature range from -20°C to +80°C meets diverse application requirements. Compliance with ISO 21287 and RoHS certifications ensures quality and environmental standards. Ideal for industrial uses such as assembly lines, medical imaging, and automotive manufacturing.
