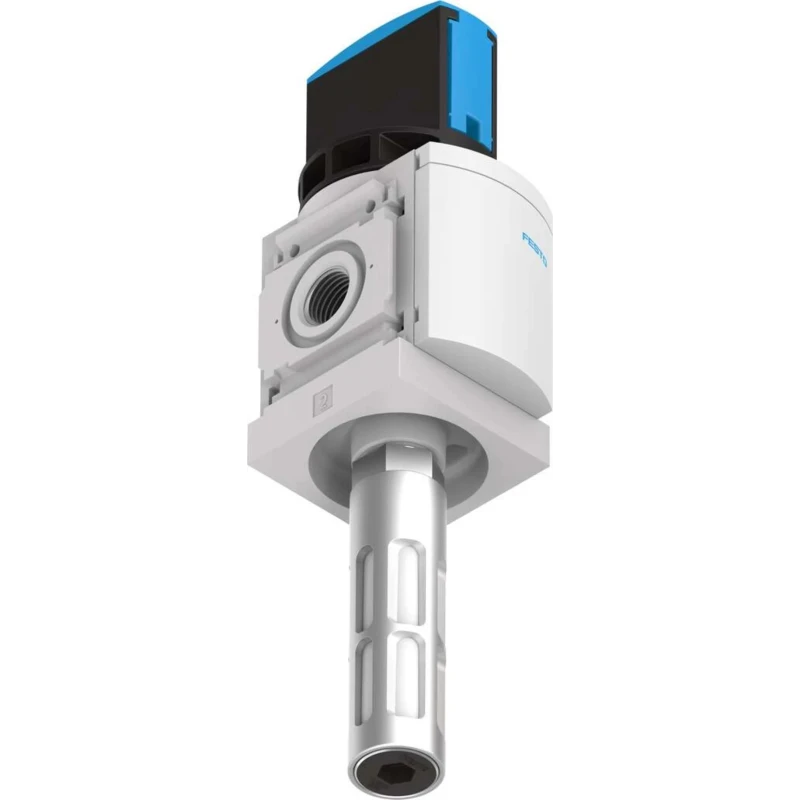

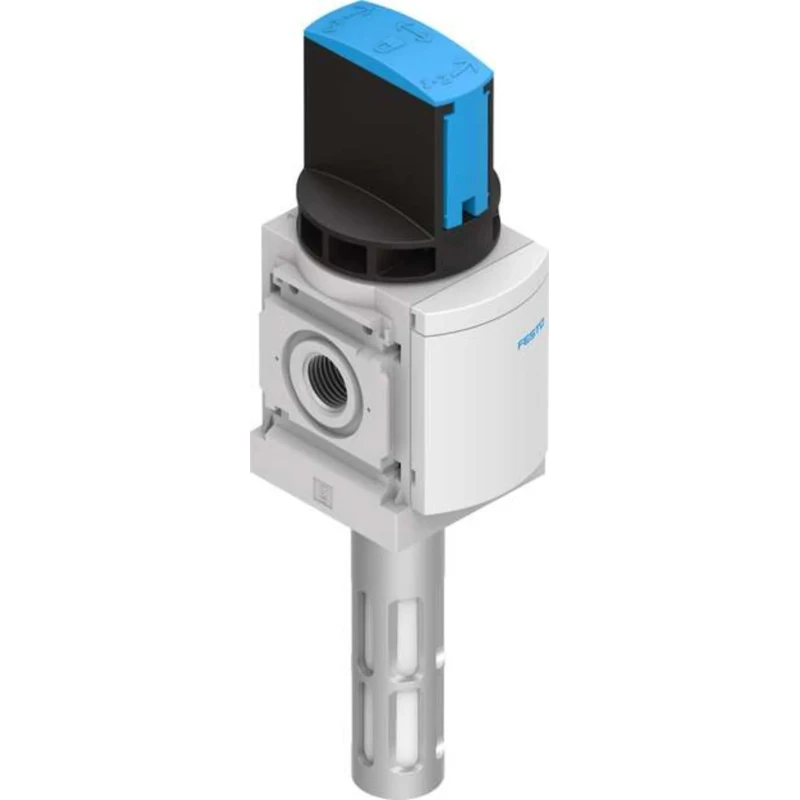

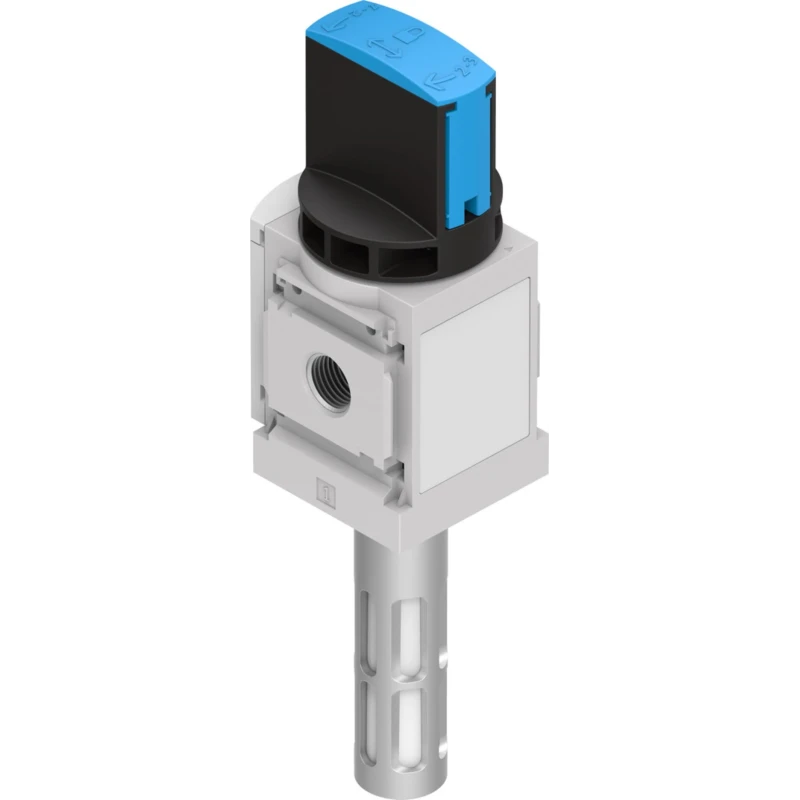

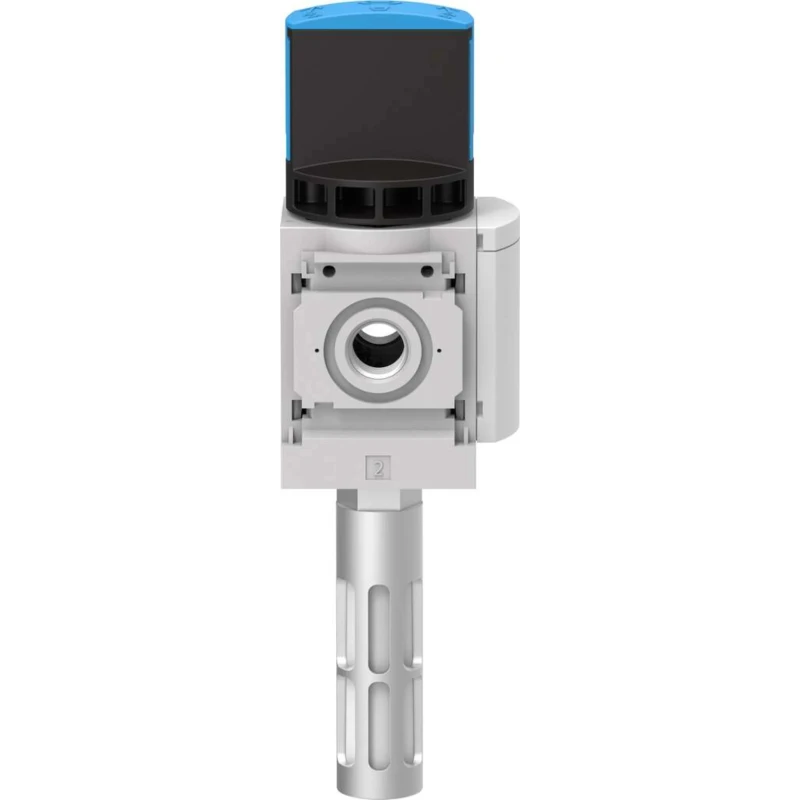

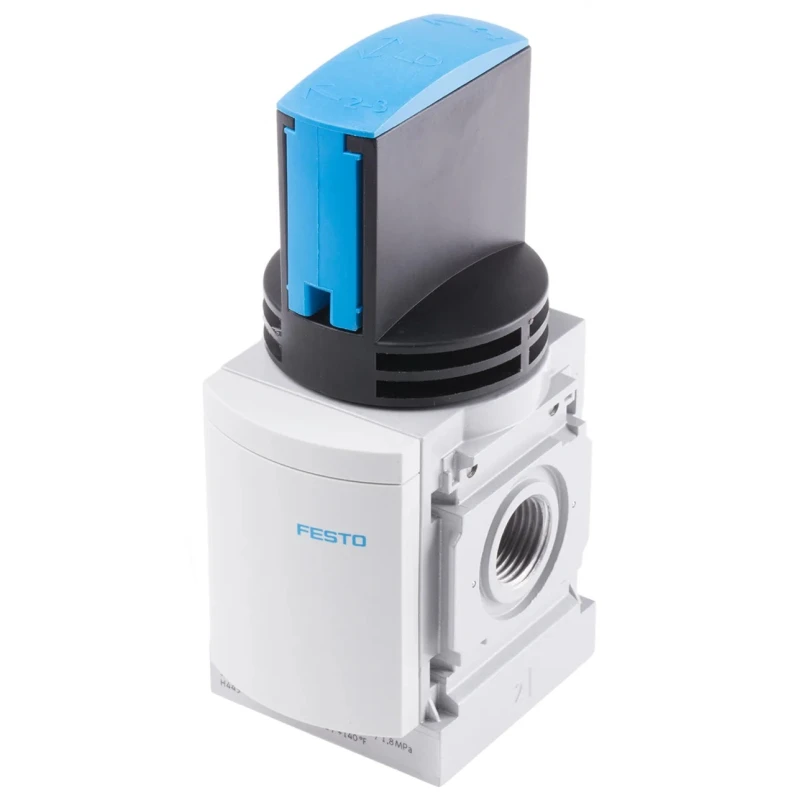

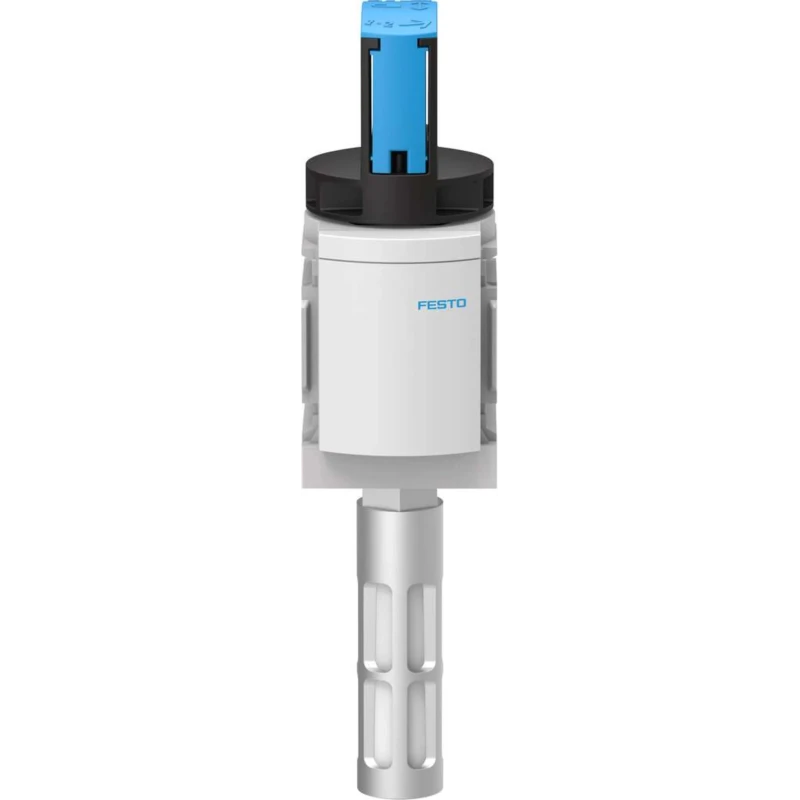

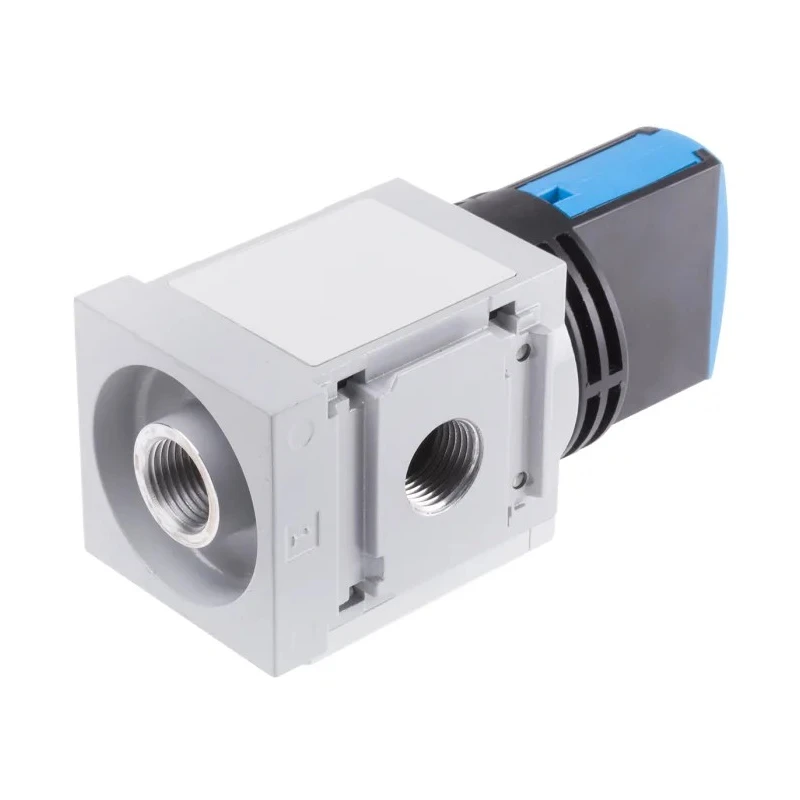

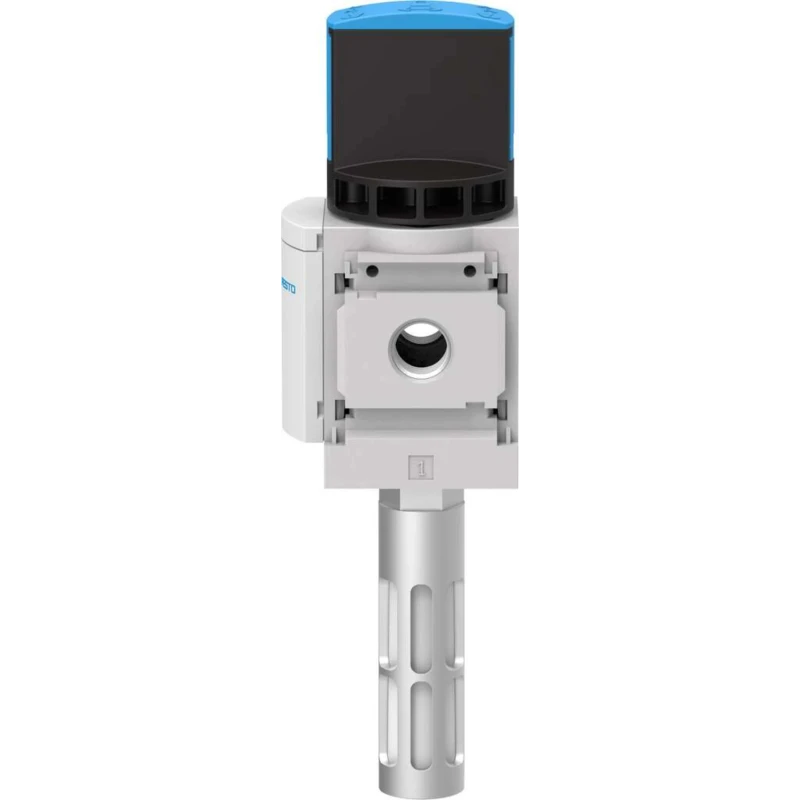

Festo Rotary Pneumatic Manual Control Valve MS Series G 1/2, 18 bar Maximum Operating Pressure, 8700 L/min Flow MS6-EM1-1/2
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 18 bar |
| Height | 150.7mm |
| Length | 76mm |
| Model | MS6-EM1-1/2 |
| Width | 62mm |
| Series | MS |
| Number Of Ports | 3 |
| Maximum Operating Temperature | +60°C |
| Thread Size | 1/2 in |
| Port Type | Pneumatic |
| Number of Positions | 2 |
| Port Size | G 1/2 |
| Minimum Operating Temperature | -10°C |
| Maximum Flow Rate | 8700L/min |
| Control Mechanism | Rotary |
| Standards/Approvals | cULus |
| Connection Thread Standard | G |
| Valve Function | 3/2 |
| Control Button/Switch Colour | Black |
| Festo Piston Slide Pneumatic Manual Control Valve HE Series 1/2 in, 162810Brand | Festo |
Key Features
- Equipped with an ergonomic rotary knob for comfortable and precise manual operation.
- The bistable valve maintains the selected position to prevent unintended system failures.
- Constructed from die-cast aluminium for corrosion resistance and long service life.
- Wide operating temperature range from -10°C to +60°C suitable for various industrial conditions.
- Features a 3/2 valve function with 2 positions and 3 ports for effective flow control.
- Designed for pneumatic systems requiring durable and reliable manual valve control.
- Compatible with Festo pressure sensors for enhanced monitoring and control.
- Lockable rotary knob option for added security against unauthorized adjustments.
Product Description
Festo MS6-EM1-1/2 Rotary Pneumatic Manual Control Valve G 1/2 is engineered for controlling pressurized pneumatic systems with precision and reliability. This valve allows manual operation via an ergonomic rotary knob, enabling gradual pressure buildup and rapid venting to protect system components from overpressure damage.
Manufactured from corrosion-resistant die-cast aluminium, this valve offers durability in demanding industrial environments. It operates efficiently within a temperature range of -10°C to +60°C, making it suitable for medical, aerospace, transport, scientific laboratory, assembly, and packaging line applications.
The valve features a bistable 3/2 function with two operational positions and three connection ports allowing controlled airflow. It supports a maximum operating pressure of 18 bar and a nominal flow rate of 8700 L/min. Its compact size, measuring 150.7 mm in height, 76 mm in length, and 62 mm in width, facilitates integration into various pneumatic systems.
For enhanced process control, the valve can be paired with Festo pressure sensors for continuous pressure monitoring. Additionally, the rotary knob can be secured with a padlock to prevent unauthorized tampering, ensuring system safety.
Ergonomic rotary knob enables smooth manual operation. Bistable valve retains position to avoid system failures. Die-cast aluminium body ensures corrosion and abrasion resistance. Wide temperature tolerance from -10°C to +60°C.
Compact design measures 150.7 mm x 76 mm x 62 mm. Supports maximum pressure of 18 bar and flow rate of 8700 L/min. 3/2 valve function with 2 positions and 3 ports. Suitable for industrial, medical, aerospace, and laboratory use.
Lockable rotary knob for enhanced safety.
This Festo Pneumatic Manual Control Valve combines performance, reliability, and durability for diverse industrial pneumatic applications. Explore similar premium pneumatic valves and control equipment on EnvMart to suit your project's requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this valve is 18 bar.
This model supports a maximum flow rate of 8700 L/min.
It operates efficiently within a temperature range of -10°C to +60°C.
The valve features three ports and uses a pneumatic port type.
The valve is constructed from die-cast aluminium, which provides corrosion resistance.
The dimensions of this model are 150.7 mm in height, 76 mm in length, and 62 mm in width.
It has a 3/2 valve function with two operational positions.
Yes, the rotary knob can be secured with a padlock for added security.
It is compatible with Festo pressure sensors for enhanced monitoring and control.
This valve is suitable for applications in medical, aerospace, transport, scientific laboratories, assembly, and packaging lines.
The valve has cULus standards/approvals.
It utilizes a rotary control mechanism for manual operation.
