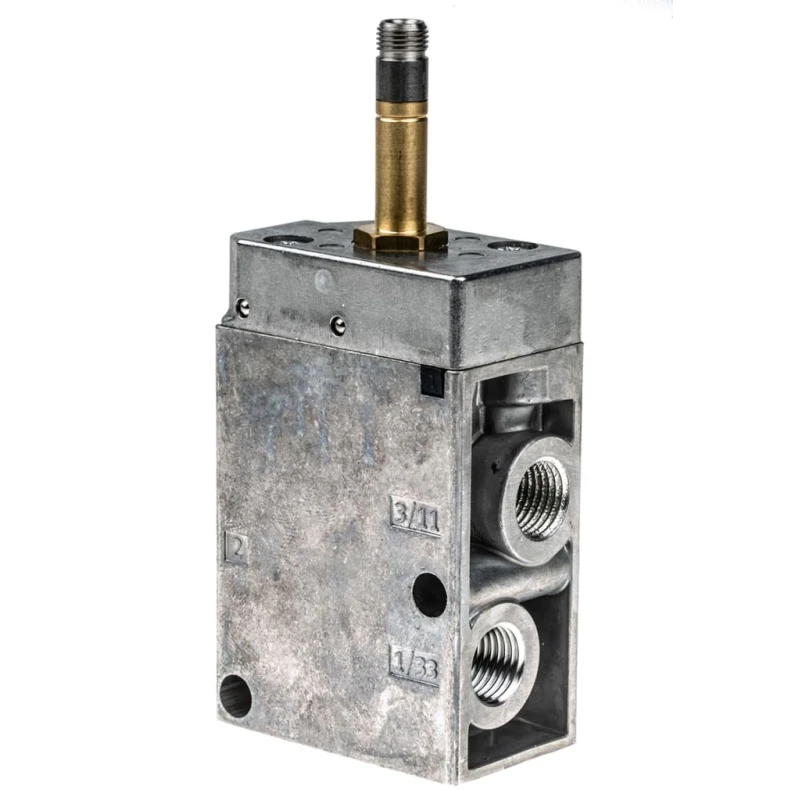

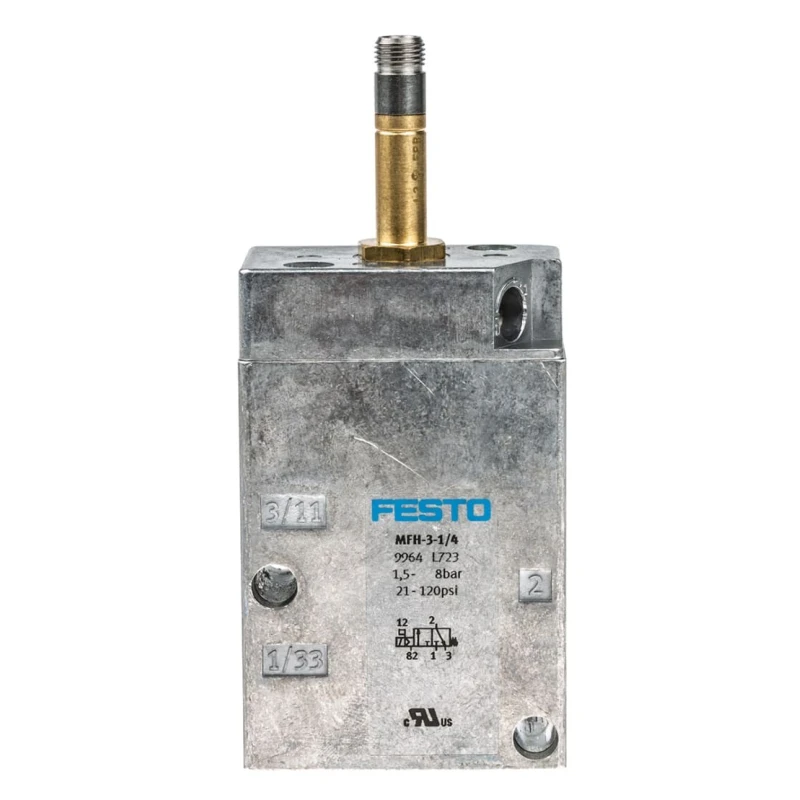

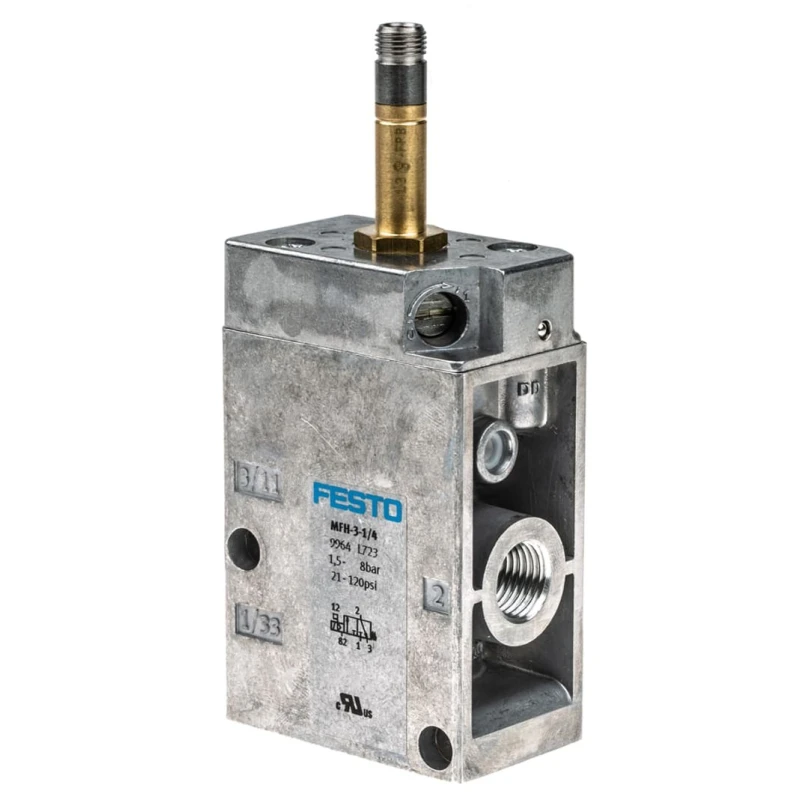

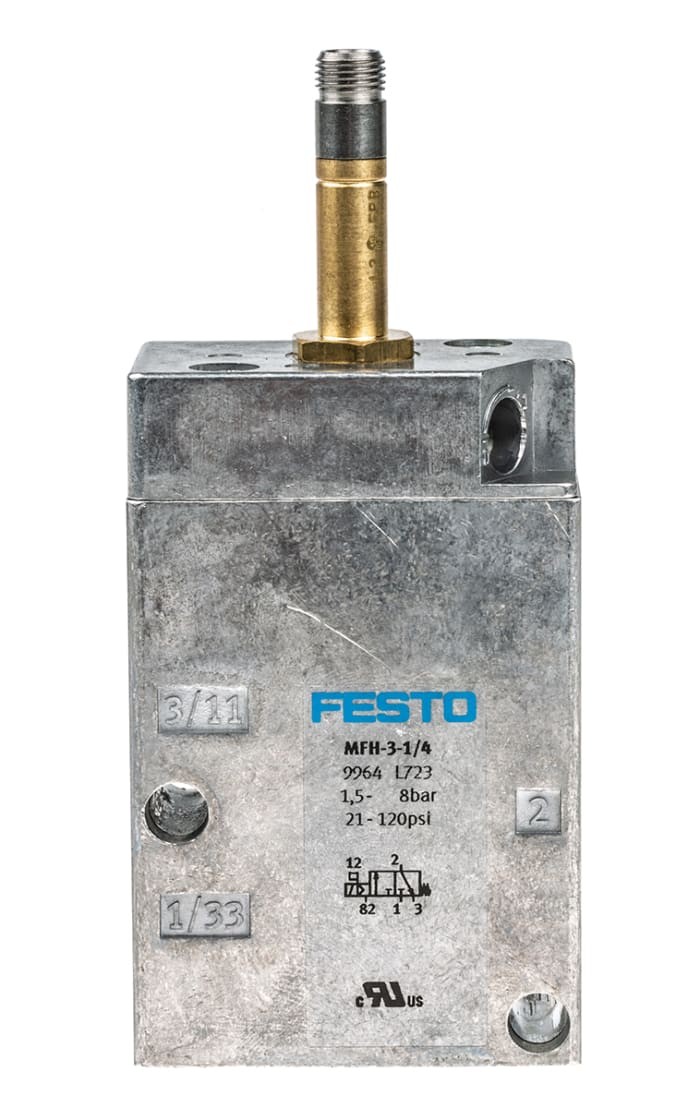

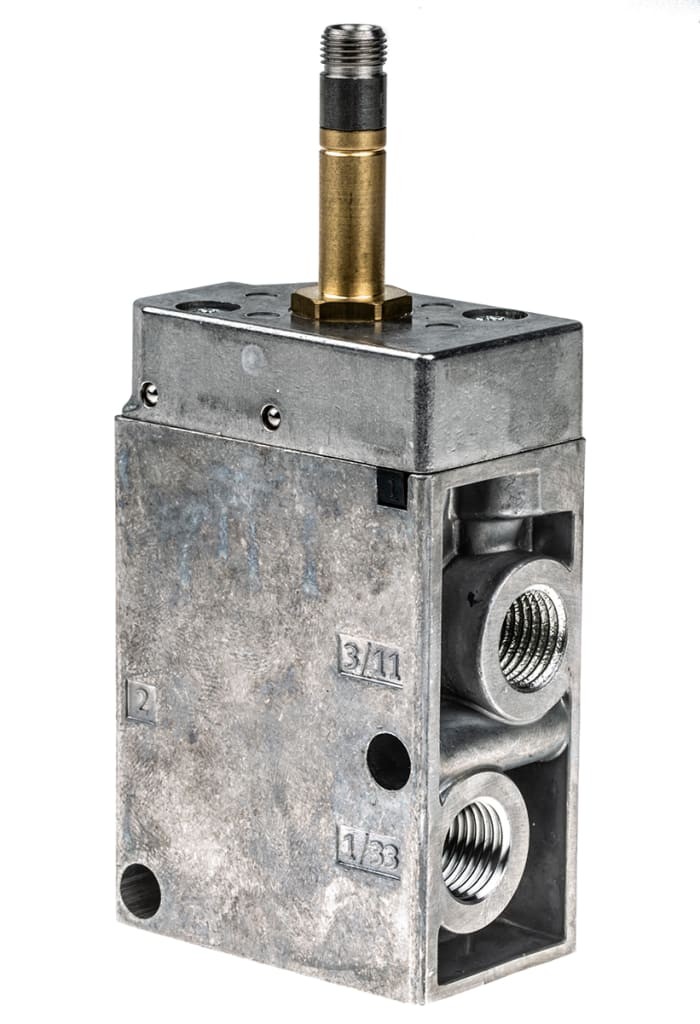

Festo Pneumatic Solenoid Valve 3/2 Way Closed Monostable Electric G Threaded Port 1/4 in Aluminium Body MFH-3-1/4

Festo MFH-3-1/4 Pneumatic Solenoid Valve 3/2 Way Closed Monostable Electric G Series is an industrial-grade pneumatic valve designed for precise control of compressed air in automation systems. Manufactured with a robust aluminium die-cast body and Nitrile Rubber (NBR) seals, this valve offers excellent corrosion resistance and is compatible with lubricated media conforming to ISO 8573-1:2010 air quality standards.

The valve supports a maximum operating pressure of 8 bar and a maximum flow rate of 800 L/min, enabling rapid actuation and efficient throughput. Operating temperature ranges from -5 °C to 40 °C ambient, with medium temperatures allowable from -10 °C to 60 °C, supporting a wide range of environmental applications.

Equipped with a single solenoid that consumes only 4.5 W, the valve ensures energy-efficient operation. It features a 3-port, 2-position closed monostable valve function with spring return, suitable for piloted applications using a valve-mounted F type coil mounted via through holes or manifold rails. The coil supports electrical supply variants of 240V AC or 48V DC, ordered separately.

The pilot exhaust through a throttleable M5 port allows adjustable venting to control cylinder descent or damping, enhancing control precision. Its IP65 protection class permits operation in dusty or damp environments.

Capacity of 800 L/min for efficient air flow. Maximum operating pressure of 8 bar suitable for diverse pneumatic systems. Single solenoid with low 4.5 W power consumption. Durable Nitrile Rubber seals reduce leakage and support lubricated air media.

Compact dimensions: 143 mm length, 73.5 mm height, 30.5 mm width. Through-hole mounting enables easy installation in manifolds or direct setups. Certified for hazardous environment use with ATEX and compliant with cULus, RoHS.

Electrical connection type F Coil, coil ordered separately.

This Pneumatic Solenoid Valve is widely applicable in industrial automation, including pneumatic control of valve actuators in assembly lines, sequence control in packaging machinery, and pick-and-place equipment requiring fast and reliable valve switching. It is ideal for installation on manifold rails providing compact, flexible pneumatic control islands in factory environments.

Festo products are renowned for quality and reliability, ensuring long-term service with minimal maintenance. This MFH series valve represents an excellent choice for engineers and system integrators specifying compact, high-performance pneumatic components for industrial automation, manufacturing, and process control applications.
