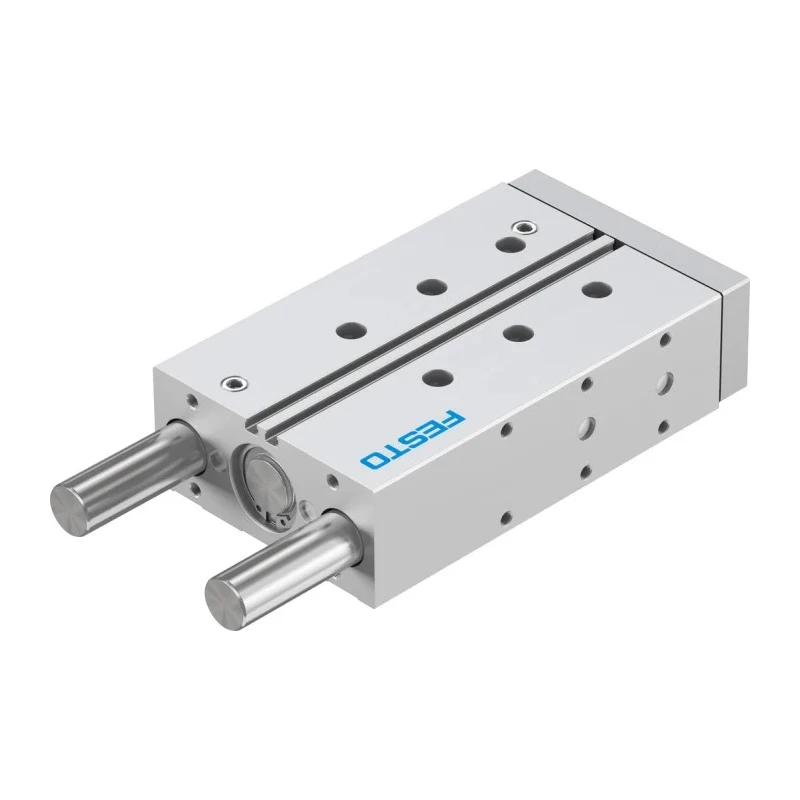

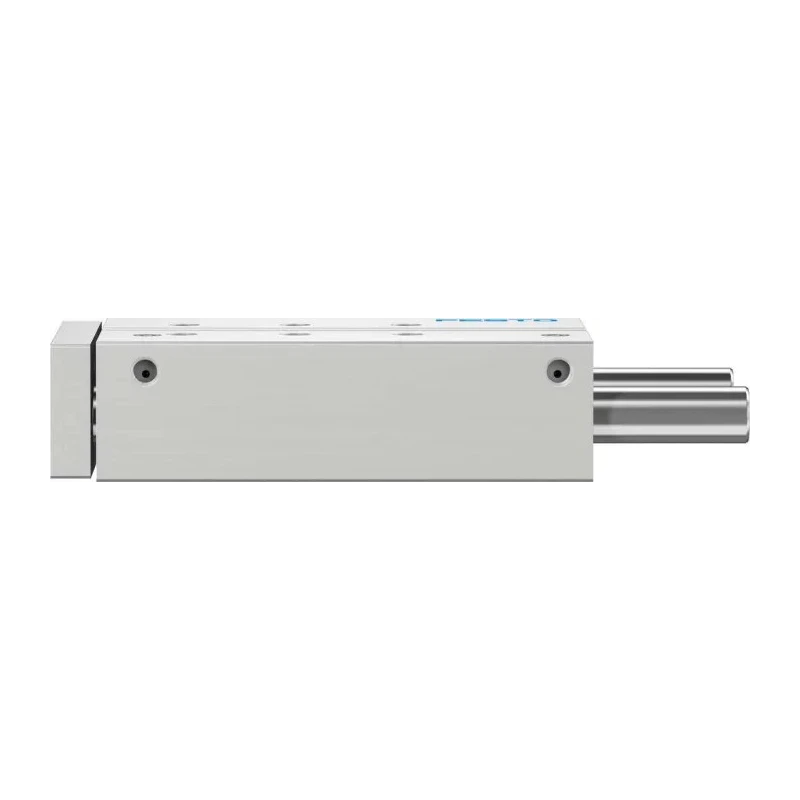

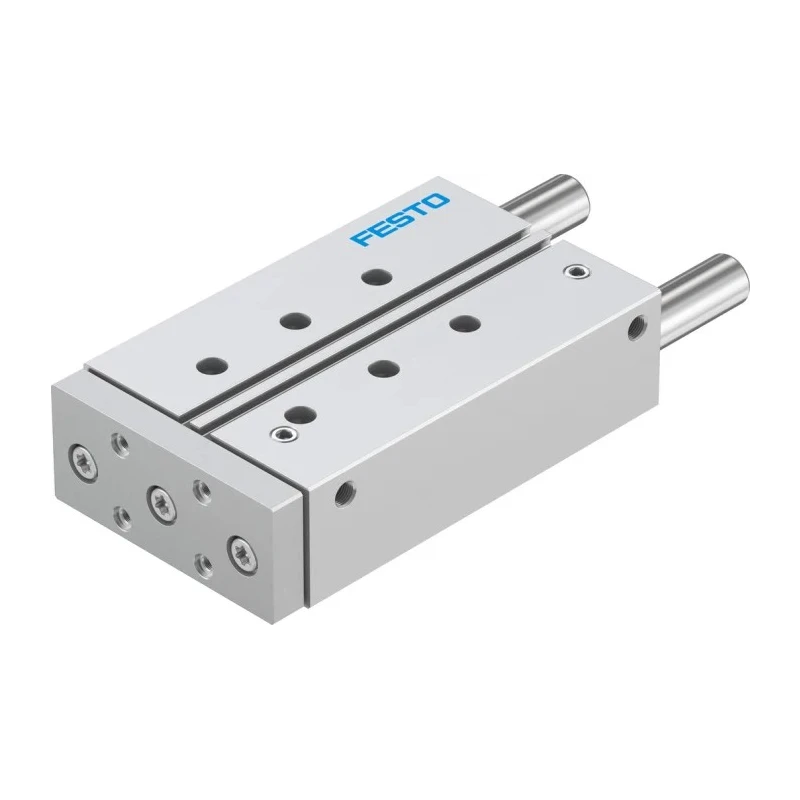

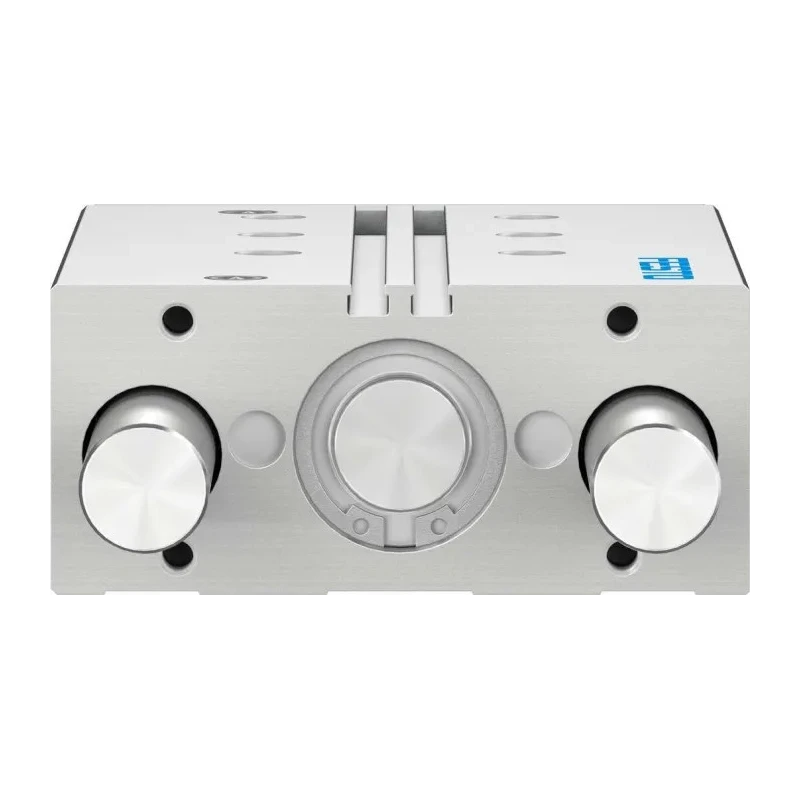

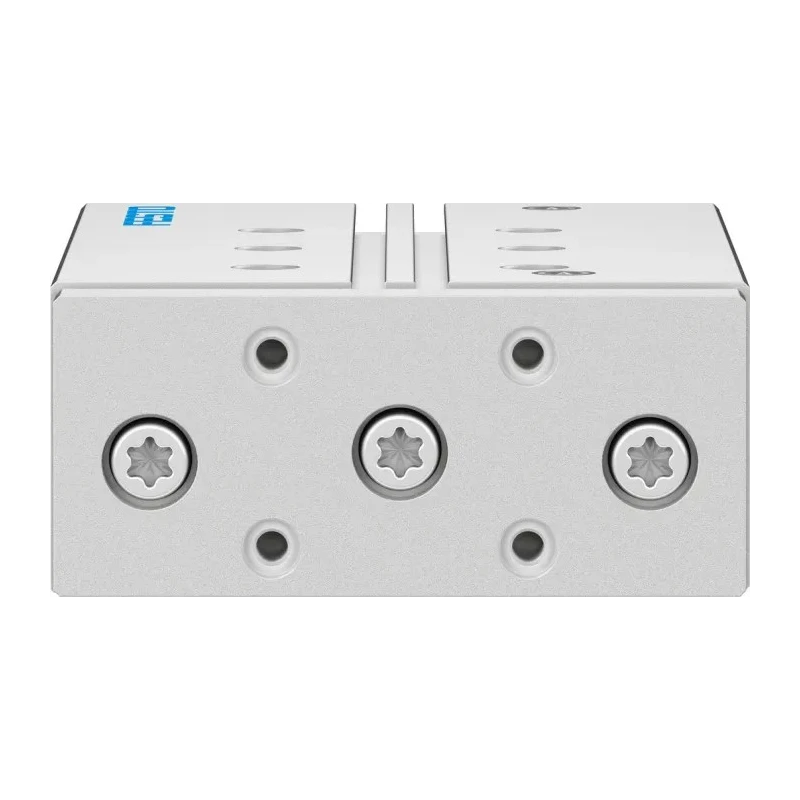

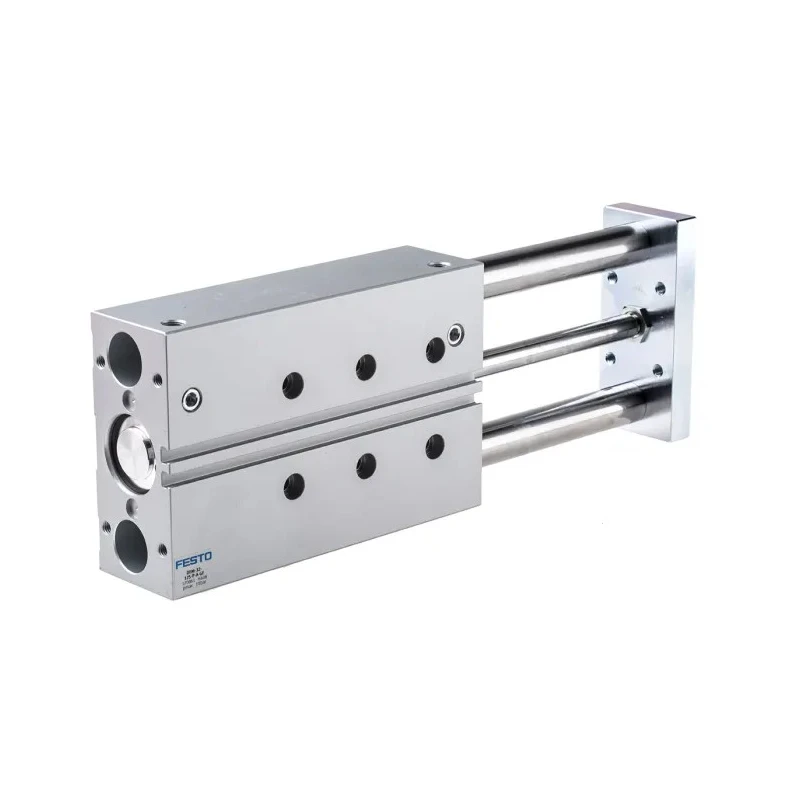

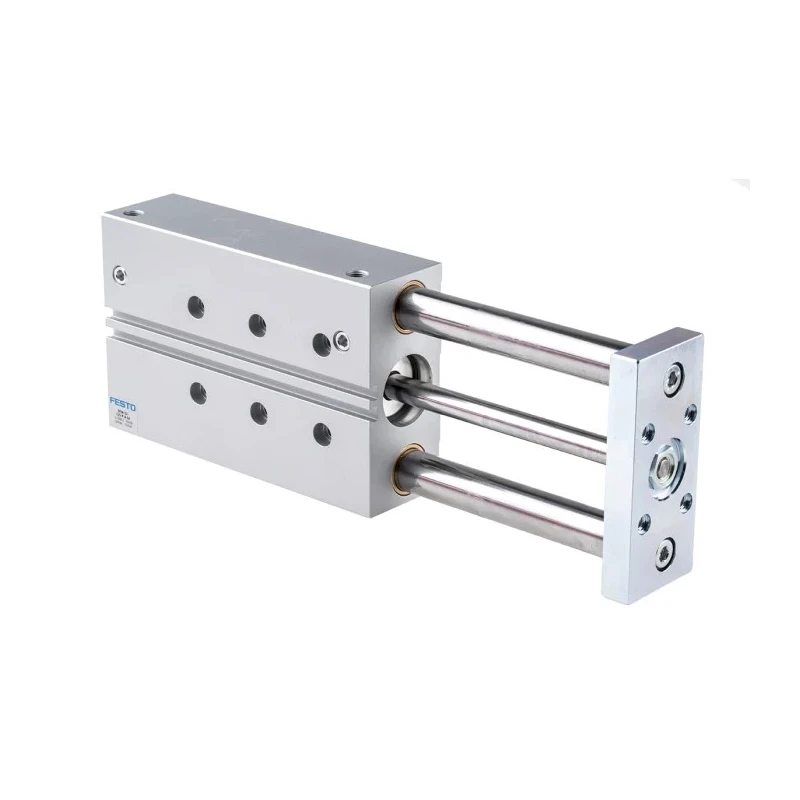

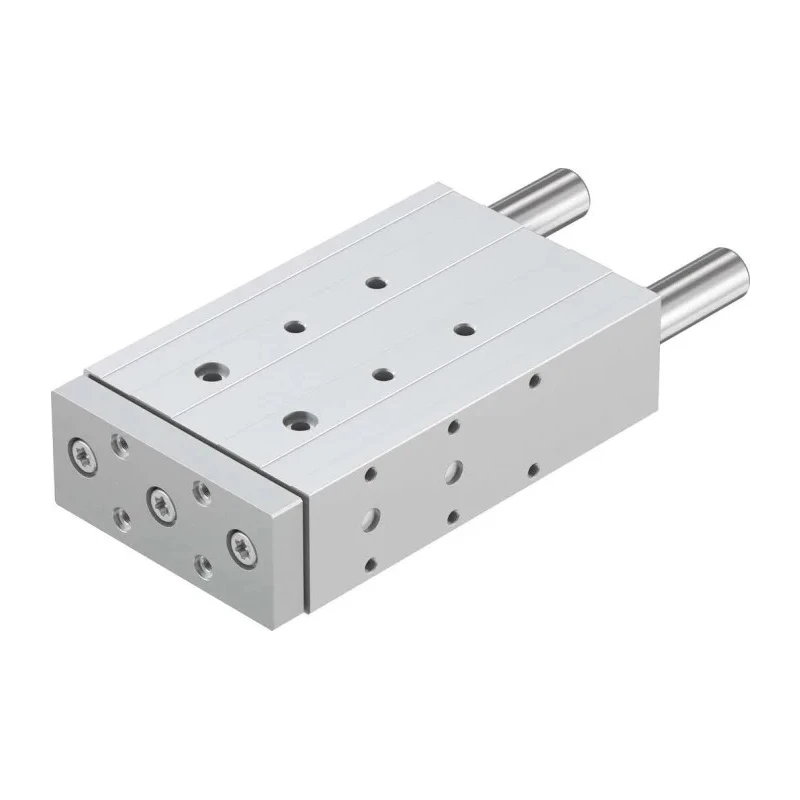

Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount, 10 bar Max Pressure, Elastomer DFM-32-125-P-A-GF

Free Delivery in India | Lowest Global Shipping Charges

Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount, 10 bar Max Pressure, Elastomer DFM-32-125-P-A-GF

Name: Festo Pneumatic Guided Cylinder 32mm Bore Double Acting Through Hole Mount, 10 bar Max Pressure, Elastomer DFM-32-125-P-A-GF
Brand: FESTO
SKU: 186631
Price: 584.19 USD
Availability: InStock



Category Pneumatic Guided Cylinder Brand FESTO Condition New

Specifications

Country of Origin	Germany
Brand	Festo
Maximum Operating Pressure	10 bar
Height	49mm
Length	244mm
Model	DFM-32-125-P-A-GF
Gross Weight	3.6kg
Width	110mm
Mount Type	Through Hole
Series	DFM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Stroke Length	125mm
Bore Diameter	32mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	ISO 228-1, ISO 1179-1, RoHS
Cushioning Type	Elastomer
Guide Type	Plain Bearing, Ball Bearing
Piston Rod Thread Size	1/8 in G

Key Features

Equipped with a through hole mount for secure installation.
Handles maximum operating pressure of 10 bar for heavy-duty applications.
Features elastomer cushioning ensuring smooth piston deceleration.
Supports a stroke length of 125mm with speeds up to 0.8 m/s.
Robust seals resist petroleum and crude oils for extended durability.
Can operate within temperatures ranging from -20°C to 80°C.
Includes plain and ball bearing guides to maintain linear accuracy.
Lightweight design at approximately 3.6 kg enhances installation ease.

Product Description

Festo DFM-32-125-P-A-GF Pneumatic Guided Cylinder is designed for accurate linear motion control in industrial automation, featuring a 32mm bore and double-acting capability. Its through hole mount configuration allows flexible positioning to suit various assembly requirements.

This cylinder operates efficiently under maximum pressures of 10 bar and supports a stroke length of 125mm, enabling rapid piston travel at speeds up to 0.8 m/s. Elastomer cushioning reduces mechanical stress, enhancing service life and operational smoothness.

The piston rod is single type with a 1/8 in G thread, and the guide system combines plain and ball bearings ensuring stable guidance and precise piston positioning, even with heavy loads.

Robust NBR seals are incorporated to prevent air leakage and provide resistance against petroleum and crude oils, ensuring reliable performance in demanding industrial environments. The cylinder reliably performs across a broad temperature range from -20°C to 80°C, suitable for HVAC systems, conveyor belts, printing presses, and water treatment facilities.

Integrated slots in the body accommodate proximity sensors for piston position detection, facilitating automation and control. The compact dimensions (height 49mm, width 110mm, length 244mm) and weight of 3.6 kg make handling and integration less cumbersome.

Equipped with through hole mount for versatile installation options. Maximum operating pressure of 10 bar for high load applications. Elastomer cushioning enhances smooth piston movement. Double acting operation for effective bidirectional force.

Supports stroke length of 125mm and speed up to 0.8 m/s. Lightweight design at 3.6 kg for easy handling. Integrated slots for proximity sensor installation for position tracking. Seals resistant to petroleum products and crude oils increase durability.

This Pneumatic Guided Cylinder is ideal for industrial automation tasks requiring precise linear motion such as clamping, stopping, or lifting in manufacturing and processing environments. Its robust design and reliable seals make it suitable for harsh conditions and continuous operation.
