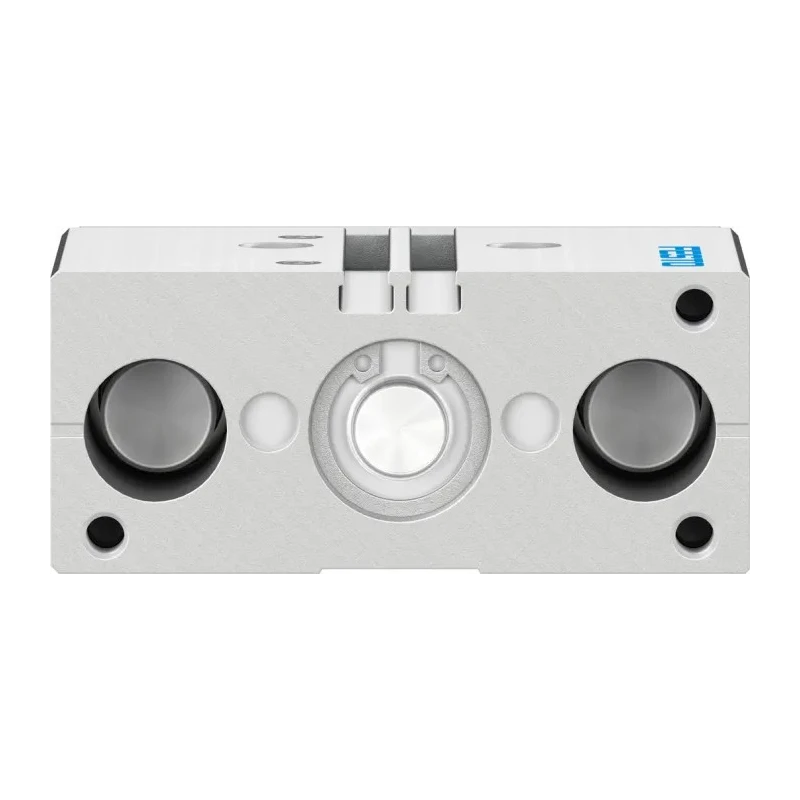

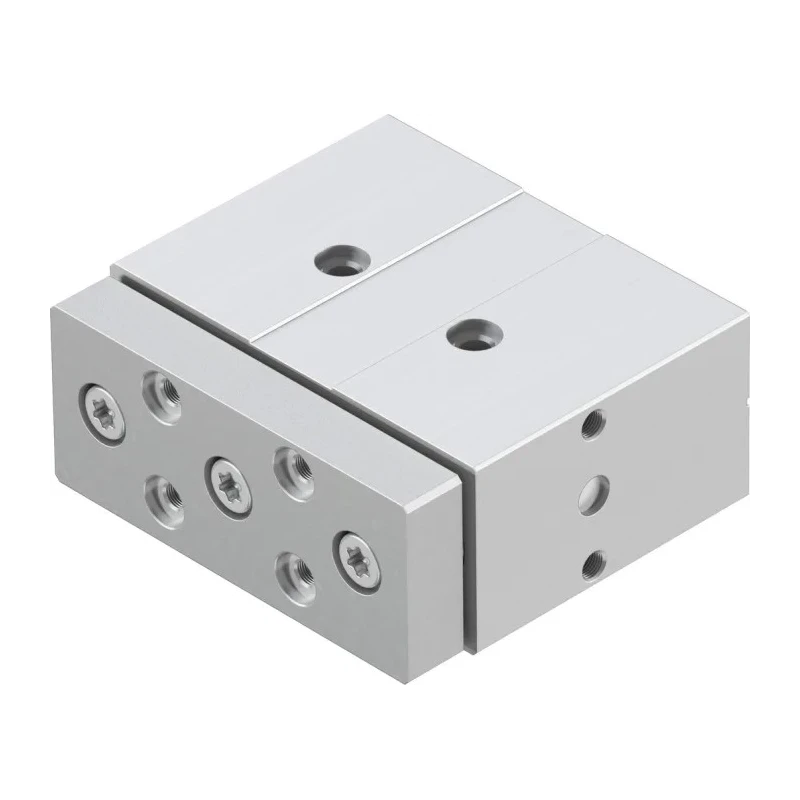

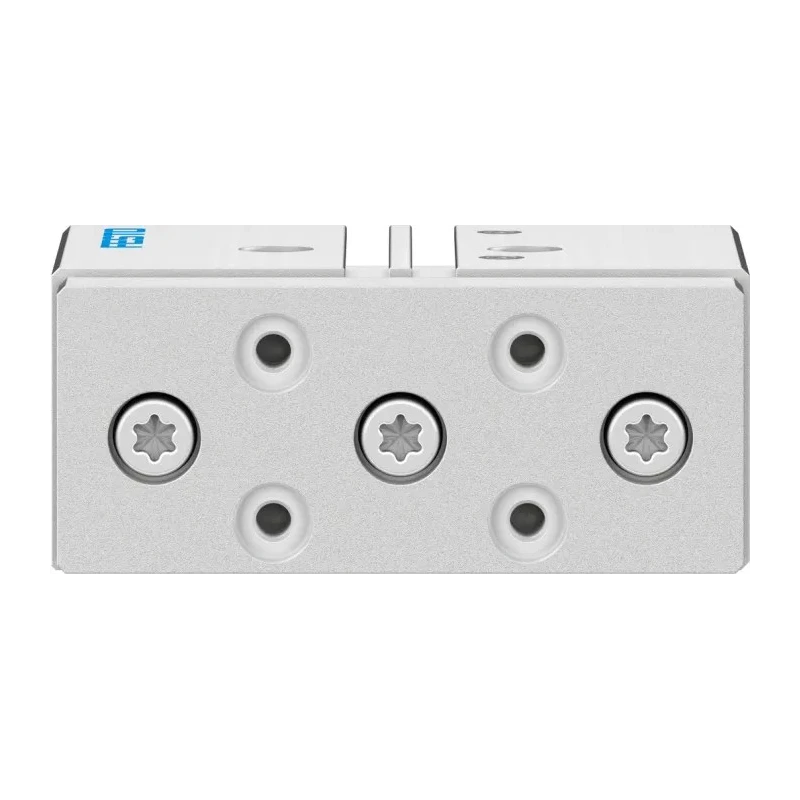

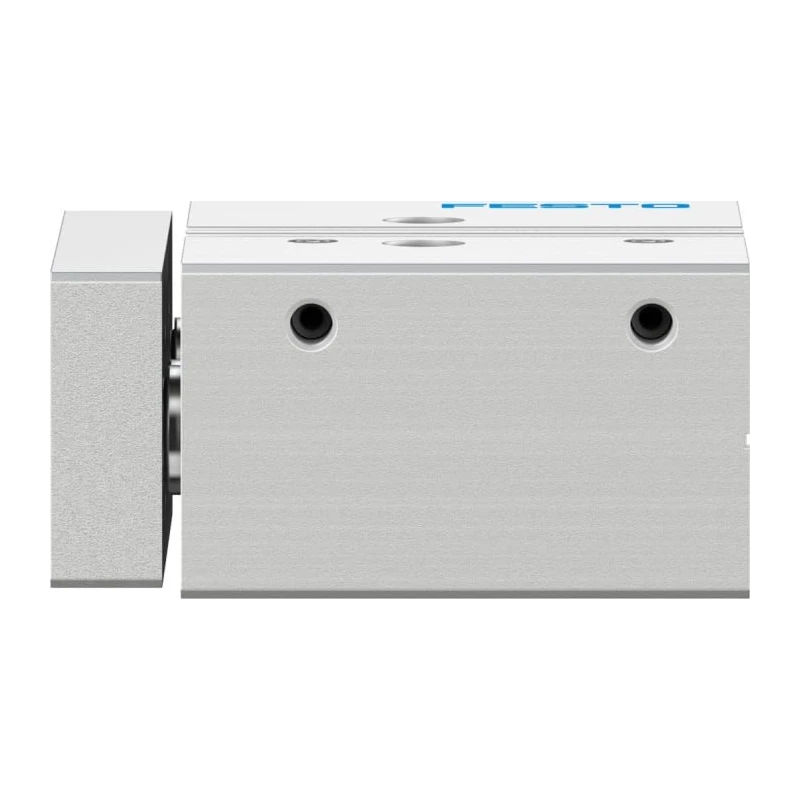

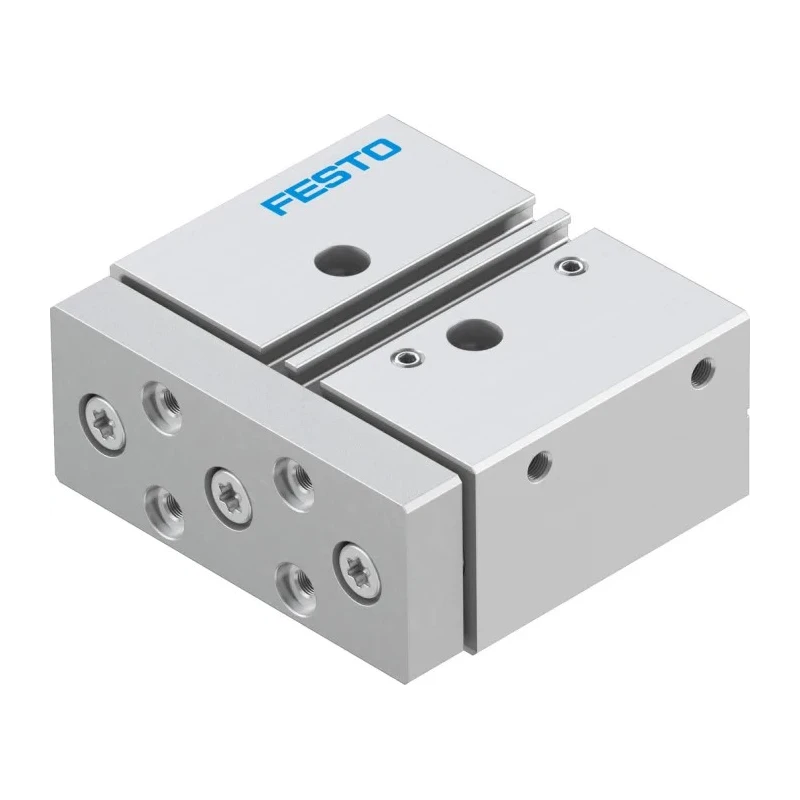

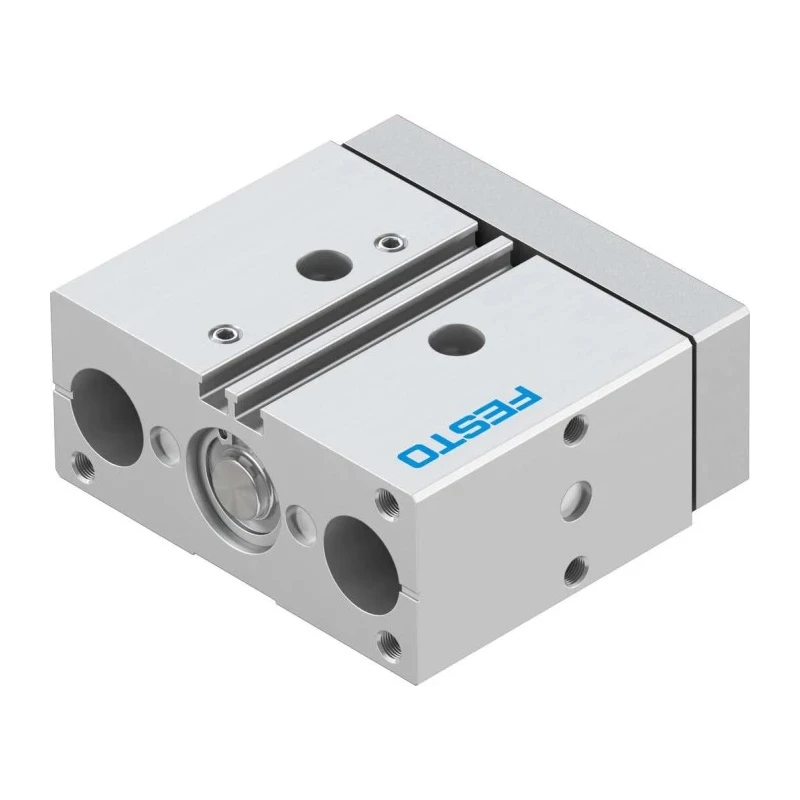

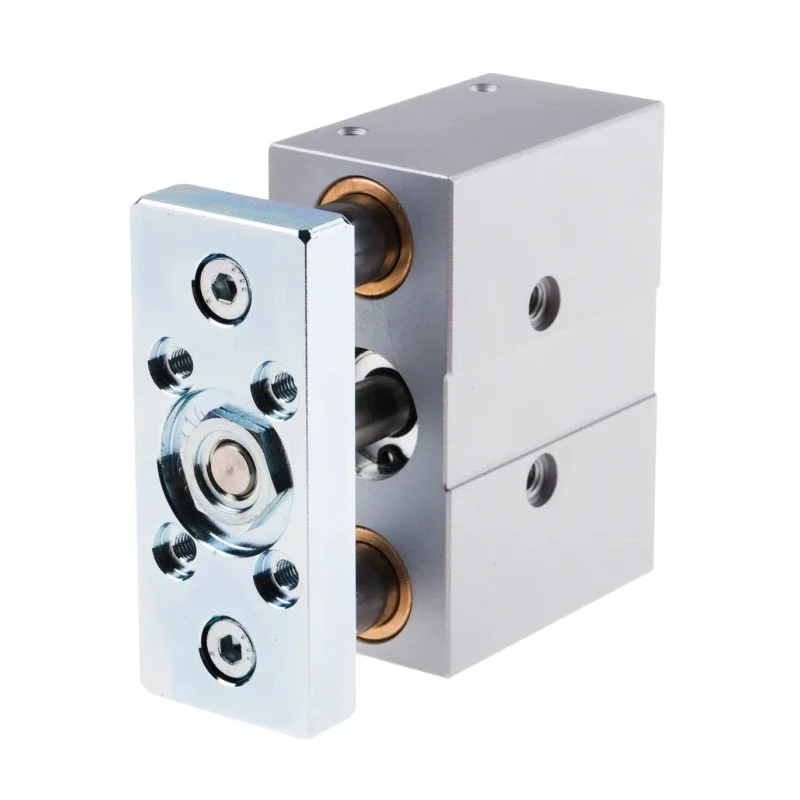

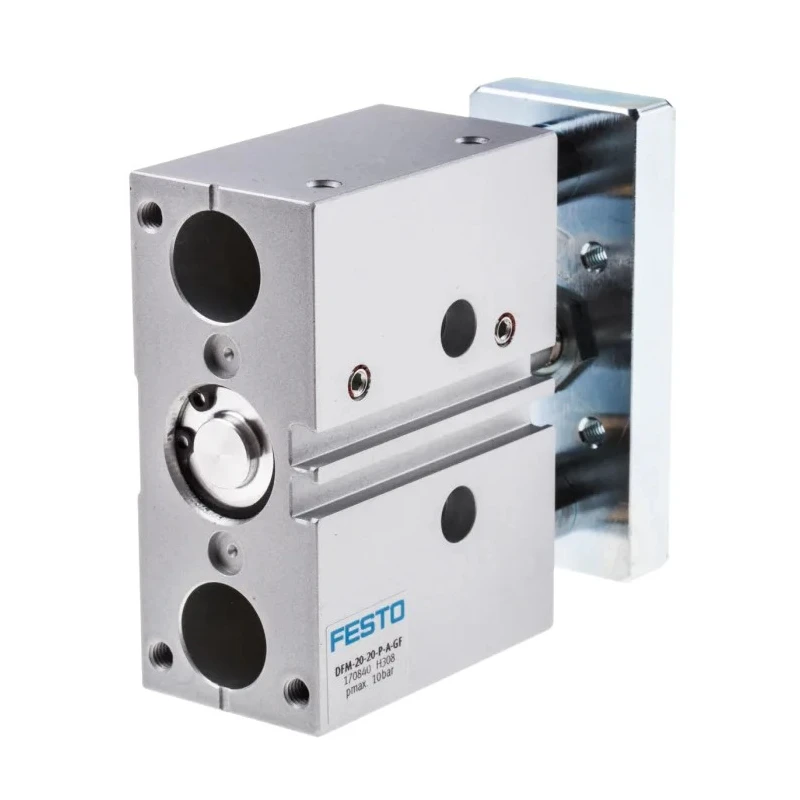

Festo Pneumatic Guided Cylinder 20 mm Bore Double Acting, Side Flat Through Hole Mount, 10 bar Pressure DFM-20-20-P-A-GF

Festo DFM-20-20-P-A-GF pneumatic guided cylinder is a precision-engineered double acting cylinder designed for heavy-duty holding, pressing, lifting, separating, and stopping applications in industrial environments. With a 20 mm bore diameter and a compact 75mm body length combined with a 20mm stroke length, it fits well in constrained spaces while providing reliable motion control.

Manufactured using a combination of wrought aluminium alloy, tempered steel, polyurethane, nitrile rubber (NBR), and high alloy stainless steel, this cylinder withstands harsh operating conditions. The elastomer cushioning at both ends ensures smooth movement, reduces noise, and limits wear and tear for longer service life.

The guided cylinder uses a yoke drive and multiple rods with plain-bearing and ball-bearing guides for enhanced rigidity and stability, preventing twisting under high torque and heavy loads. The device supports operation under pressures up to 10 bar with a maximum piston speed of 0.8 m/s, and it tolerates extreme temperatures ranging from -20°C to 80°C.

Mounting is versatile with side, flat, and through-hole configurations, and the piston rod features an M5 thread adhering to ISO 1179-1 and ISO 228-1 standards. Dimensions include a height of 36mm, width of 83mm, and length of 75mm, with a stroke of 20mm for precise movement control. The gross weight is approximately 777 grams, reflecting the sturdy materials used in its construction.

Ideal applications include industrial conveyors, materials handling tasks, sorting systems, and automation lines where accurate positioning and durable pneumatic operation are critical. Position detection can be integrated with an optional proximity sensor for enhanced control.

As a 'Better World' product from Festo, this model supports repairability by the end user, contributing to sustainability by extending the product lifecycle. It is manufactured in Germany and complies with stringent ISO standards including ISO 8573-1:2010 (7:4:4), as well as RoHS conformity.

Compact and rigid pneumatic guided cylinder with 20 mm bore and 20 mm stroke. Durable body materials combining aluminium alloy, steel, and high-grade rubber components. Elastomer cushioning minimizes wear and enhances smooth operation.

Versatile mounting options for side, flat, and through-hole installations. Supports operation up to 10 bar and temperature range from -20°C to 80°C. Equipped with plain and ball bearings for stable guided motion under load.

Meets international standards ISO 1179-1, ISO 228-1, ISO 8573-1:2010, and RoHS compliance. Ideal for industrial automation processes including conveying, sorting, and material handling. Explore the wide range of Pneumatic Guided Cylinders and pneumatic automation components available at EnvMart to optimize your industrial machine performance and efficiency.
