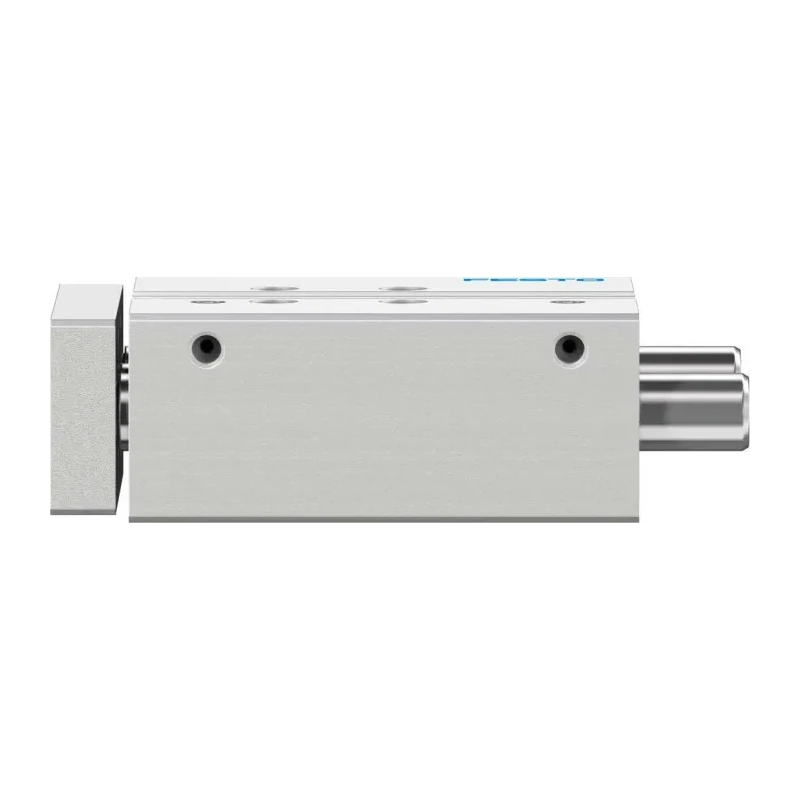

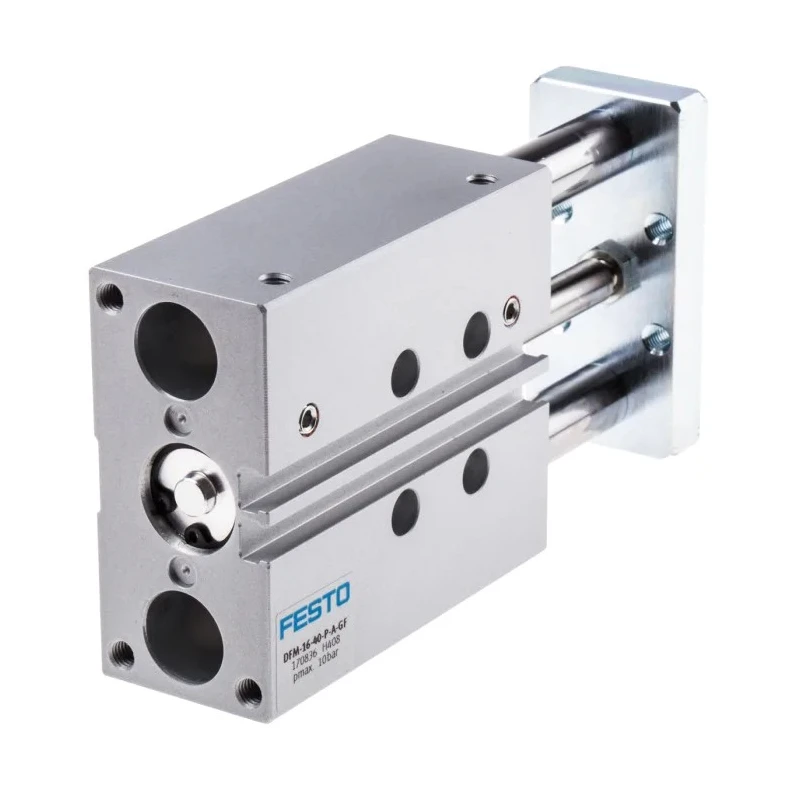

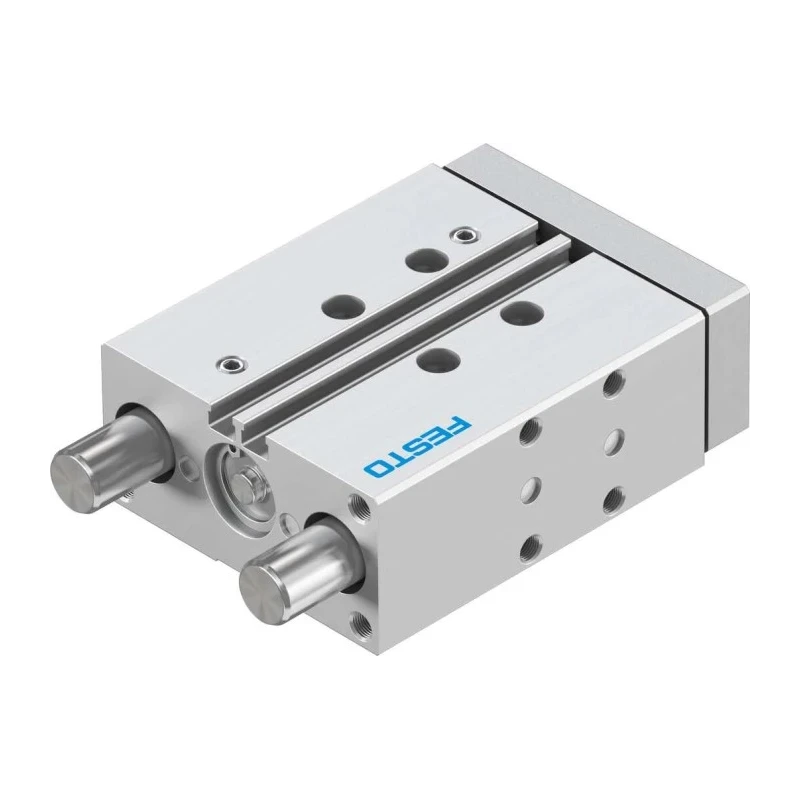

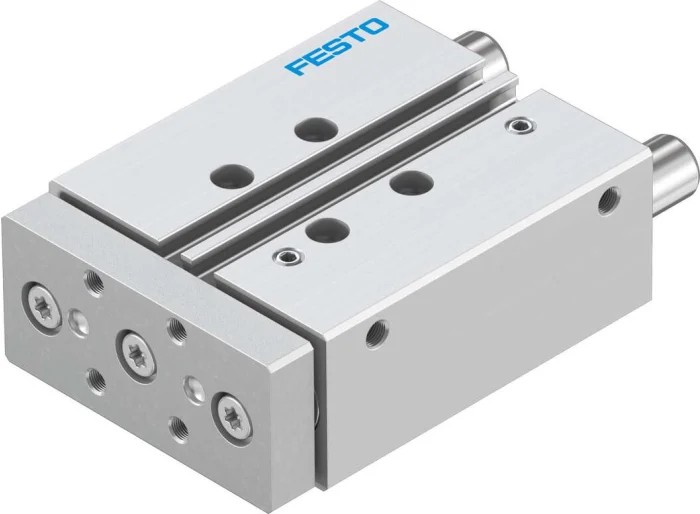

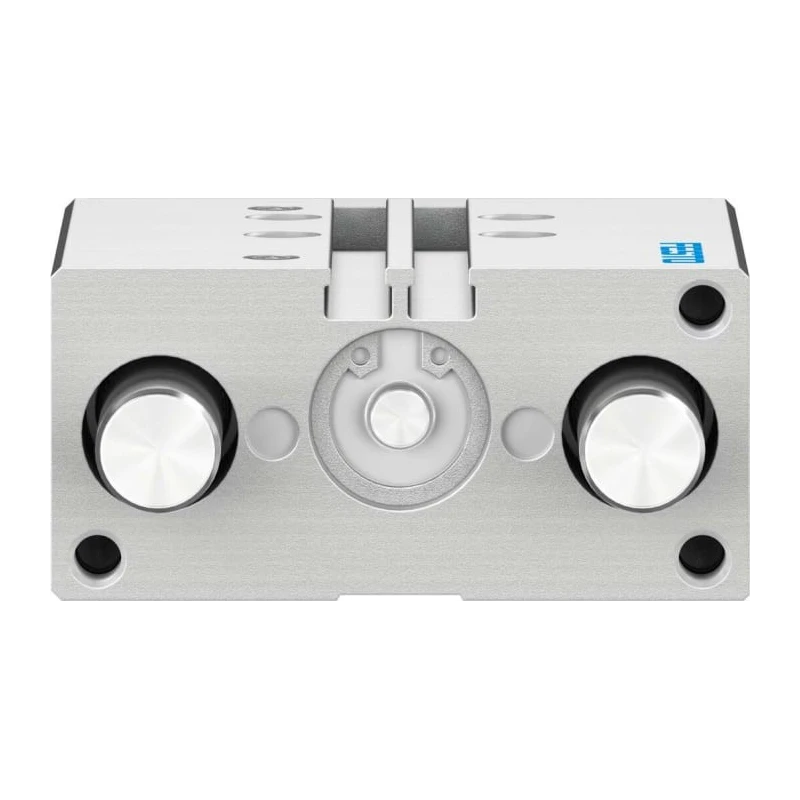

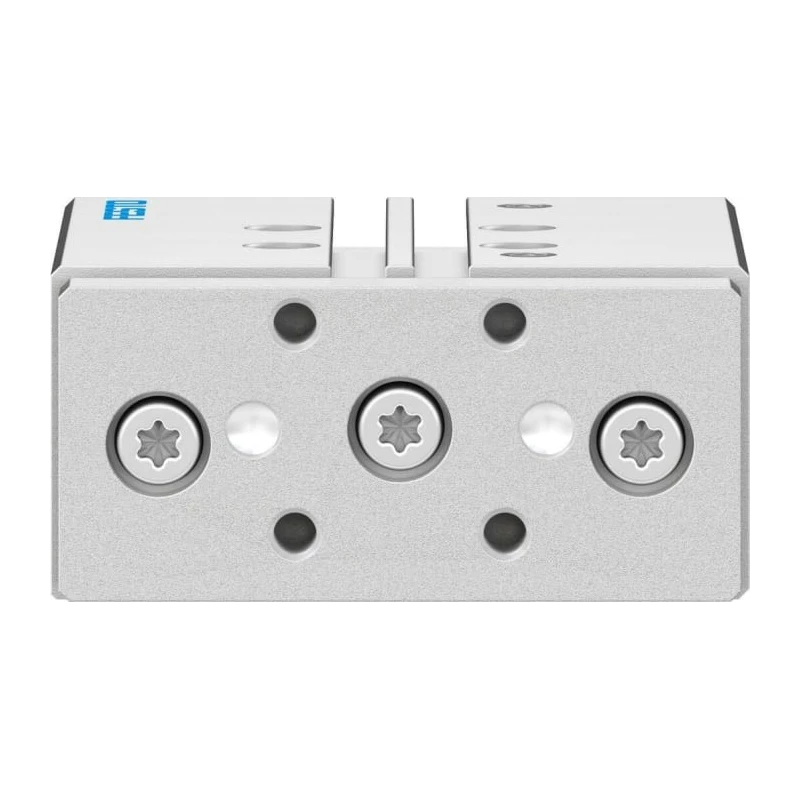

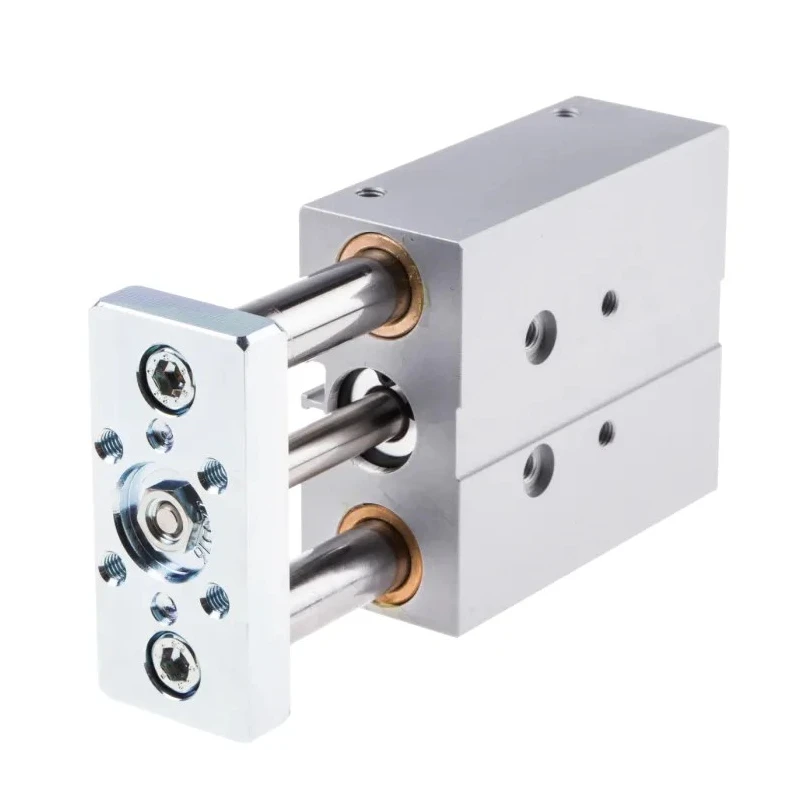

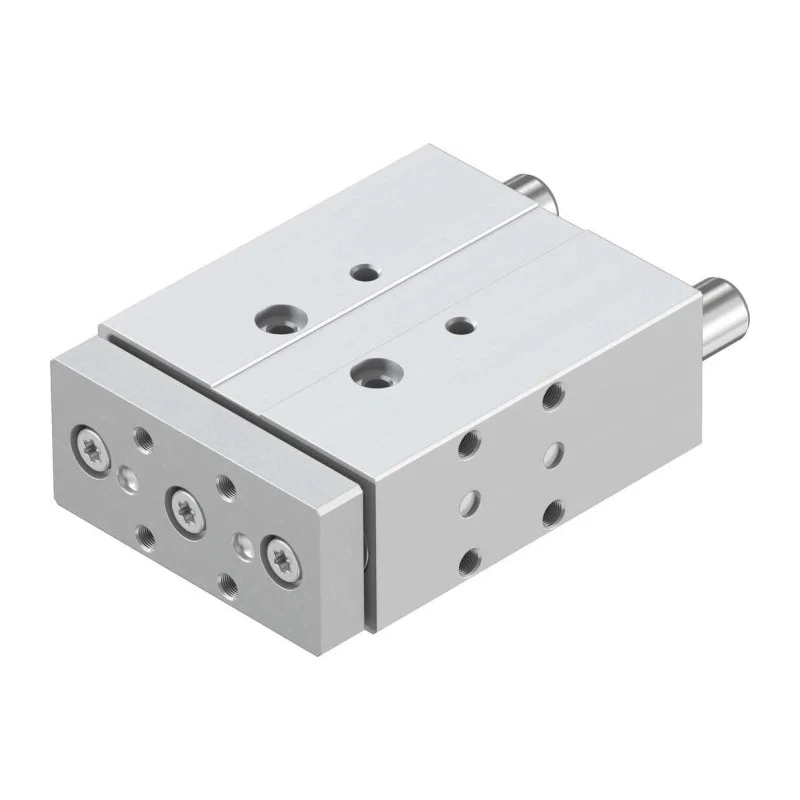

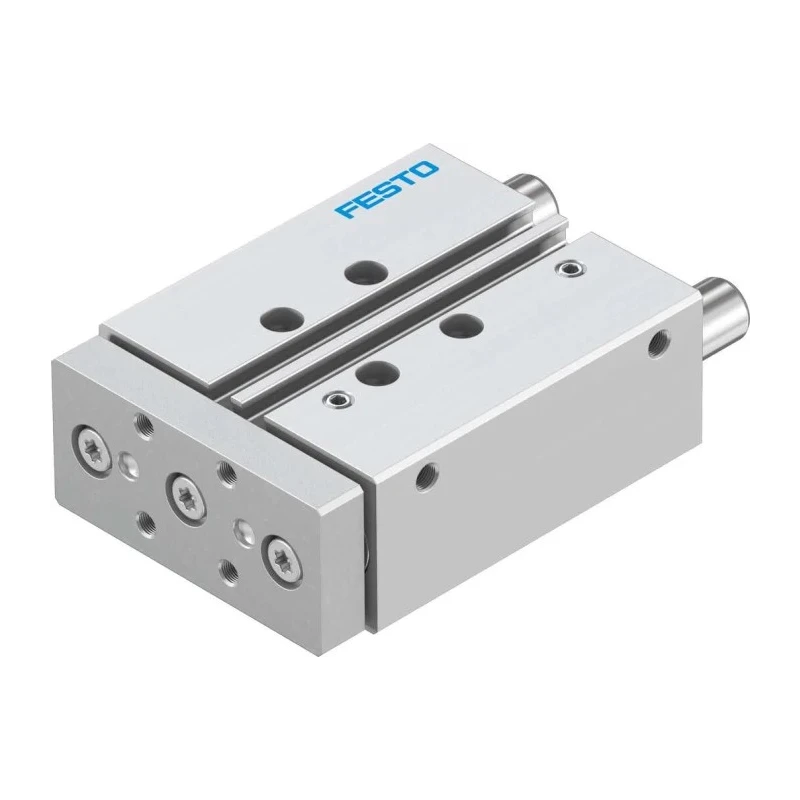

Festo Pneumatic Guided Cylinder 16mm Bore, 40 mm Stroke, Double Acting, Through Hole Mount, Wrought DFM-16-40-P-A-GF

Festo DFM-16-40-P-A-GF pneumatic guided cylinder features a 16mm bore diameter and 40 mm stroke length, designed for double acting pneumatic power with a through hole mount type. This cylinder is constructed with a wrought aluminium alloy body that offers excellent corrosion resistance, making it ideal for use in humid and industrial environments.

The guided cylinder is equipped with slide bearing guides to ensure smooth and precise linear movement. It includes elastic cushioning at both ends to minimize noise during operation, thus preventing workplace disruption. Operating efficiently within a temperature range of -20°C to 80°C and a maximum pressure of 10 bar, this product is engineered for versatility and reliability in various industrial applications.

Designed with an M5 piston rod thread standard, the cylinder integrates effortlessly into existing pneumatic systems. It supports piston speeds up to 0.8 m/s, delivering high-performance force up to approximately 608N, suitable for guiding heavy mechanical loads with precision and repeatability.

Key certifications such as RoHS compliance, Cleanroom Class 6, and ISO 8573-1:2010 (7:4:4) emphasize its quality and adherence to industrial standards. Its compact size (length 107 mm, width 67 mm, height 32 mm) and relatively low gross weight of 707 g make it suitable for manufacturing, automotive, and main engine control systems where reliable pneumatic actuation is critical.

The 16mm bore diameter is suitable for moderate load applications. Double acting cylinder powered by compressed air on both strokes for precise operation. Wrought aluminium alloy body resists corrosion for durability in humid environments.

Elastic cushioning type reduces noise, enhancing workplace comfort. Designed for use in temperatures from -20°C to 80°C for versatile industrial applications. Slide bearing guide type ensures smooth, low-friction operation.

Standard M5 piston rod thread enables easy integration with existing pneumatic setups. Compact dimensions with length 107mm, width 67mm, height 32mm, and 40mm stroke length. Maximum operating pressure up to 10 bar with a piston speed up to 0.8 m/s.

RoHS compliant with certifications including Cleanroom Class 6 and ISO 8573-1:2010 (7:4:4).

This Pneumatic Guided Cylinder is widely used in industrial automation, manufacturing assembly lines, automotive applications, and precision main engine control systems, where precise and reliable linear actuation is required. Its robust construction and high operating standards ensure long service life and consistent performance in demanding environments and conditions.
