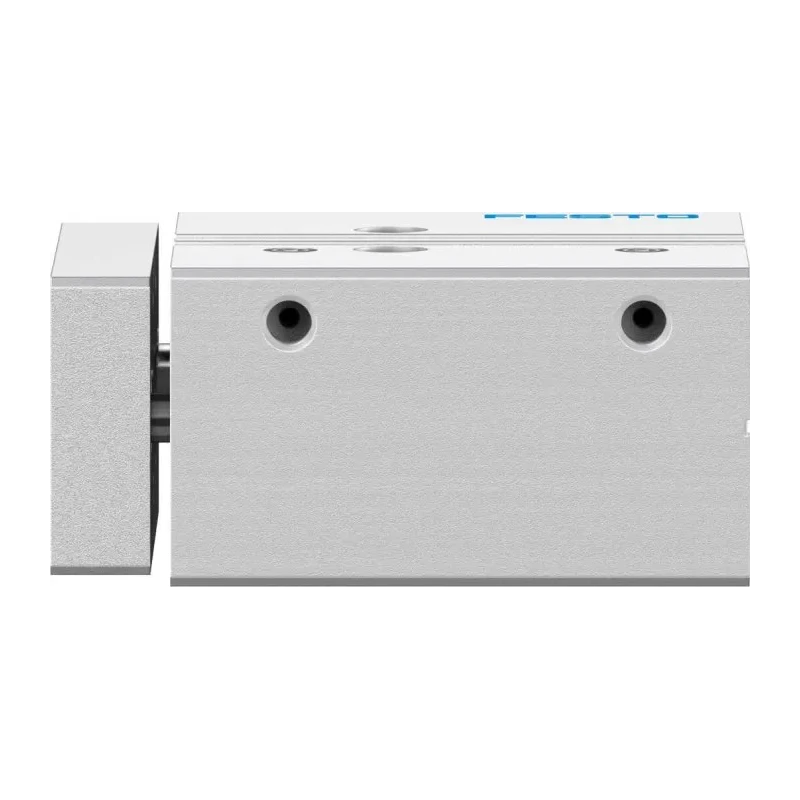

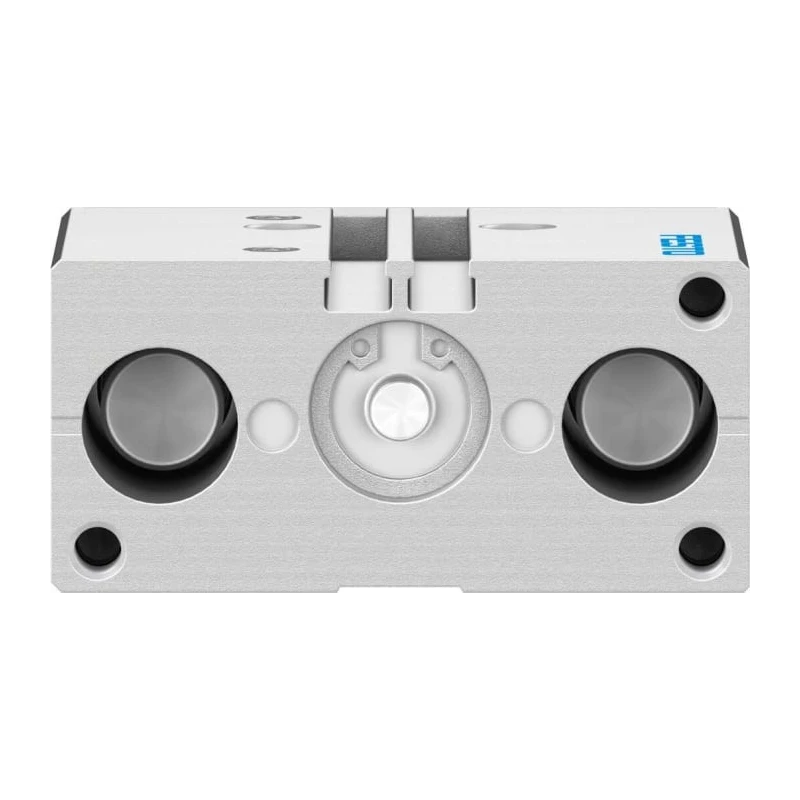

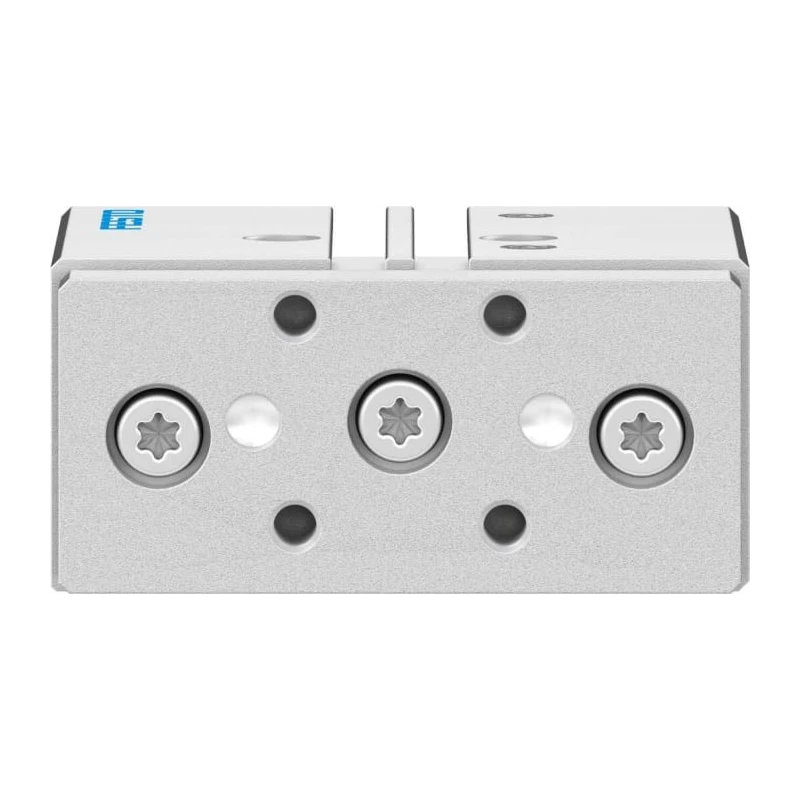

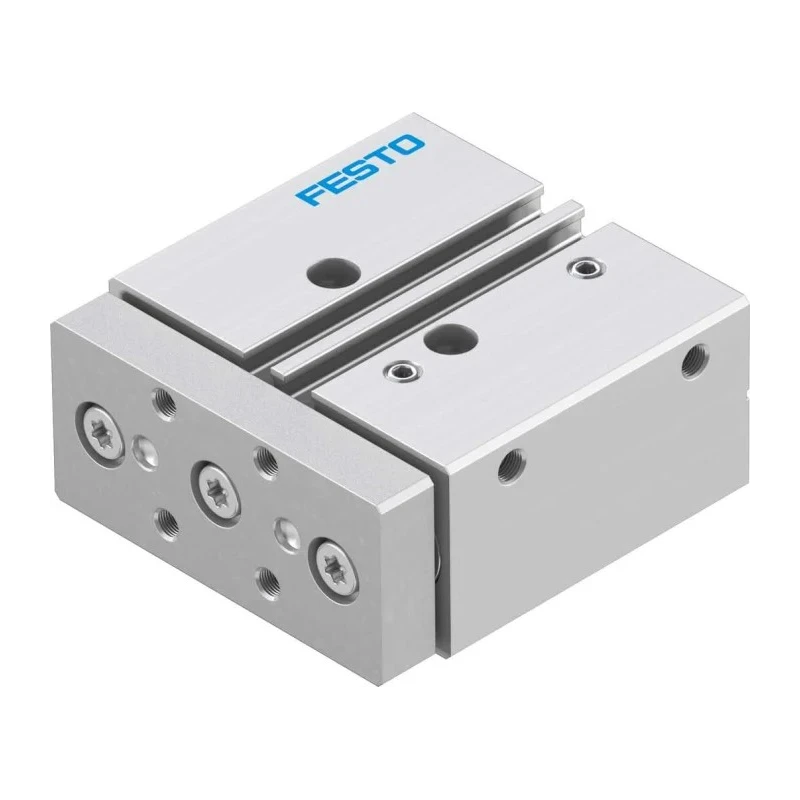

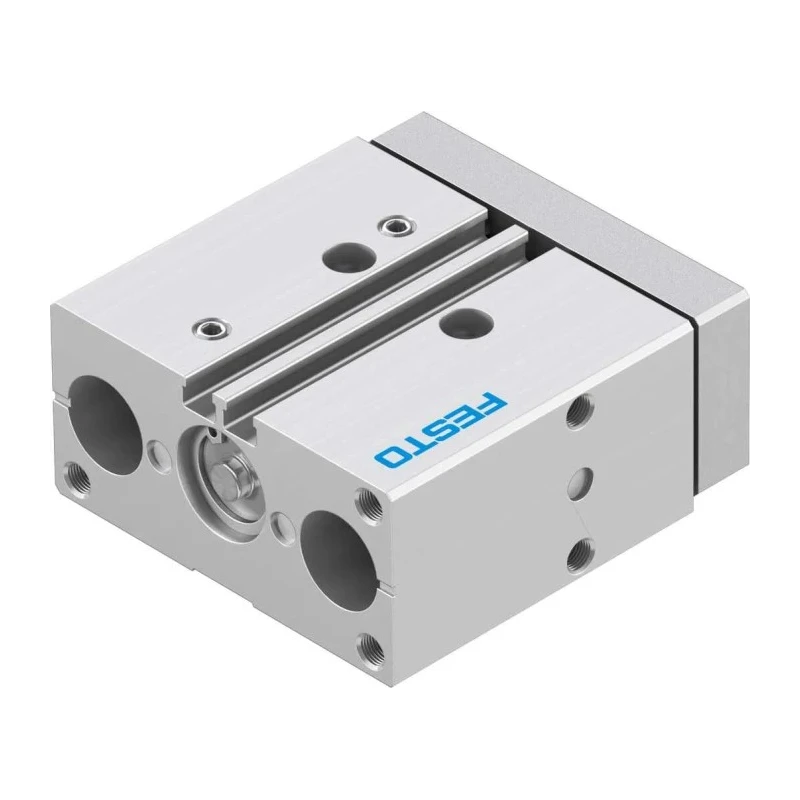

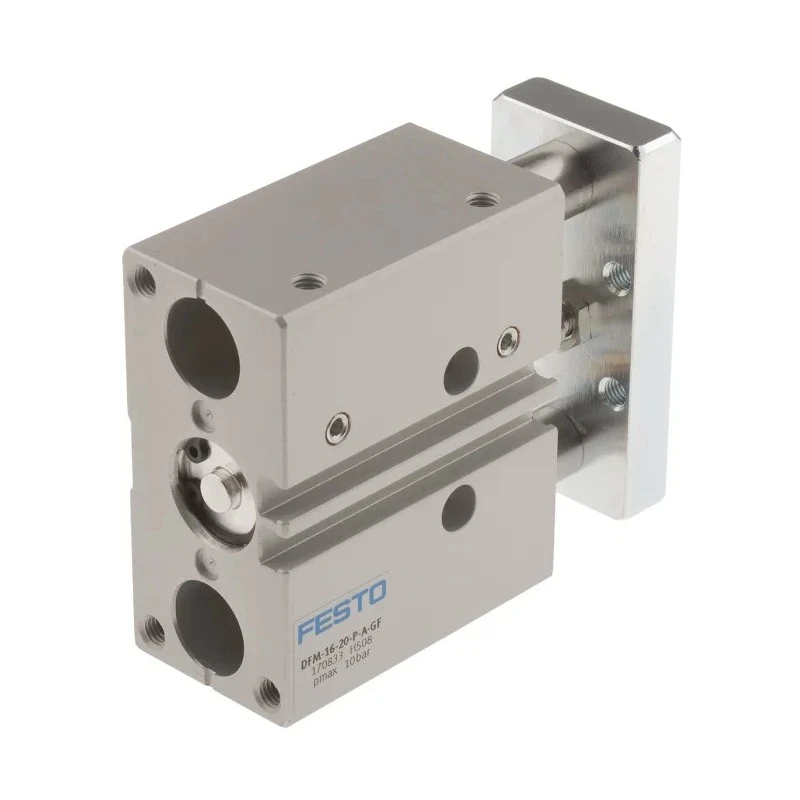

Festo Pneumatic Guided Cylinder 16mm Bore, 20 mm Stroke, Double Acting, Through Hole Mount, Wrought DFM-16-20-P-A-GF

Festo DFM-16-20-P-A-GF pneumatic guided cylinder with a 16mm bore diameter is a robust and precise actuator designed for controlled thrust and retraction in demanding industrial environments. The double acting action type allows for effective motion control in both directions, making it ideal for applications requiring high precision and repeatability.

This cylinder features a wrought aluminium alloy body that provides excellent durability and resistance to wear, abrasion, and impact. Its through hole mount type provides versatile and secure mounting options, accommodating various machine configurations.

Equipped with elastomer cushioning at both ends, the cylinder limits operational noise and enhances smooth performance. The maximum operating pressure is rated at 10 bar, and the maximum piston speed is 0.8 m/s, giving it a flexible operational range to handle varying loads efficiently.

The guide rods utilize recirculating ball bearings, which offer superior resistance to lateral forces and torque, ensuring stable movement even under demanding loads. The piston rod thread size is M5, and the rod type is single, further simplifying maintenance and integration.

With compact dimensions of 70 mm length, 67 mm width, and 32 mm height, this cylinder fits easily into automated systems, conveyor setups, and other industrial machinery. The operating temperature range from -20°C to 80°C allows it to perform reliably in diverse environmental conditions.

Common applications include industrial assembly and packaging lines, food and beverage processing equipment, and medical imaging devices, where precision and durability are paramount. The cylinder's light gross weight of 515 grams ensures minimal load addition to the overall system.

Constructed with durable wrought aluminium alloy body ensuring resistance to abrasion and impact. Through hole mount design provides versatile installation options. Operating temperature range from -20°C to 80°C suits demanding industrial environments.

Maximum operating pressure up to 10 bar with elastomer cushioning for noise reduction. Recirculating ball bearing guide type offering excellent lateral stability and torque resistance. Compact dimensions of 70 x 67 x 32 mm for easy integration into limited spaces.

Lightweight at approximately 515 grams reduces system strain. Suitable for applications in industrial assembly, packaging lines, food and beverage processing, and medical devices. Explore more Pneumatic Guided Cylinders and related components at EnvMart for reliable and precise industrial automation solutions.
