Festo Pneumatic Rotary Actuator Double Acting 32mm Bore 10 bar Pressure 180° Rotation DRRD-32-180-FH-Y9A

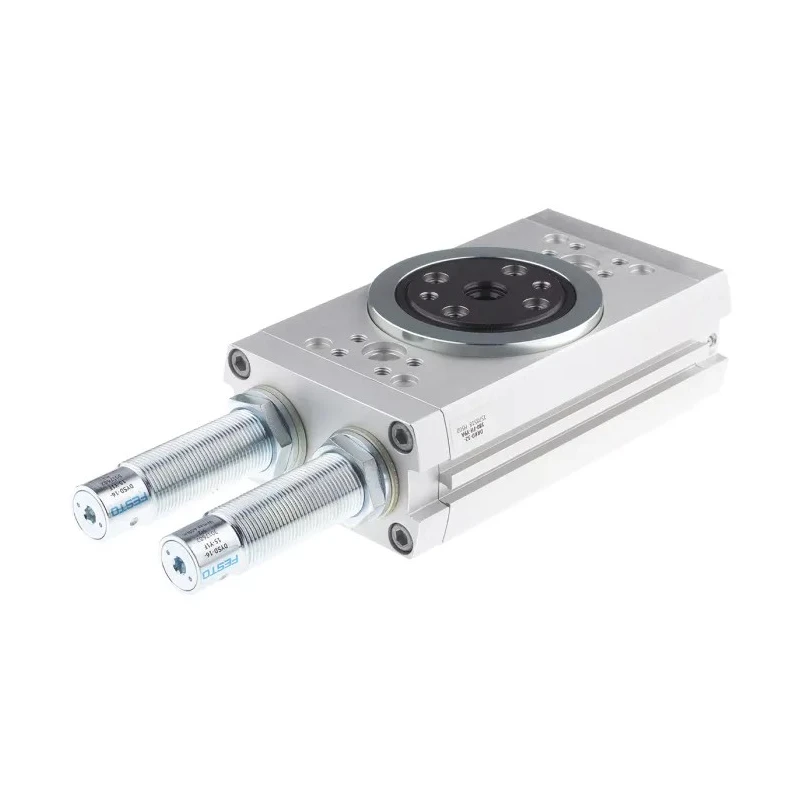

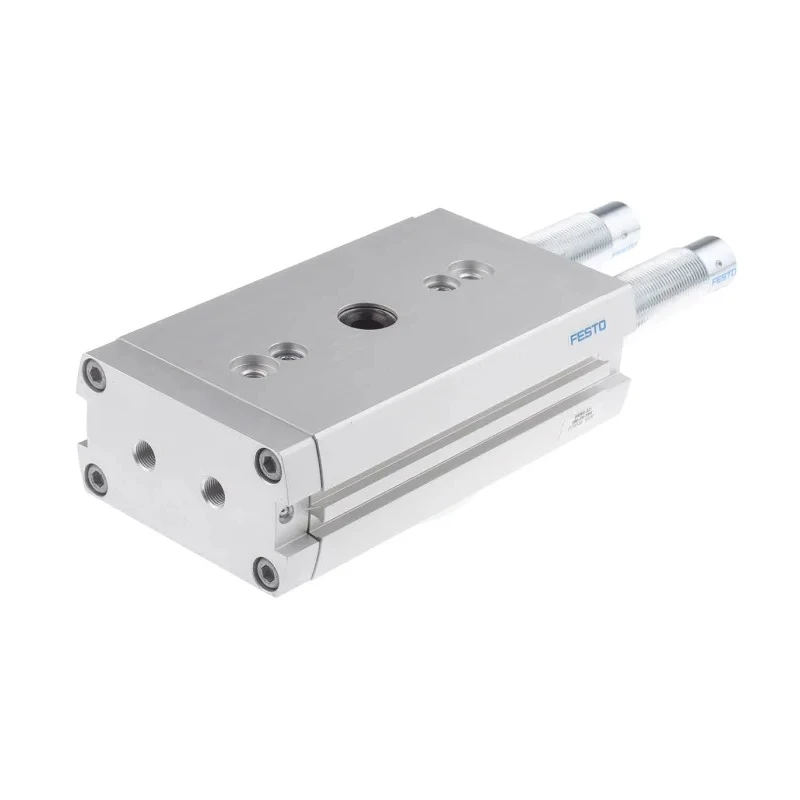

Festo DRRD-32-180-FH-Y9A pneumatic rotary actuator is a double acting device featuring a 32mm bore diameter, designed to operate up to 10 bar pressure with a 180° angle of rotation. This actuator embodies the rack and pinion principle delivering a very high bearing load capacity and exceptional durability. Its compact design allows versatile configurations for a broad range of applications in industrial automation, fluid power, and process control.

Featuring air cushioning, the actuator ensures smooth and precise motion with low backlash, enhancing the longevity and performance stability in demanding environments. It is rated to operate in temperatures ranging from -10°C to 60°C and includes female port gender with 1/8 inch G port thread size, facilitating easy integration into pneumatic networks.

Weighing 3 kg, the actuator is compact yet powerful, offering torque ratings from 1.6 Nm up to 112 Nm within the DRRD series. It is well-suited for automating butterfly valves, ball valves, and air dampers, commonly utilized in sectors such as water and wastewater treatment, beverage, pharmaceutical, and general process automation.

The product complies with RoHS standards and is made in Germany, guaranteeing quality and environmental safety compliance. This Pneumatic Rotary Actuator provides high accuracy in end positions and robust operation, ideal for industrial, manufacturing, HVAC, and laboratory pneumatic control applications.

The actuator provides double acting functionality for versatile application. 10 bar maximum operating pressure supports demanding operation conditions. 32 mm bore ensures effective force transmission and size compatibility.

180° rotation angle suitable for quarter turn valve automation. Air cushioning reduces wear and improves cycle life. Compact design allows for various configurations and easy installation. High bearing load capacity delivers reliability under load.

RoHS compliant, made in Germany, ensures quality and safety standards. Browse the EnvMart catalog for a wide range of pneumatic actuators and components suitable for your industrial automation needs.
