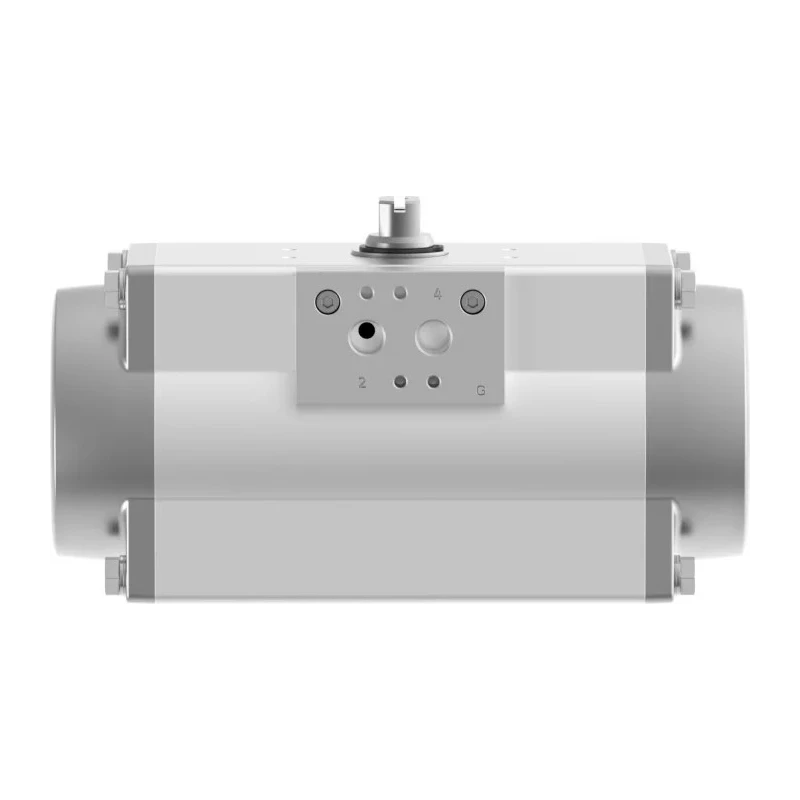

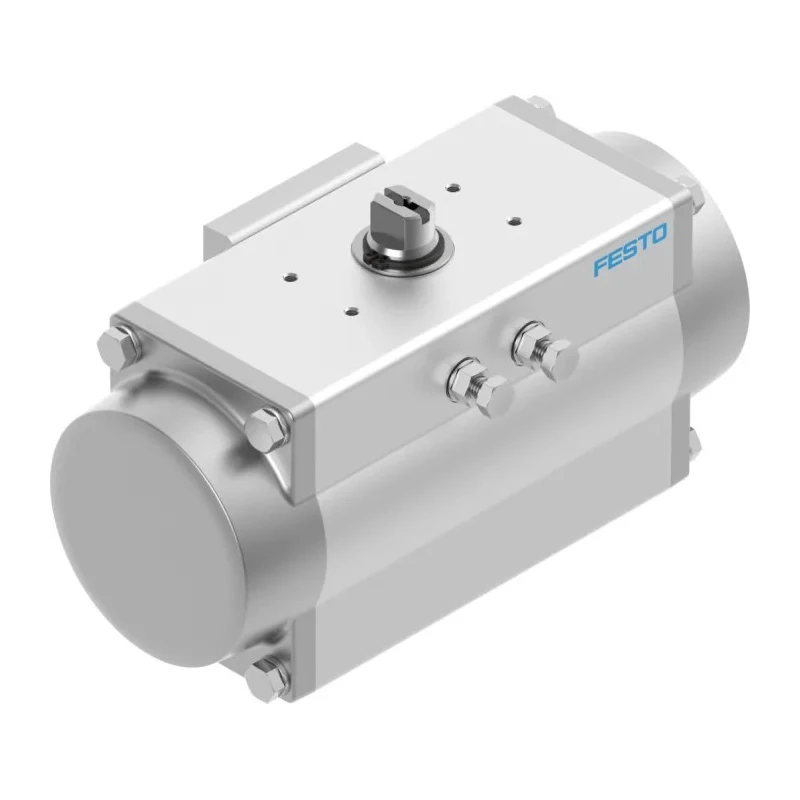

Festo Pneumatic Rotary Actuator Single Acting 8 bar Maximum Operating Pressure 44.8Nm Torque DFPD-120-RP-90-RS60-F0507

Festo DFPD-120-RP-90-RS60-F0507 is a pneumatic rotary actuator designed for precise and reliable single-acting operation in industrial automation contexts. This actuator features a compact design with a 90° rotary angle and 120 mm bore, delivering a maximum torque output of 44.8 Nm while operating up to 8 bar maximum pressure.

Its construction includes an anodised wrought aluminium housing for enhanced durability and corrosion resistance. The seals are made from NBR with internal components crafted from high-alloy stainless steel, resulting in a resilient assembly suitable for demanding environments.

The actuator supports ISO 5211 connection standards, facilitating compatibility with a wide range of industrial valve systems. Its operational temperature range from -20°C to 80°C ensures dependable performance across varied climate conditions. This model is RoHS compliant and designed with repairability to support maintenance and sustainability goals.

Suitable for automating quarter-turn valves, such as butterfly and ball valves, this actuator provides reliable torque at 0° position and includes an adjustable end-position range for operational flexibility. It is suitable for systems requiring compliance with safety function standards up to SIL 2 in low demand and SIL 3 in redundant configurations. Oil lubrication operation is supported where application needs dictate enhanced component longevity.

This actuator is used extensively in industrial, manufacturing, processing plants, HVAC, and other automation-driven environments. Its modular rack and pinion design delivers consistent torque characteristics and versatile spring configurations for varied applications.

Operates with single-acting pneumatic rotary action ensuring controlled 90° rotation. Compact 120 mm bore size supports space-efficient installations. Handles maximum input pressure up to 8 bar for robust operation. Supports operating temperature range from -20°C to 80°C meeting industrial standards.

Anodised aluminium housing and specialised seals extend service life and reduce maintenance. Complies with ISO 5211 thread standards enabling seamless integration. Designed to be repairable by the end user promoting sustainability.

Oil lubrication capability for operational enhancement in specific conditions. Certified under RoHS compliance for environmental safety. Ideal for quarter-turn valve automation including in explosive atmospheres and safety-critical systems.
