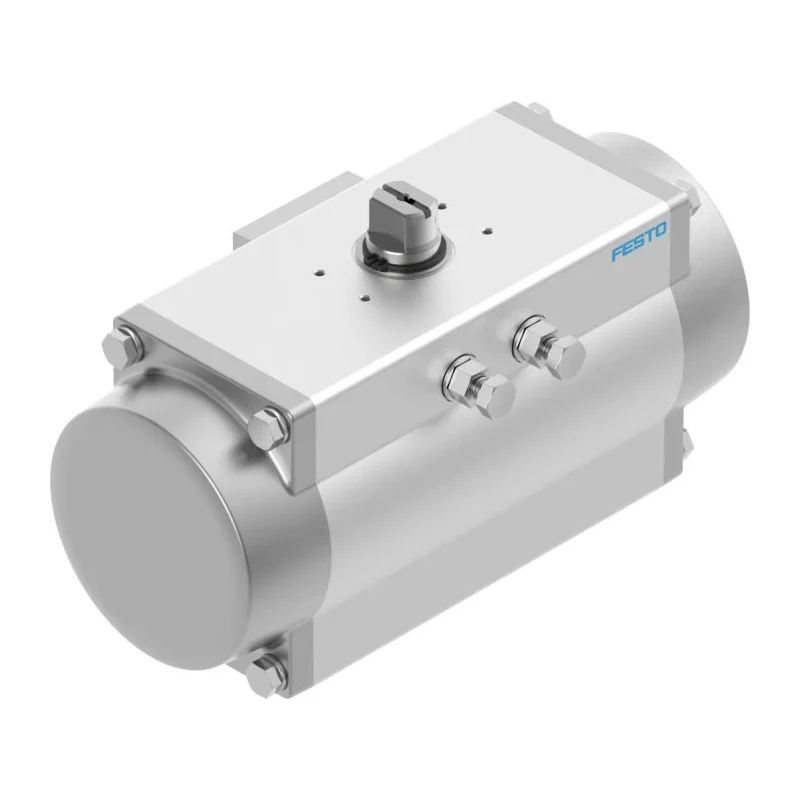

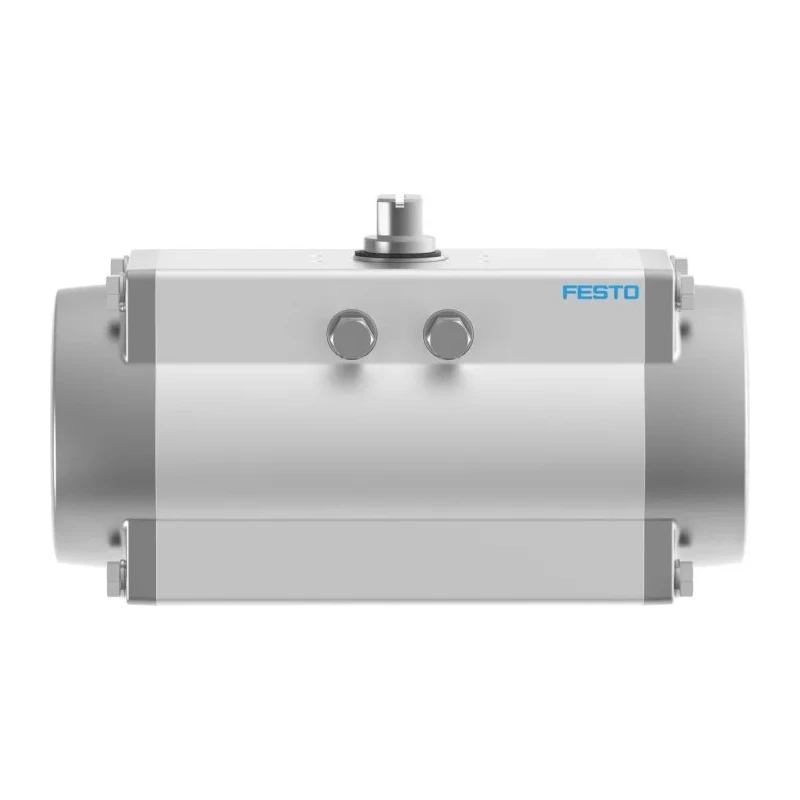

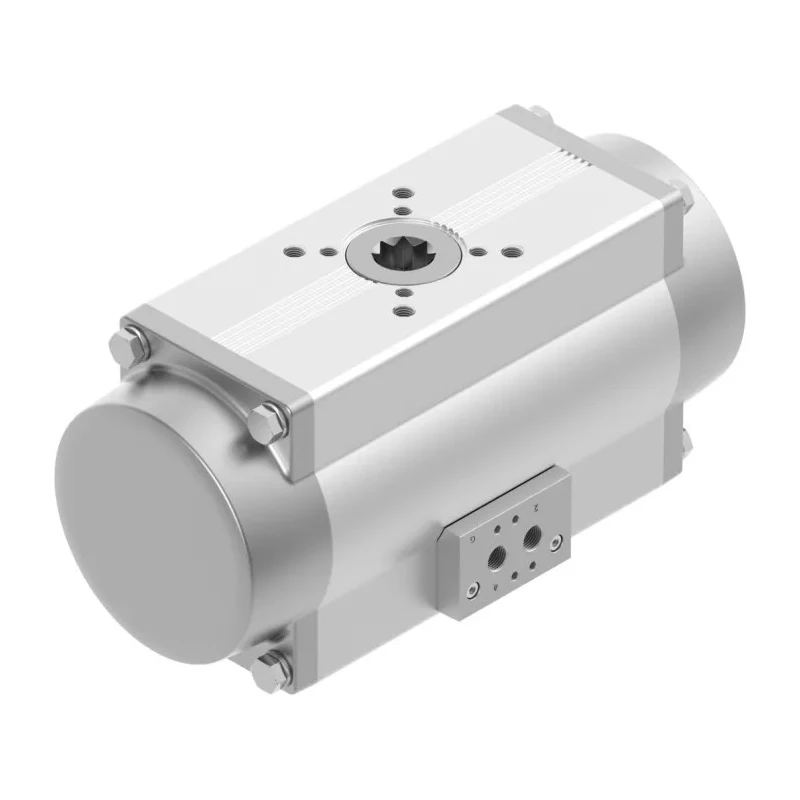

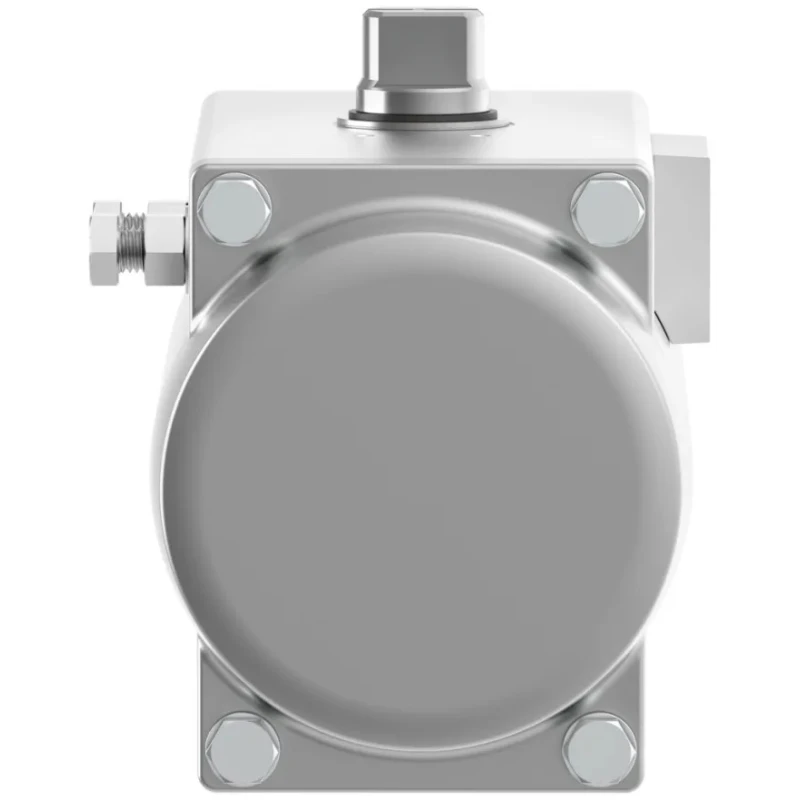

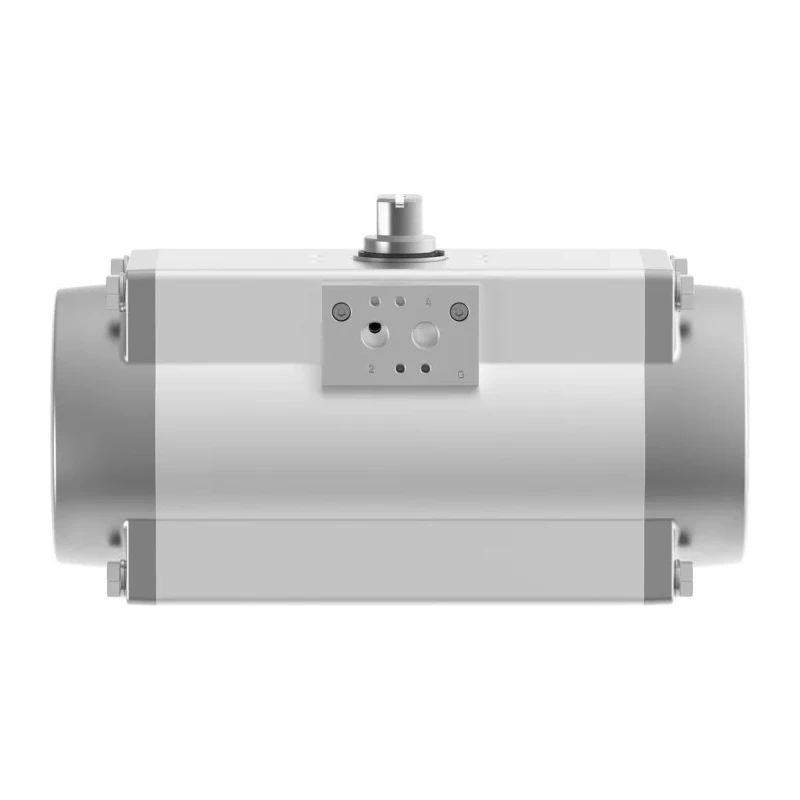

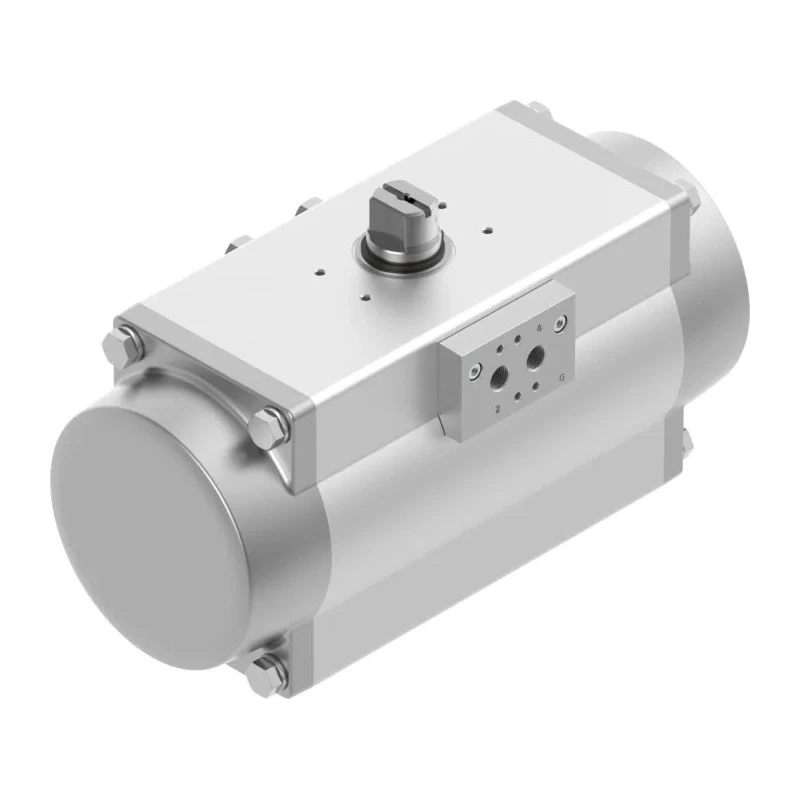

Festo Pneumatic Rotary Actuator Double Acting Action 300mm Bore 8 bar Maximum Pressure DFPD-300-RP-90-RD-F0710

Festo DFPD-300-RP-90-RD-F0710 pneumatic rotary actuator provides robust double acting rotary motion with a 300mm bore diameter and a 90 degree swivel angle. It operates at a maximum pressure of 8 bar, delivering high torque output of 301.9 Nm, engineered for precise and reliable performance in demanding industrial environments.

This actuator employs a rack and pinion design enabling smooth rotary action suitable for valve control systems including butterfly, ball, and air shut off valves. It supports diverse mounting positions making it adaptable to different installation requirements in automation systems.

Designed for ambient temperatures from -20°C to 80°C, this device withstands variable operating conditions. It is certified for safe use in potentially explosive atmospheres, meeting ATEX and UKEX safety standards. The actuator includes a 1/4 inch G port thread size connection for seamless integration into pneumatic systems.

Its compact form factor and modular spring configurations make it a preferred choice across industries like water and wastewater management, beverage production, pharmaceuticals, and process automation, enhancing operational efficiency.

High torque output of 301.9 Nm ensures efficient valve actuation. Rack and pinion mechanism provides consistent rotary motion. Double acting operation supports precise dual-direction control. Rated for maximum operating pressure of 8 bar with burst pressure up to 24 bar.

Wide operating temperature range from -20°C to 80°C lends reliability in diverse environments. Safety certified to SIL standards for enhanced operational security. 1/4 inch G port thread size enables compatibility with industrial pneumatic connections.

Compact and modular design suitable for various automation applications.

Ideal for industrial, manufacturing, water treatment, and laboratory automation uses, this Festo Pneumatic Rotary Actuator combines durability with precision. Explore EnvMart’s comprehensive selection of pneumatic actuators for high-performance fluid power solutions.
