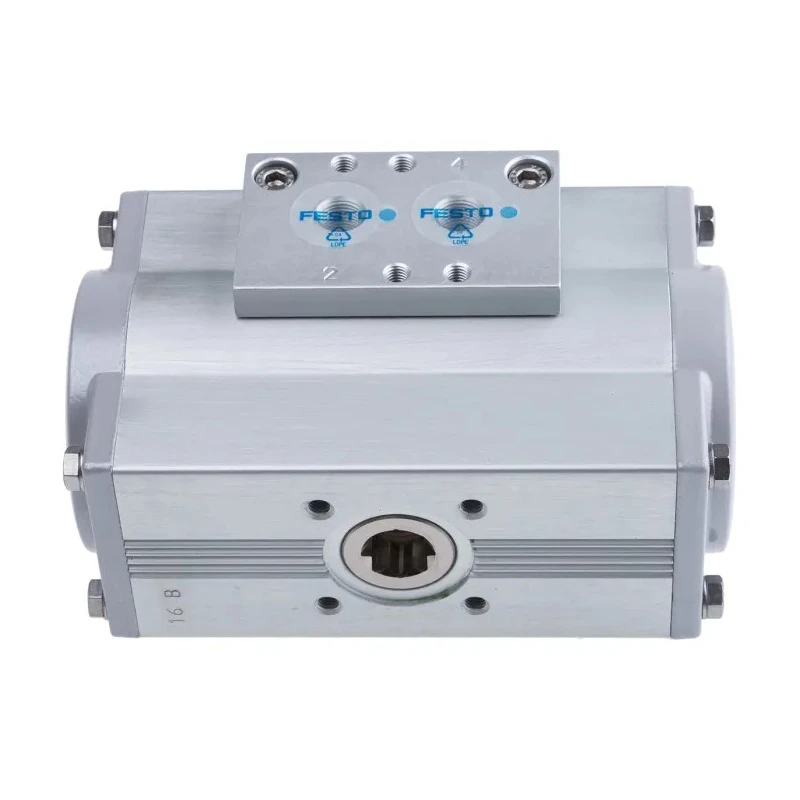

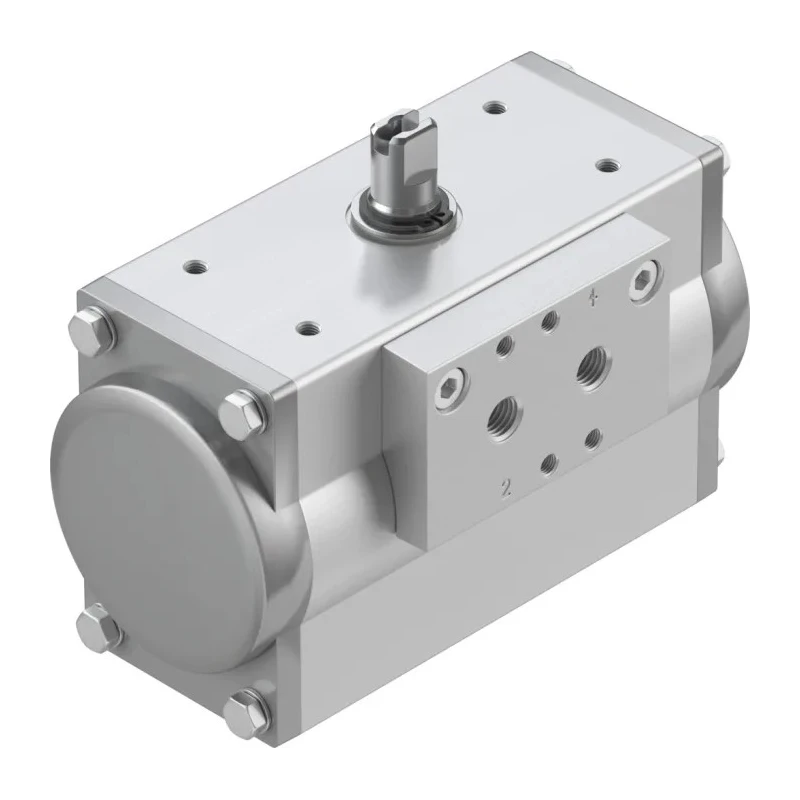

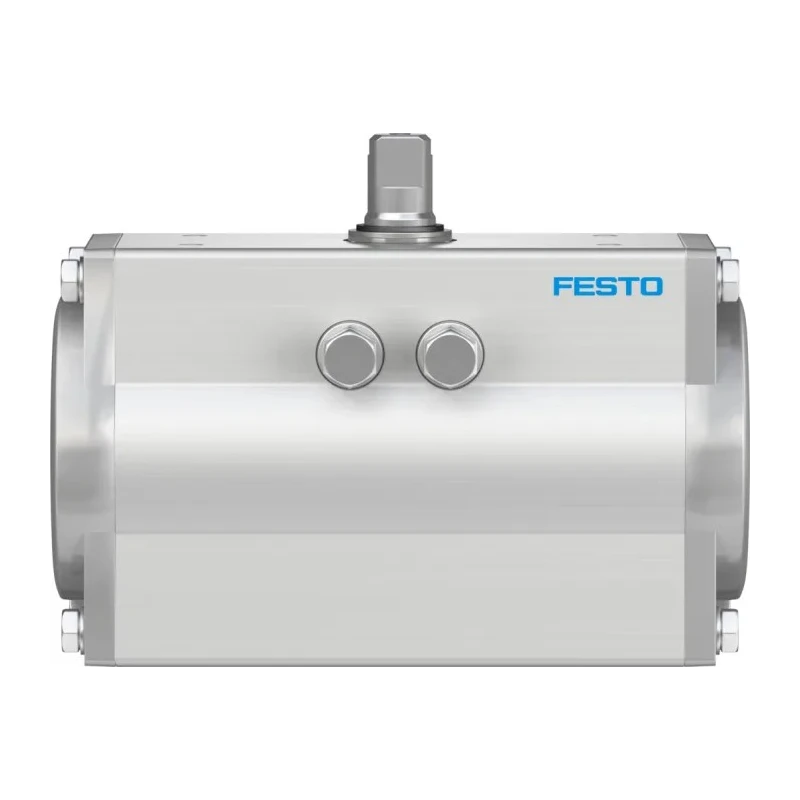

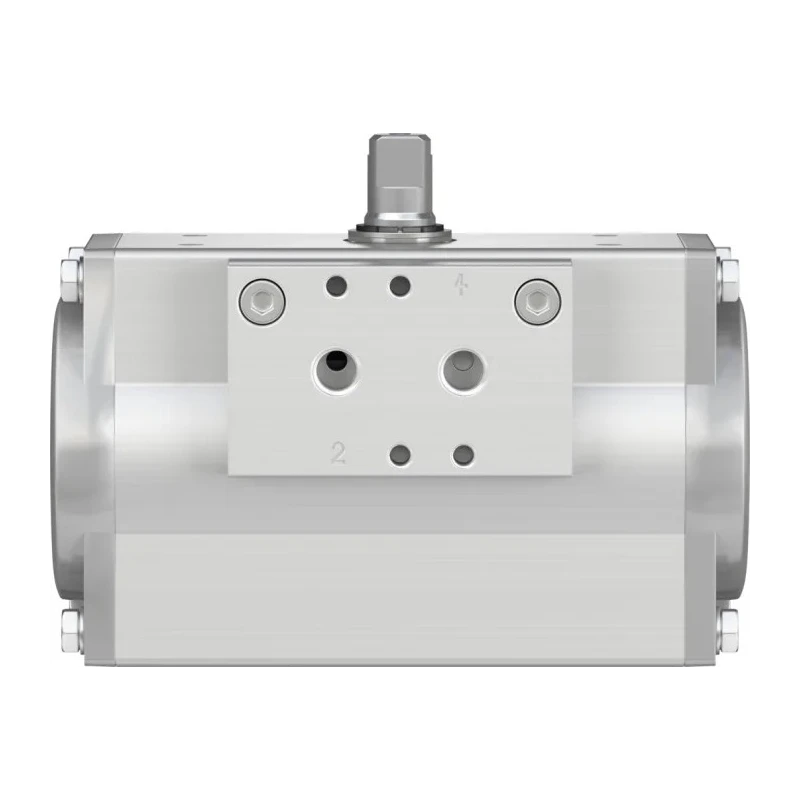

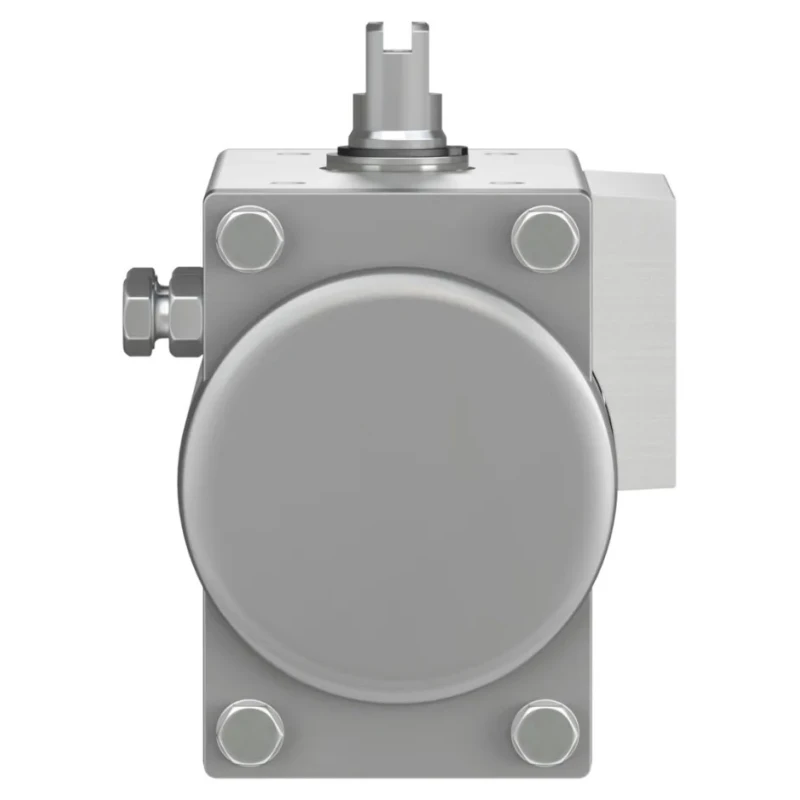

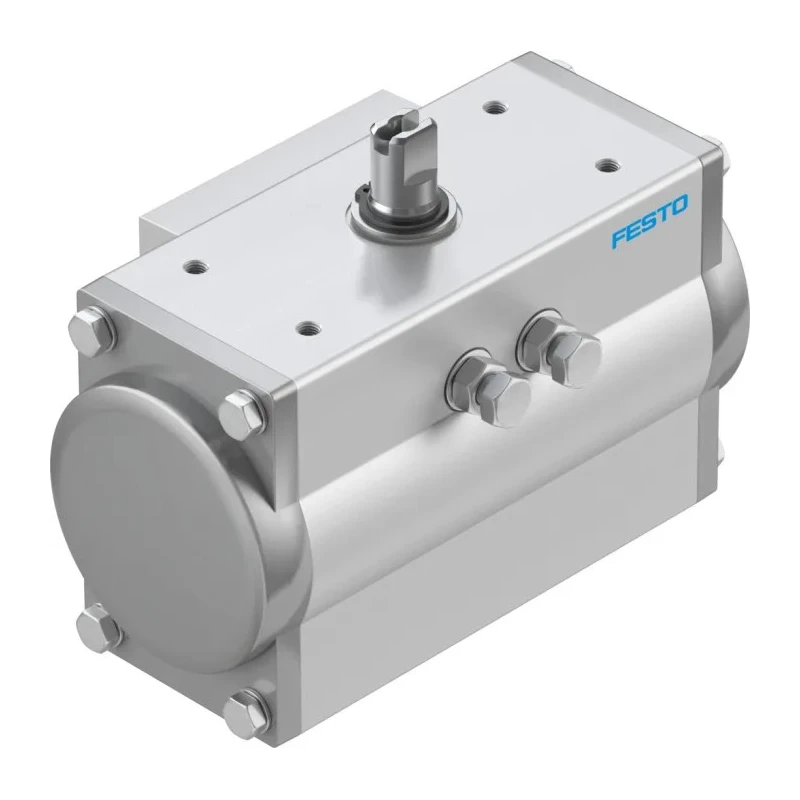

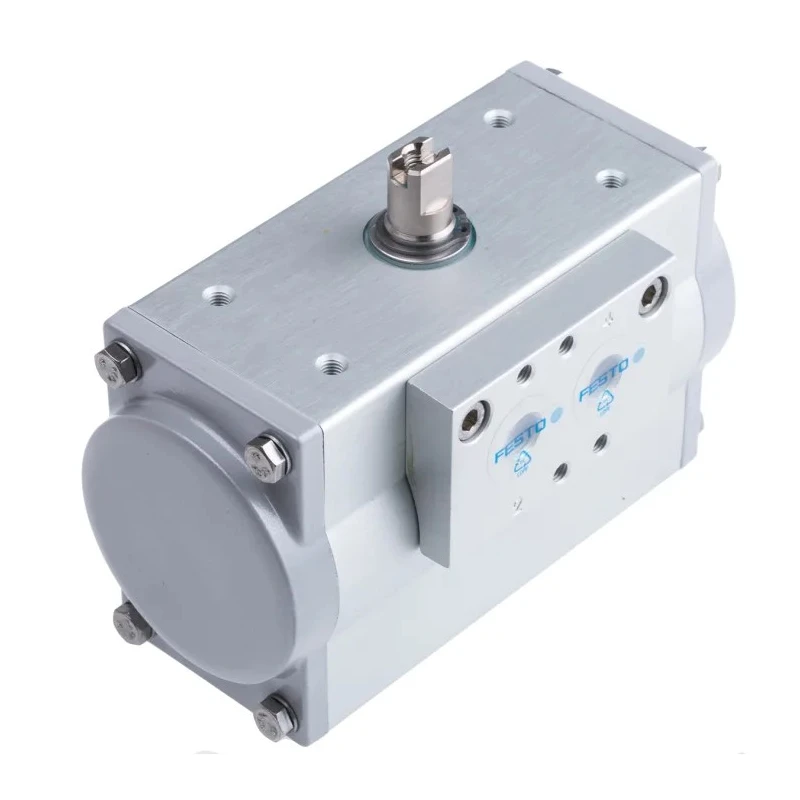

Festo Pneumatic Rotary Actuator Double Acting 20mm Bore 8 Bar Maximum Pressure DFPD-20-RP-90-RD-F04
Specifications
| Country of Origin | India |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 8 bar |
| Model | DFPD-20-RP-90-RD-F04 |
| Gross Weight | 1.27kg |
| Series | DFPD |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Bore Diameter | 20mm |
| Action Type | Double Acting |
| Standards/Approvals | 2011/65/EU |
| Connection Thread Standard | ISO 5211 |
| Port Thread Size | 1/8 in G |
| Maximum Torque Rating | 20.1Nm |
| Festo Pneumatic Valve Actuator, Double Acting, 2 → 8barBrand | Festo |
Key Features
- Designed with robust rack and pinion mechanism for consistent torque delivery.
- Constructed from anodised aluminium and stainless steel for durability.
- Operates efficiently between -20°C and 80°C temperature range.
- Supports safe use in explosive environments complying with ATEX and UKEX standards.
- Capable of precise angle positioning for valve automation in industrial systems.
- Compact design with multiple mounting options enhances installation flexibility.
- Weighs approximately 1.27 kg suitable for varied pneumatic automation tasks.
Product Description
Festo DFPD-20-RP-90-RD-F04 pneumatic rotary actuator is a high-quality double acting device designed for precise 90° rotation with a 20mm bore, ideal for valve automation and industrial pneumatic applications. It supports a maximum operating pressure of 8 bar and delivers a maximum torque rating of 20.1 Nm ensuring reliable and repeatable operation.
The actuator employs a rack and pinion mechanism that provides uniform torque throughout the 90° rotary action. Its construction integrates anodised aluminium and stainless steel components, granting robustness and corrosion resistance suitable for demanding environments.
Designed to operate within a broad temperature range from -20°C up to 80°C, it maintains performance stability in varying industrial conditions. The product's adherence to 2011/65/EU standards and explosion hazard certifications (ATEX, UKEX) allows its deployment in hazardous zones, ensuring safe operation with ignition protection classification.
Mounting flexibility is ensured via optional positions that enable custom installation orientations. Common applications include automation of butterfly valves, ball valves, and air shut off valves in process industries like water treatment, beverage, pharmaceutical, and general manufacturing.
The actuator supports both low and high demand SIL safety levels, making it suitable for systems requiring functional safety and redundancy. Weighing 1.27 kg, it balances compactness with robust performance.
Robust rack and pinion design for consistent torque output. Durable anodised aluminium construction with stainless steel parts. Operational temperature range from -20°C to 80°C. Certified for safe use in potentially explosive atmospheres (ATEX, UKEX).
Mounting options for versatile installation. Ideal for precise control of valves in industrial automation. Compact and lightweight design at 1.27 kg.
Festo pneumatic rotary actuators like the DFPD series are essential components in industrial automation offering reliable rotary actuation to improve operational efficiency. Browse all Pneumatic Rotary Actuators and complementary pneumatic components on EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 8 bar.
This actuator has a bore diameter of 20mm.
It operates efficiently within a temperature range of -20°C to 80°C.
The maximum torque rating is 20.1 Nm.
It complies with the 2011/65/EU standards and has certifications for safe use in explosive environments (ATEX, UKEX).
This unit employs a double acting action type.
The connection thread standard is ISO 5211.
It weighs approximately 1.27 kg.
It is suitable for automating butterfly valves, ball valves, and air shut off valves in various industries.
It offers multiple mounting options for flexible installation orientations.
It is designed for valve automation in process industries such as water treatment, beverage, pharmaceutical, and general manufacturing.
It is constructed from anodised aluminium and stainless steel for enhanced durability and corrosion resistance.
