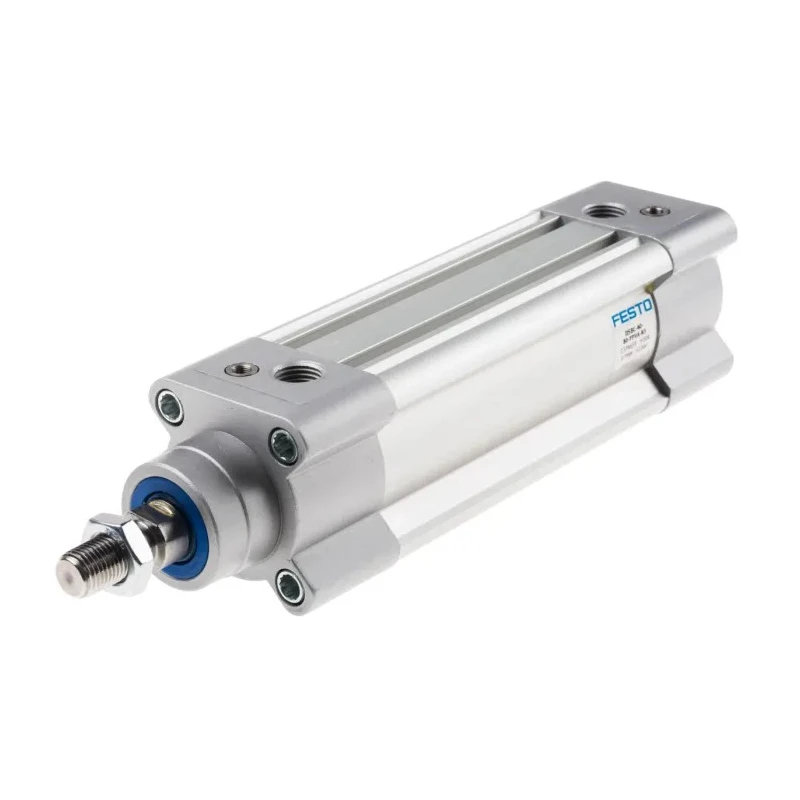

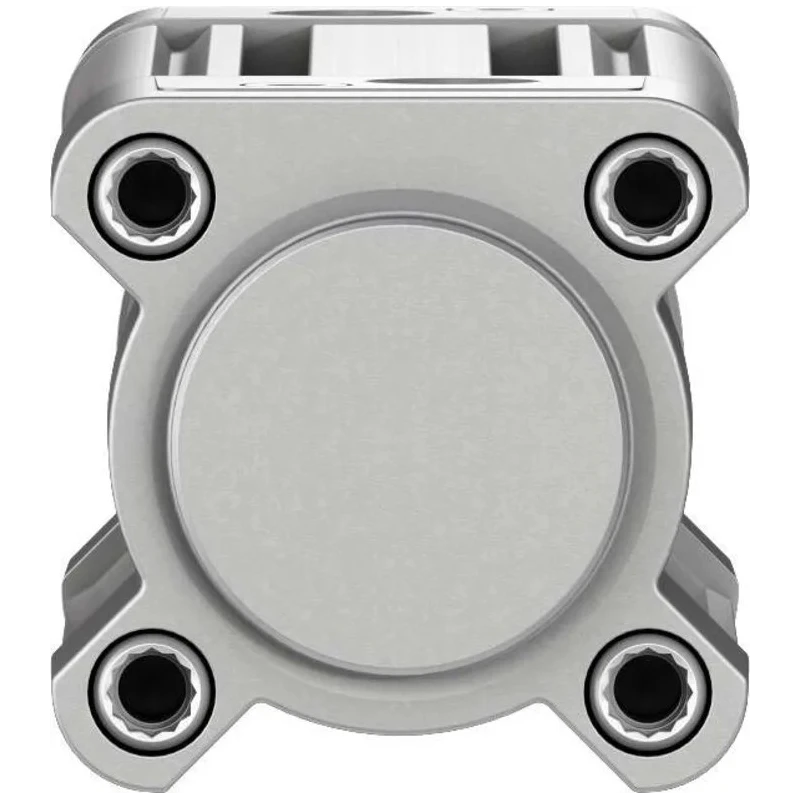

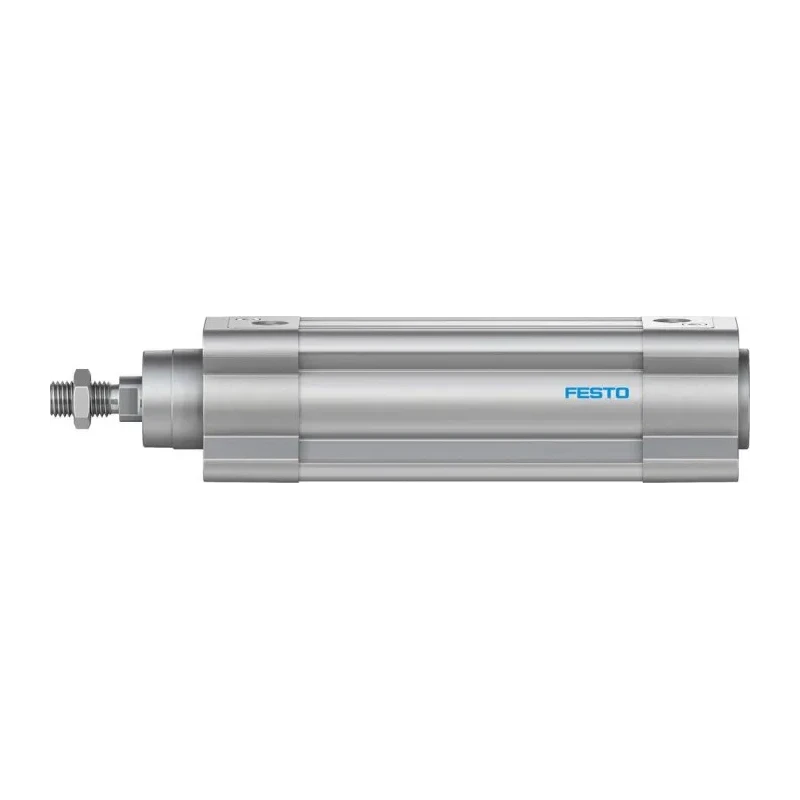

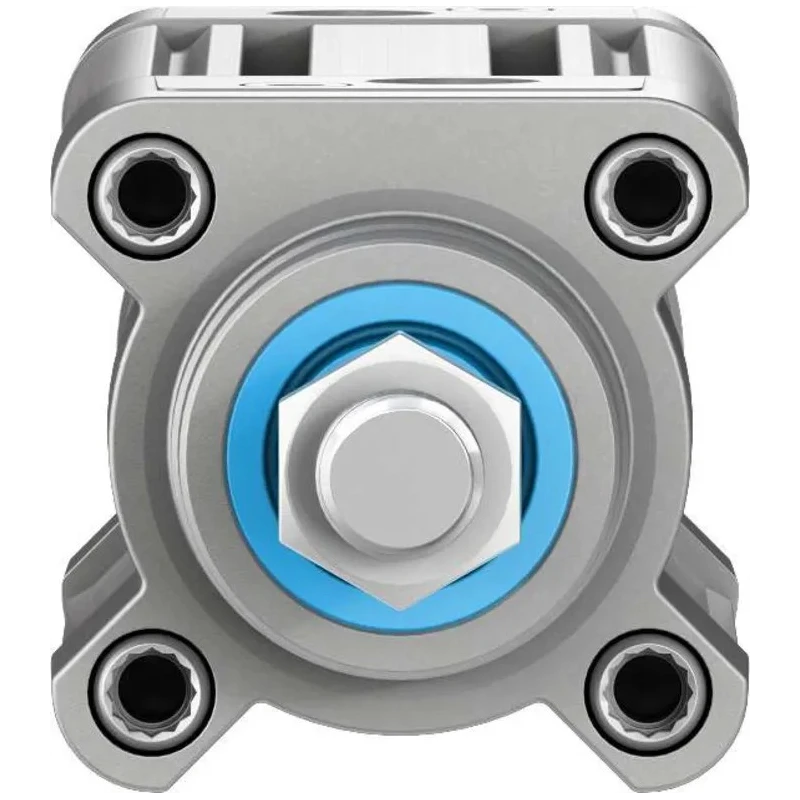

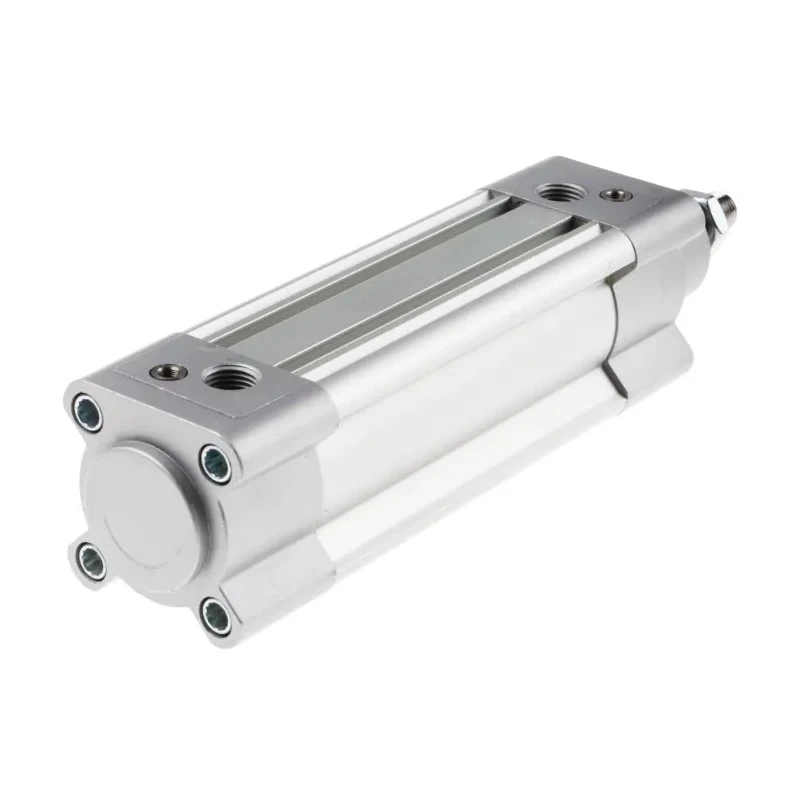

Festo Pneumatic Piston Rod Cylinder Aluminium Body Double Acting, 40mm Bore, 80mm Stroke, 12 bar Pressure DSBC-40-80-PPVA-N3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 54mm |
| Length | 241.9mm |
| Model | DSBC-40-80-PPVA-N3 |
| Gross Weight | 740g |
| Width | 54mm |
| Mount Type | Through Hole |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 80mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, RoHS |
| Cushioning Type | Pneumatic |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/4 in G |
Key Features
- Constructed with a durable aluminium body for lightweight strength.
- Double acting with pneumatic cushioning at both ends for vibration-free operation.
- Single rod type with male piston rod thread size of 1/4 in G.
- Wide operating temperature range from -20°C to 80°C suits harsh industrial environments.
- Maximum operating pressure of 12 bar supports versatile pneumatic applications.
- Mount type is through hole for flexible installation positions.
- Complies with ISO 15552 and RoHS standards for quality assurance.
- Compact dimensions with body length 241.9mm, width and height 54mm each.
Product Description
Festo DSBC-40-80-PPVA-N3 pneumatic piston rod cylinder features an aluminium die-cast body and a high-alloy steel rod providing a lightweight yet rugged construction. This double acting cylinder delivers precise, controlled linear movement powered by compressed air with an 80mm stroke and 40mm bore diameter. Pneumatic cushioning at both ends offers smooth motion with minimized vibration, enhancing performance and equipment longevity.
The cylinder accommodates operation across a broad temperature range from -20°C up to 80°C, making it suitable for demanding industrial environments including machine tool heads, conveyors, robotic arms, and material handling systems. Its 12 bar maximum pressure rating provides adaptability to various pneumatic systems.
Designed with a through-hole mount type and single rod configuration with a 1/4 inch G male threaded piston rod, it allows easy attachment of accessories such as eyes, couplers, and clevis fittings. The magnetic internal rod enables reliable detection of piston position via standard proximity sensors, facilitated by mounting slots on the cylinder body.
Key applications span industrial automation, mechanical manufacturing, and fluid power systems requiring dependable linear actuation. The cylinder meets ISO 15552 and RoHS standards, ensuring compliance and environmental safety.
Durable aluminium die-cast body for strength and weight efficiency. Pneumatic cushioning enabling smooth, vibration-free operation. Wide temperature usage range from -20°C to 80°C. Magnetic rod compatible with position sensors for automation.
Versatile through-hole mounting for flexible installation. Maximum operating pressure of 12 bar for system compatibility. Compact external dimensions for installation in confined spaces. Rod and seal materials designed for high wear resistance.
This Festo DSBC series Pneumatic Piston Rod Cylinder is ideal for industrial, manufacturing, and HVAC pneumatic actuation applications where reliable double-acting cylinders are required. Browse EnvMart's comprehensive selection of Festo pneumatic cylinders and accessories for complementary components and support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 12 bar, making it suitable for various pneumatic applications.
This cylinder has a body length of 241.9mm, width of 54mm, and height of 54mm.
The stroke length of this pneumatic piston rod cylinder is 80mm, allowing for controlled linear movement.
The bore diameter of this cylinder is 40mm, which is essential for its pneumatic operation.
It features pneumatic cushioning at both ends, which provides smooth motion and minimizes vibration during operation.
This model operates within a temperature range of -20°C to 80°C, making it suitable for harsh industrial environments.
The cylinder is designed with a through-hole mount type, allowing for flexible installation positions.
It complies with ISO 15552 and RoHS standards, ensuring quality assurance and environmental safety.
This model features a single rod type configuration, which is common in double acting cylinders.
The piston rod has a male thread size of 1/4 inch G, which facilitates attachment of accessories.
The body is made of durable aluminium, and it features a high-alloy steel rod for strength and efficiency.
This pneumatic cylinder is suitable for applications in industrial automation, mechanical manufacturing, and fluid power systems requiring reliable linear actuation.
