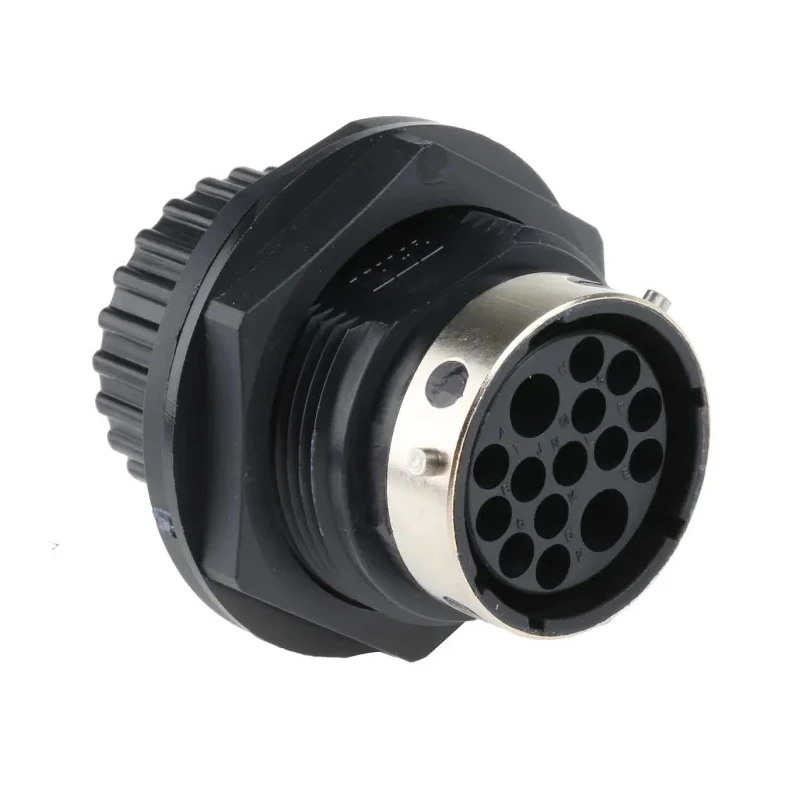

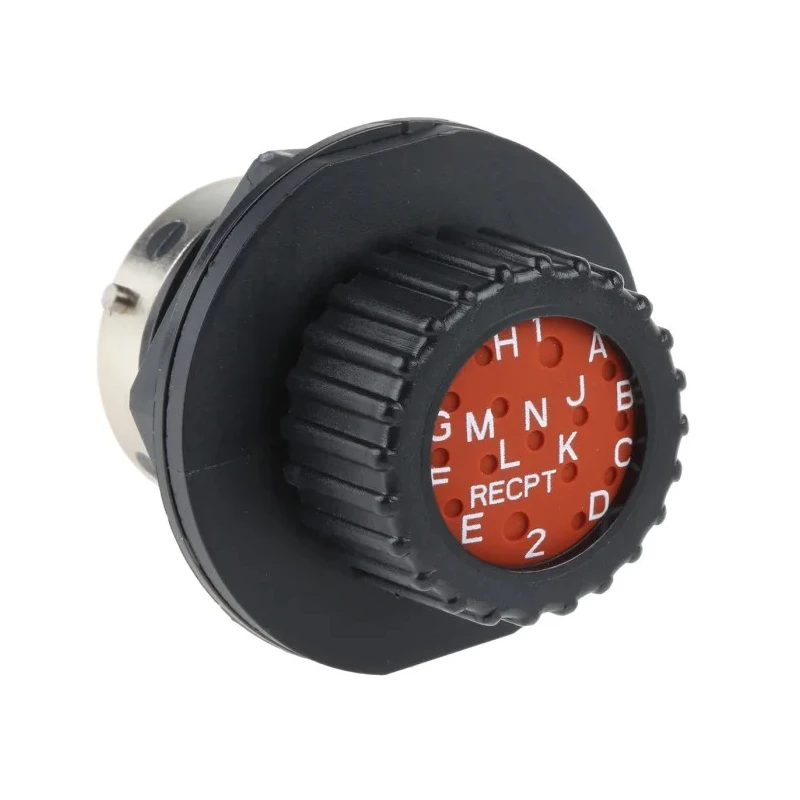

ITT Cannon Circular Connector Panel Mount 15 Contacts Socket Female IP67 250V 30A Nylon Housing TN7S16-0213S1L / 192900-0508

ITT Cannon TN7S16-0213S1L / 192900-0508 is a high-quality industrial circular connector designed for panel mounting applications. This socket connector features 15 contacts arranged in a standard size shell offering a reliable connection rated at 30 amps and 250 volts. The housing is constructed from robust nylon material, providing mechanical strength and durability for demanding environments.

The connector employs a bayonet mating system ensuring a secure and quick engagement. It incorporates nickel-plated copper contacts for optimal electrical performance and resistance to corrosion. Temperature tolerance ranges from -55°C to 105°C, making it suitable for a wide range of industrial, automotive, marine, and process control applications.

Designed with IP67 ingress protection, the connector includes an O-ring interface seal, rubber cable seals, and a plastic jam nut to achieve dust-tight and water-resistant performance. The mounting is performed via a jam nut fixing to panels, facilitating installation and stable fixing from the rear. This connector also supports in-line connections, enhancing its versatility.

The Neptune series, based on Trident Ringlok technology, integrates both power and signal contacts within the same connector body, which is widely appreciated in automotive and marine industries. A wide variety of backshell accessories, rear housings, and dust caps are available for this series to tailor the connector assembly for specific needs.

This product is made in Hungary and meets industrial standards though it does not carry specific approvals. This socket connector supports a current rating of 30A and voltage of 250V. It uses a bayonet mating type for secure connections.

The housing is made of durable nylon for longevity. Connector size is standard with 16 mm shell size ensuring compatibility. Contact plating is nickel over copper material to maintain conductivity and corrosion resistance.

Operates reliably in temperatures from -55°C to 105°C. Panel mount type with jam nut fixing provides stable mounting from the rear. Maintains IP67 sealing with included O-ring and rubber cable seals. Suitable for automotive, marine, process control, and other industrial sectors.

Neptune series combines power and signal contacts in a single connector. Explore more Industrial Circular Connectors and related components on EnvMart for comprehensive wiring solutions.
