TE Connectivity AMPLIMITE HD-20 15 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747841-4

Free Delivery in India | Lowest Global Shipping Charges

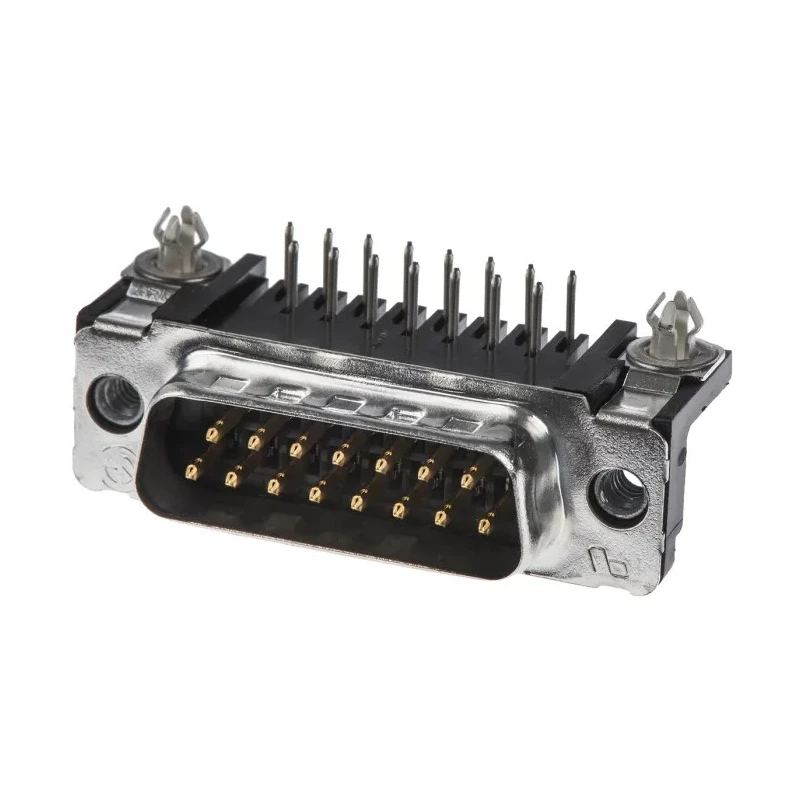

TE Connectivity AMPLIMITE HD-20 15 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747841-4

Name: TE Connectivity AMPLIMITE HD-20 15 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747841-4
Brand: TE Connectivity
SKU: 186246
Price: 7.45 USD
Availability: InStock



Category Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Right Angle
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Brass
Series	AMPLIMITE HD-20
Mounting Hardware	4 to 40 UNC Threaded Insert
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.74mm
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
D-Sub Shell Size	D

Key Features

This connector features a thermoplastic 94V-0 rated housing ensuring electrical insulation and durability.
The contacts are brass with gold over nickel plating providing excellent conductivity and corrosion resistance.
It has a right angle orientation suitable for space-constrained PCB layouts.
Mounting is via through hole with 4 to 40 UNC threaded inserts for secure fastening.
Operating temperature ranges from -55°C to 105°C making it suitable for various industrial conditions.
The connector shell is tin-plated steel, combining strength and corrosion resistance.
Termination type is solder, allowing reliable electrical connection to PCB.
This AMPLIMITE HD-20 series connector complies with RoHS standards, ensuring environmental compliance.

Product Description

TE Connectivity model 5747841-4 is an AMPLIMITE HD-20 15 Way Right Angle D-Sub Connector featuring a 2.74 mm pitch suitable for through hole PCB mounting applications. It is designed with a thermoplastic housing rated 94V-0 for electrical insulation and mechanical robustness. The connector includes brass contacts plated with gold over nickel for optimal electrical performance and corrosion resistance.

This connector features a right angle orientation with 4 to 40 UNC threaded inserts providing secure mounting on PCBs. The shell is composed of tin-plated steel which enhances mechanical strength while resisting corrosion. The termination method is solder, ensuring a solid and reliable electrical connection to the printed circuit board.

With an operating temperature range from -55°C to 105°C, this connector is suitable for demanding industrial, electronic, and power connector applications. It is RoHS compliant, emphasizing environmentally responsible manufacture.

The AMPLIMITE HD-20 series connectors are well suited for industrial electronic components, power connectivity, and computing devices requiring robust, high-quality D-Sub connections.

This connector features a thermoplastic 94V-0 rated housing ensuring electrical insulation and durability. The contacts are brass with gold over nickel plating providing excellent conductivity and corrosion resistance. It has a right angle orientation suitable for space-constrained PCB layouts.

Mounting is via through hole with 4 to 40 UNC threaded inserts for secure fastening. Operating temperature ranges from -55°C to 105°C making it suitable for various industrial conditions. The connector shell is tin-plated steel, combining strength and corrosion resistance.

Termination type is solder, allowing reliable electrical connection to PCB. This AMPLIMITE HD-20 series connector complies with RoHS standards, ensuring environmental compliance.
