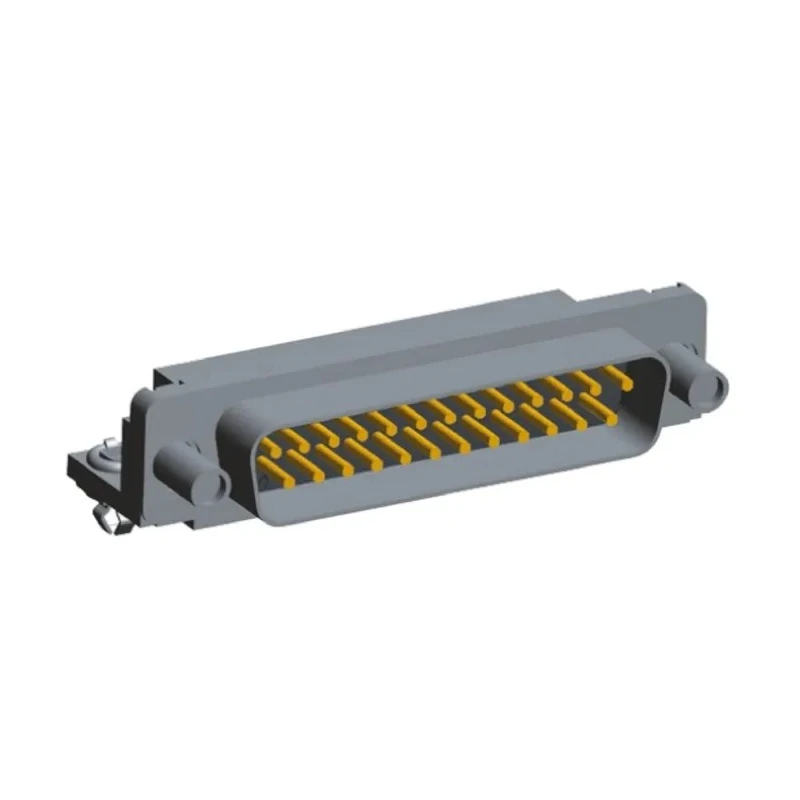

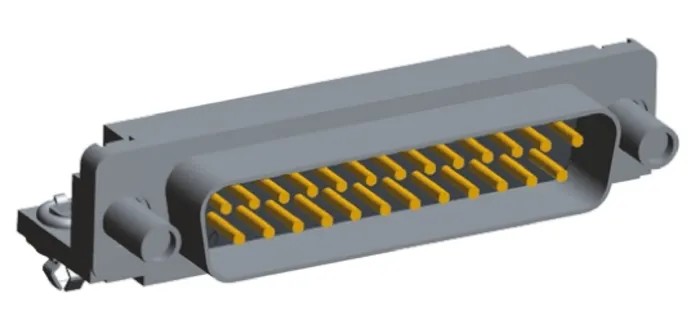

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747842-6

TE Connectivity 5747842-6 AMPLIMITE HD-20 25 Way Right Angle Through Hole D-Sub Connector features a 2.76 mm pitch and 4 to 40 UNC screw locking hardware, providing secure and reliable connections in electronic systems. This connector is intended for through-hole PCB mounting and is engineered for high durability and performance in demanding industrial and electronic applications such as telecommunications, instrumentation, and control equipment.

The connector includes 25 brass contacts plated with gold over nickel which provide excellent electrical conductivity and resistance against corrosion. The contact termination is solder type, suitable for robust PCB assembly processes. The thermoplastic housing meets 94V-0 flame retardant standards, supporting operation within a temperature range of -55°C to 105°C, making it suitable for harsh environmental conditions.

The mounting hardware consists of zinc-plated female screwlocks and tin-plated copper alloy boardlocks, ensuring secure mechanical fastening on the PCB. The D-sub shell size D and right angle orientation allow for compact integration within electronic assemblies where space optimization is required.

Compliance with RoHS directives confirms suitability in manufacturing processes aiming for environmental safety. The recommended PCB thickness for connectors with boardlocks is 1.58 mm, and for others up to 2.36 mm. This connector is part of the AMPLIMITE HD-20 series, known for high-density configurations and reliable mechanical and electrical characteristics.

Applications include industrial electronics, communication equipment, medical instrumentation, and laboratory devices, where dependable and compact PCB connectors are critical. This connector features 25 contacts for robust signal transmissions.

It is configured with a right angle orientation for compact PCB layout. The housing is made of 94V-0 thermoplastic providing excellent heat resistance. Contact materials include brass with gold over nickel plating ensuring corrosion resistance and reliable connections.

Suitable for through-hole PCB mounting with 4 to 40 UNC screw locks for secure fastening. Operates reliably from -55°C to 105°C, compliant with RoHS standards. Pitch between contacts is 2.76 mm, ensuring precise interfacing.

Termination type is solder, ideal for PCB assembly. Designed for male connector gender with D-sub shell size D for compatibility with matching components. Explore the Electronics & Electricals category at EnvMart for a wide range of connectors and electronic components from top manufacturers, including TE Connectivity.
