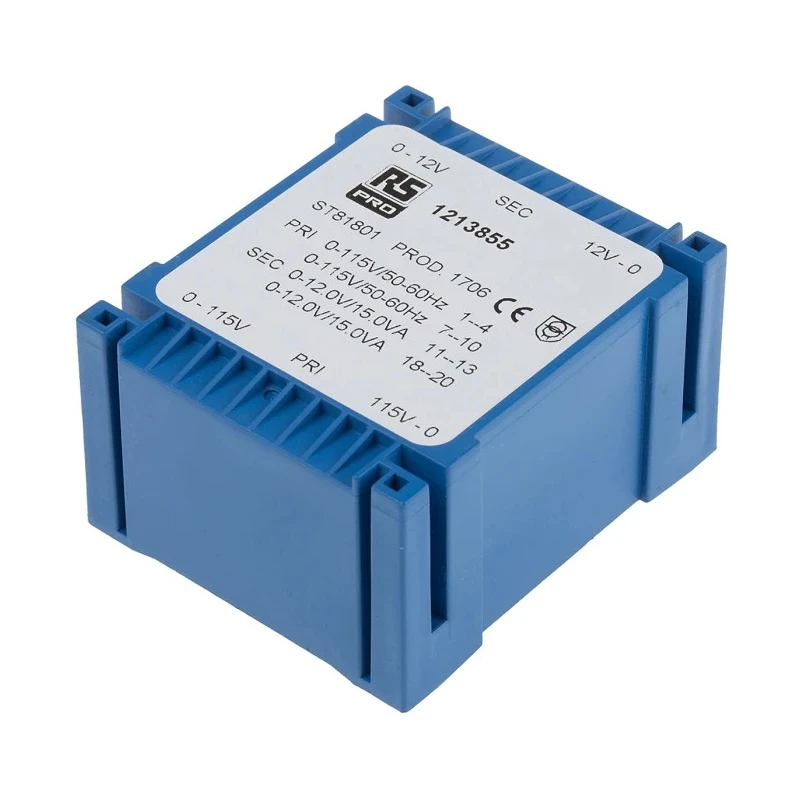

RS PRO 2 x 12 V AC 2 Output PCB Transformer, 30VA Power, 115 V / 230 V Primary Voltage, IECBSEN 615586, CE, ASNZS 121-3855

RS PRO 121-3855 2 x 12 V AC 2 Output PCB Transformer is designed for precision power supply needs in electronic components and power distribution systems. It operates at primary voltages of 115 V and 230 V AC and delivers a power output of 30 VA with two independent secondary windings allowing versatile connection options such as series or parallel configurations.

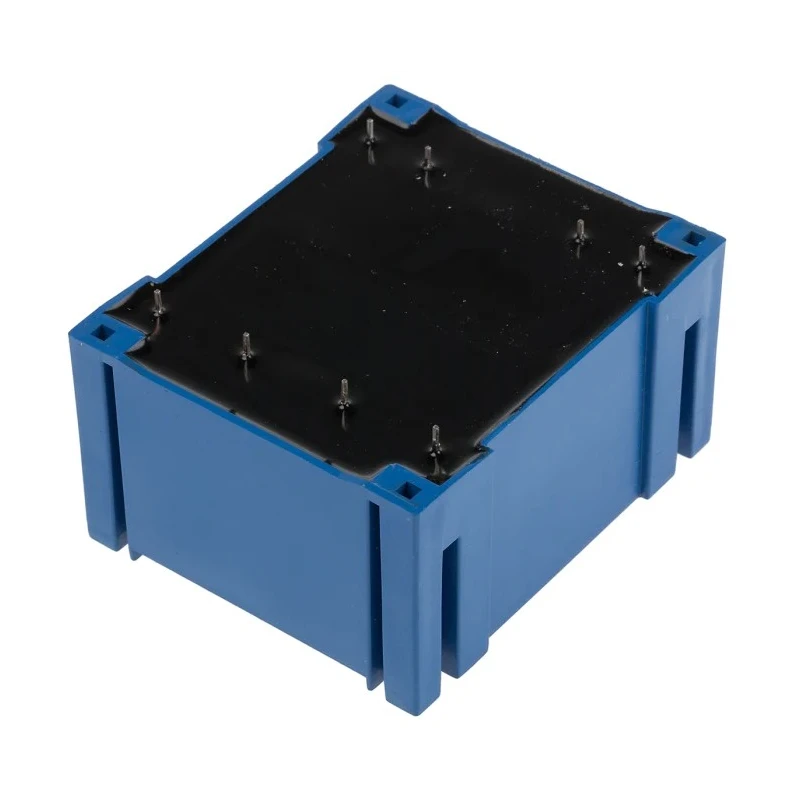

The transformer features a compact low-profile design measuring 68 mm in length, 57 mm width, and 35 mm depth to accommodate limited space installations on printed circuit boards. Its PCB mount type with 10 pins ensures solid and reliable fixing.

Built with IECBSEN 615586, CE, ASNZS 61558.1, ASNZS 61558.6, IECBSEN 615581 standards compliance and RoHS certification, this transformer assures safety and environmental responsibility. The unit is fully electrical and flash tested, which guarantees manufacturing quality and durability.

This model includes two compartment bobbins, high efficiency with low temperature rise, low physical interference noise, and reduced interwinding capacitance. It has an isolation voltage rating of 3.75 kVrms and supports operation in frequencies from 50 Hz up to 60 Hz. It is capable of functioning reliably up to a maximum operating temperature of 130°C.

With a gross weight of about 530 grams, the transformer is lightweight yet robust and ideal for industrial, laboratory, commercial, and manufacturing environments. The independent secondary windings deliver 1666.6 mA current, enabling precise output control and efficiency.

Applications include power supply circuits, electronic equipment boards, and safe voltage step-down scenarios where PCB mounting is required. This product aligns with modern electrical and environmental regulations making it a dependable choice for quality electronic components assembly.

Operates with primary voltages of 115 V and 230 V AC. Compact dimensions: 68 mm length, 57 mm width, and 35 mm depth. Features independent secondary windings for series or parallel connections. PCB mounting type with 10 pins ensuring stable installation.

IECBSEN 615586, CE, ASNZS, and RoHS certified for safety and compliance. Maximum operating temperature of 130°C for reliable performance. Low interwinding capacitance and low radiated noise design. Supports frequency range from 50 Hz minimum to 60 Hz maximum.
