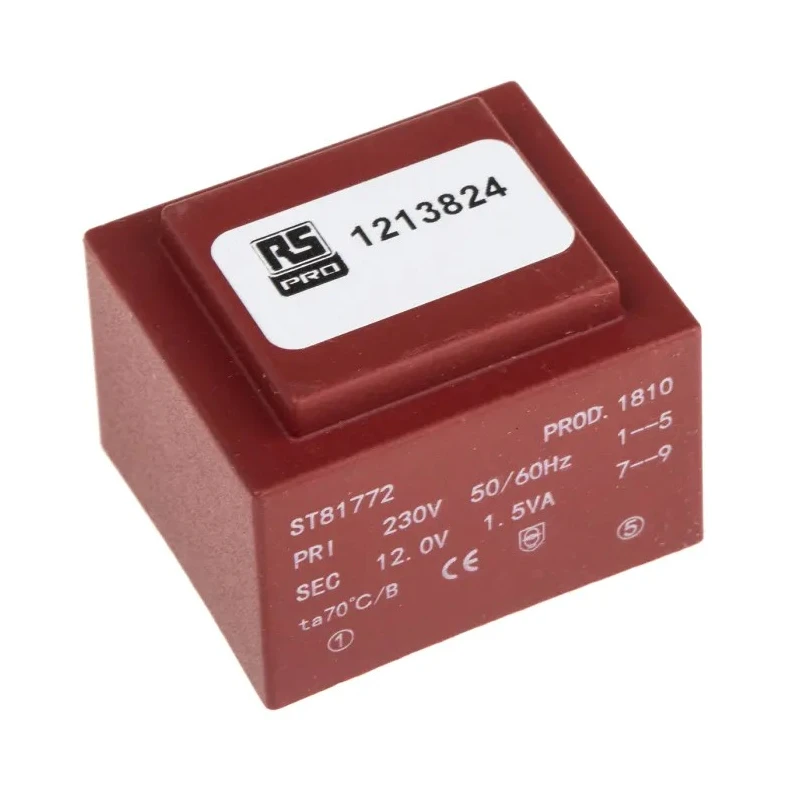

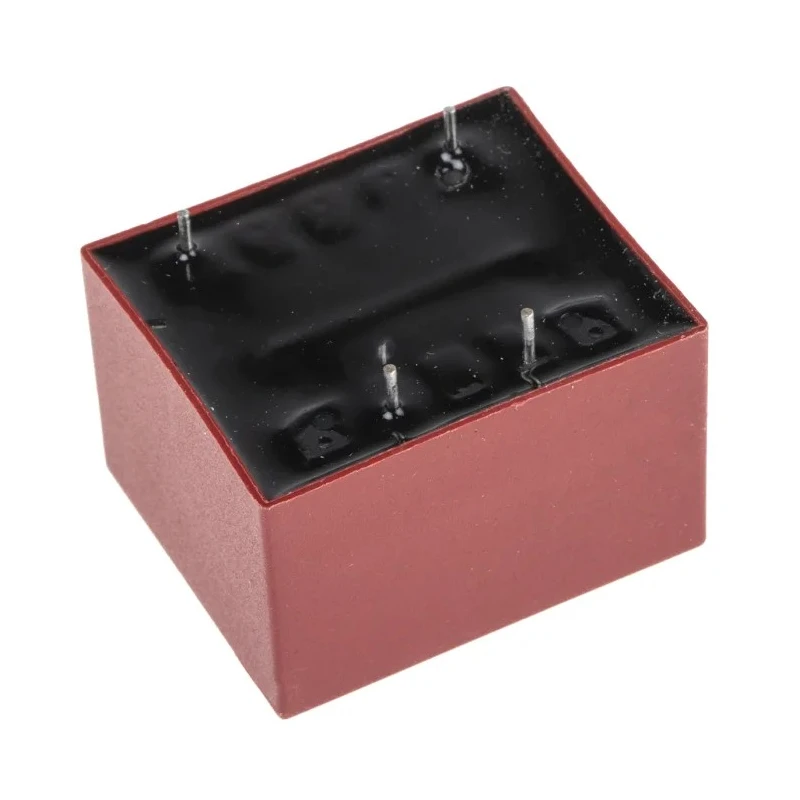

RS PRO 1 x 12 V ac 2 Output PCB Transformer, 1.5 VA, PCB Mount, Standards IECBSEN 615581, ASNZS 61558.6, ASNZS 121-3824
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 32.5mm |
| Model | 121-3824 |
| Depth | 24mm |
| Gross Weight | 85g |
| Width | 27.5mm |
| Mount Type | PCB |
| Maximum Operating Temperature | 130°C |
| Number of outputs | 2 |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 1 x 12 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Block 12 V ac 1 Output Pin PCB Transformer, ENEC 10 (VDE), C-UL-US 1.5 VABrand | Block |
Key Features
- This transformer features a primary voltage of 230 V ac suitable for mains operation.
- The secondary delivers 1 x 12 V ac with two outputs for flexible wiring configurations.
- Compact size with dimensions of 32.5 mm length, 27.5 mm width, and 24 mm depth is ideal for PCB mounting.
- Constructed for a maximum operating temperature of 130°C ensuring durability in various applications.
- Operating frequency range of 50 to 60 Hz supports broad compatibility.
- Tested to standards IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE, IECBSEN 615586, and RoHS compliant.
- Low interwinding capacity reduces noise and improves efficiency.
- Lightweight at 85 grams for ease of installation on printed circuit boards.
Product Description
RS PRO 121-3824 1 x 12 V ac 2 Output PCB Transformer is a high-quality, low voltage mains transformer designed for electronic component and power supply applications. With a primary winding of 230 V ac 50/60 Hz and a secondary winding offering 1 x 12 V ac across two outputs, this transformer supports series or parallel connection options to provide flexible current delivery suited for printed circuit board mounting.
Featuring a compact design measuring 32.5 mm in length, 27.5 mm in width, and 24 mm in depth, the PCB mount type allows for efficient space-saving integration into electronic assemblies. The unit operates reliably at a maximum temperature of 130°C, making it suitable for demanding industrial and commercial environments.
This RS PRO transformer adheres to rigorous safety and quality standards, including IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE marking, IECBSEN 615586, and RoHS compliance, ensuring both safety and environmental friendliness. The transformer is 100% electric and flash tested, delivered with a double-section bobbin and built for high efficiency with low temperature rise and minimal radiated noise.
Its low interwinding capacitance further reduces interference, enhancing the performance of sensitive electronic circuits. Weighing only 85 grams, it is lightweight and easy to handle during PCB assembly.
This transformer is ideally suited for applications in industrial control systems, laboratory equipment, electronic devices, and commercial power supplies. Primary voltage: 230 V ac. Secondary voltage: 1 x 12 V ac with 2 outputs.
Power rating: 1.5 VA. Mount type: PCB. Dimensions: 32.5 mm x 27.5 mm x 24 mm (LxWxD). Weight: 85 g. Operating temperature max: 130°C. Operating frequency: 50 - 60 Hz. Standards compliance: IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE, IECBSEN 615586, RoHS.
Explore the EnvMart catalog for more reliable RS PRO transformers and electronic components suitable for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC.
It provides a secondary voltage of 1 x 12 V AC across two outputs.
The dimensions of this transformer are 32.5 mm in length, 27.5 mm in width, and 24 mm in depth.
The power rating of this transformer is 1.5 VA.
The maximum operating temperature for this transformer is 130°C.
It operates within a frequency range of 50 to 60 Hz.
This transformer is designed for PCB mounting.
This transformer weighs 85 grams.
It complies with standards IECBSEN 615581, ASNZS 61558.6, ASNZS 61558.1, CE, IECBSEN 615586, and is RoHS compliant.
It has low interwinding capacitance, which reduces noise and improves efficiency.
This transformer is suitable for applications in industrial control systems, laboratory equipment, electronic devices, and commercial power supplies.
Yes, it supports series or parallel connection options for flexible current delivery.
