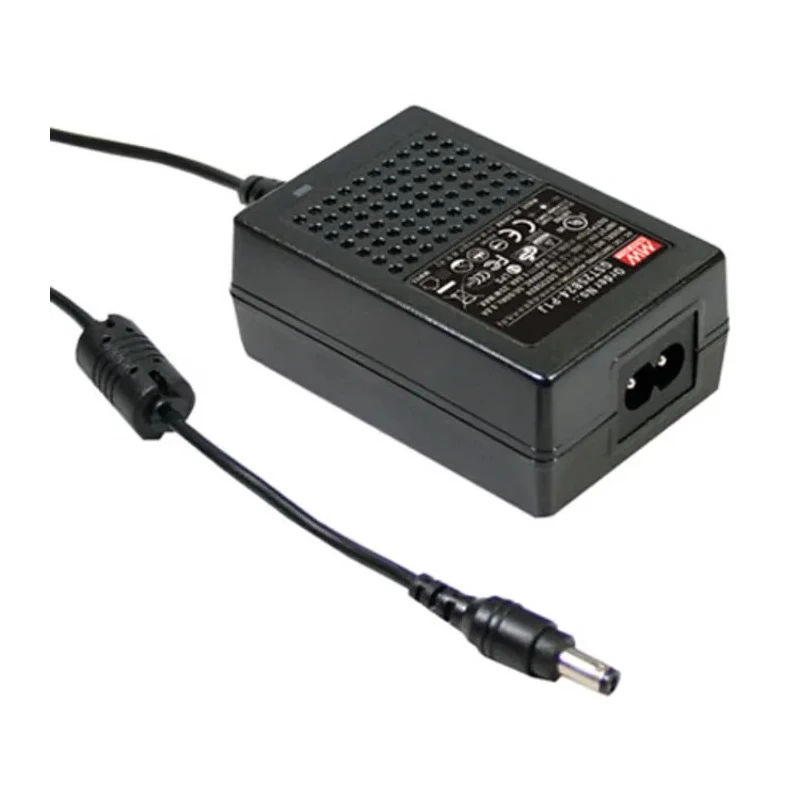

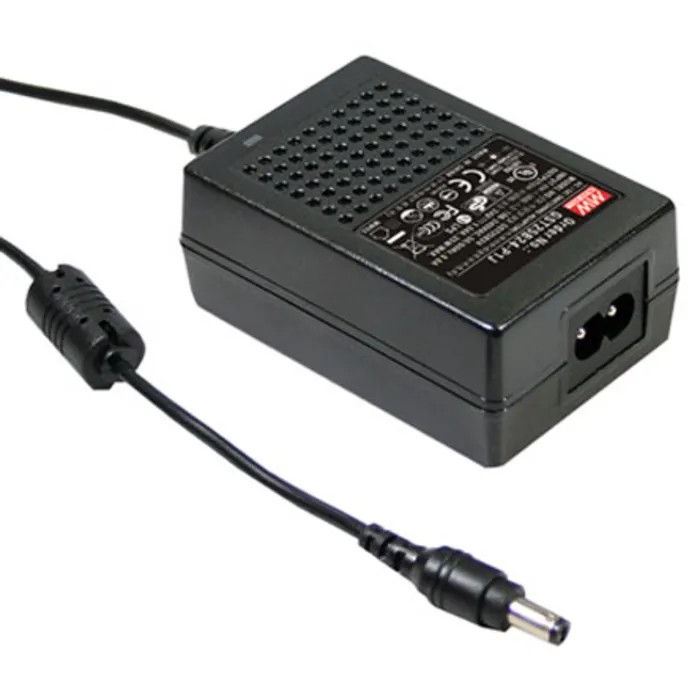

MEAN WELL AC/DC Adapter 12 V DC Output 3 A, 264 V AC Input GST36B12-P1J

MEAN WELL GST36B12-P1J AC/DC Adapter is a 36 W desktop power supply designed for dependable industrial and consumer electronic power management applications. It features a robust design with a two-pole IEC320-C8 AC inlet supporting an input voltage range from 80 V AC minimum to 264 V AC maximum, accommodating wide voltage fluctuations common in industrial and commercial environments.

This model provides a stable 12 V DC output at a maximum current of 3 A, suitable for powering various electronic devices and telecom equipment. The compact form factor measures 79 mm in length, 54 mm in width, and 33 mm in depth, making it ideal for desktop mounting or integration into limited-space setups.

The adapter complies with internationally recognized safety standards including UL 60950-1, IEC 60950-1, and CE marking, ensuring safe operation across multiple regions and applications. The enclosure is fully enclosed and constructed from flame retardant materials rated 94V-0, enhancing electrical safety and fire resistance.

Energy efficiency is a key feature of the GST36B series, with this model achieving level VI energy efficiency certification and UL Energy Verified Better World status, contributing to reduced power consumption and lower environmental impact. The power supply exhibits extremely low no-load power consumption below 0.075 W.

Protection mechanisms integrated into the adapter include short circuit, overload, and over-voltage protections, ensuring long-term reliability and safeguarding connected equipment. An LED indicator provides visual confirmation of power status at a glance.

This AC/DC adapter from MEAN WELL is well-suited for use in industrial equipment, telecom devices, office facilities, and consumer electronic devices. Its wide input voltage range and high energy efficiency make it a versatile and sustainable power solution.

Its standard IEC320-C8 connector simplifies installation, while the desktop form factor offers flexible deployment options. Choose the MEAN WELL GST36B12-P1J for efficient, reliable, and safe power supply needs.

Supports wide input voltage range from 80 V to 264 V AC. Maximum output current of 3 A with 12 V DC output voltage. Equipped with IEC320-C8 two-pole AC inlet connector. Compact desktop design with dimensions 79mm (L) x 54mm (W) x 33mm (D).

Operates reliably up to 70°C ambient temperature. Conforms to UL 60950-1, IEC 60950-1, and CE safety standards. High energy efficiency level VI certified with UL Energy Verified Better World compliance. Fully enclosed casing with 94V-0 flame retardant material for safety.

Built-in protections against short circuit, overload, and over-voltage conditions. Includes LED power status indicator for monitoring. Explore our Electronics & Electricals AC/DC Adapters category for more MEAN WELL power supply solutions and accessories available at EnvMart.
