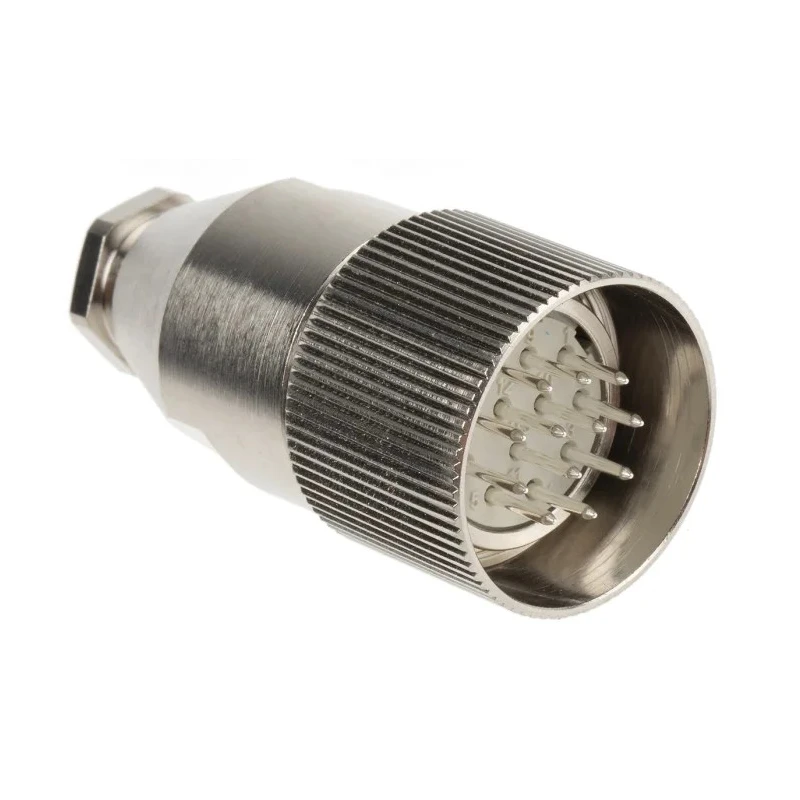

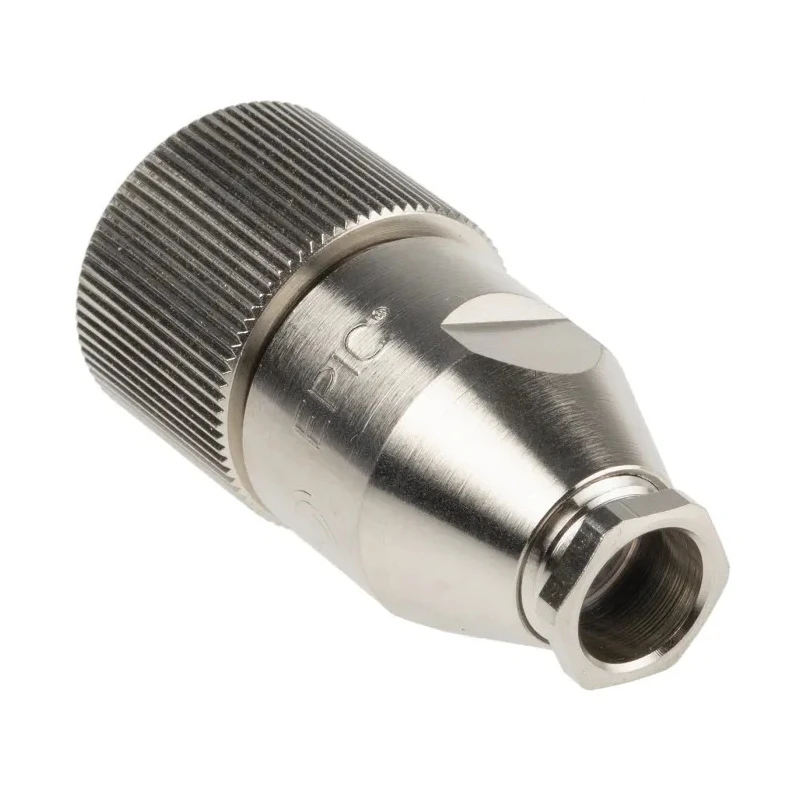

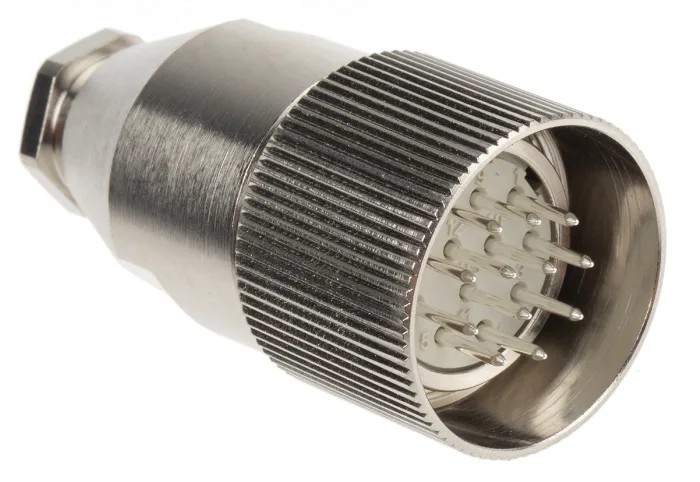

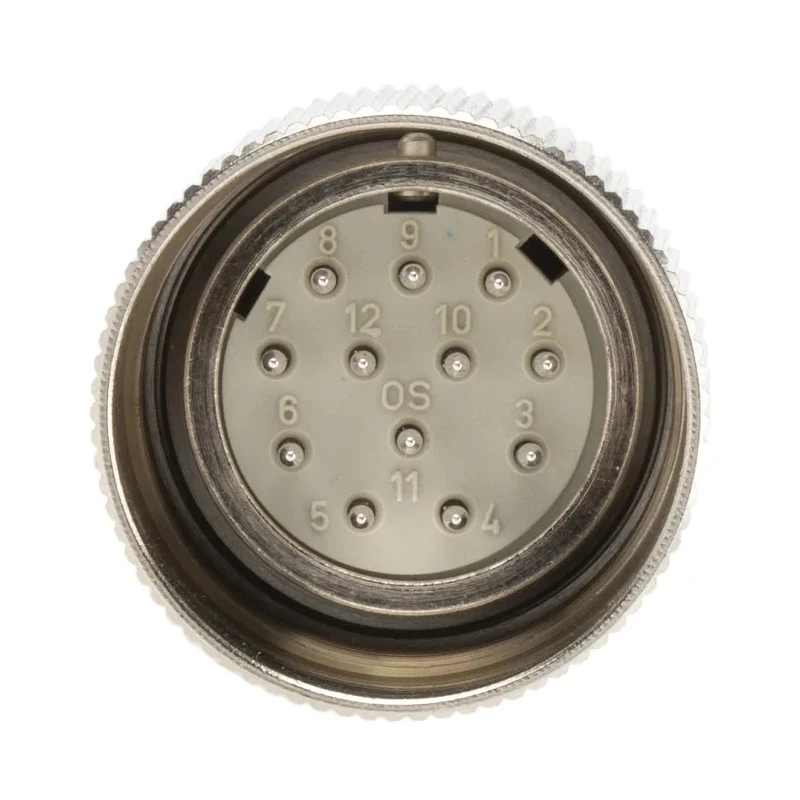

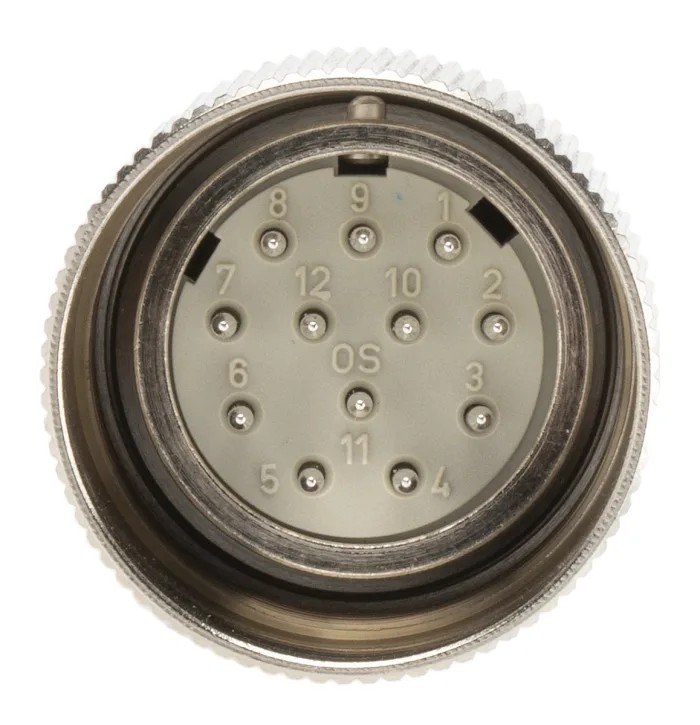

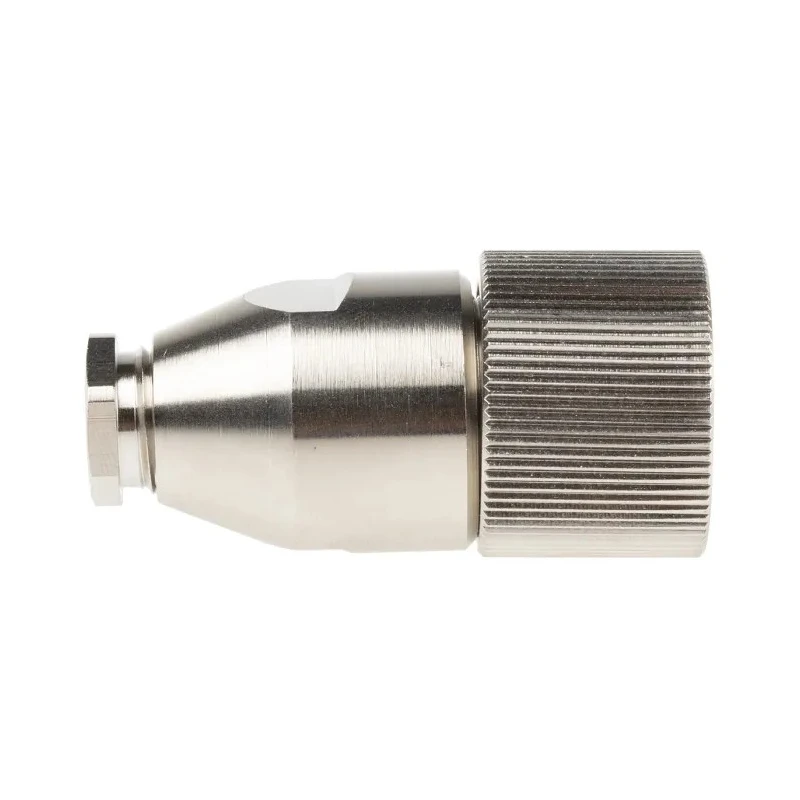

Lapp Circular Connector Panel Mount 12 Contacts 23 mm Plug Male IP65 Thermoplastic EPIC Series 00008718
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 380V |
| Brand | Lapp |
| Orientation | Straight |
| Current | 7.5A |
| Model | 00008718 |
| IP Rating | IP65 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | EPIC |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 12 |
| Contact Plating | Silver |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 25 |
| Mating Type | Screw-On |
| Connector Size | 23 mm |
| Plug/Socket | Plug |
| Coding | N |
Key Features
- Compact circular connector suitable for panel mounting.
- Features 12 silver-plated copper contacts rated at 7.5A current.
- Robust thermoplastic housing with IP65 ingress protection.
- Operating temperature range from -40°C to +125°C.
- Screw-on mating type with straight orientation plug design.
- Suitable for industrial signal and power cable connections.
- Corrosion resistant with mechanical protection for challenging environments.
Product Description
Lapp 00008718 circular connector is a panel mount plug designed for industrial signal and power applications requiring a compact and reliable connection.
It features 12 silver-plated copper contacts rated for 7.5A current within a 23 mm connector size and a 25 size shell. The housing is made of durable thermoplastic material providing excellent mechanical protection and resistance to corrosion.
This connector is IP65 rated, offering dust tight protection and resistance against low pressure water jets, making it suitable for indoor and some outdoor environments. Its operating temperature ranges from -40°C to +125°C ensuring dependable performance even under harsh conditions.
The screw locking mating system ensures secure connections with easy installation and maintenance. The connector has a straight orientation plug design with male contact gender and solder termination type.

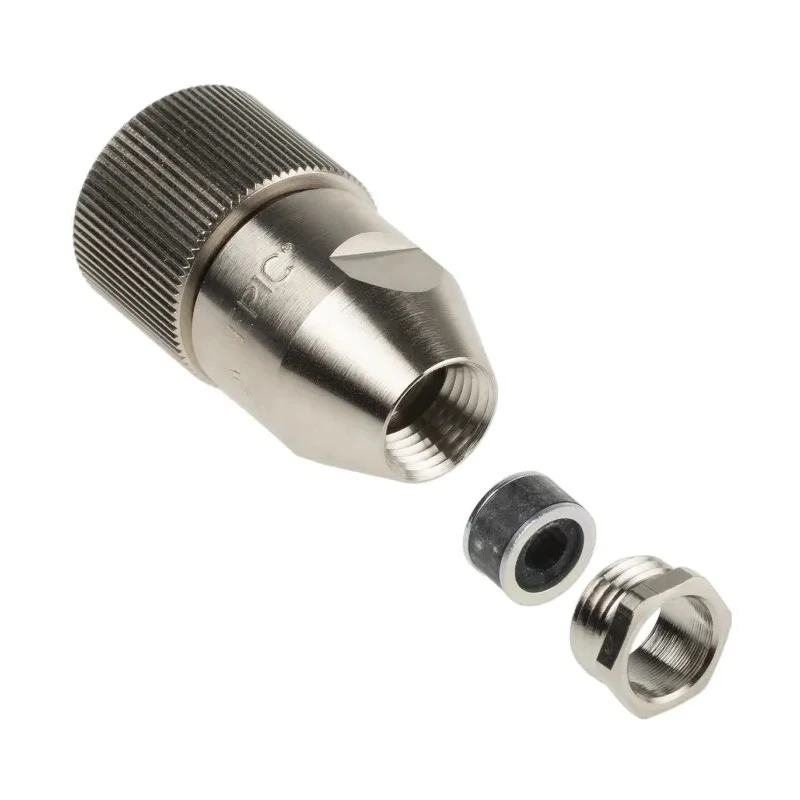

Lapp's EPIC Series R connectors integrate a PG cable gland providing excellent cable sealing and strain relief, further improving durability. Compact size to save space in equipment setups. Screw locking mating system for secure connection.
IP65 protection suitable for industrial environments. Corrosion resistant and mechanically robust construction. Wide operating temperature range from -40°C to +125°C. Silver-plated copper contacts for excellent conductivity.
Straight, panel mount design with screw-on mating type. Manufactured with German quality standards. This industrial circular connector is ideal for machine and equipment manufacturing, measurement and control technology, and automation systems.
Explore more products in the Industrial Circular Connectors category at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features 12 silver-plated copper contacts rated at 7.5A current.
The connector is rated IP65, providing dust tight protection and resistance against low pressure water jets.
It operates within a temperature range of -40°C to +125°C, ensuring performance in harsh conditions.
The housing is made of durable thermoplastic material, which offers excellent mechanical protection and corrosion resistance.
This model is designed for panel mounting with a screw-on mating type for secure connections.
It utilizes a solder termination type for connecting the contacts.
The connector has a size of 23 mm and a shell size of 25.
The contacts are made of copper and are silver-plated for improved conductivity.
It is suitable for industrial signal and power applications, including machine and equipment manufacturing, measurement, and control technology.
The connector features a straight orientation plug design.
This circular connector is manufactured in Germany, adhering to German quality standards.
It integrates a PG cable gland, providing excellent cable sealing and strain relief.
