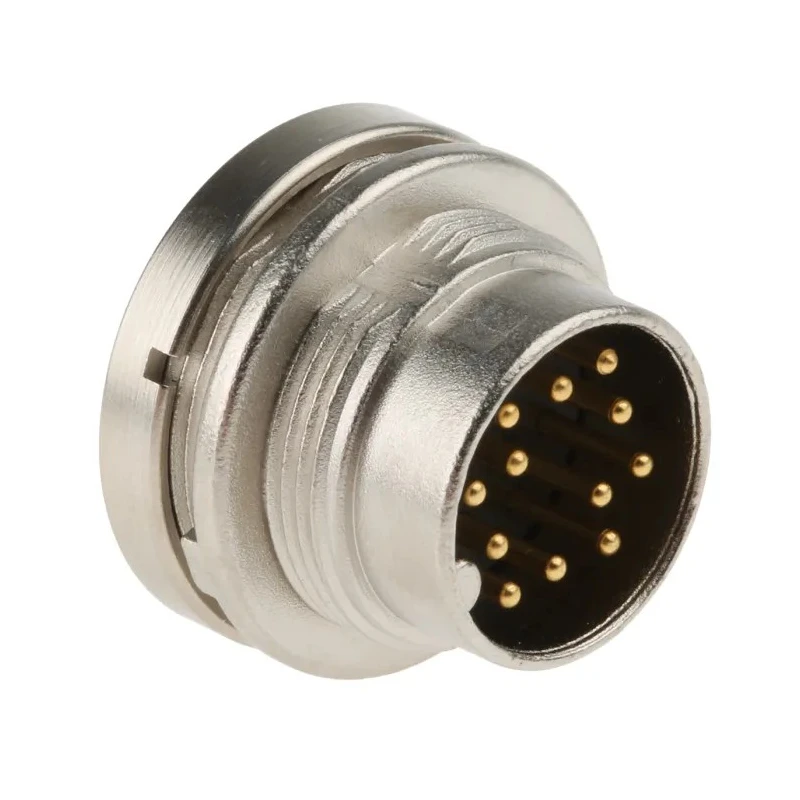

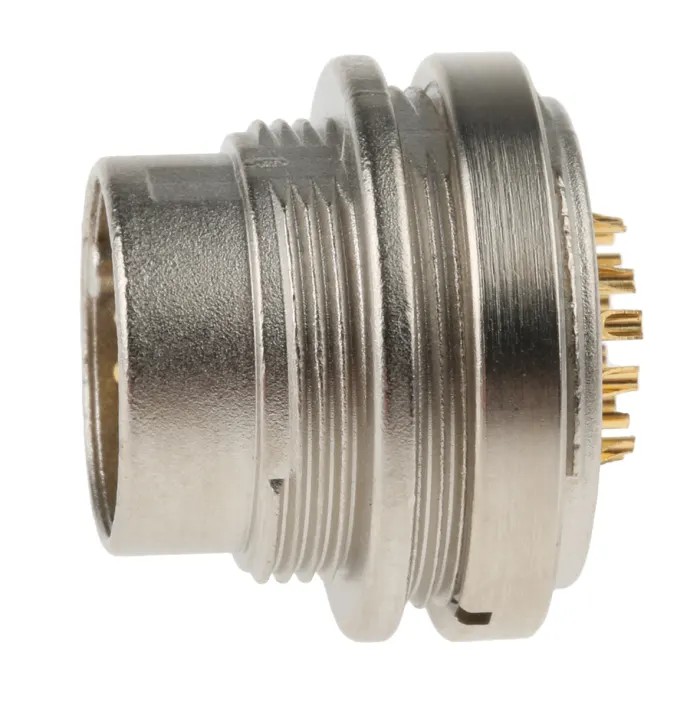

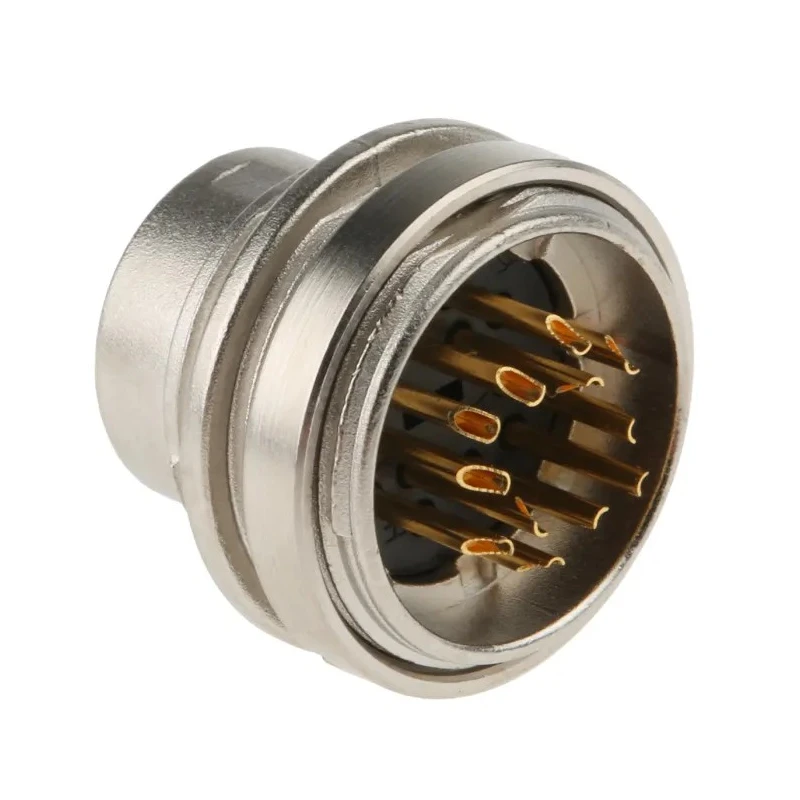

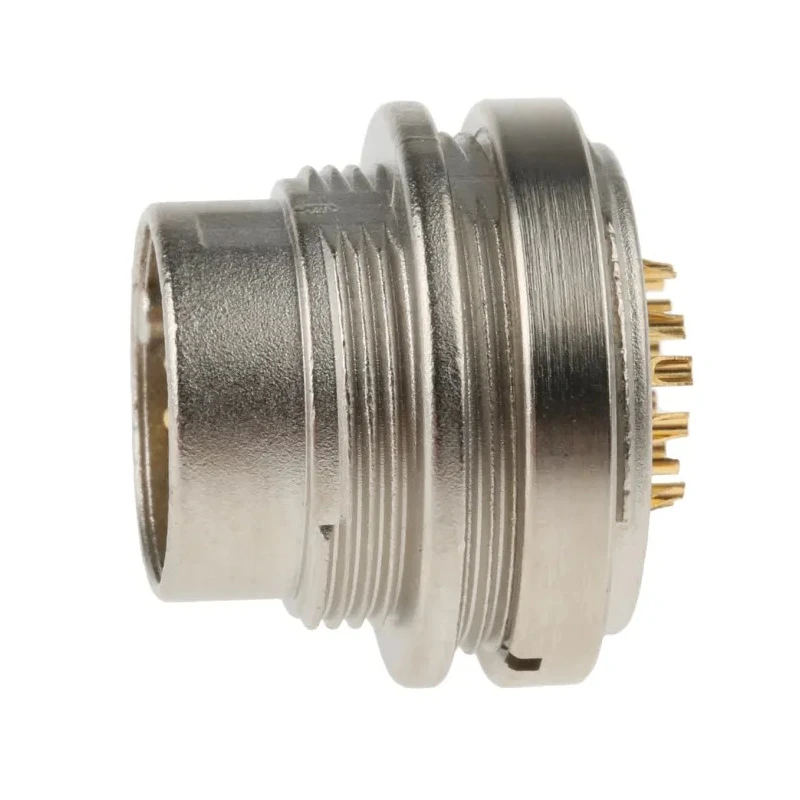

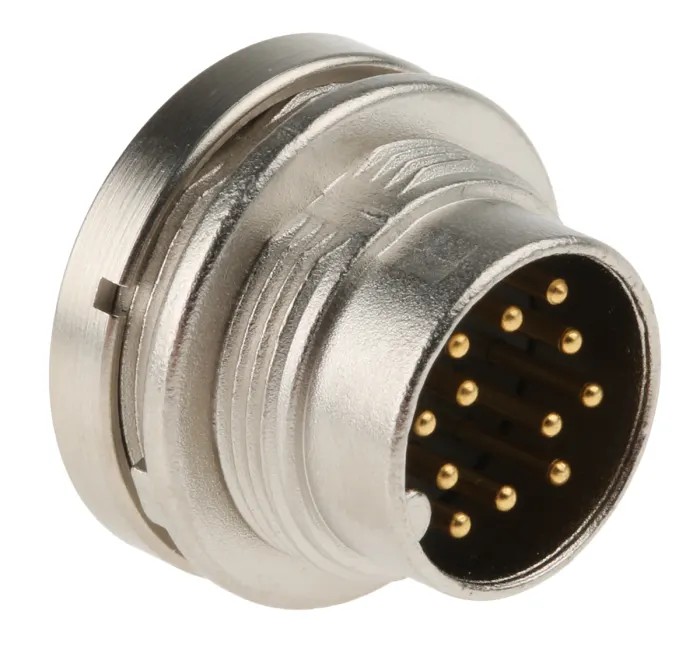

binder Circular Connector, 12 Contacts, Panel Mount, M16 Connector, Socket, Male, IP40, 680 Series 09-0331-00-12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Socket |
| Amphenol C 091 D Series, 12 Pole Din Plug Plug, 3A, 150 V ac/dc IP67Brand | Amphenol Industrial |
Key Features
- The connector supports a voltage rating of 60V and a current of 3A for reliable electrical performance.
- Constructed with a die cast zinc housing material ensuring durability and strength.
- Features solder termination for secure electrical connections.
- Operates within a temperature range from -40°C up to 85°C suitable for various industrial environments.
- Designed with an IP40 ingress protection rating for basic protection against solid objects.
- Gold-plated brass contacts prevent oxidation, ensuring longevity and reliability.
- The shell size measures 18.5 mm and the connector has a straight orientation for easy installation.
- Part of the 680 series, known for robust miniature panel mount connectors.
Product Description
binder 09-0331-00-12 Circular Connector is a high-quality, panel mount Industrial Circular Connector designed for robust and reliable electrical connections in demanding environments.
This 12-contact socket connector with male contact gender features a miniature M16 connector size and straight body configuration, crafted from die cast zinc housing material for enhanced mechanical protection.
The connector supports a voltage of 60V and current of 3A, accommodating various industrial and electronic applications, including medical equipment, machine tool control, industrial automation, and instrumentation.
Operating reliably within -40°C to +85°C, it ensures performance stability in harsh conditions. The IP40 rating provides protection against solid objects, while the gold-plated brass contacts deliver corrosion resistance and long service life.
Solder termination type facilitates secure and permanent wiring connections, simplifying installation and maintenance. As part of the binder 680 series, this connector is engineered for high reliability and simple assembly within industrial and electronics sectors.
The connector supports voltage of 60V and current of 3A for electrical performance. Die cast zinc housing ensures durability and mechanical protection. Gold-plated brass contacts prevent oxidation and improve lifespan. Solder termination provides secure electrical connections.
Operating temperature range from -40°C to +85°C suits varied environments. IP40 rating offers solid object protection. M16 miniature connector size and straight orientation enable compact and straightforward installation.
Part of binder's 680 series, designed for industrial applications.
This circular connector is well-suited for use across industrial automation, laboratory instrumentation, HVAC controls, and manufacturing equipment. Its reliable contact system and rugged construction make it an ideal choice for demanding electrical connector needs.
Explore more connectors and related industrial electronics solutions at EnvMart for your specific application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a voltage rating of 60V and a current rating of 3A, making it suitable for various industrial applications.
It operates reliably within a temperature range of -40°C to +85°C, suitable for harsh industrial environments.
The connector has an IP40 ingress protection rating, providing basic protection against solid objects.
The housing is made from die cast zinc for durability, and the contacts are gold-plated brass to prevent oxidation.
This connector features 12 contacts with a male contact gender.
It utilizes solder termination for secure and permanent wiring connections.
The shell size measures 18.5 mm, which is designed for compact installations.
The IP40 rating indicates it is designed for basic protection against solid objects but does not provide protection against water, making it less suitable for outdoor use without additional safeguards.
It is suitable for various industrial applications, including medical equipment, machine tool control, industrial automation, and instrumentation.
This model has a straight orientation, which facilitates easy installation.
The country of origin for this connector is Germany.
