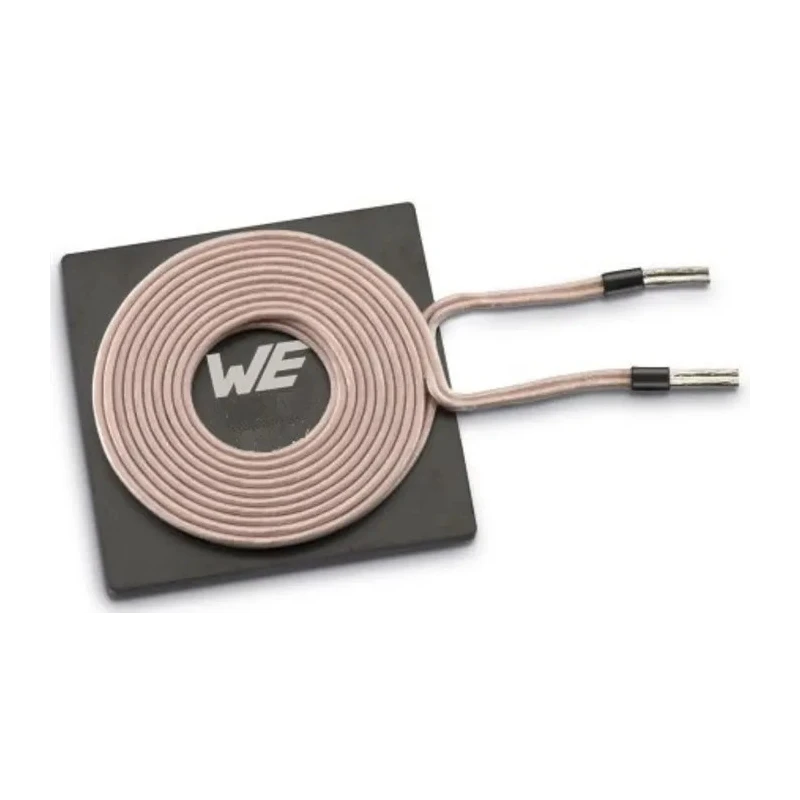

Wurth Elektronik WE-WPCC Wireless Charging Coil Transmitter 2.5 A, 6.5 μH, 20.5 mm Diameter 760308101104

Wurth Elektronik 760308101104 wireless charging coil transmitter is part of the WE-WPCC Series designed for efficient Qi standard wireless power charging solutions. With a maximum DC current rating of 2.5 A and inductance of 6.5 μH, this coil enables reliable energy transfer for devices such as mobile phones, fitness trackers, and smart watches through magnetic induction without the need for physical connectors.

The coil features a ferrite core with a diameter of 20.5 mm and is mounted radially with a radial termination style, simplifying integration into printed circuit boards. It operates within a temperature range of -20°C to 105°C, suitable for various industrial and consumer electronics applications. The minimum quality factor of 42 ensures high efficiency and minimal power loss during operation.

The WE-WPCC coil utilizes litz wire winding technology, enhancing performance by reducing equivalent resistance and improving the overall Q factor. The magnetically concentrated field reduces leakage, further enhanced by an EMI shield on the coil's back. These design elements ensure safety and compliance, meeting DIN ISO 2768-1m standards.

This wireless charging coil series supports industrial use cases including portable device charging in clean environments such as medical facilities and industrial clean rooms where connectors would be susceptible to contamination. Additionally, it is suitable for explosion-sensitive environments, smart sensors, walkie talkies, smartphone sleeves, headsets, and portable media players.

Wurth Elektronik Wireless Charging Coils offer a robust and standardized solution for Qi-compliant devices, providing compatibility across different manufacturers and simplifying power delivery in various industrial, commercial, and consumer applications.

Designed for Qi wireless power charging applications. Features a compact 20.5 mm diameter coil with ferrite core. Ensures high-quality performance with a minimum quality factor of 42. Supports radial mount type with radial termination style for easy PCB integration.

Operates reliably between -20°C and 105°C temperature range. Constructed with litz wire to achieve low resistance and high Q values. Magnetic field is highly concentrated to minimize leakage and EMI interference. Compliant with DIN ISO 2768-1m standards for quality and manufacturing.
