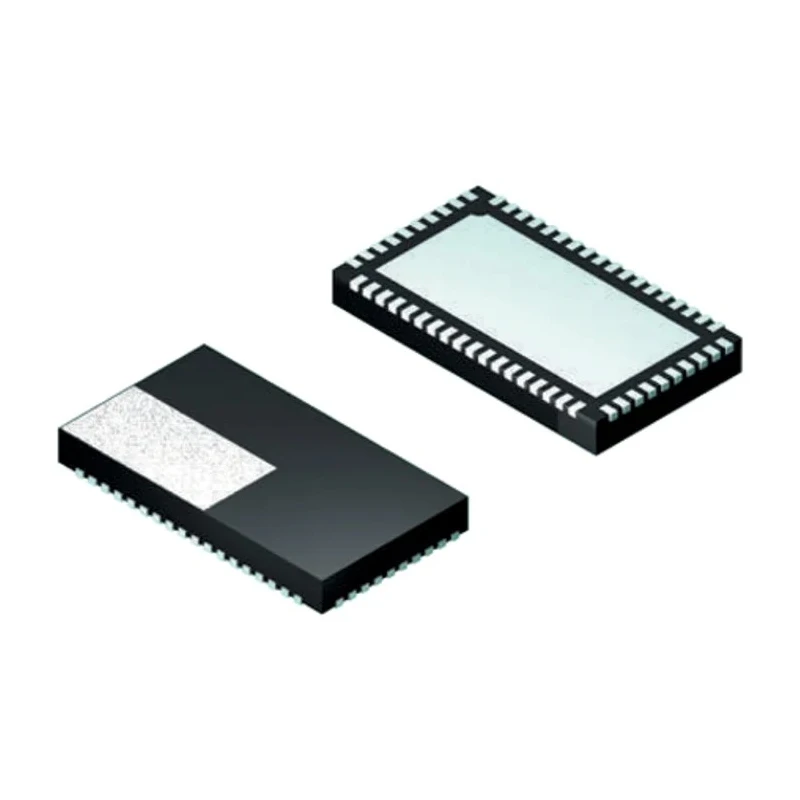

FTDI Chip USB Interface Controller IC, 1-Channel 30 Mbps, 1.8 V to 1.98 V Power Supply, Surface Mount FT4232H-56Q-TRAY
Specifications
| Country of Origin | India |
|---|---|
| Brand | FTDI Chip |
| Height | 900μm |
| Length | 8mm |
| Model | FT4232H-56Q-TRAY |
| Mount Type | Surface |
| Series | FT4232H |
| Maximum Operating Temperature | 85°C |
| Package Type | VQFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 56 |
| Maximum Supply Voltage | 1.98V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 70mA |
| Maximum Data Rate | 30Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 2.0 |
Key Features
- Operates with a power supply voltage range from 1.8 V to 1.98 V.
- Features a 56-Pin VQFN surface mount package suitable for compact PCB designs.
- Supports USB 2.0 protocols, ensuring compatibility with a variety of USB devices.
- Equipped with ESD protection for enhanced reliability and robustness.
- Operates reliably in temperature ranges from -40°C to 85°C.
- Low supply current consumption of 70 mA for energy-efficient operation.
- RoHS compliant, meeting environmental and safety standards.
- Ideal for industrial, consumer electronics, and embedded systems requiring USB communication.
Product Description
FTDI Chip FT4232H-56Q-TRAY is a high-performance USB Interface Controller IC featuring a single communication channel with a maximum data rate of 30 Mbps. Designed for use in a USB 2.0 environment, this controller IC operates with a supply voltage ranging between 1.8 V and 1.98 V, offering flexibility for various power configurations.
The device comes in a compact 56-pin VQFN surface mount package designed to support space-efficient PCB layouts, with physical dimensions including a height of 900 μm and a length of 8 mm. Its surface mount type ensures ease of manufacturing in automated assembly lines.
Equipped with built-in ESD protection, the FT4232H-56Q-TRAY provides enhanced durability and reliable electrical characteristics suitable for demanding industrial and commercial applications. It is rated to operate within a temperature range from -40°C to 85°C, making it suitable for environments with extreme temperature variations.
The controller supports USB 2.0 protocol standards ensuring interoperability with a wide range of USB devices and host controllers. Its low supply current of 70 mA contributes to energy-efficient designs critical in battery-operated or low-power applications.
Operates with a maximum data rate of 30 Mbps over a USB 2.0 interface. Single transceiver channel providing reliable communication. Package Type: 56-Pin VQFN with a height of 900 μm and length of 8 mm. Power supply range from 1.8 V minimum to 1.98 V maximum for flexible design integration.
Surface mount device suitable for automated assembly processes. ESD protection ensures device safety and longevity. Operating temperature range from -40°C to 85°C for robust performance. RoHS compliant, meeting environmental and safety regulations.
This controller IC finds applications in industrial automation, embedded systems, consumer electronics, and computer peripherals where USB communication is essential for data transfer and device control.
Explore our catalog for more semiconductor and USB interface solutions suitable for various electronic design requirements.
Explore more products in our USB Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 30 Mbps, enabling efficient data transfer over USB 2.0.
It operates reliably within a temperature range from -40°C to 85°C, making it suitable for various environmental conditions.
This controller IC requires a power supply voltage ranging from 1.8 V to 1.98 V, allowing for flexible design integration.
The FT4232H-56Q-TRAY features a single transceiver channel for communication.
It comes in a 56-pin VQFN surface mount package, designed for compact PCB layouts.
Yes, this model is RoHS compliant, meeting environmental and safety standards.
The supply current consumption for this model is 70 mA, contributing to energy-efficient operation.
It supports USB 2.0 protocol standards, ensuring compatibility with a variety of USB devices and host controllers.
The dimensions include a height of 900 μm and a length of 8 mm, suitable for space-efficient designs.
This controller IC is suitable for applications in industrial automation, embedded systems, consumer electronics, and computer peripherals requiring USB communication.
Yes, it is equipped with built-in ESD protection to enhance durability and reliability in demanding applications.
The country of origin for this model is India.
