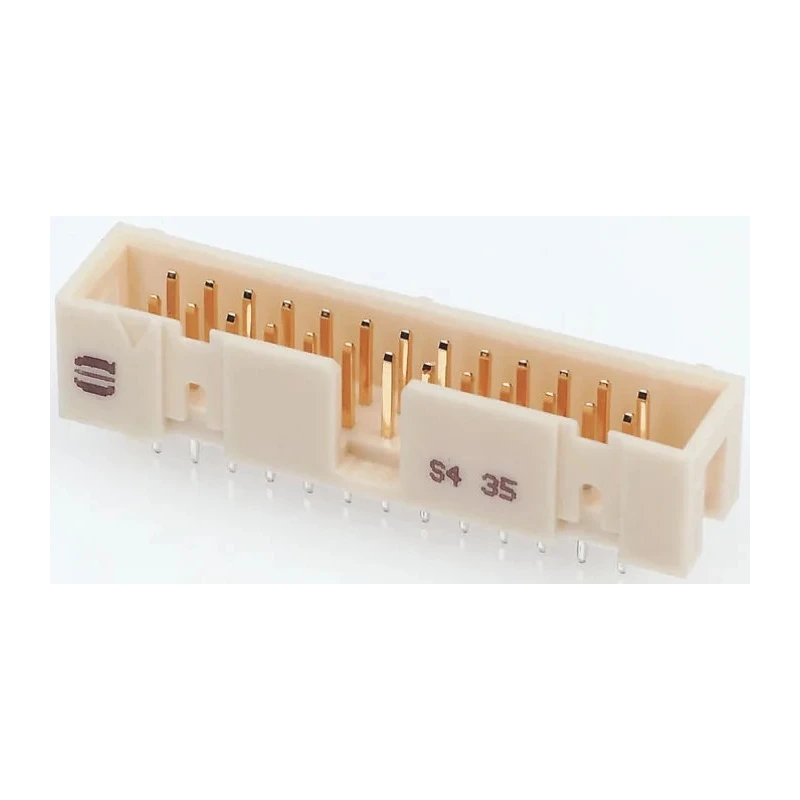

HARTING PCB Header Right Angle Through Hole 26 Contacts 2.54 mm Pitch 2 Row Shrouded 09195266323
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polycyclohexylenedimethylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 19 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Provides secure wire-to-board connection for electronic components.
- Constructed with polycyclohexylenedimethylene terephthalate housing for heat resistance.
- Gold-plated copper alloy contacts ensure excellent conductivity and durability.
- Operates reliably from -55°C to 125°C for extended temperature ranges.
- Designed for solder termination and rated for 1A current and 1000V voltage.
- Complies with industry standards IDC, BT224, DIN41651, and DIN EN 60603-13.
- Includes UL and CSA approvals for safety and quality assurance.
- Low-profile SMC male header with 2.9 mm solder pins supports high temperature applications.
Product Description
HARTING 09195266323 PCB Header is a right angle, 26-contact, 2-row shrouded connector designed for reliable wire-to-board electronic applications. Made from durable polycyclohexylenedimethylene terephthalate housing material, it provides excellent thermal stability and mechanical strength, suitable for demanding industrial use.
The connector's copper alloy contacts are gold plated to ensure outstanding electrical conductivity and corrosion resistance. The 2.54 mm pitch between pins allows precise header placement on printed circuit boards while enabling high-density connection.
This male header connector features solder termination type and is configured as a through-hole mount for robust mechanical hold on PCBs. It operates safely under current ratings of 1 ampere and withstands voltage up to 1000 volts, suitable for a wide range of electronic devices.
Designed to function reliably in harsh environments, this header supports an operating temperature range from -55°C to 125°C. It meets relevant standards including IDC, BT224, DIN41651, and DIN EN 60603-13, while carrying certifications from UL (E102079) and CSA (98267), assuring compliance with safety and quality.
Applications include industrial electronics, control systems, and manufacturing environments requiring dependable signal and power connections. This product complements the HARTING SEK 19 series and supports design flexibility in electronic assembly.
Provides secure wire-to-board connection for electronic components. Constructed with polycyclohexylenedimethylene terephthalate housing for heat resistance. Gold-plated copper alloy contacts ensure excellent conductivity and durability.
Operates reliably from -55°C to 125°C for extended temperature ranges. Designed for solder termination and rated for 1A current and 1000V voltage. Complies with industry standards IDC, BT224, DIN41651, and DIN EN 60603-13.
Includes UL and CSA approvals for safety and quality assurance. Low-profile SMC male header with 2.9 mm solder pins supports high temperature applications. Explore our full range of PCB Headers to find compatible connectors and accessories. Browse HARTING products for reliable industrial components.
