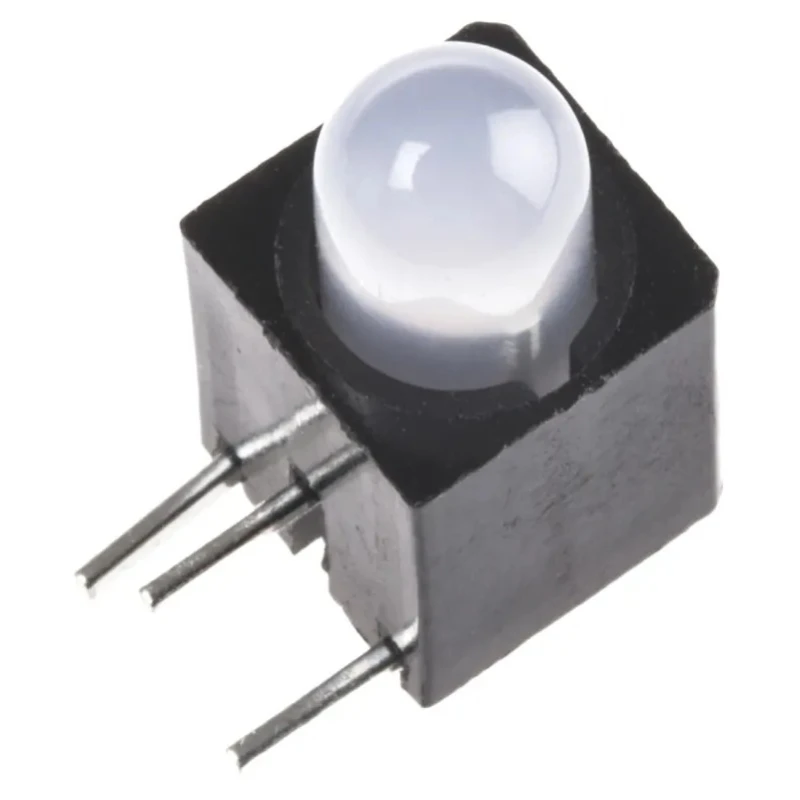

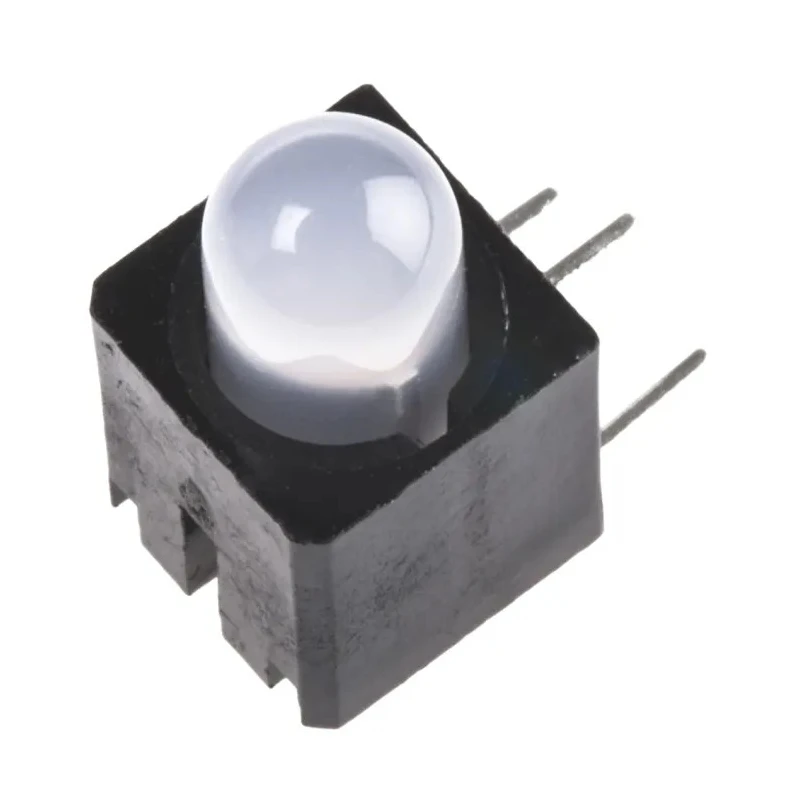

Dialight Red Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.1 V Multicolour 550-3505

Free Delivery in India | Lowest Global Shipping Charges

Dialight Red Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.1 V Multicolour 550-3505

Name: Dialight Red Green Right Angle PCB LED Indicator 5 mm (T-1 3/4), 2 LEDs 2.1 V Multicolour 550-3505
Brand: DIALIGHT
SKU: 184701
Price: 2.18 USD
Availability: InStock



Category PCB LED Indicator Brand DIALIGHT Condition New

Specifications

Country of Origin	India
Brand	Dialight
Length	14.151mm
Model	550-3505
Mount Type	Through Hole
Series	550
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	65 °
Sub Type	Multicolour
Power Dissipation	80mW
Lens Colour	Red
Luminous Intensity	85mcd
Standards/Approvals	MIL-STD-202F, RoHS, UL 94 V-0
LED Colour	Red, Green
Number of Pins	2
Lens Finish	Diffused
Minimum Supply Voltage	2.1V
LED Material	GaP, GaAsP
Multicolour/Single Colour	Multicolour
LED Orientation	Right Angle
- Operating temperature	-20 to +85 °C
LED Size	5 mm (T-1 3/4)
- Colours	Red/Green and Yellow/Green

Key Features

Two 5 mm through hole LEDs with red and green colours for multicolour display.
Right angle LED orientation suited for PCB mounting applications.
Maximum forward current of 30 mA and low power dissipation of 80 mW.
Diffused lenses with a 65° viewing angle provide high contrast visibility.
Operating temperature range from -20 °C to +85 °C ensures reliability in various conditions.
LEDs utilize GaP and GaAsP materials for high luminous intensity of 85 mcd.
Compact size with 14.151 mm length and 2-pin mounting for easy integration.
Compliant with MIL-STD-202F, RoHS, and UL 94 V-0 standards for safety and quality.

Product Description

Dialight 550-3505 is a red and green right angle PCB LED indicator designed for circuit board applications requiring clear multicolour signalling. Featuring two 5 mm (T-1 3/4) LEDs in a through hole mount, this indicator provides reliable performance with a maximum forward current of 30 mA and power dissipation of 80 mW. Its right angle LED orientation allows efficient PCB layout and compact footprint.

The LED lenses are diffused with a 65-degree viewing angle, ensuring excellent visibility and contrast in a variety of lighting environments. Constructed using Gallium Phosphide (GaP) and Gallium Arsenide Phosphide (GaAsP), these LEDs emit vibrant red and green colours and can combine visually to form additional hues, making them versatile for diverse signalling needs.

The device measures 14.151 mm in length and features a 2-pin configuration for through hole mounting, simplifying integration into existing PCB designs. Designed to operate over a temperature range of -20 °C to +85 °C, the indicator suits a variety of industrial and commercial environments demanding durability and consistent operation.

Meeting MIL-STD-202F shock and vibration standards, RoHS environmental compliance, and UL 94 V-0 flame retardance criteria, this LED indicator ensures quality and safety in critical applications. Typical usages include electronic equipment status indicators, control panels, instrumentation readouts, and manufacturing system signalling.

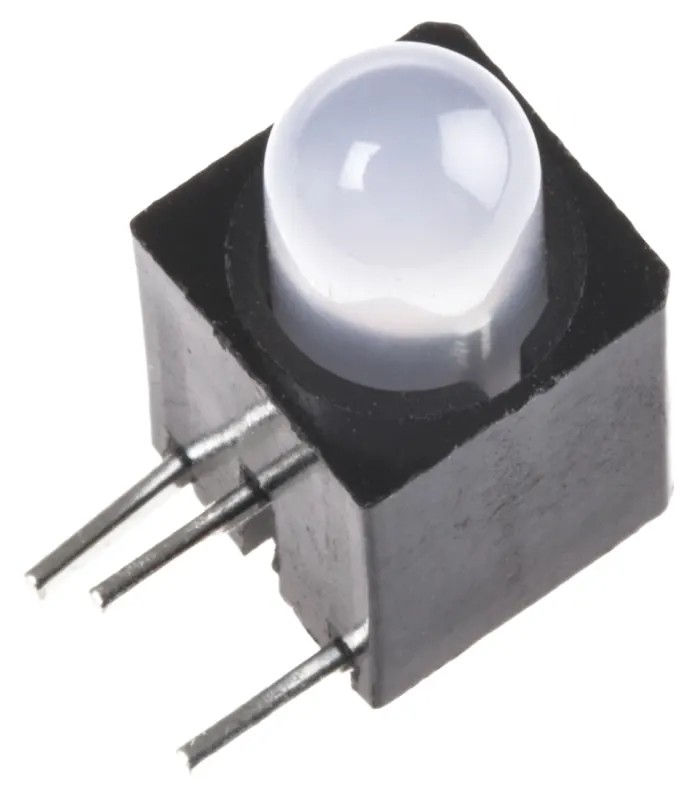

Two 5 mm bi-colour LEDs in a compact black housing provide clear indication. Right angle through hole mount supports PCB integration with minimal space. High luminous intensity of 85 mcd enables visible signalling in bright conditions.

Wide operating temperature range supports use in industrial environments. Certified to MIL-STD-202F, RoHS, and UL 94 V-0 for reliability and safety.

This Dialight PCB LED indicator 550-3505 is ideal for applications requiring durable and visually distinct multicolour signalling on printed circuit boards. Explore more solutions in our PCB LED Indicators category for a full range of electronic component options.
