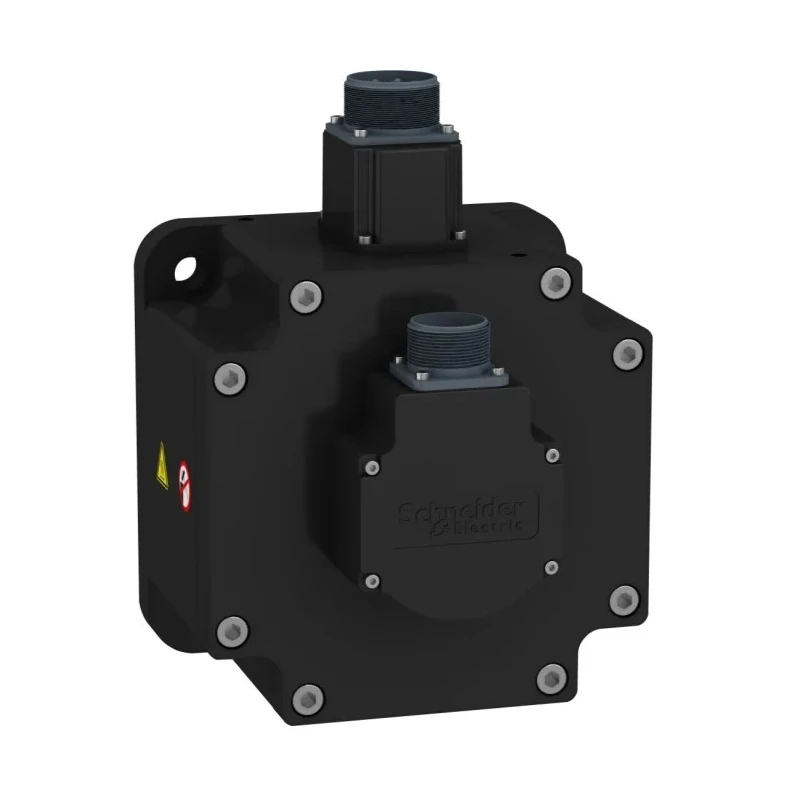

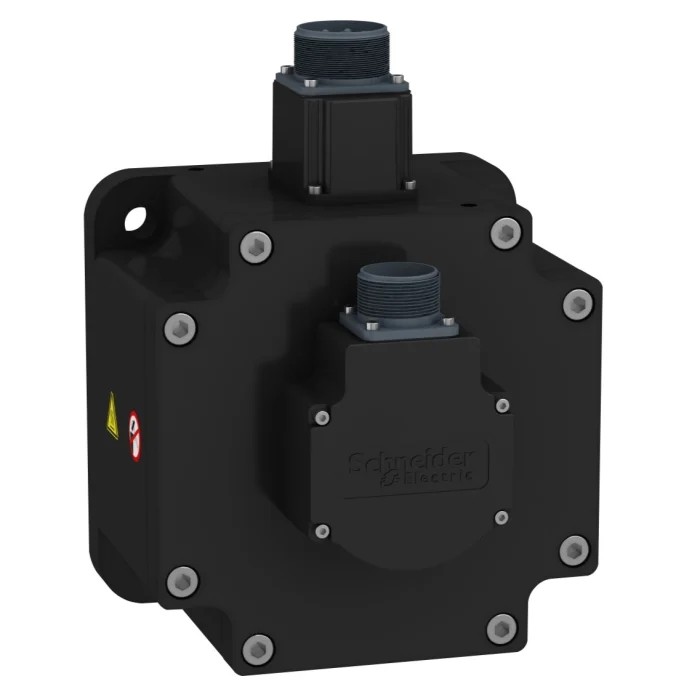

Schneider Electric 220V 3.5 kW AC Servo Motor, 3000 rpm, 50.3 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR3523CF6C

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric 220V 3.5 kW AC Servo Motor, 3000 rpm, 50.3 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR3523CF6C

Name: Schneider Electric 220V 3.5 kW AC Servo Motor, 3000 rpm, 50.3 Nm Max Output Torque, 35 mm Shaft Diameter BCH2MR3523CF6C
Brand: Schneider Electric
SKU: 184626
Price: 5305.35 USD
Availability: InStock



Category Servo Motors Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	281mm
Model	BCH2MR3523CF6C
Depth	245mm
Width	180mm
Mount Type	Flange
Current Rating	57.8Arms
Series	Lexium
Power Rating	3.5kW
Sub Type	AC Servo Motor
Output Speed	3000rpm
Shaft Diameter	35mm
Shaft Length	79mm
Supply Voltage	220V
Standards/Approvals	REACH, RoHS
Maximum Output Torque	50.3Nm
Stall Torque	16.7Nm
Rotor Inertia	54.1kg.cm²

Key Features

The servo motor features a maximum output torque of 50.3 Nm.
Equipped with a 35 mm diameter shaft for precise mechanical coupling.
The motor includes a flange mount type for secure installation.
It has a stall torque rating of 16.7 Nm for load holding applications.
Current rating is 57.8 Arms suitable for the specified voltage and power.
Includes a high resolution 20-bit single-turn absolute encoder as standard.
Belongs to the Lexium series, supporting advanced positioning and speed control.
Rotor inertia is 54.1 kg.cm², ideal for high dynamic performance.

Product Description

Schneider Electric BCH2MR3523CF6C is a high-performance 220V, 3.5 kW AC servo motor designed for precision industrial applications requiring reliable torque and speed control. Operating at 3000 rpm, this motor delivers a maximum output torque of 50.3 Nm, making it suitable for demanding mechanical tasks.

The motor features a 35 mm diameter shaft with a length of 79 mm, mounted using a flange system for robust mechanical connection. Stall torque is 16.7 Nm, providing stable holding capability when the motor is stopped.

Its compact dimensions of 281 mm length, 180 mm width, and 245 mm depth allow easy integration into diverse machinery and automation equipment. The motor operates at a current rating of 57.8 Arms, ensuring efficient performance under rated conditions.

Schneider Electric incorporates a 20-bit single-turn absolute encoder within the BCH2 series, enabling precise position feedback vital for applications like printing, packaging, material handling, and winding/unwinding processes. The Lexium series offers a broad power range servo solution with both single-phase and three-phase supply variants.

This servo motor features a rotor inertia of 54.1 kg.cm² to support rapid and stable acceleration/deceleration cycles, critical for high dynamic response operations. The product complies with environmental and safety standards including REACH and RoHS.

Its construction and specifications make it ideal for industrial automation, robotics, manufacturing, and HVAC control systems. Flange mounting and shaft dimensions ensure compatibility with standard industrial couplings and assemblies.

Set contains 1 Pc Schneider Electric BCH2MR3523CF6C AC Servo Motor. Explore more high-performance Servo Motors and automation solutions to enhance your industrial setups at EnvMart.
