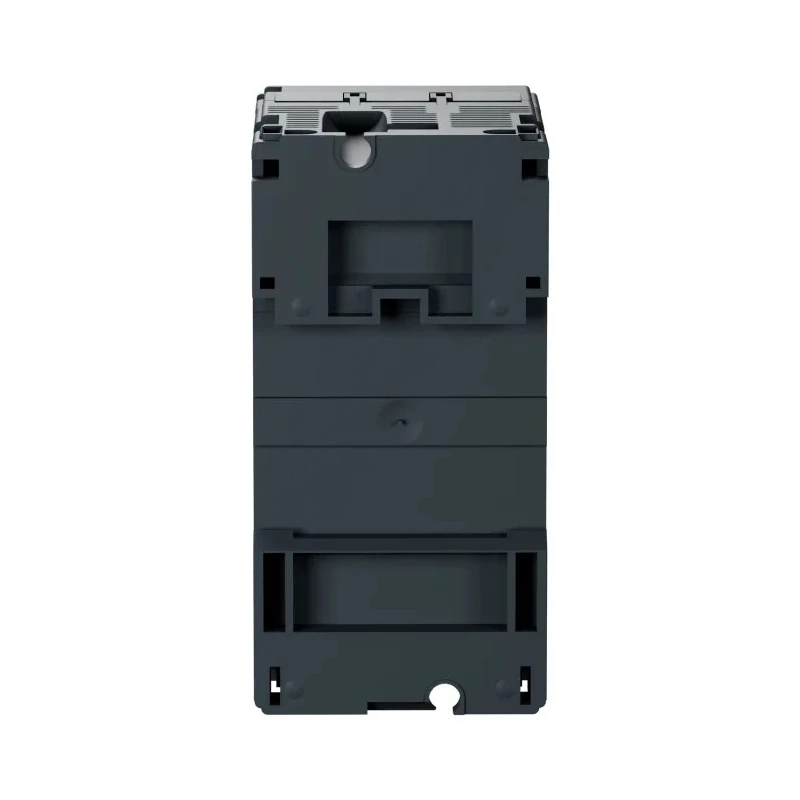

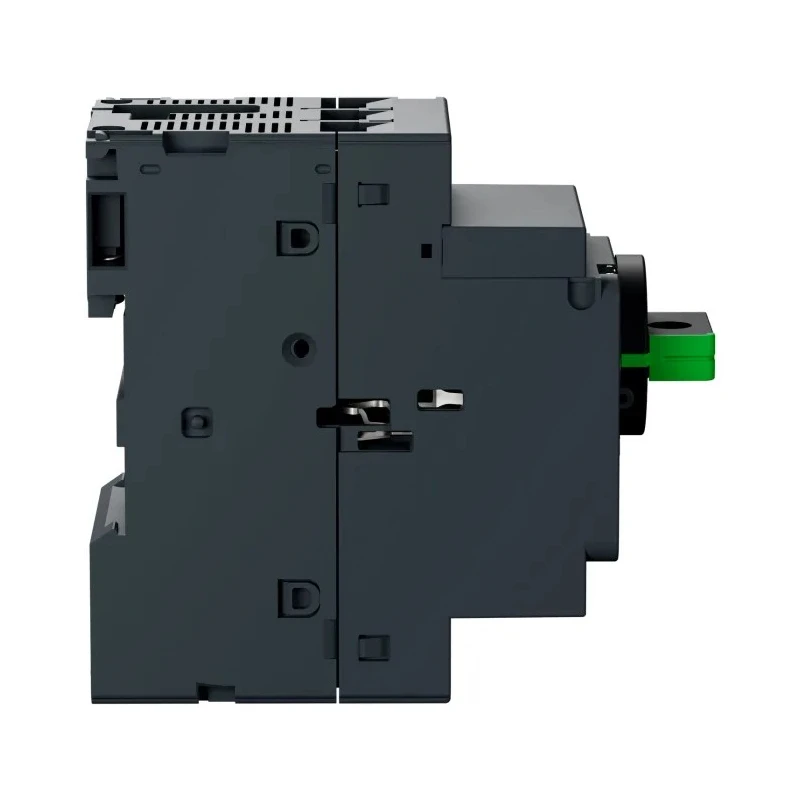

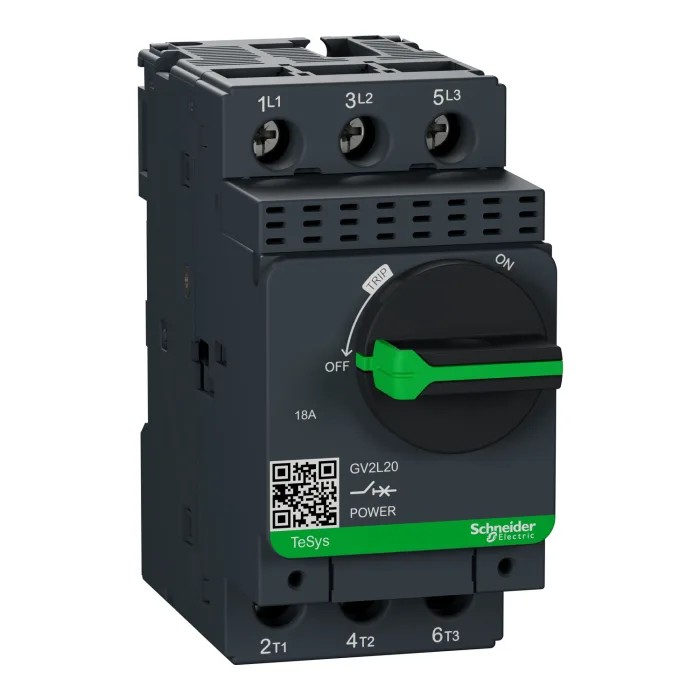

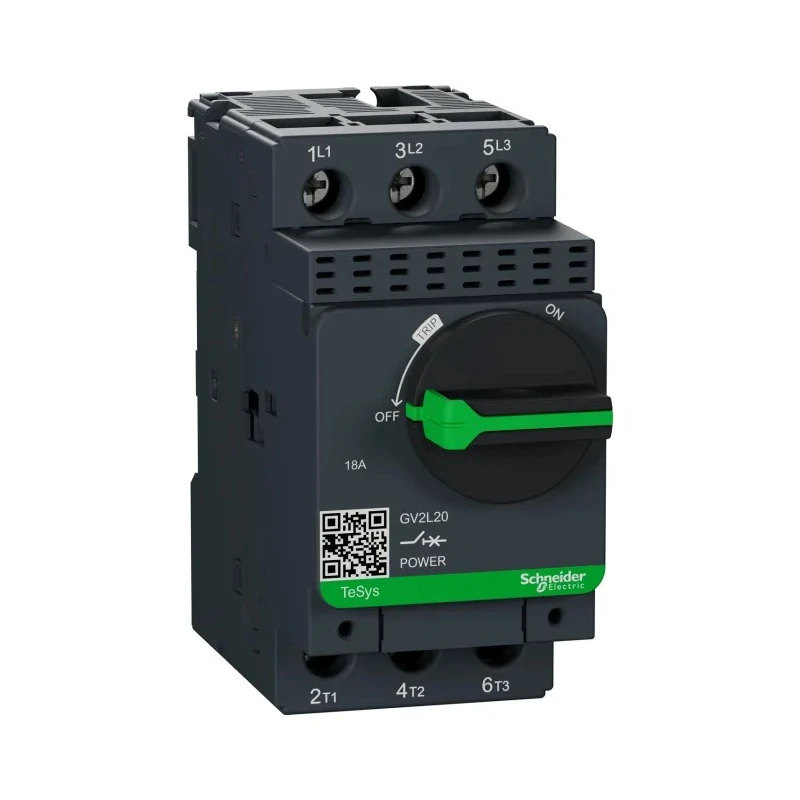

Schneider Electric 18A Thermal Magnetic TeSyS GV Motor Protection Circuit Breaker 690V, IP20, 3 Poles GV2L20

Schneider Electric GV2L20 is a high-performance thermal magnetic motor protection circuit breaker designed for safeguarding three-phase motors in industrial and commercial installations. Rated for 18A current and suitable for AC supply voltages up to 690V, this circuit breaker ensures reliable motor protection and operational safety.

Its thermal magnetic sensing technology delivers precise protection by preventing motor damage due to overloads and short circuits. The device features adjustable magnetic trip functionality with a breaking capacity of up to 100 kA at 230/240 V, effectively limiting peak short-circuit stress on connected wiring.

The compact unit measures 89 mm in length, 45 mm in width, and 97 mm in depth, and carries an IP20 protection rating, making it suitable for general industrial environments. Screw-clamp terminals with a torque rating of 1.7 N·m ensure secure and durable electrical connections. Installation flexibility is provided through DIN-rail or panel mounting options.

Engineered to operate reliably within a temperature range of -20 °C to 60 °C, it withstands harsh environmental conditions and is tested for mechanical and electrical endurance with up to 100,000 cycles at AC-3 duty at 415 V. The enclosure also provides IK04 impact resistance and complies with multiple international safety and quality standards, such as CCC, CSA, UL, RINA, DNV GL, and EN/IEC certifications.

This motor protection circuit breaker is ideal for manufacturing plants, HVAC systems, heavy industrial drives, and retrofit motor control centers. It supports motors up to 15 kW at 690 V, 9 kW at 500 V, and 7.5 kW at 400 V, making it versatile for various industrial motor control applications.

Offers 18A continuous thermal current capacity ensuring steady operation. Built with thermal magnetic sensing to protect against overloads and short circuits. Rated for supply voltage up to 690V AC for versatile application.

Features adjustable magnetic trip with a breaking capacity up to 100 kA at 230/240V. Provides IP20 ingress protection suitable for general industrial environments. Includes screw-clamp terminals tightened to 1.7 N·m torque for reliable wiring connections.

Supports flexible mounting options including DIN rail and panel mounting. Designed to operate in a temperature range of -20 to 60 °C for diverse environments. Mechanical and electrical durability offering up to 100,000 operation cycles.

Complies with international standards including EN/IEC 60947-2 and UL for assured safety and reliability. Explore Schneider Electric products and Motor Protection Circuit Breakers at EnvMart for reliable industrial automation components.
