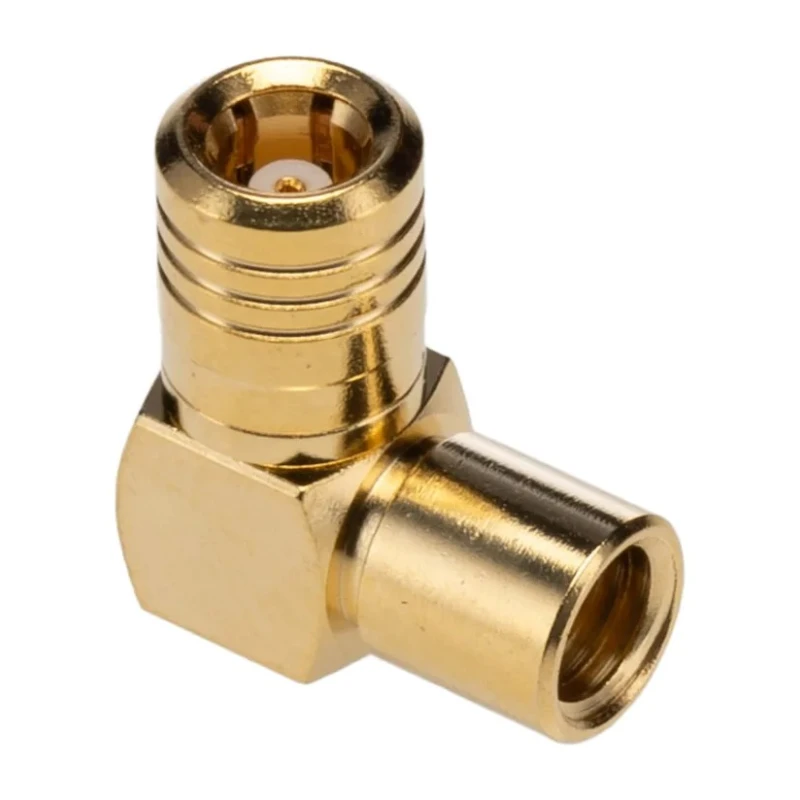

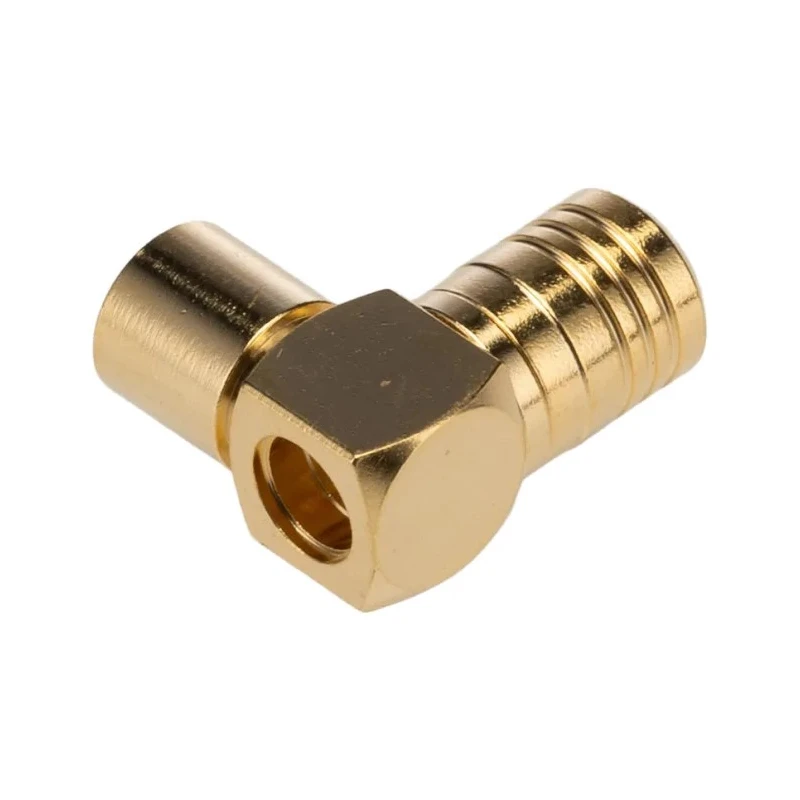

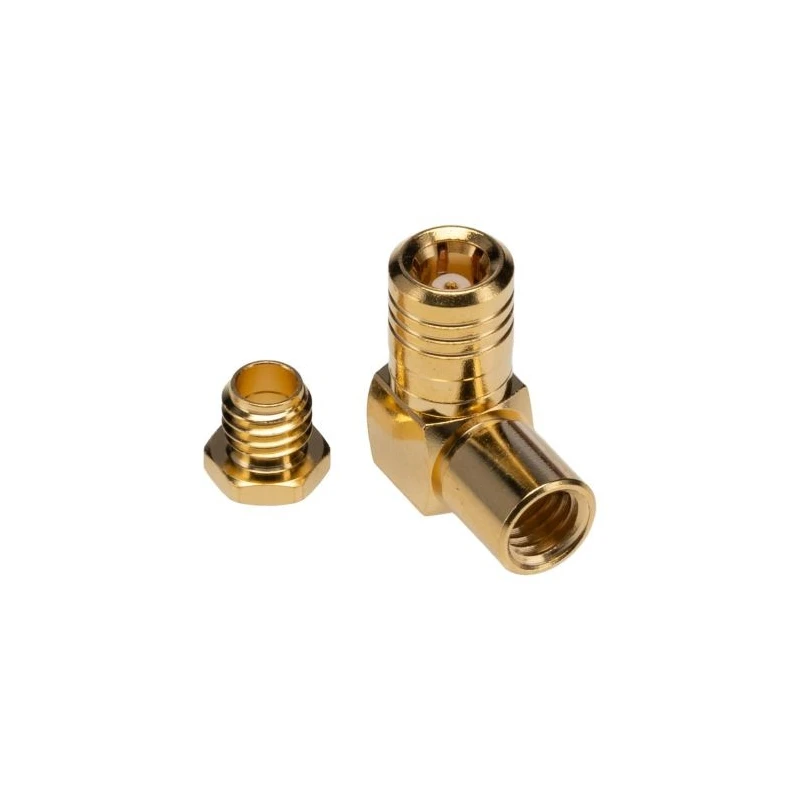

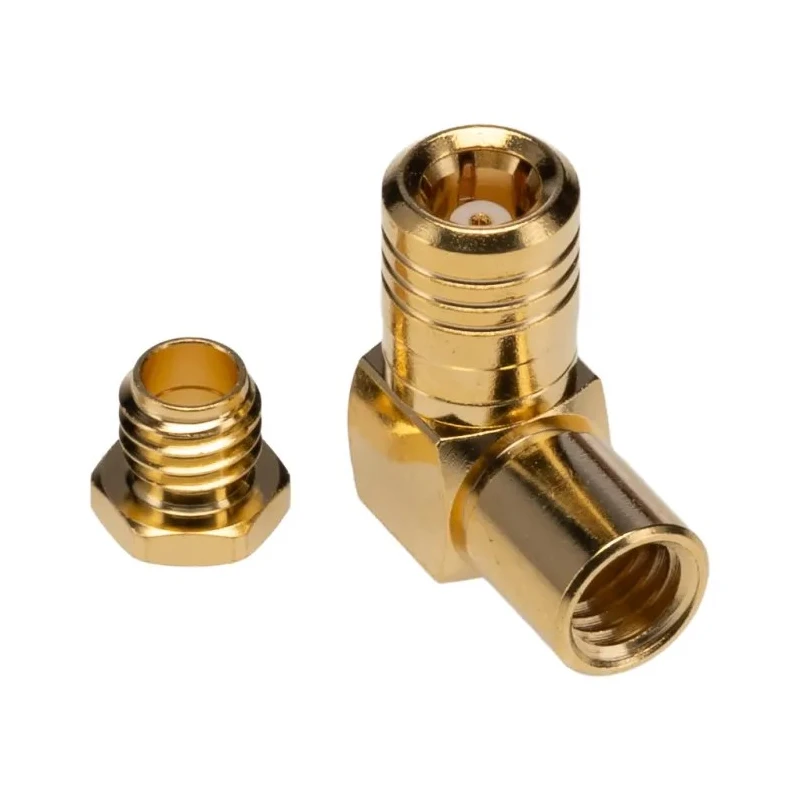

TE Connectivity SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Right Angle Body Solder 1-1478008-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174A/U, RG188A/U, RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| Plug SMA Connector, Right Angle BodyBrand | IMS |
| RS PRO Coaxial Connector Cable Female SMB, 50 Ω, Right Angle Body ClampBrand | RS PRO |
Key Features
- Compatible with coaxial cable types RG174A/U, RG188A/U, and RG316/U.
- Right angle body design enhances installation flexibility in tight spaces.
- Gold-plated brass body and beryllium copper contact material ensure excellent conductivity and corrosion resistance.
- Operates over a temperature range from -65°C to 165°C, suitable for various environmental conditions.
- Designed for operating frequency up to 4GHz for reliable RF signal transmission.
- Solder termination type with PTFE dielectric for high electrical performance.
- Standard size with 50 Ω impedance ensuring compatibility with RF systems.
Product Description
TE Connectivity 1-1478008-0 SMB Series Coaxial Connector Cable is a professional grade RF coaxial male SMB right angle plug designed for reliable solder cable termination in electronic applications. This connector supports cables such as RG174A/U, RG188A/U, and RG316/U, providing efficient signal transmission with a characteristic impedance of 50 Ω.
The right angle body with gold-plated brass construction ensures durability and optimal conductivity while resisting corrosion. The internal contacts are made of beryllium copper with gold plating, delivering longevity and dependable electrical performance. Operating frequency up to 4GHz, and thermal stability from -65°C to 165°C make this connector suitable for use in demanding industrial, telecommunication, and laboratory environments.
The solder termination with PTFE dielectric enhances the connector's electrical insulation and mechanical stability. Its normal polarity design maintains standard signal transmission configurations.
This connector complies with professional-grade quality standards, although specific certifications are not listed. It is ideal for use in RF systems, test instruments, communication devices, and aerospace electronics.
Compatible with RG174A/U, RG188A/U, and RG316/U coaxial cables. Right angle body for space-saving installations. Gold plating for corrosion resistance and excellent conductivity. Beryllium copper contacts with gold plating provide durability.
Operational temperature range from -65°C to 165°C. Supports operating frequency up to 4GHz suitable for RF applications. Solder termination type for secure cable connection. 50 Ω impedance standard for RF signal integrity.
Suitable for industrial, laboratory, communication, and commercial electronics applications. Explore more Coaxial Connectors and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4GHz, making it suitable for RF applications.
It is compatible with RG174A/U, RG188A/U, and RG316/U coaxial cables.
This connector has a standard impedance of 50Ω, ensuring compatibility with RF systems.
It operates within a temperature range of -65°C to 165°C, suitable for various environmental conditions.
This model features a solder termination type, providing a secure cable connection.
The body is made of gold-plated brass, and the internal contacts are made of beryllium copper with gold plating for excellent conductivity and corrosion resistance.
It features a right-angle orientation, enhancing installation flexibility in tight spaces.
The contact plating is gold, which contributes to its corrosion resistance and conductivity.
It is classified as a standard size connector, designed to fit standard applications.
This model has a normal polarity design, maintaining standard signal transmission configurations.
The country of origin for this connector is India.
It is suitable for use in RF systems, test instruments, communication devices, and aerospace electronics.
