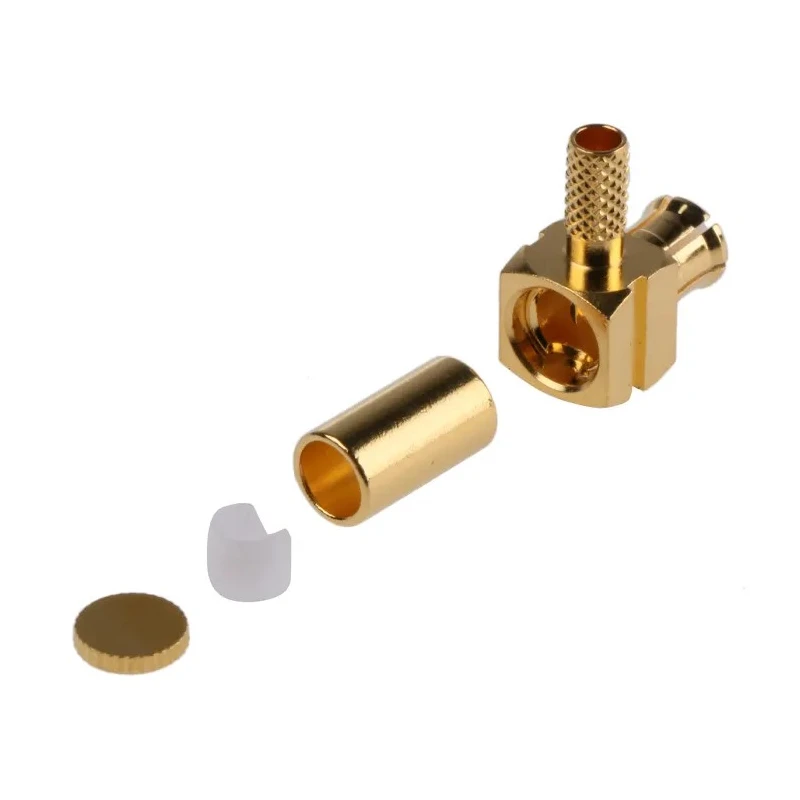

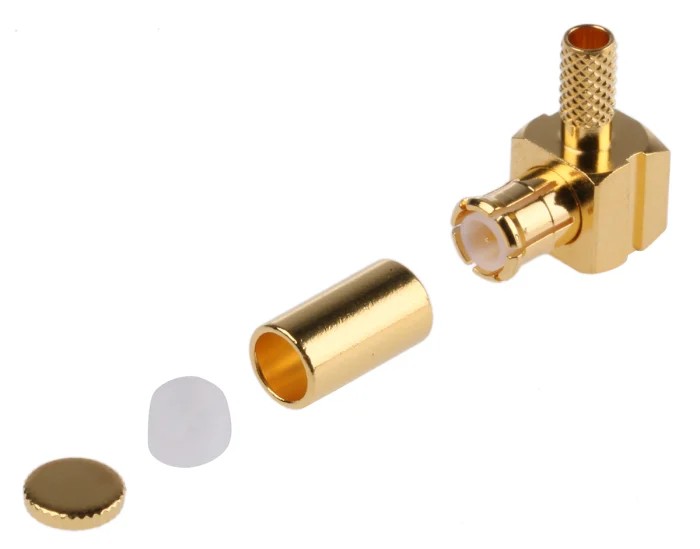

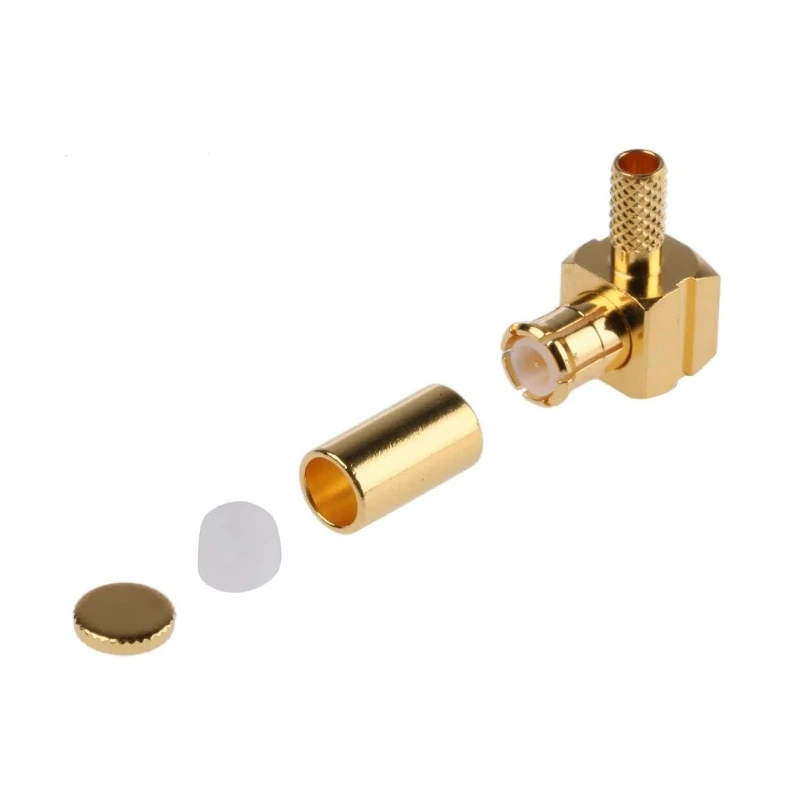

IMS Amphenol RF MCX Series Coaxial Connector Cable Male MCX, 50 Ω, Right Angle Body Crimp MCX1112A1-3GT30G-5-50
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | IMS |
| Orientation | Right Angle |
| Model | MCX1112A1-3GT30G-5-50 |
| Mount Type | Cable |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | MCX |
| Termination Type | Crimp |
| Cable Type | RG-174U, RG188A/U, RG316/U |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Designed for use with RG-174U, RG188A/U, and RG316/U cable types.
- Features a gold-plated body and brass contact for corrosion resistance.
- Operates effectively up to 6 GHz frequency.
- Rapid push-pull snap-on mating mechanism ensures ease of connection.
- Right angle orientation ideal for limited space applications.
- Crimp termination type provides secure and stable cable attachment.
- Contact and connector gender are male for consistent connection standards.
- Suitable for broadcasting and communication applications requiring 50 Ω impedance.
Product Description
IMS MCX1112A1-3GT30G-5-50 MCX Series Coaxial Connector Cable is a high-quality male MCX coaxial connector featuring a 50 Ω impedance and a right angle body with crimp termination. This connector is designed to be used with standard RG-174U, RG188A/U, and RG316/U cable types, ensuring broad compatibility for various RF applications.
The gold-plated body and brass contact material deliver excellent corrosion resistance and reliable electrical performance, while the push-pull snap-on mating action facilitates quick and secure connections up to operating frequencies of 6 GHz.
The right angle body orientation enables installation in compact spaces without compromising signal integrity. The crimp termination type ensures a firm and durable attachment to the cable, making it ideal for demanding industrial, broadcasting, telecommunications, and communication equipment.
This product meets general industry standards for MCX series connectors but does not carry specific certifications. It is suitable for laboratory, manufacturing, and industrial communication setups requiring consistent RF signal transmission with minimal loss or interference.
Designed for RG-174U, RG188A/U, and RG316/U cables. Gold-plated brass contact ensures corrosion resistance. Operates effectively to 6 GHz frequency. Right angle body suits space-constrained installations. Push-pull snap-on mating offers ease of use.
Robust crimp termination secures cable connection. Male contact and connector gender standard. Ideal for broadcasting and communication applications requiring 50 Ω impedance.
Explore extensive ranges of Coaxial Connectors and related electronic components in the IMS and Amphenol RF series here at EnvMart, servicing various industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively up to 6 GHz frequency, making it suitable for various RF applications.
It is designed for use with RG-174U, RG188A/U, and RG316/U cable types, ensuring broad compatibility for different applications.
The connector features a crimp termination type, which provides a secure and stable cable attachment.
The impedance rating of this model is 50 Ω, which is standard for many broadcasting and communication applications.
It has a right angle body orientation, making it ideal for installations in limited space applications.
The contact material is brass, and it features gold plating for corrosion resistance and reliable electrical performance.
It utilizes a rapid push-pull snap-on mating mechanism, which ensures ease of connection and disconnection.
The MCX connector is manufactured in India.
Both the contact and connector gender are male, ensuring consistent connection standards.
This model belongs to the MCX series of coaxial connectors, which are widely used in RF applications.
It is suitable for broadcasting and communication applications that require 50 Ω impedance and reliable RF signal transmission.
The body of this connector is also gold plated, which adds to its corrosion resistance and durability.
