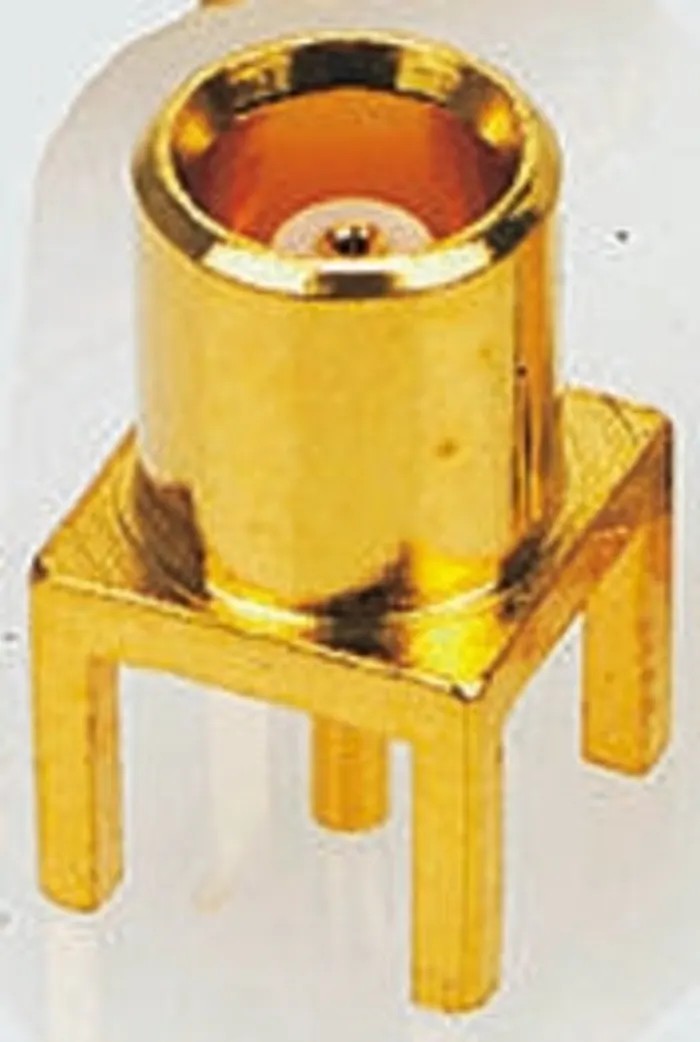

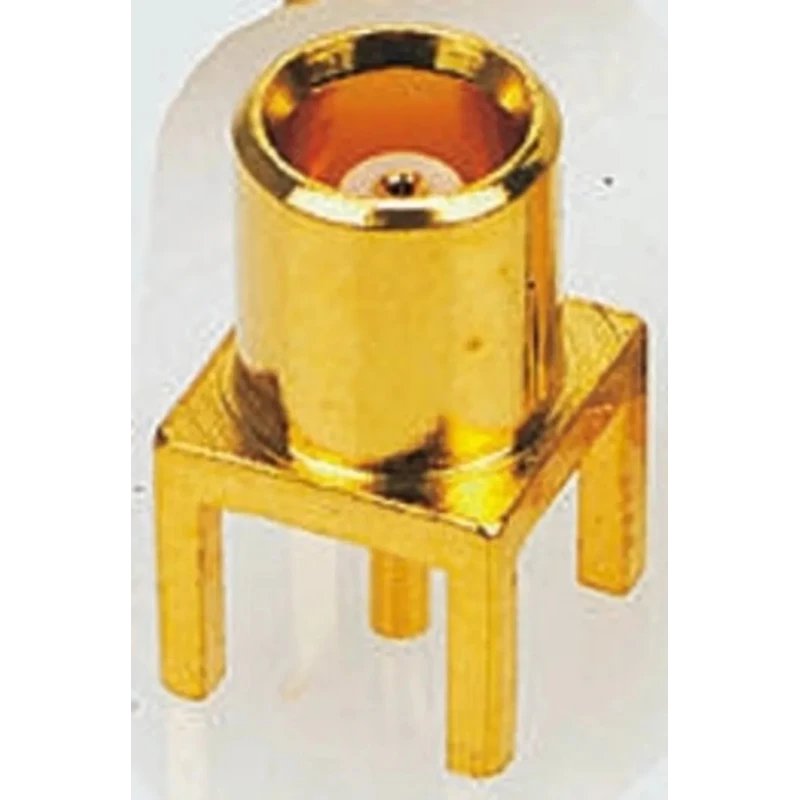

TE Connectivity MCX Series Coaxial Connector Through Hole Female MCX, 50Ω, Straight Body Solder Termination 1060984-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity MCX Series Coaxial Connector Through Hole Female MCX, 50Ω, Straight Body Solder Termination 1060984-1

Name: TE Connectivity MCX Series Coaxial Connector Through Hole Female MCX, 50Ω, Straight Body Solder Termination 1060984-1
Brand: TE Connectivity
SKU: 219099



Category Coaxial Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Size	Standard
Brand	TE Connectivity
Orientation	Straight
Mount Type	Through Hole
Operating Frequency	6GHz
Contact Material	Beryllium Copper
Series	MCX
Termination Type	Solder
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	MCX
Body Plating	Gold

Key Features

Features gold plating on body and contacts for excellent conductivity and corrosion resistance.
Capable of operating frequencies up to 6 GHz suitable for high frequency RF applications.
Operating temperature range from -65°C to 165°C for wide environmental resilience.
Constructed with beryllium copper contact material ensuring durability and performance.
Designed for standard size and normal polarity with a snap-on interface for quick connect and disconnect.
Compatible with MCX series connectors and conforms to CECC interface specifications.
Ideal for GPS, automotive, and wireless communication applications requiring compact and reliable RF connections.

Product Description

TE Connectivity 1060984-1 MCX Series Coaxial Connector is a high-performance female coaxial connector designed for through hole mounting with a straight body and solder termination. It supports a characteristic impedance of 50Ω and a maximum operating frequency of 6 GHz, making it suitable for broadband RF applications.

The connector features gold plating on both the body and contact surfaces, providing excellent conductivity and resistance to corrosion. Its contacts are made from durable beryllium copper and the overall build supports an operating temperature range from -65°C to 165°C, ensuring reliable performance in harsh conditions.

This MCX connector series offers a compact, microminiature snap-on interface that is 30% smaller than traditional SMB connectors. The design facilitates quick connect and disconnect in dense packaging environments, making it perfect for applications in GPS devices, automotive electronics, and wireless communications where space and reliability are critical.

The connector uses standard size and normal polarity, with a gold-plated contact gender female interface. It adheres to CECC interface specifications and is designed for solder termination for secure electrical and mechanical connections.

TE Connectivity MCX connectors are mateable with all standard MCX connectors, offering versatile compatibility across devices and designs. Gold-plated body and contacts provide high reliability and corrosion resistance. Supports frequencies up to 6 GHz for broadband RF applications.

Wide operating temperature range from -65°C to 165°C ensures durability. Beryllium copper contact material for strong and reliable electrical performance. Snap-on microminiature design saves space over traditional SMB connectors.

Designed for GPS, automotive, and wireless communication applications. Conforms to CECC interface standards ensuring industry compatibility.

This product is ideal for industrial, telecommunications, and electronic manufacturing environments requiring precise, robust coaxial connections. Browse further TE Connectivity products and Coaxial Connectors on EnvMart for your component needs.
