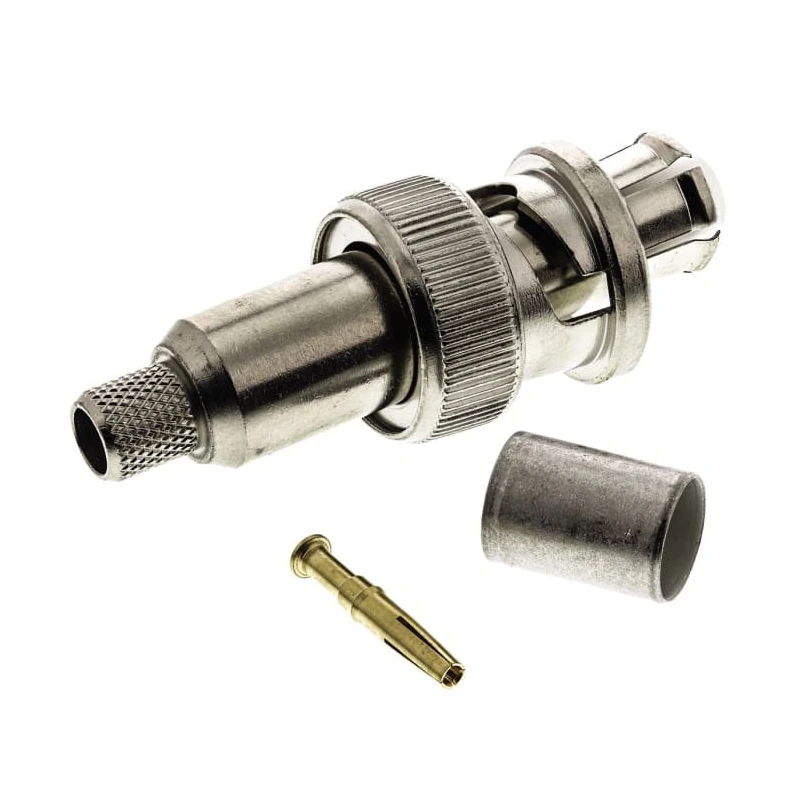

TE Connectivity Coaxial Connector Cable Male SHV, Straight Body Crimp 5051426-5

TE Connectivity 5051426-5 coaxial connector cable male SHV, straight body crimp, provides a robust solution for high-voltage coaxial cable connections with a broad operating temperature range from -65°C to 165°C. This connector is engineered for applications requiring reliable signal transmission at frequencies up to 3 GHz.

The connector supports multiple coaxial cable types including RG59B/U, RG59/U, RG62/U, RG62B/U, RG62A/U, and RG59A/U, making it versatile for diverse electronic and power connector needs. With a nickel-plated body and gold-plated beryllium copper alloy contacts, it offers enhanced corrosion resistance and excellent electrical conductivity.

The SHV series design provides shielded disconnects suitable for high-voltage applications up to 5,000 volts DC. The polarized center contacts are recessed within a fluoropolymer dielectric, ensuring safe and accurate mating. The bayonet-locking coupling mechanism, similar to BNC connectors, guarantees secure connections preventing inter-mating with standard bayonet connectors.

The dual crimp termination style and silver-plated body further improve mechanical stability and signal integrity. This coaxial connector is ideal for industrial, laboratory, construction, and electronic equipment applications.

This coaxial connector supports RG59B/U, RG59/U, RG62/U, RG62B/U, RG62A/U, and RG59A/U cable types. Operational frequency capability up to 3 GHz ensures high-quality signal transmission. Nickel plating on the connector body enhances corrosion resistance for industrial environments.

Gold-plated beryllium copper alloy contact material guarantees superior electrical conductivity. Supports operating temperatures ranging from -65°C to 165°C for versatile use cases. Polarized recessed center contacts improve safety and mating reliability.

Bayonet-locking coupling design ensures secure mechanical connection. Dual crimp style cable termination provides firm mechanical and electrical connections.

The TE Connectivity SHV coaxial plug 5051426-5 is a premium quality connector designed to meet demanding industrial and electronic requirements. It is well-suited for applications in telecommunications, test and measurement, laboratory instrumentation, and other high-voltage systems. Its robust construction and versatile cable compatibility make it a dependable choice for professional use.
