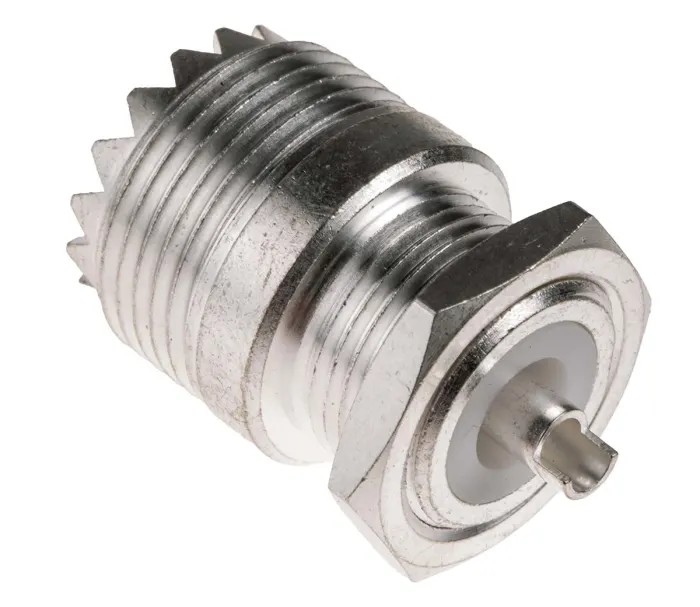

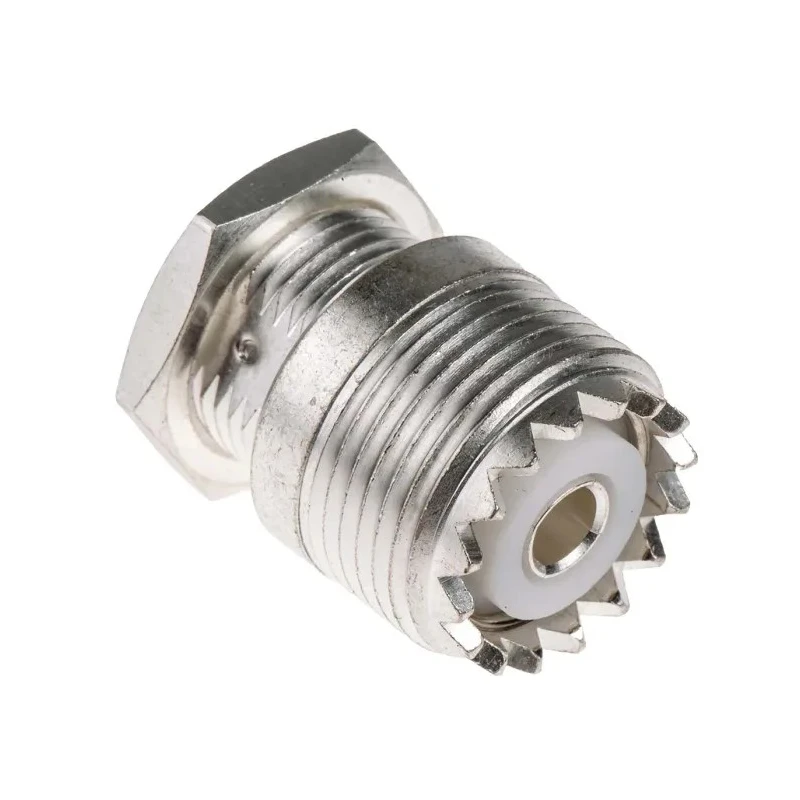

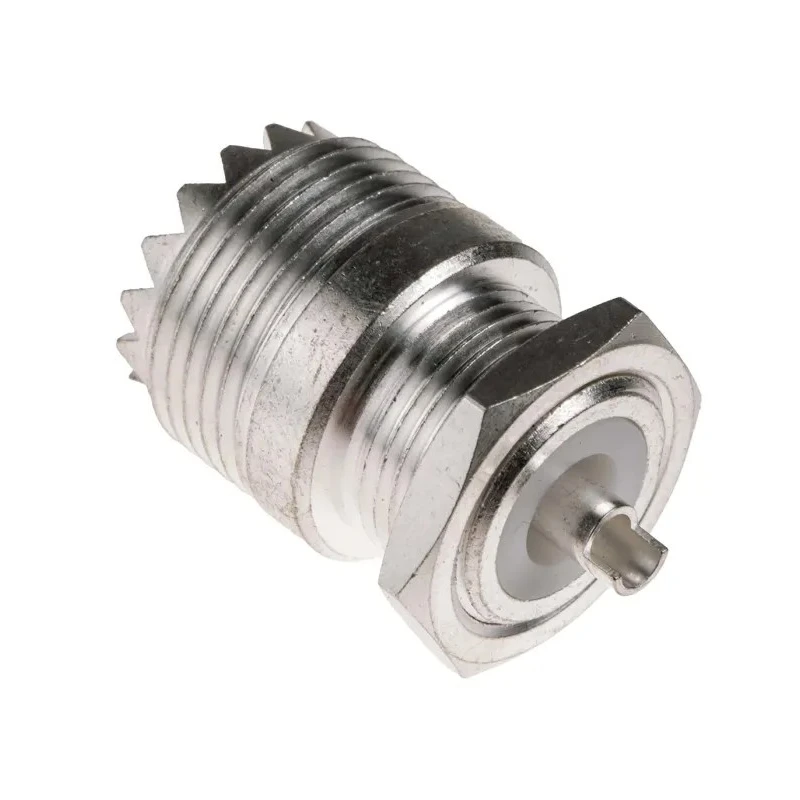

NEUTRAL Coaxial Connector Panel Mount Female UHF 50 Ω Straight Body Solder 546-2627
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | NEUTRAL |
| Orientation | Straight |
| Model | 546-2627 |
| Mount Type | Panel Mount |
| Operating Frequency | 300MHz |
| Contact Material | Beryllium Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG58/U |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | UHF |
| Body Plating | Silver |
| RS PRO Coaxial Connector Cable Female UHF, 50 Ω, Straight Body SolderBrand | RS PRO |
| UHF-ROUND SOCKETBrand | NEUTRAL |
| AgPt soldered UHF round bulkhead socketBrand | RS PRO |
Key Features
- Designed for panel mounting with a bulkhead mounting style.
- Operates at frequencies up to 300 MHz for robust signal transmission.
- Features a silver-plated body and contacts for enhanced conductivity.
- Beryllium copper contact material ensures durability and optimum strength.
- Supports operating temperatures from -55°C up to 85°C.
- Screw-on coupling mechanism prevents accidental disconnection and reduces noise.
- Standard-sized connector suitable for RG58/U coaxial cable type.
- Normal polarity connector gender female with straight orientation.
Product Description
RS PRO 546-2627 is a high-quality coaxial connector designed for panel mounting applications in electronic and electrical industries. This female UHF connector features a standard-sized straight body with solder termination, allowing easy assembly using basic cable stripping and soldering tools.
The connector supports a nominal impedance of 50 Ω and operates effectively at frequencies up to 300 MHz, making it suitable for radio frequency (RF) signal transmission applications. Its robust construction includes a silver-plated body and contacts, which enhance electrical conductivity and minimize contact resistance.
The contact material is beryllium copper, offering excellent mechanical strength and durability. The connector is designed to operate reliably in wide temperature ranges from -55°C to 85°C, supporting various industrial environments.
This RS PRO panel mount UHF connector incorporates a threaded coupling mechanism that secures the connection firmly to avoid accidental disconnection and reduces noise generation during operation. The bulkhead mounting design enables tightening with a spanner for enhanced attachment security.
The connector is compatible with RG58/U coaxial cables and is designed with normal polarity female gender and straight orientation. It supports peak voltages up to 500 V, suitable for medium power RF circuits.
Panel mounting coaxial connector with silver body plating. Straight body design with solder termination type. Threaded screw-on coupling for secure connections. Beryllium copper contacts with silver plating for performance and durability.
Operating temperature range from -55°C to 85°C for industrial use. Supports frequencies up to 300 MHz and impedance of 50 Ω. Compatible with standard RG58/U cable types.
This coaxial connector is ideal for industrial, laboratory, communication, and manufacturing environments requiring stable RF connections. RS PRO products are rigorously tested for quality and reliability, ensuring long service life across diverse applications.
Explore the wide range of high-quality Coaxial Connectors and electronic components available at EnvMart for your specialized industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively at frequencies up to 300 MHz, making it suitable for RF signal transmission applications.
The connector has a nominal impedance of 50 Ω, which is standard for many RF applications.
It is compatible with RG58/U coaxial cables, allowing for easy integration into existing systems.
This connector supports operating temperatures from -55°C to 85°C, making it suitable for various industrial environments.
The contacts are made of beryllium copper and are silver-plated to enhance conductivity and minimize contact resistance.
It features a panel mount design with a bulkhead mounting style, allowing for secure installation using a spanner.
This model uses a solder termination type, which allows for reliable electrical connections.
The connector has a female gender with a straight orientation, suitable for standard applications.
Both the body and contacts are silver-plated, which enhances electrical conductivity and reduces noise.
It incorporates a screw-on coupling mechanism that secures the connection and helps prevent accidental disconnection.
It is a standard-sized connector designed for easy integration into various setups, although specific dimensions are not provided.
This connector is ideal for industrial, laboratory, communication, and manufacturing environments that require stable RF connections.
