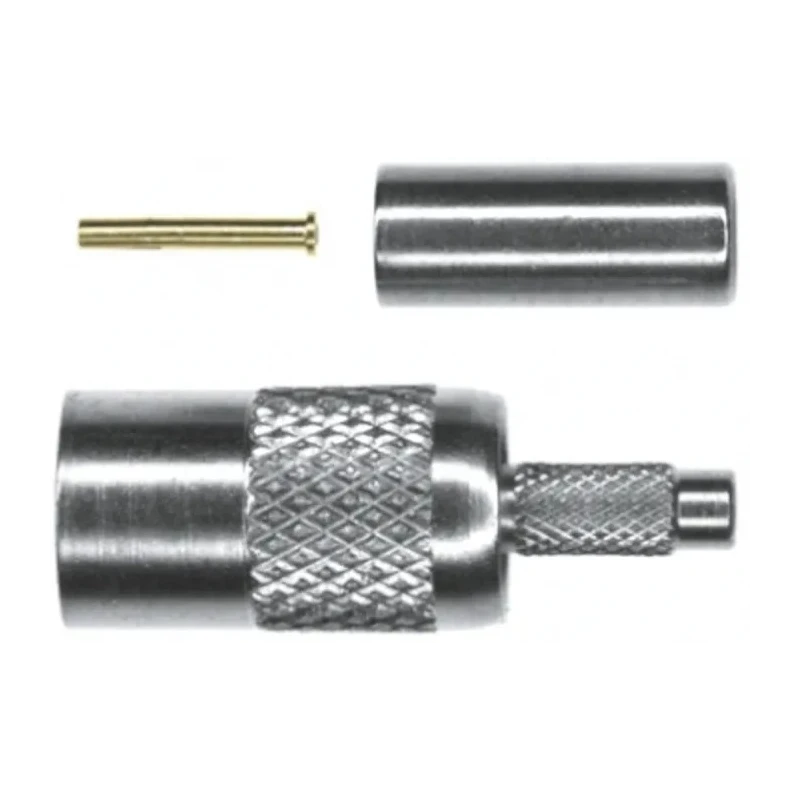

TE Connectivity SMB Series Coaxial Connector Cable Male SMB, 50 Ω, Straight Body Crimp 413985-3
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 413985-3 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG174, RG188, RG-316 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Nickel |
Key Features
- Designed for high-frequency applications supporting up to 4 GHz operating frequency.
- Compatible with RG174, RG188, and RG-316 cable types for versatile connectivity.
- Body plating is nickel with contact plating of gold over nickel for reliable conductivity and corrosion resistance.
- Operates within a temperature range from -65°C to 165°C for enhanced durability.
- Features a crimp termination type with a male contact gender and standard size for easy installation.
- Constructed from brass contact material ensuring mechanical strength and performance.
- Normal polarity and straight orientation provide standard connector functionality.
- Suitable for cable mount applications without bulkhead design.
Product Description
TE Connectivity 413985-3 SMB Series Coaxial Connector Cable is a precision-engineered male SMB coaxial connector designed for cable mounting applications. Supporting an impedance of 50 ohms and a maximum operating frequency of 4 GHz, it is ideal for electronic components requiring RF signals with minimal loss.
The connector features a straight body design with crimp termination for secure and reliable connections, compatible with RG174, RG188, and RG-316 cable types commonly used in high-frequency and communications circuits. The nickel-plated body housing ensures environmental resistance while the gold over nickel-plated brass contact offers excellent conductivity and corrosion protection.
This connector operates across a wide temperature range from -65°C to 165°C, making it suitable for use in challenging industrial, telecommunications, and laboratory environments where temperature variations occur.
With a standard size and normal polarity, this connector facilitates easy integration into existing systems without modification. The absence of a bulkhead design allows for direct cable mounting, optimizing space efficiency.
Designed for high-frequency applications supporting up to 4 GHz operating frequency. Compatible with RG174, RG188, and RG-316 cable types for versatile connectivity. Body plating is nickel with contact plating of gold over nickel for reliable conductivity and corrosion resistance.
Operates within a temperature range from -65°C to 165°C for enhanced durability. Features a crimp termination type with a male contact gender and standard size for easy installation. Constructed from brass contact material ensuring mechanical strength and performance.
Normal polarity and straight orientation provide standard connector functionality. Suitable for cable mount applications without bulkhead design.
This coaxial connector is widely used in industrial automation, telecommunications equipment, laboratory instrumentation, and RF testing systems. Its robust design and reliable performance ensure signal integrity and system durability.
Explore more connectors and related components at EnvMart to support your diverse electronic and electrical assembly projects.
Explore more products in our Coaxial Connectors category.
