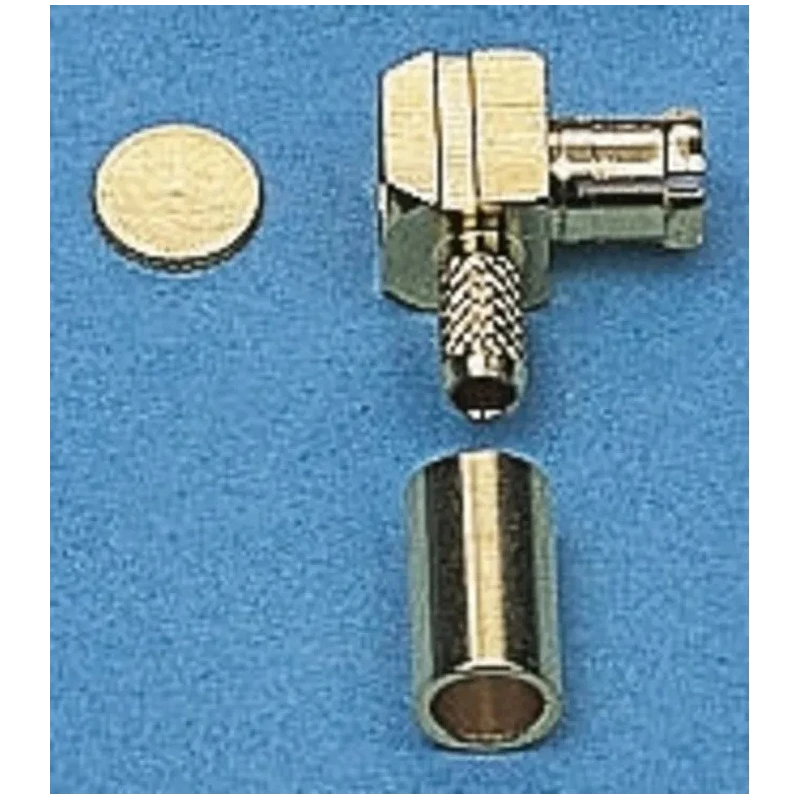

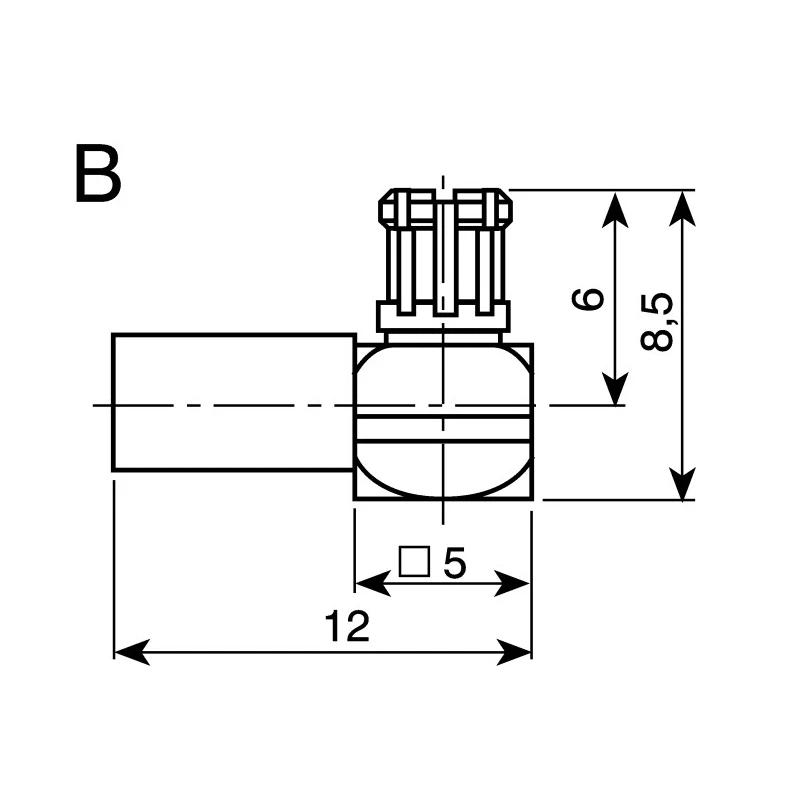

IMS MCX Series Coaxial Connector Cable Male MCX, 50 Ω, Right Angle Body Solder 004.01.1420.021

IMS 004.01.1420.021 MCX Series Coaxial Connector Cable is a male MCX cable connector designed for high-frequency electronic applications requiring 50 Ω impedance. It features a compact right angle body with solder termination for secure cable connection, optimized for RG series cables including RG-174U, RG316/U, and RG188A/U.

This MCX micro miniature coaxial plug utilizes a snap connection, offering the reliability of an SMB plug while requiring 30% less space. The inner conductor and insulator are equivalent to SMB standards, ensuring consistent signal quality.

The connector operates efficiently at frequencies up to 10 GHz and withstands temperatures from -55°C to 125°C, suited for demanding industrial, laboratory, and communication systems. The body plating and contact plating are gold to prevent corrosion and maintain signal integrity over time.

The contact material is a beryllium copper alloy, constructed to provide durability and excellent electrical performance. The connector complies with MIL-C-39012-SMB electrical standards and CECC 22220 mechanical standards. The product is manufactured in Hungary under strict quality controls.

This right angle, male gender connector is intended for applications requiring compact design without compromising electrical performance, ideal for telecommunications, RF testing, and signal distribution equipment setups.

The MCX Series Connector is easy to assemble with supplied instructions, using crimping for outer conductor and soldering for the inner conductor, ensuring secure and reliable connections.

The connector features a right angle body with solder termination for secure cable attachment. Designed for use with RG-174U, RG316/U, and RG188A/U cable types to accommodate various applications. Operates efficiently at frequencies up to 10 GHz, suitable for high-frequency signal needs.

Constructed with beryllium copper alloy contacts plated in gold for durability and superior conductivity. Operates reliably between -55°C and 125°C, making it suitable for diverse environments. The connector uses a snap-in mechanism complying with CECC 22220 and MIL-C-39012-SMB standards for performance and compatibility.

Gold-plated body and contact plating enhance corrosion resistance and signal integrity. Manufactured in Hungary, ensuring compliance with high-quality production standards. The connector polarity is normal, ensuring standard signal configuration.

It is part of the IMS MCX series, known for compact size requiring 30% less space than SMB plugs. Explore more connectors or coaxial components in EnvMart’s Electronics & Electricals category for industrial, laboratory, communication, and commercial uses.
