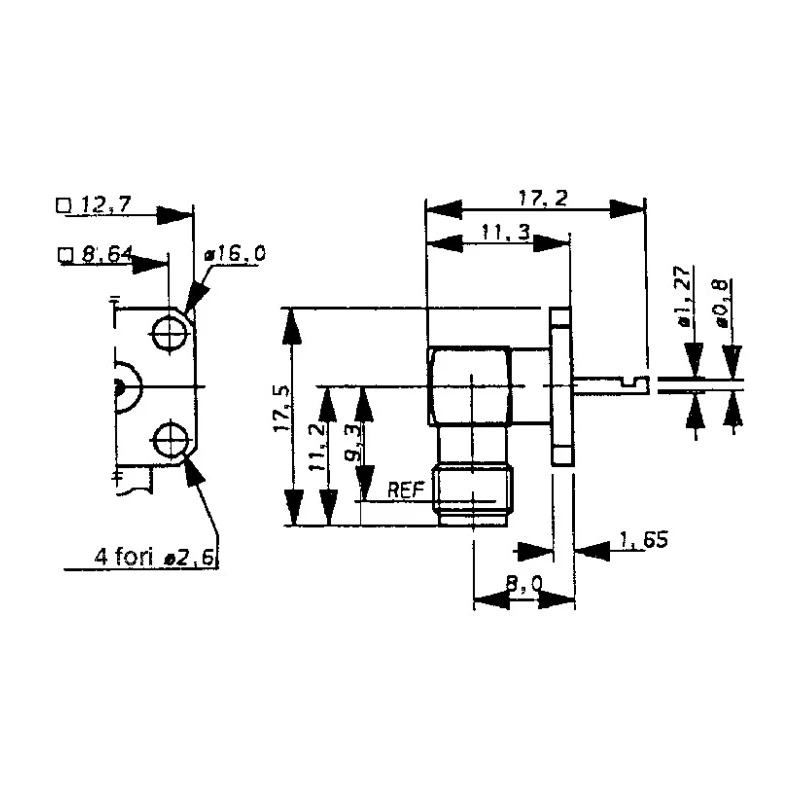

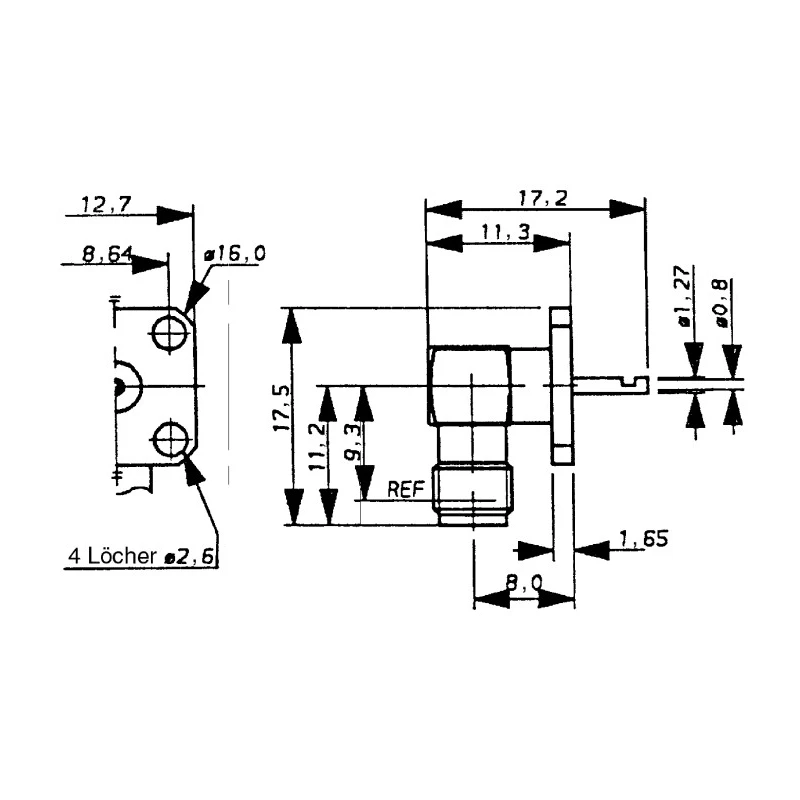

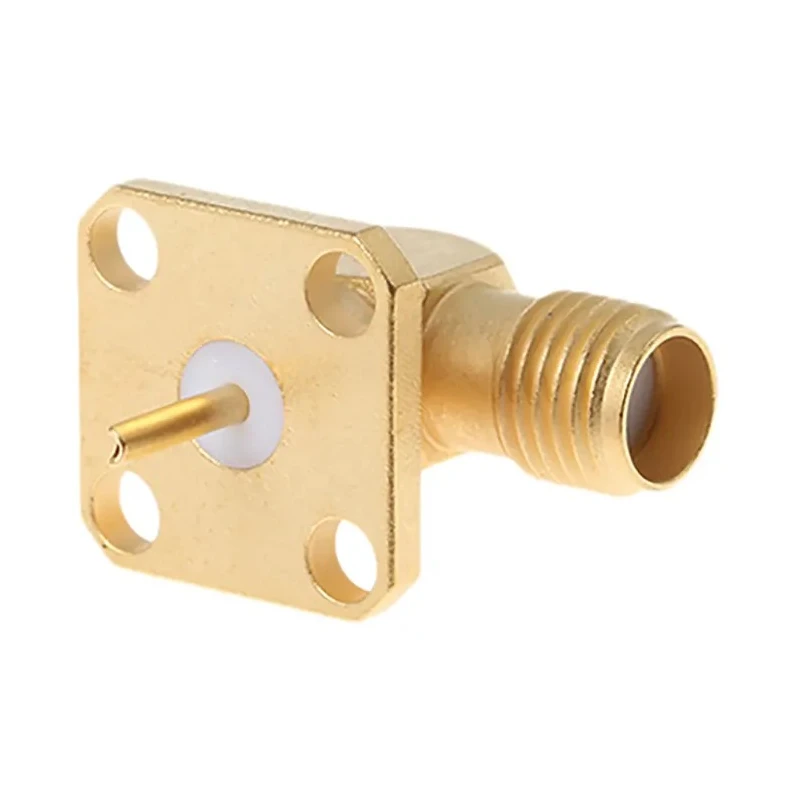

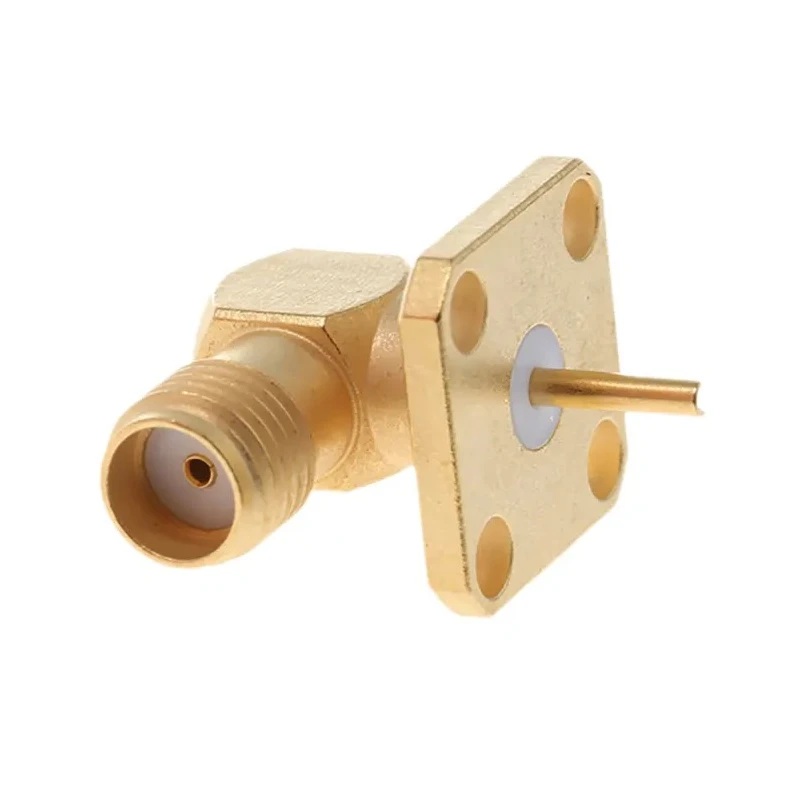

Radiall SMA Series Coaxial Connector Flange Female, 50 Ω, Right Angle Body Solder R125654000
Specifications
| Country of Origin | France |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Right Angle |
| Model | R125654000 |
| Mount Type | Flange |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| IMS, jack Panel Mount, 50Ω, Solder Termination, Right Angle BodyBrand | IMS |
Key Features
- Features a flange mount type for secure panel mounting using four screws.
- Constructed with gold-plated stainless steel body ensuring durability and corrosion resistance.
- Operates up to frequencies of 18GHz for high-frequency applications.
- Designed for right angle orientation with female contact gender and normal polarity.
- Contact materials include beryllium copper with gold over nickel plating for optimal conductivity.
- Operates reliably in temperature ranges from -65°C to 165°C.
- Termination is by solder ensuring strong and low-resistance electrical connection.
- Manufactured in France adhering to MIL-C-39012 and BS 9210 N006 standards.
Product Description
Radiall R125654000 SMA Series Coaxial Connector Flange Female is a premium coaxial connector designed for high performance RF connections with 50 Ω impedance and right angle body solder termination.
This female SMA connector features a flange mount type, allowing stable and secure panel installation via four mounting holes (screws not included). Its gold-plated stainless steel body provides excellent corrosion resistance and mechanical strength, suitable for demanding industrial and laboratory applications.
Operating effectively up to 18GHz, the connector supports a wide range of high-frequency RF transmission needs. The contact elements are made from beryllium copper with gold over nickel plating to ensure reliable electrical performance and durability during repeated use.
Operating temperature range extends from -65°C to 165°C, making this connector suitable for harsh environmental conditions commonly found in industrial and aerospace sectors. The normal polarity and female contact design provide consistent interface compatibility with standard SMA male plugs.
Termination by solder ensures a robust and stable electrical connection essential for signal integrity. Manufactured in France, the connector complies with rigorous MIL-C-39012 and BS 9210 N006 standards ensuring quality and performance reliability.
This Radiall SMA connector series is ideal for use in industrial, laboratory, construction, and communication equipment where high frequency and durable coaxial connections are critical.
Flange mount for panel installation. Gold plated stainless steel body for durability. High frequency performance up to 18GHz. Beryllium copper contacts with gold over nickel plating. Wide operating temperature range (-65°C to 165°C).
Solder termination for secure connection. Manufactured to MIL-C-39012 and BS 9210 N006 standards. Explore more Coaxial Connectors at EnvMart for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates effectively up to frequencies of 18GHz, making it suitable for high-frequency RF applications.
It operates reliably in temperature ranges from -65°C to 165°C, allowing it to function in harsh environmental conditions.
The connector features solder termination, ensuring a strong and low-resistance electrical connection.
The contact materials include beryllium copper with gold over nickel plating, which enhances conductivity and durability.
It features a flange mount type for secure panel mounting using four screws, which are not included.
This model has an impedance of 50Ω, making it compatible with standard SMA male plugs.
The body is constructed from gold-plated stainless steel, providing corrosion resistance and mechanical strength.
This model is designed with a right angle orientation, which can be advantageous in space-constrained applications.
It is manufactured in France, adhering to MIL-C-39012 and BS 9210 N006 standards for quality assurance.
This connector features a female contact gender, ensuring compatibility with male SMA connectors.
The contacts are plated with gold over nickel, which provides optimal conductivity and protects against corrosion.
This model is part of the SMA series of coaxial connectors, known for their high-performance RF connections.
