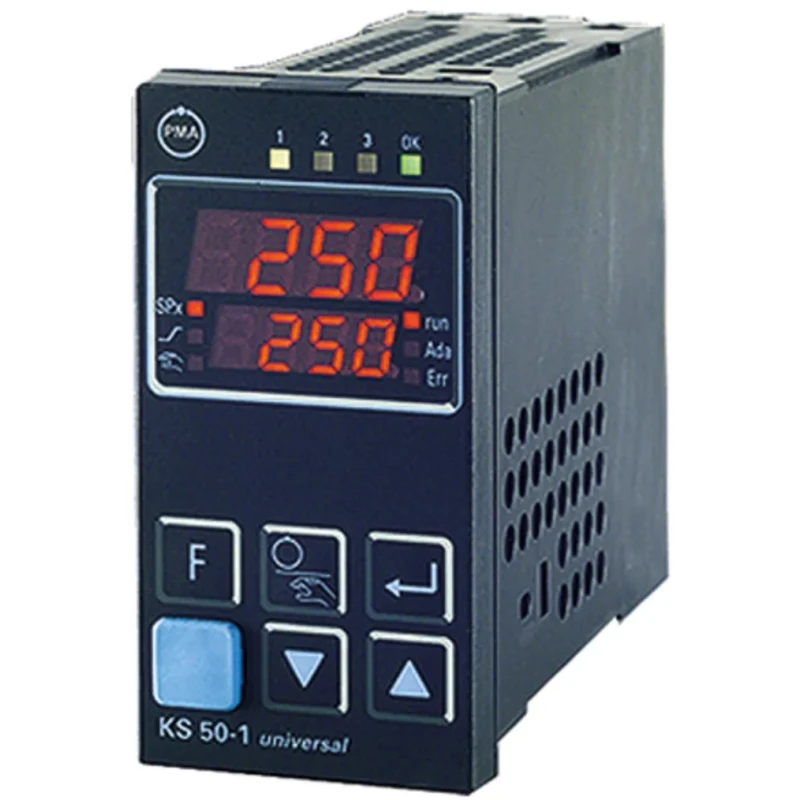

P.M.A Panel PID Temperature Controller 5 Input, 3 Output Optocoupler, Relay, Analogue Current/Voltage, Logic 260V KS50

The P.M.A KS50 Panel PID Temperature Controller KS50 is a versatile instrument designed for precise and cost-effective temperature control in various industrial applications. It features 5 universal inputs capable of accepting thermocouple, voltage, or current signals. The device supports multiple control types including two-point on/off control, continuous PID, and three-point stepping control, allowing flexible and accurate temperature regulation.

This controller provides three process outputs which can be configured as 3 relays or a combination of 2 relays plus one universal analog output for current or voltage signals. Additionally, it offers two optional optocoupler outputs for extended control flexibility. The maximum supply voltage is rated at 260V AC, and the device operates reliably within a temperature range of -20°C to 65°C.

Equipped with an LED display with 7-segment indicators, the KS50 offers clear visibility of status and process values. The front panel is splash-water proof with an IP65 rating, ensuring durability in demanding industrial environments. The device supports RS422/RS485 Modbus RTU for digital communication, facilitating integration into automated systems.

Typical applications include precise temperature regulation in furnaces, ovens, burners, boilers, plastics processing, hot runners, dryers, climatic chambers, and heat treatment plants. Its compact panel mounting design measures 118mm in length, 96mm in width, and 118mm panel depth, making it suitable for efficient panel integration.

The KS50 complies with international standards EN14597, cULus, EN 61326-1, and EN 61010-1, underscoring its quality and safety features. Manufactured in the United Kingdom, it offers a reliable solution for industrial temperature control tasks requiring flexible and precise operation.

3-point stepping, 2-point on/off, and PID control options. Universal inputs compatible with thermocouples, voltage, and current types. Configurable outputs including relays, analog, and optocoupler options. Robust LED display and IP65 rated front panel for durability.

Advanced diagnostics with maintenance manager and error list. Support for RS422/RS485 and Modbus RTU communication protocols. Compact panel mount design with precise dimensions. Industry applications in heat treatment, plastics, and combustion systems.
