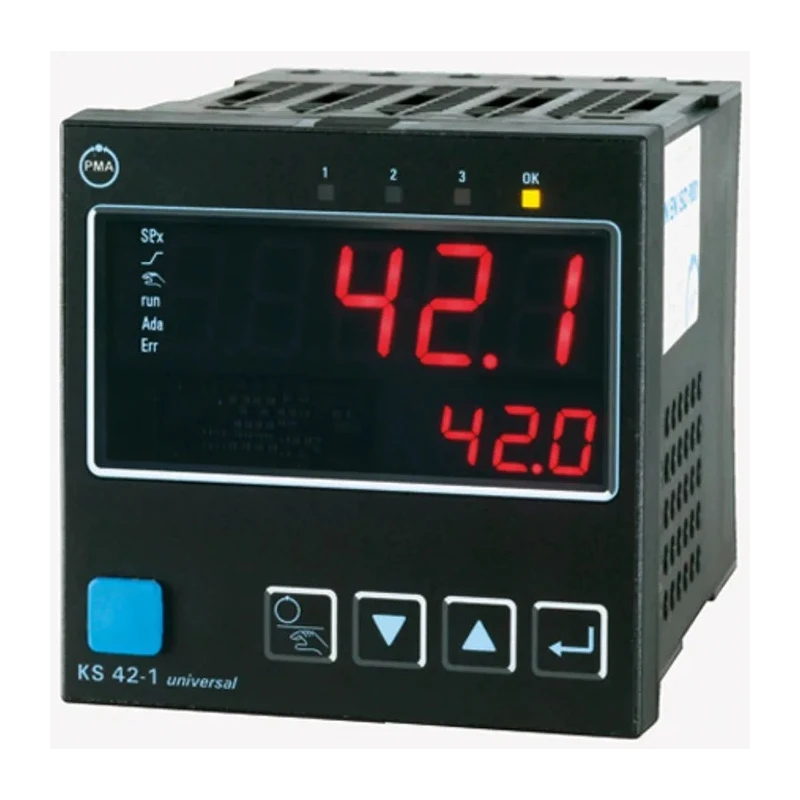

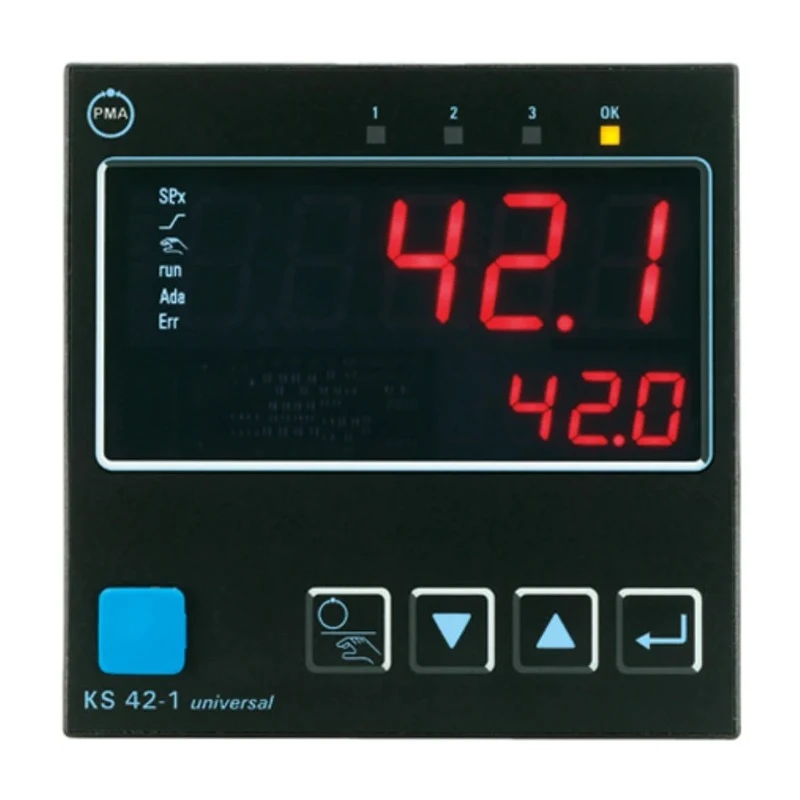

P.M.A KS42 Panel PID Temperature Controller 2 Input 3 Output Relay 250V AC KS42

P.M.A KS42 Panel PID Temperature Controller KS42 is a high-precision industrial instrument designed for reliable and cost-effective temperature regulation in diverse process control applications. It is capable of handling two universal inputs, allowing connection for process value measurement and supplementary analog signals such as heating current measurement or external setpoints.

The controller offers three process outputs configured as either three relay channels or two relays plus a universal output, which can operate a solid-state relay or two-wire transmitter with continuous current or voltage output control. This flexibility makes it suitable for furnaces, ovens, burners, boilers, plastic processing, and drying systems.

Equipped with robust digital communication capabilities (RS422 and RS485), the KS42 integrates easily into automation networks. The multi-line display facilitates clear visualization of parameters and process values. Mounting is designed for panel installation, supported by multiple ingress protection ratings including IP00, IP20, and IP65 to suit different environmental conditions.

Built with industrial-grade components and manufactured in Germany, the unit complies with CE standards and is type-tested to EN 14597, cULus, and GLP specifications. Additional features such as BluePort® front interface enable streamlined configuration and monitoring via BlueControl software. The controller also incorporates a maintenance manager, error logging, an automatic/manual key switch, a timer and programmer, and extended limit signaling with a latch to enhance operational safety and reliability.

Equipped with two input terminals for flexible temperature measurement. Features three relay output channels capable of handling 250V AC load. Supports multiple control modes: two-point on/off, continuous PID, and three-point stepping control.

Includes digital communication via RS422 and RS485 protocols. Multi-line display enables easy monitoring and parameter configuration. Panel mounting with IP ratings of IP00, IP20, and IP65 for versatile installation environments.

Operating temperature range from -20°C to 65°C suitable for various industrial settings. Constructed and manufactured in Germany ensuring European quality standards. Certified to CE compliance and tested to standards EN 14597, cULus, and GLP.

Extensive features include BluePort® front interface, maintenance management, error list, and extended limit signaling.

This temperature controller is ideal for industrial automation, process control, laboratory use, HVAC systems, manufacturing plants, and water treatment processes requiring accurate temperature regulation. EnvMart offers this P.M.A KS42 controller with reliable performance and comprehensive technical support for critical industrial applications.
