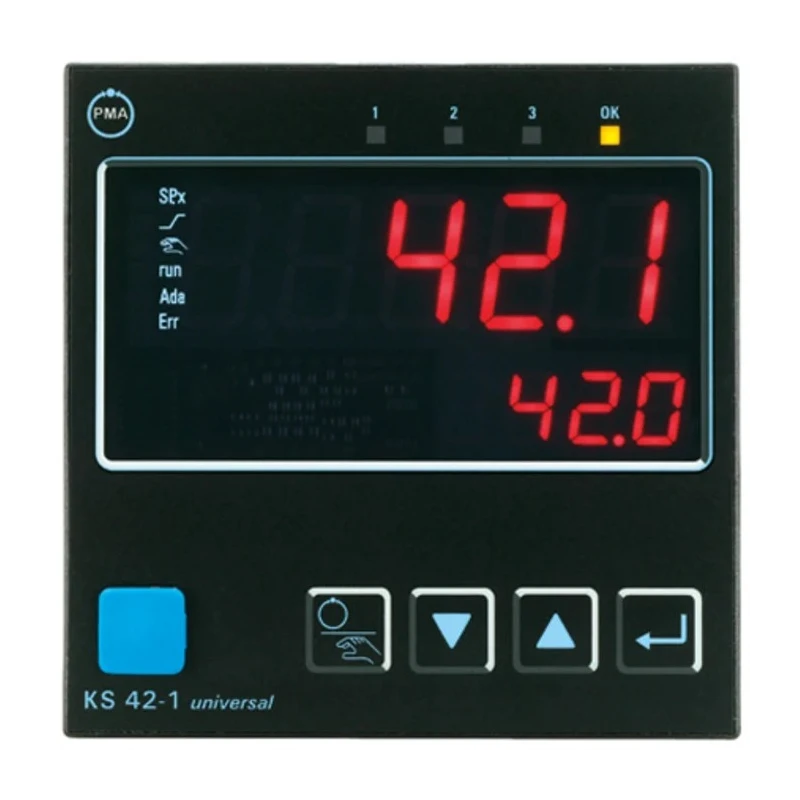

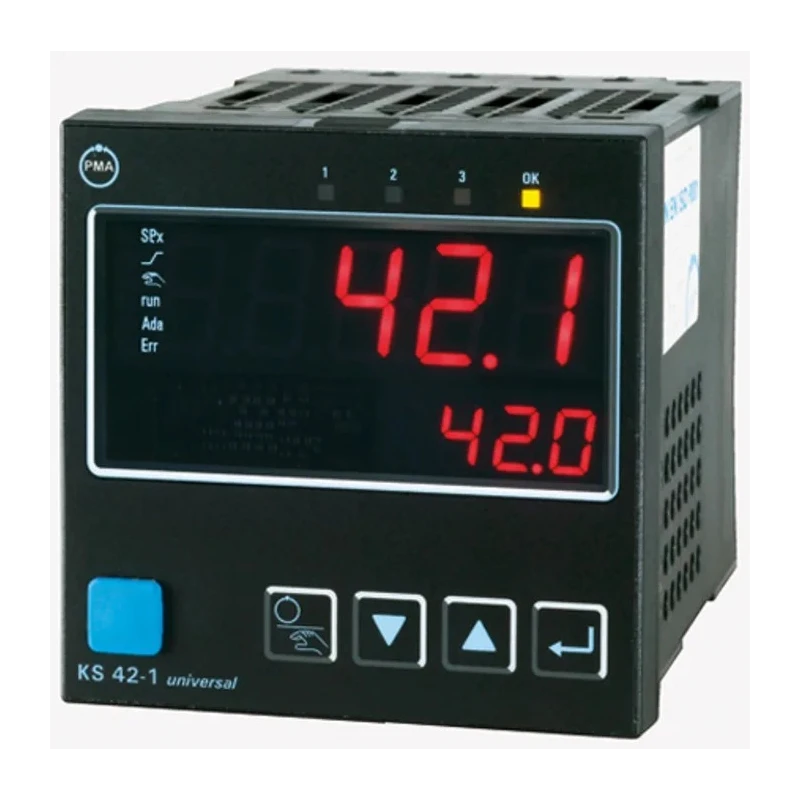

P.M.A KS42 Panel PID Temperature Controller, 3 Output Relay 250V ac KS42

P.M.A KS42 Panel PID Temperature Controller KS42 offers universal and precise temperature regulation with 3 output relays rated for 250V ac, supporting complex industrial process control tasks.

This controller supports multiple control modes including 2-point on/off, continuous PID control, and 3-point stepping, enabling flexible adaptation to various industrial processes. The universal input accepts process value signals, and an additional analog input enables heating current measurement or external setpoint input, enhancing monitoring capabilities.

The device has three process outputs, configurable as three relays or two relays plus one universal output for solid-state relay operation, continuous current/voltage output, or energizing two-wire transmitters. An intuitive LED display facilitates easy monitoring of parameters.

Communication is supported via RS422 and RS485 digital protocols, allowing integration into advanced automation systems. The KS42 series is designed for panel mounting with dimensions 118mm length, 48mm width, and 118mm panel depth, suitable for various industrial control panels with IP ratings IP00, IP20, and IP65.

Typical applications include high precision control in furnaces, ovens, burners, boilers, plastics processing, and drying operations. It features BluePort front interface and BlueControl software for configuration, maintenance management, error listing, automatic/manual switching, heating current monitoring, and extended limit signaling with latch function.

Manufactured in Germany, this product conforms to DIN 46 244 terminal standards and has been type-tested to EN 14597 (replacing DIN 3440), as well as certified by cULus and GL, ensuring industrial-grade reliability and safety.

Choose P.M.A KS42 for reliable, versatile, and industrial-grade temperature control solutions. Explore our full range of Temperature Controllers at EnvMart for your process control needs.

Offers universal, precise, and cost-effective PID control for industrial temperature regulation. Flexible output configuration with three relays or two relays plus universal output. Supports multiple control modes including 2-point, PID, and stepping control.

Equipped with universal and auxiliary analog inputs for enhanced control. LED display and digital communication via RS422 and RS485 supported. Panel mount design with IP ratings IP00, IP20, and IP65 for protection. Complies with DIN 46 244 terminals and type tested to EN 14597, cULus, and GL.
