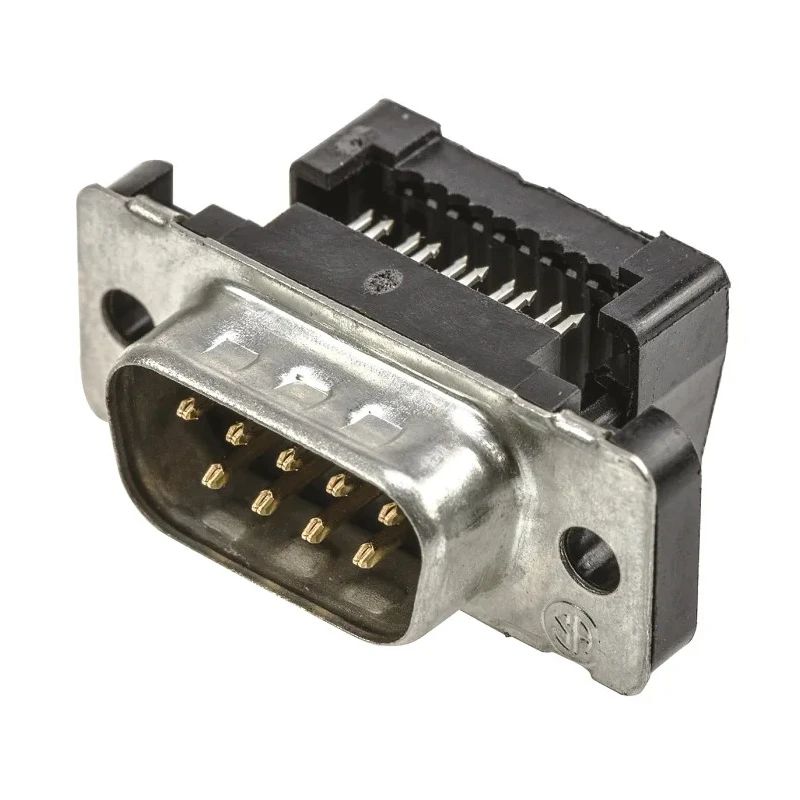

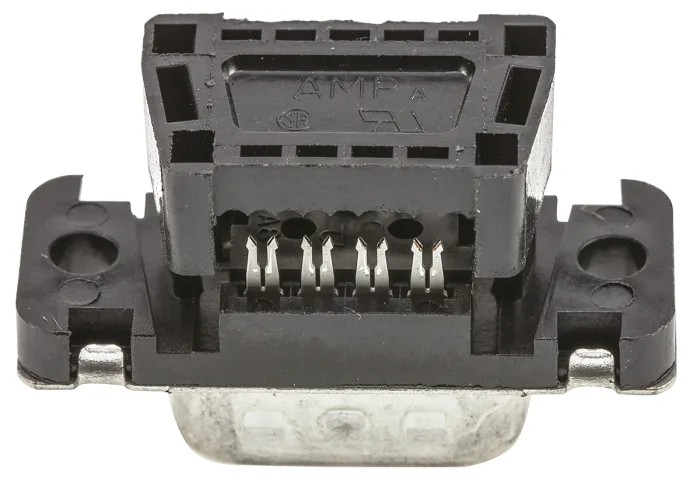

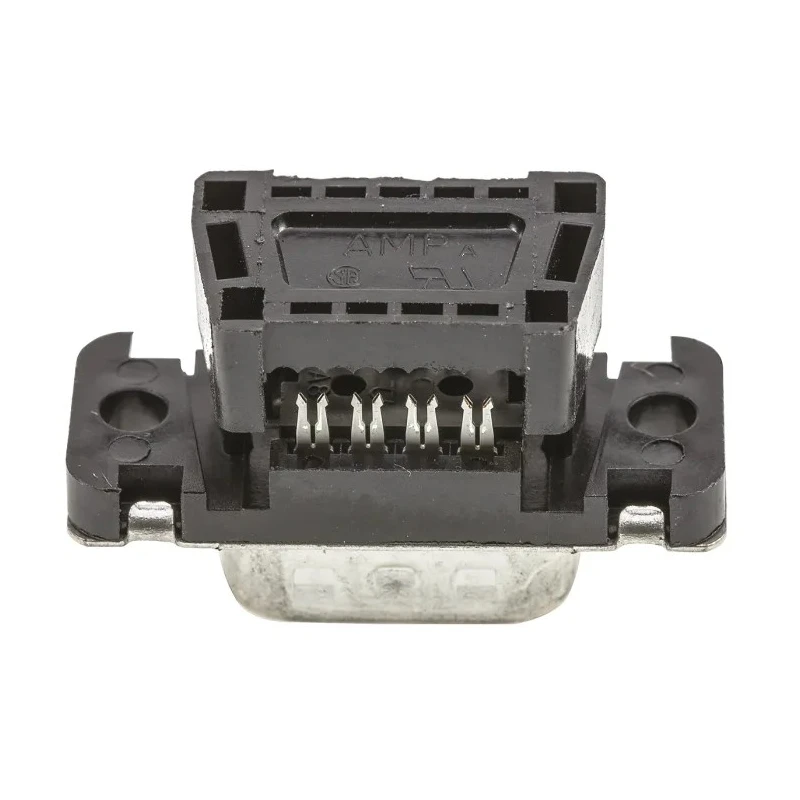

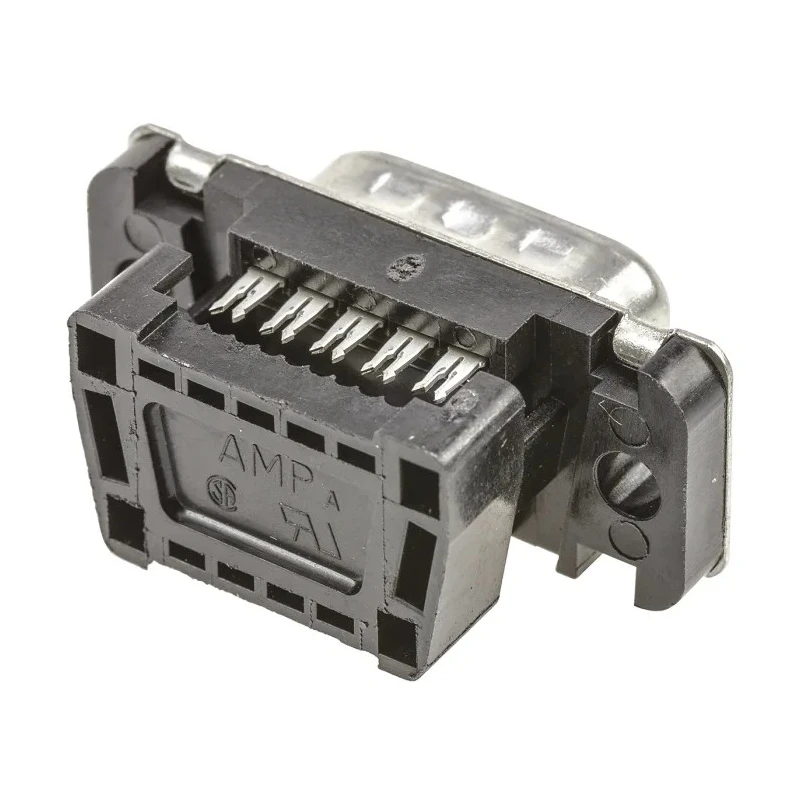

TE Connectivity Amplimite HDF-20 9 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male 1658613-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| HARTING D-Sub 9 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector MaleBrand | HARTING |
Key Features
- Compatible with flat ribbon cable assemblies for robust signal connections.
- Features a durable steel housing for reliable mechanical protection.
- Contains 9 contacts rated for 1.25A current at 30V operating voltage.
- Uses IDC termination type facilitating quick and secure cable connections.
- Phosphor bronze contacts plated with gold over nickel for optimal conductivity and corrosion resistance.
- Operates reliably across temperature range from -55°C to +105°C.
- Fits into the Amplimite HDF-20 series with low profile metal shell design.
- Suitable for industrial, electronic, and power connector applications requiring compact right angle interface.
Product Description
TE Connectivity 1658613-4 Amplimite HDF-20 9 Way Right Angle Cable D-Sub Connector Male is engineered for industrial and electronic applications requiring robust and reliable cable connections. It employs a low profile metal shell design with a steel housing material ensuring mechanical durability and EMI shielding effectiveness.
This 9 contact connector supports a maximum current rating of 1.25A at 30V with phosphor bronze contacts plated in gold over nickel to provide excellent electrical performance and corrosion resistance. The right angle orientation suits installations with limited space and the IDC termination type enables efficient assembly onto flat ribbon cables.
The connector functions across a wide temperature range from -55°C to 105°C, making it suitable for demanding environments. It mates with HD-20 Board Mount, HDP, and HDE D-sub connectors for versatile system integration. Optional strain reliefs and screwlocks are available for enhanced mechanical stability during operation.
This connector is ideal for use in power connectors, computer interfaces, communications equipment, and electronic control systems within industrial, manufacturing, laboratory, and commercial sectors.
Compatible with flat ribbon cables on 1.27 mm centers. Features a black 94V-0 rated thermoplastic cover enhancing safety and insulation. Preloaded duplex plated phosphor bronze contacts accept 28 AWG and 26 AWG cables. Available mounting options include standard holes and brass threaded inserts.
Supplies secure and reliable male connector interface for signal or low power applications. Amplimite HDF-20 series is known for compact size and ease of integration. Recommended for applications in power supply systems, communications, and instrumentation.
Package includes one 9-way male right angle cable D-sub connector. Explore more products in D-Sub Connectors category at EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current rating of 1.25A at 30V.
It operates reliably across a temperature range from -55°C to 105°C.
It uses IDC (Insulation Displacement Connector) termination type, facilitating quick and secure cable connections.
The contacts are made of phosphor bronze and are plated with gold over nickel for optimal conductivity and corrosion resistance.
This model features 9 contacts.
The pitch of this connector is 2.76 mm.
The housing is made of steel, providing mechanical protection and EMI shielding effectiveness.
This connector has a right angle orientation, making it suitable for installations with limited space.
It is suitable for industrial, electronic, and power connector applications requiring a compact right angle interface.
Available mounting options include standard holes and brass threaded inserts for enhanced stability during operation.
The connector is manufactured in India.
It accepts 28 AWG and 26 AWG cables.
